#RBC150450758

Tri-Band Antenna For Motorola APX8500 (AN000131A01) & Harris All band P25 Radio.150/450/758

  • Units Available: 56
List Price: Regular price $69.00
Tri-Band Antenna For Motorola APX8500 (AN000131A01) & Harris All band P25 Radio.150/450/758
Tri-Band Antenna For Motorola APX8500 (AN000131A01) & Harris All band P25 Radio.150/450/758
Tri-Band Antenna For Motorola APX8500 (AN000131A01) & Harris All band P25 Radio.150/450/758
Grey_arrow@2x Created with Sketch.
Created with Sketch.
#RBC150450758

Tri-Band Antenna For Motorola APX8500 (AN000131A01) & Harris All band P25 Radio.150/450/758

  • Units Available: 56
List Price: Regular price $69.00
Ships in 2-4 Weeks

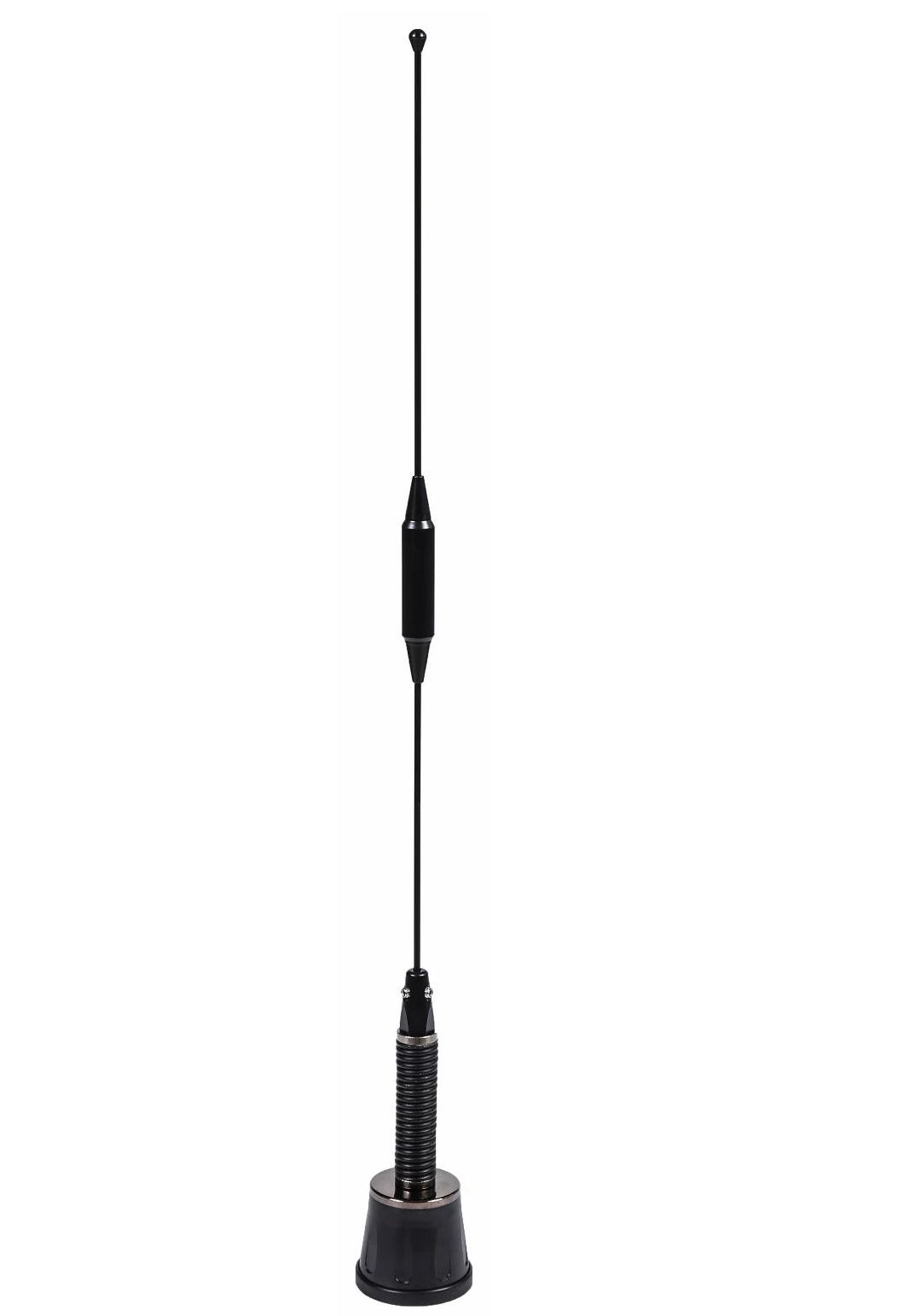

The RFMAX RBC150/450/758 is a Tri-band Whip antenna with a spring base designed for the Motorola’s APX8500™ and Harris Unity XG™, Harris All band & All-band P25 Radios. It is equivalent to the PCTEL PCTWSLMR and Motorola AN000131A01 all-band MONOPOLE antenna and operates over 150-174MHz, 430-520MHz & 750-870MHz offering a gain of 0dBi/5dBi/4dBi respectively. These antennas have standard NMO / New Motorola mounting. NMO cable kits must be purchased separately on this website. This antenna survives low hanging obstacles MUCH better than the AN000131A01 (PCTWSLMR). This antenna requires a ground plane.

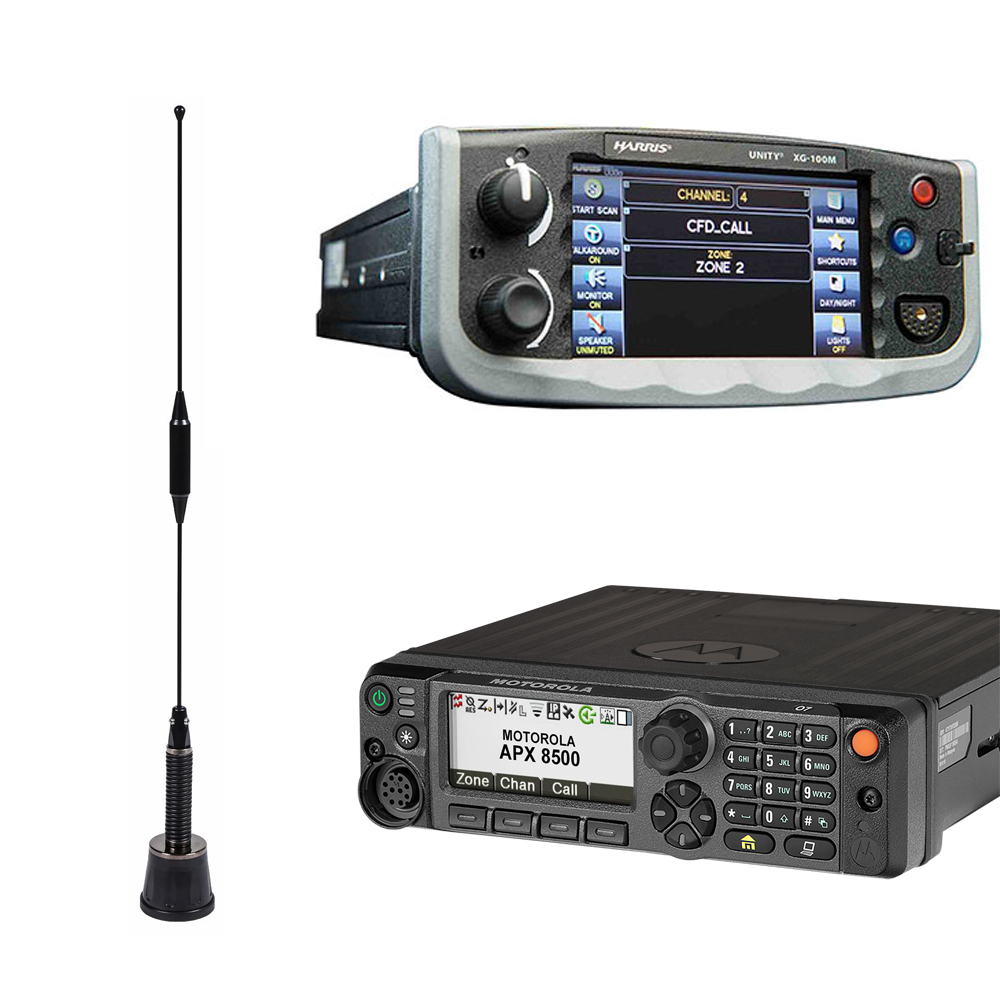

Compatible with: Motorola: APX8500, APX6500, Harris: Unity XG, DMR: CS800D

Description BlueArrow Created with Sketch.

Arcadian Inc. is pleased to present the RFMAX Triband Whip Antenna, part # RBC150/450/758 . This antenna was designed to be paired with the Motorola APX4500 &APX 8500, as well as the Harris All band mobile radios, and will maximize the coverage area of any All-band P25 mobile radio. These all-band radios enable first responders to use a single mobile radio to exchange critical voice and data communications between multiple agencies and jurisdictions operating on different frequency bands. The RBC150/450/758 triband whip antenna provides an all in one solution by offering just ONE antenna operating at all three bands: 150-174 MHz, 430-520 MHz, and 750-870MHz. We’ve heard from many users of the Motorola APX8500 that the antennas supplied by the manufacturer that have a tall solid base which cannot survive impact from branches and overhead structures, often causing the antenna to pull the entire NMO mount out of the vehicles rooftop. The RBC150/450/758 solves this problem by utilizing a low-positioned, flexible spring, to survive virtually any impact.

Documents BlueArrow Created with Sketch.

Specifications BlueArrow Created with Sketch.

color Black
connector 1 NMO
frequency range Tri-band (VHF-UHF-700/800 MHz)
ip rating IP67
lenght (in) 17.81 inches
material Stainless Steel
mfg part# RBC150/450/758
operating temp (celsius) -40 to +85 C
technology UHF/VHF/P25 (700-800) Triband
thick (in) 1.61 inches
type Base Coil Antennas
weight (lbs) 0.45 lbs.
