RHWA450STM

Antenna for AES Alarm IntelliNet Series Transceivers and Monitoring Systems

Antenna for AES Alarm IntelliNet Series Transceivers and Monitoring Systems

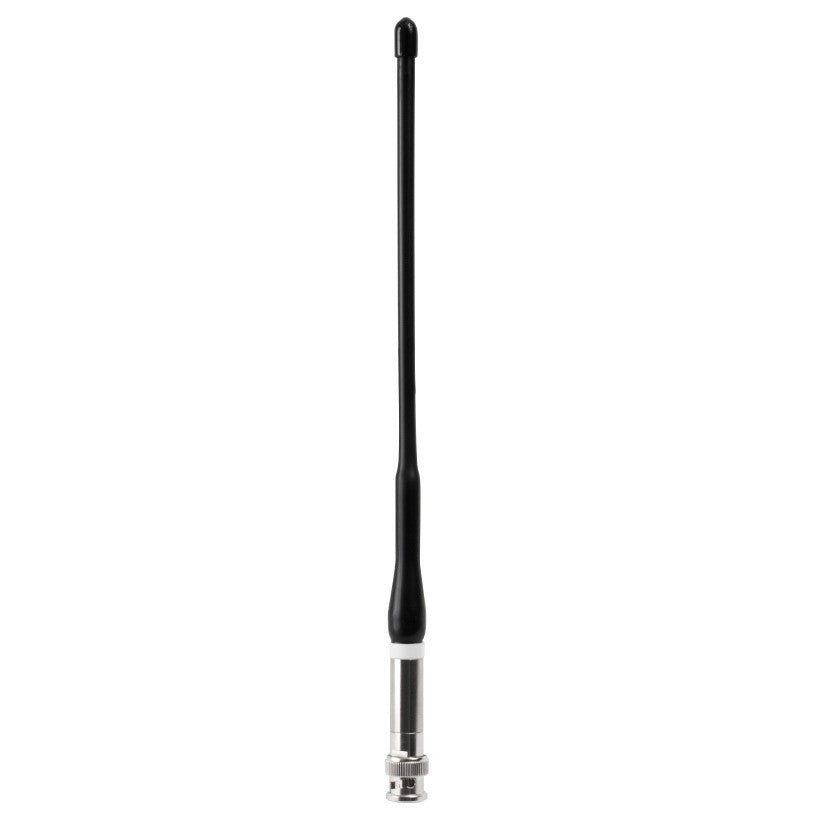

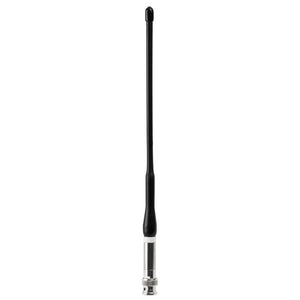

RFMAX's RHWA-450-STM "Tuf Duck" is a base loaded 1/2 wave antenna for UHF communication. It measures 10 inches long, operates at 450-470 MHz and offers 2.5 dB Gain with a TNC male connector. Operates at -40 to +85 C. Equivalent to Centurion Tuf Duck, & Antenex; GR-5.


FEATURES
• Base-loaded 1⁄2 wave flexible cable antenna
• Provides 2.5 dB gain over standard 1⁄4 wave antennas
• PVC coated exterior

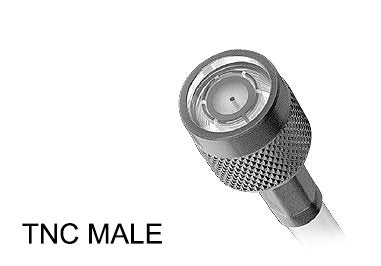

• TNC Male connector

Compatible with AES 7058E Series, 7350 Series, 7706 Integrated System, and 7788F / 7744F Transceivers.

Where to Buy
Technical Support Specifications

Technical Specifications

SKU RHWA450STM
Manufacturer RFMAX
