RY900-12-7-SNF-19

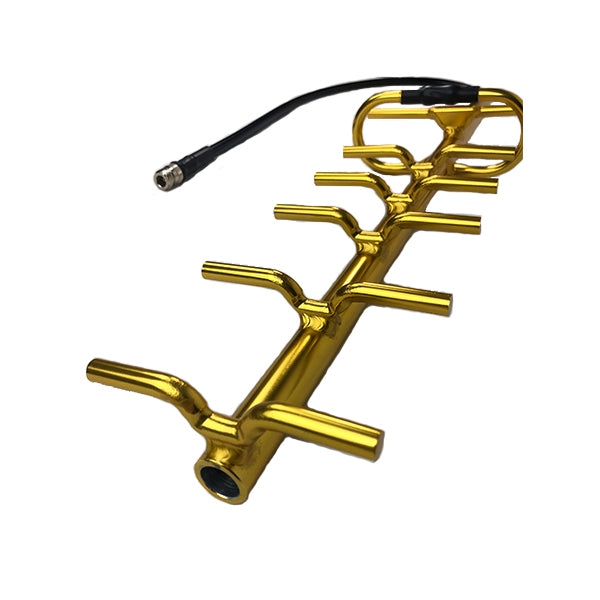

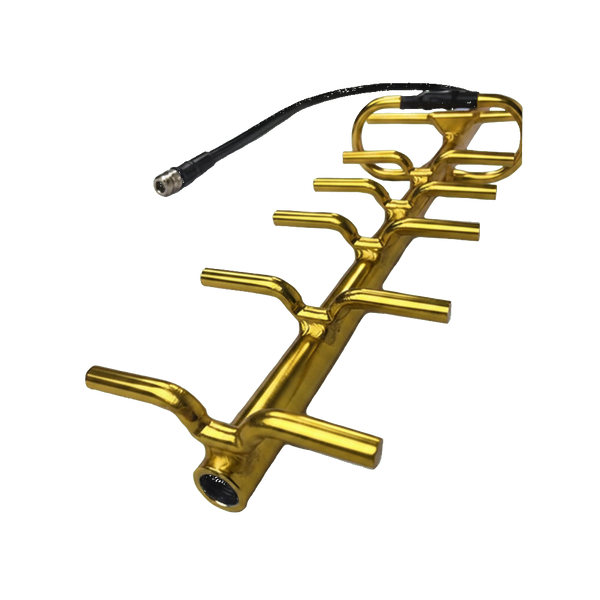

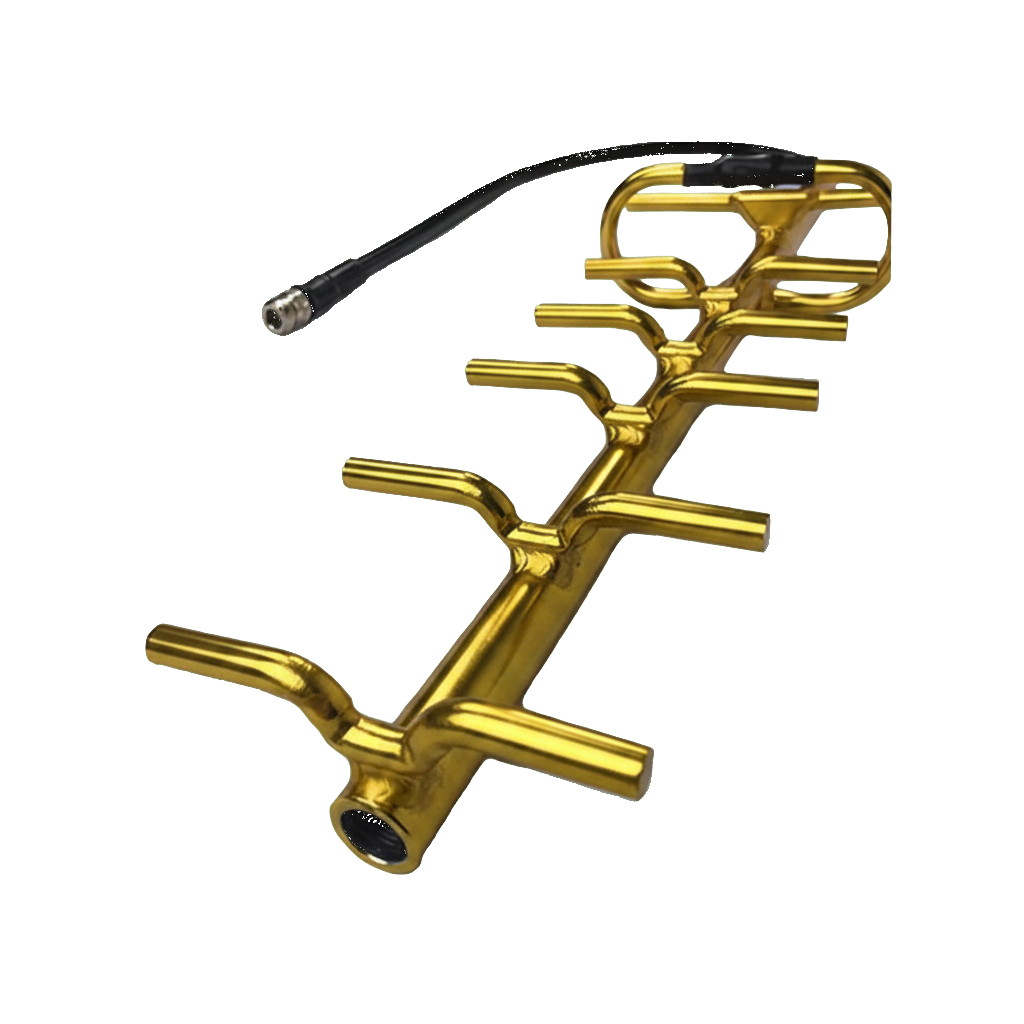

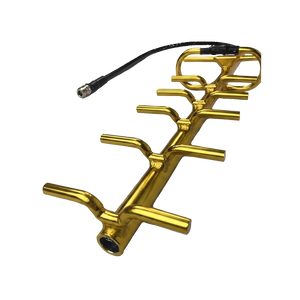

Yagi Antenna, Heavy Duty, Ultra Rugged 900 Mhz, 7 Element, 12 dbi, 880-960 Mhz TY-900 Kathrein Scala Equivalent
- 900 MHz Yagi antenna (880-960 MHz) for SCADA, ISM, and industrial wireless applications
- 7-element directional design with 12.2 dBi gain for long-range, high-performance links
- IP67-rated, gold anodized construction for extreme outdoor durability and corrosion resistance
- Features 360° welded elements and no gamma match to prevent detuning and ice buildup
- 200W max input power with 136 MPH wind survival rating for harsh environments

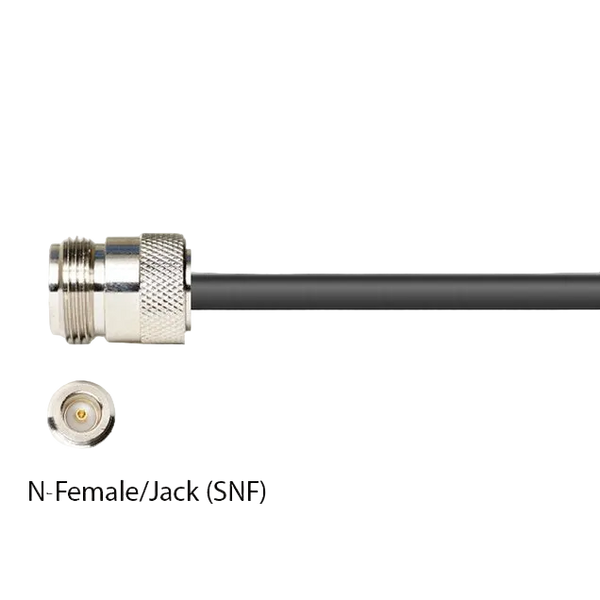

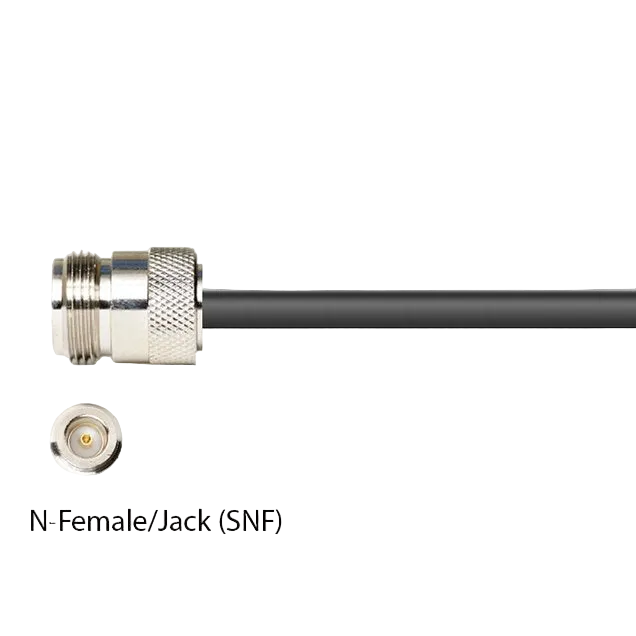

- Includes N-Female connector with 19" cable and cast aluminum mounting hardware
- Kathrein TY-900 equivalentcost-effective, high-performance alternative for mission-critical systems
- Compatible with Digi ConnectPort® X2, XBee® SX RF. XBee-Pro® 900HP RF, and XTend® 900 MHz RF, SecondSight MDS Orbit Platofrm, Orbit MCR 900 MHz, Orbit ECR, TransNET, iNet, and SD, Freewave FGR2-CE-U, FGR2-PE-U, FGR3-CE-U, FGR2-C-U, FGR2-T-U, FGR2-P. FGR-3-C-U, Z9-P2, Z9-PE, ZE-PE2, Z9-P2, and Z9-PE-DEVKIT, Microhard Nano, Nano IP, and Pico Series, and MultiTech MultiConnect® rCell 100 Series and MultiConnect® Cell 100 Series
Technical Specifications
| SKU | RY900-12-7-SNF-19 |
|---|---|
| Manufacturer | RFMAX |
| Cable Length (inches) | 19.2 |
| Cable Length (mm) | 488 |
| Cable Type | RG213/U |
| Color | Gold |
| Connector 1 | N-Female |
| Directional or Omni | Directional |
| Working Frequency | 880-960 MHz |
| Antenna Category | 900 MHz |
| Front/Back Ratio (Db) | 20 dB |
| Gain | 12.2 |
| Height/Length (inches) | 24 |
| Height/Length (mm) | 610 |
|---|---|
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Max Input Power (W) | 200 |
| No Of Elements | 7 |
| Polarity | Linear |
| Thickness/Diameter (inches) | 3.11 |
| Thickness/Diameter (mm) | 79 |
| VSWR: < X: 1 | 1.5:1 |
| Weight (grams) | 1370 |
| Weight (lbs) | 3.02 |
| Width (inches) | 6.61 |
| Width (mm) | 168 |
