YS4306-Rev2

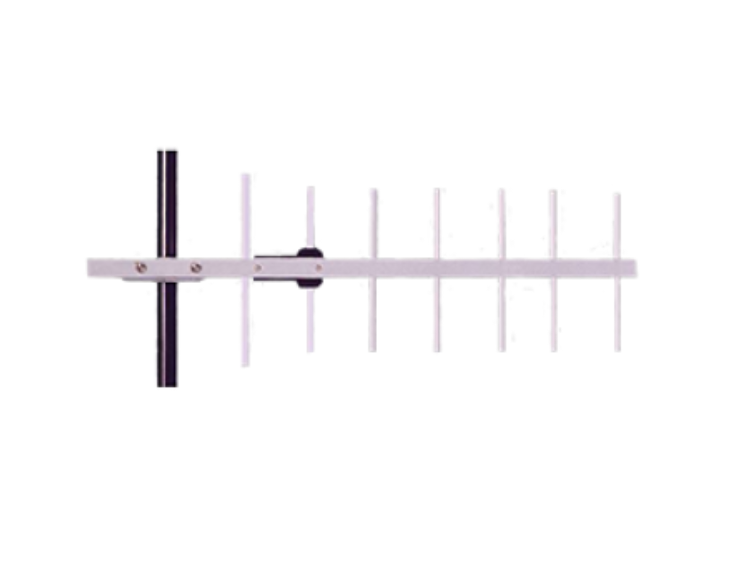

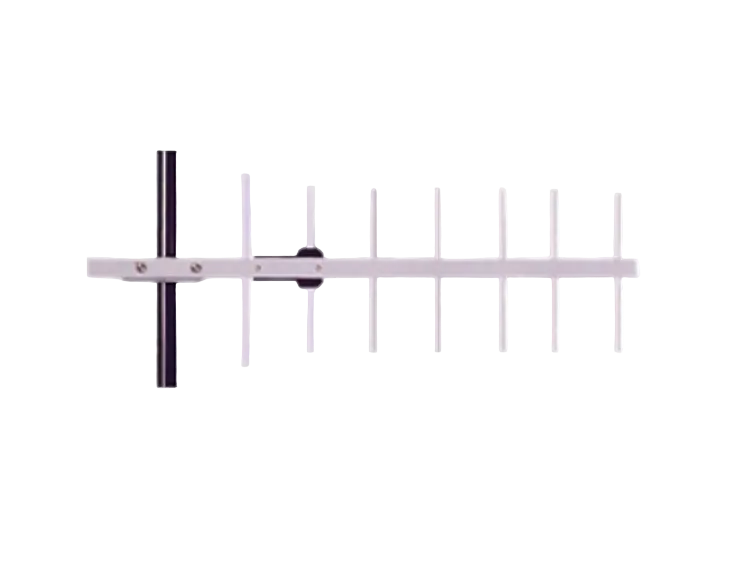

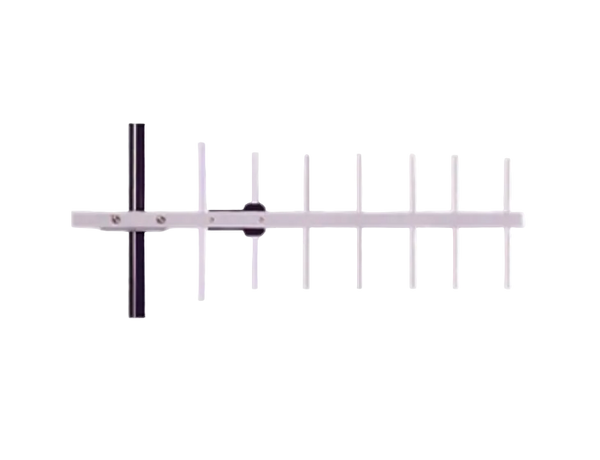

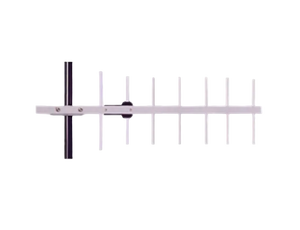

Yagi Antenna for 434 MHz CTT / MOTUS Tracking Systems, 7 element, 10.4 dBi, N-Female Connector
- 430-450 MHz UHF Yagi antenna for SCADA, telemetry, and industrial wireless applications
- 6-element design with ~12 dBi gain for long-range directional performance
- Welded aluminum construction for rugged outdoor durability
- Fixed N-Female connector (50 Ohm) for secure RF connectivity
- Low VSWR (~1.5:1) for efficient signal transmission
- IP67-rated, outdoor-ready for harsh environments
- Ideal for utilities, transportation, and remote monitoring systems
Technical Specifications
| SKU | YS4306-Rev2 |
|---|---|
| Manufacturer | RFMAX |
| Color | Chrome |
| Connector 1 | N-Female |
| Directional or Omni | Directional |
| Working Frequency | 430-450 MHz |
| Antenna Category | UHF (380-600 MHz) |
| Gain | 10.4 dBi |
| Ground Plane Required | No |
| Height/Length (inches) | 43 |
|---|---|
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| No Of Elements | 7 |
| Operating Temp (celsius) | (-30 to 70) C |
| Polarity | Linear |
| VSWR: < X: 1 | 1.5:1 |
| Weight (lbs) | 4 |
