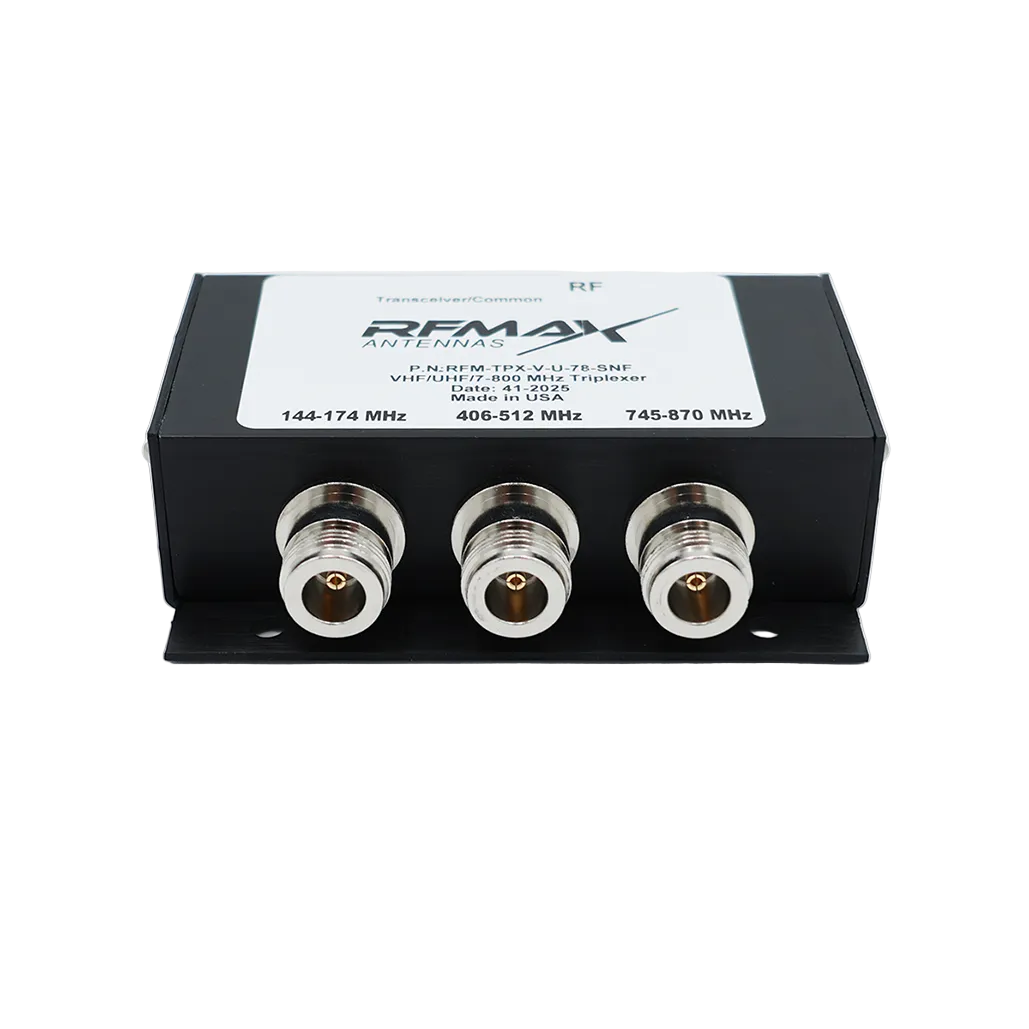

RFM-TPX-V-U-78-SNF

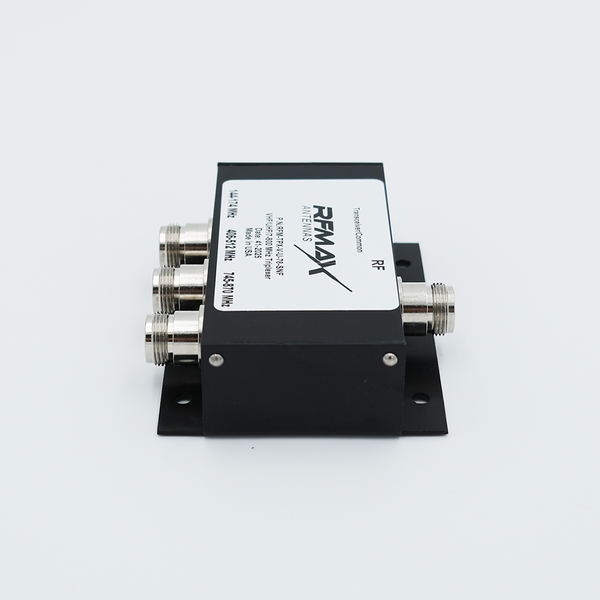

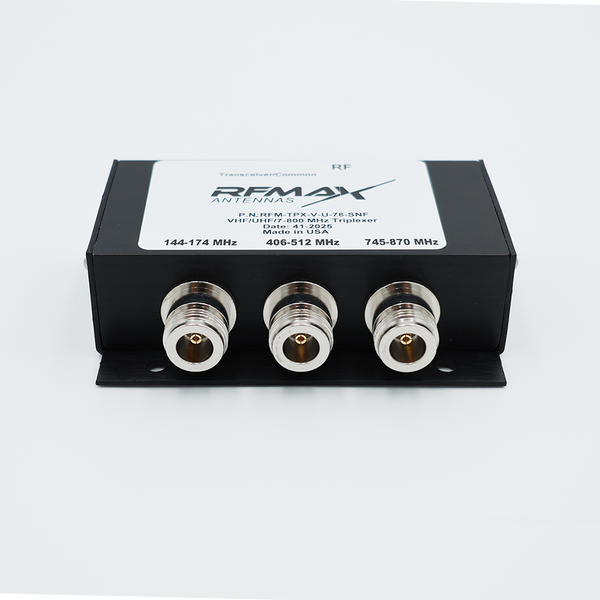

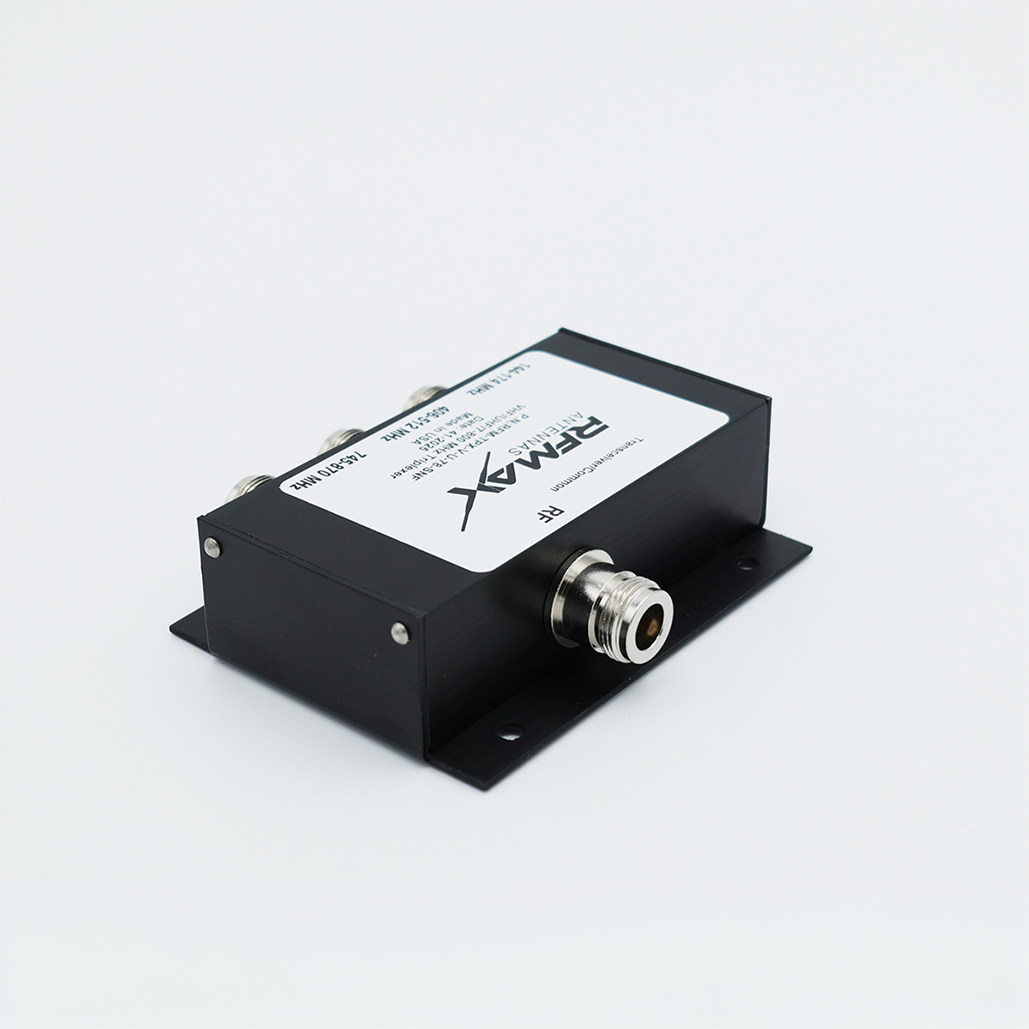

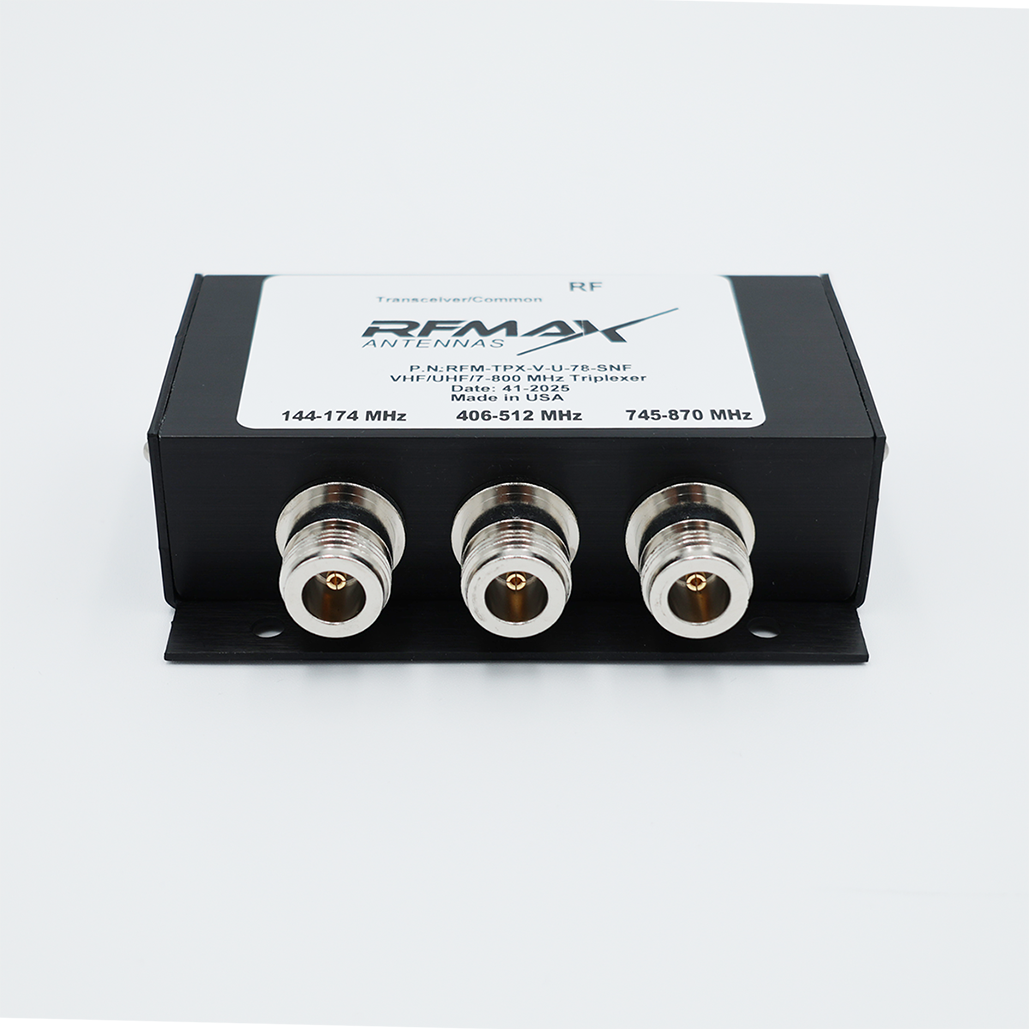

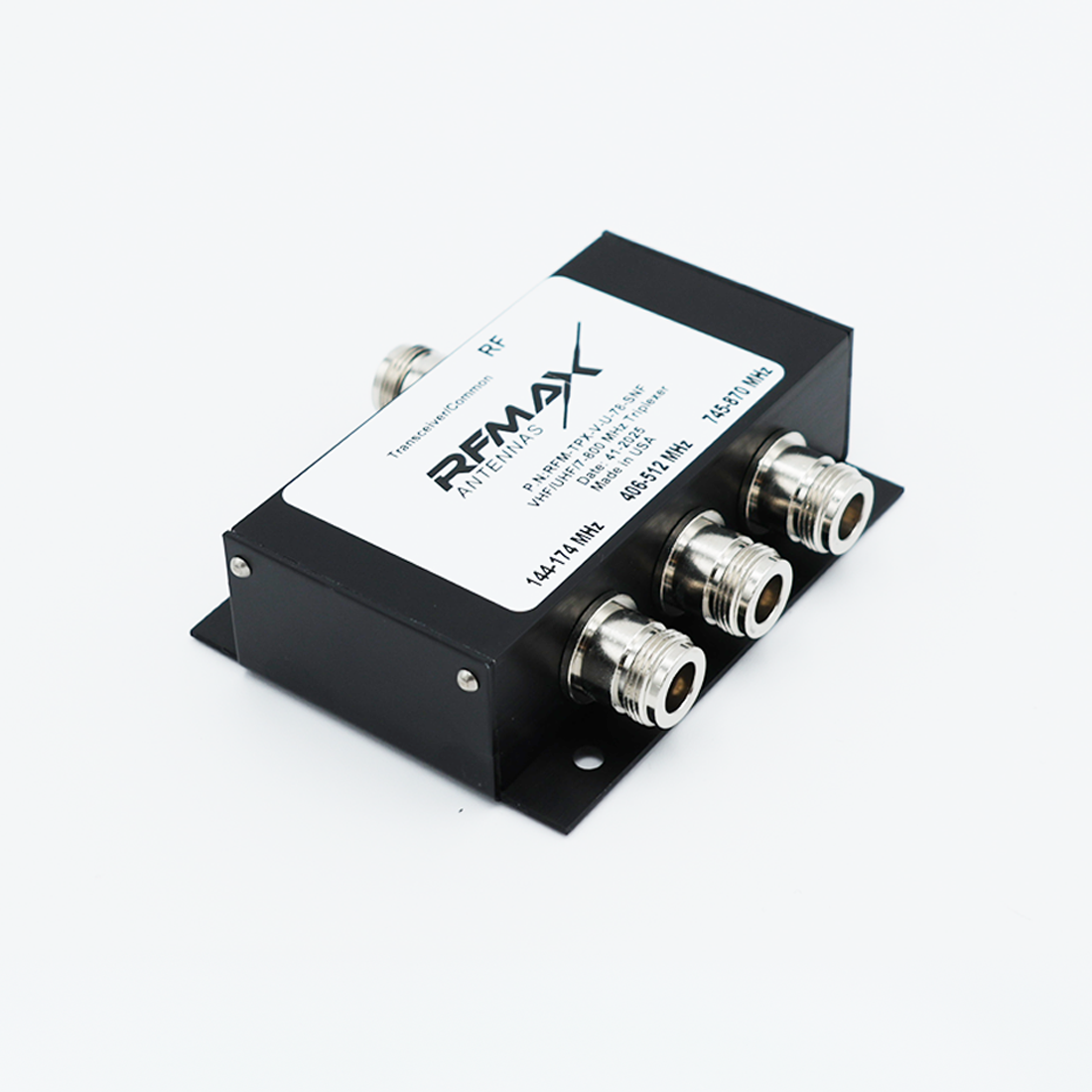

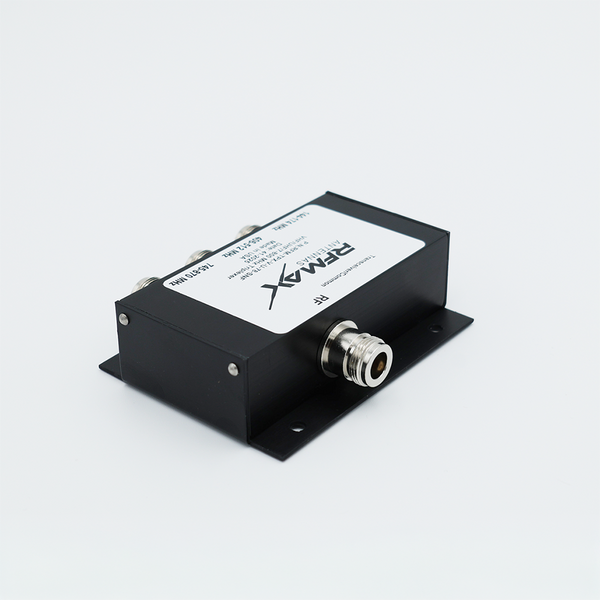

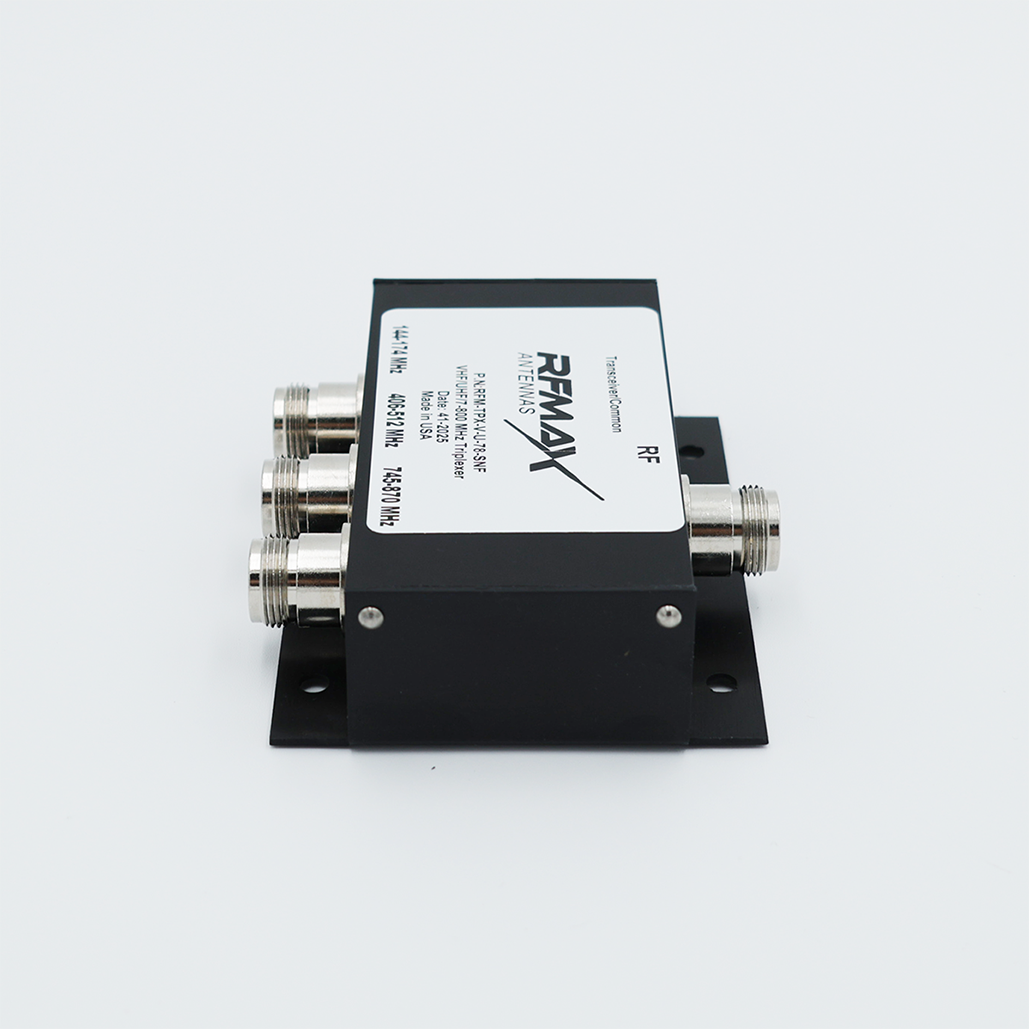

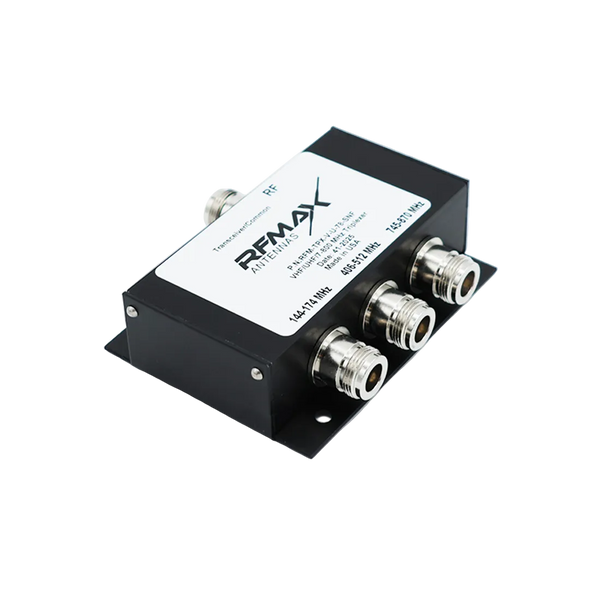

Wideband Triplexer for VHF/UHF/7-800 MHz
- Working frequencies: 144-174 MHz, 406-512 MHz, 745-870 MHz
- Designed for tri-band radios such as Kenwood / EF Johnson Viking Mobile VM7000 & VM8000
- Built with rugged, black-anodized aluminum housing and precision-machined Type N-female connectors
- High isolation (~50 dB) and VSWR <2:1 across all ports
- Low insertion loss (~0.4 dB) for maximum signal integrity
- 150 W power rating for high-power radio systems
- Weather-resistant, black-anodized aluminum construction with N-female connectors
Technical Specifications
| SKU | RFM-TPX-V-U-78-SNF |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | N-Female |
| Connector 2 | N-Female |
| Connector 3 | N-Female |
| Working Frequency | 144-174 MHz |
| Working Frequency 2 | 406-512 MHz |
|---|---|
| Working Frequency 3 | 745-870 MHz |
| Antenna Category | Tri-band (VHF-UHF-700/800 MHz) |
| Height/Length (inches) | 1-3/16" |
| Max Input Power (W) | 150 Watts |
| VSWR: < X: 1 | <2.0:1 |
| Width (inches) | 3-1/4" |
