RVEN-MM-60/71-10-S-B

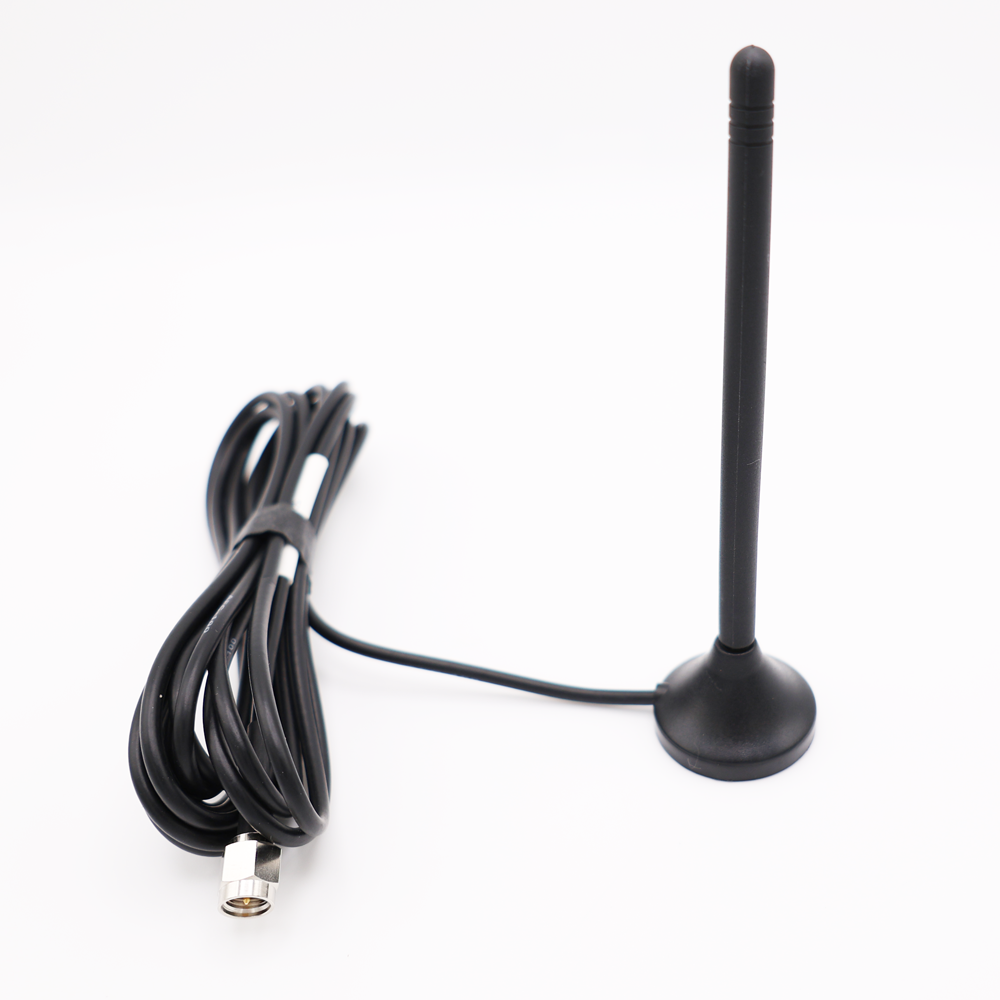

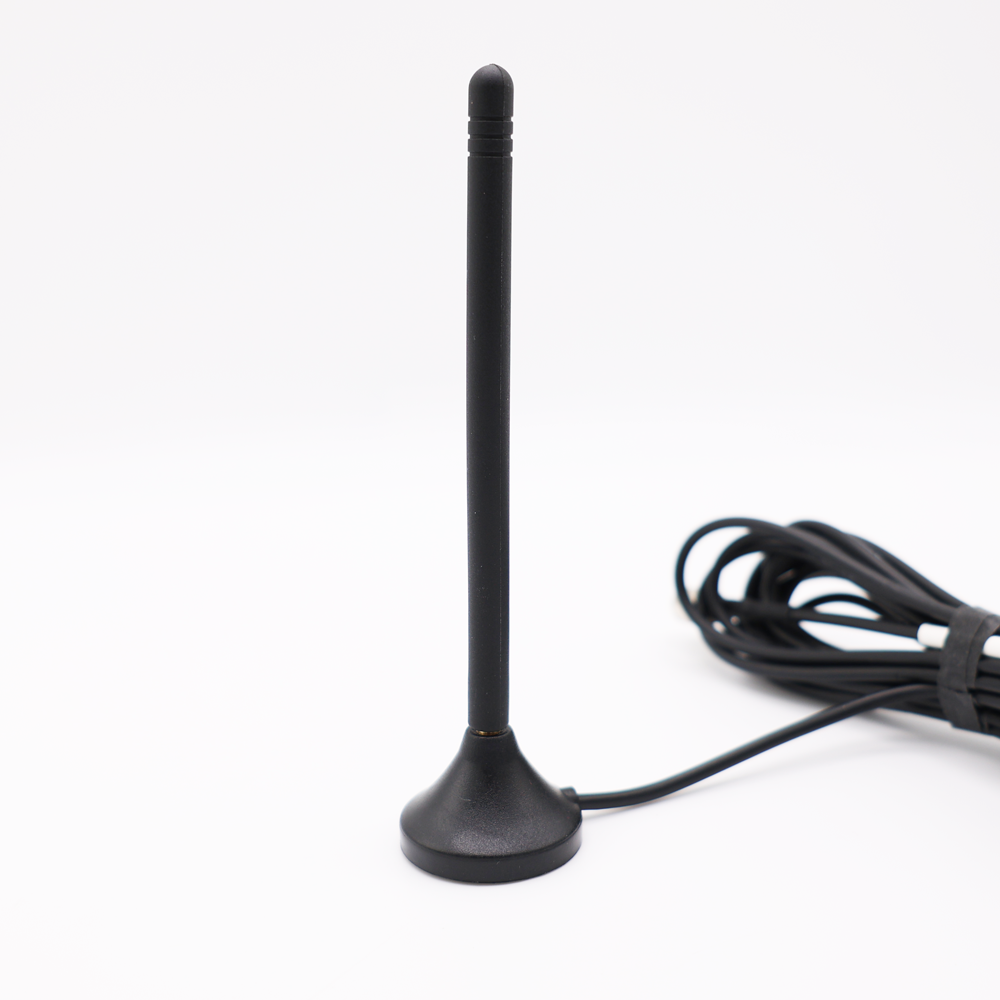

Wideband 5G/WiFi-6E Magnetic Mount Antenna for Vending Machines, ATMs and Kiosks
- Multi-band antenna supporting 4G LTE, 5G, Wi-Fi 6/6E, ISM, and cellular IoT frequencies for reliable, high-speed connectivity with SMA Male Connector
- Purpose-built for IoT and M2M applications including vending machines, kiosks, smart retail systems, and payment terminals
- Ensures real-time monitoring, secure data transmission, and remote device management with low-latency performance
- Compact, magnetic-mount design enables quick installation and flexible deployment in indoor or outdoor environments
- Rugged, weather-resistant construction built to perform in high-traffic and harsh conditions
- Trusted by leading cashless payment providers including Castle, Nayax, Cantaloupe, USA Technologies, and Ingenico
- 5G-ready with plug-and-play integration to simplify upgrades, maximize uptime, and support long-term network reliability
Technical Specifications
| SKU | RVEN-MM-60/71-10-S-B |
|---|---|
| Manufacturer | RFMAX |
| Cable Length (inches) | 120 |
| Cable Type | Low Loss -100 |
| Color | Black |

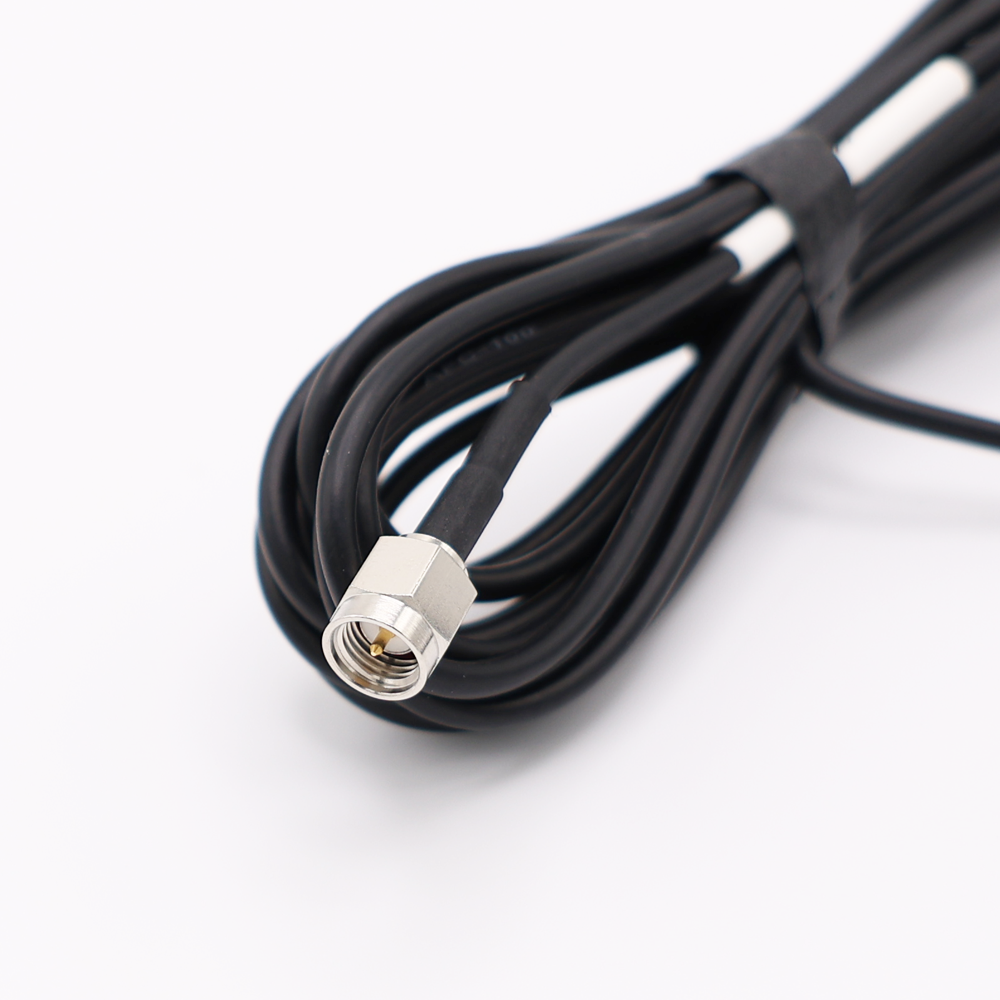

| Connector 1 | SMA Male |
| Connector Type | SMA Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 600-7125 MHz |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Gain | 3 dBi |
| Height/Length (inches) | 4.6 |
| Height/Length (mm) | 116.5 |
|---|---|
| OK for Outdoor Use | Outdoor |
| IP Rating | IP65 |
| Length pt240 cables | 10 Feet |
| Material | TPR/ABS |
| Mount Style | Magnetic |
| Operating Temp (celsius) | -20 to +60 |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 1.14 |
| Thickness/Diameter (mm) | 29 |
| VSWR: < X: 1 | <2.0:1 |
| Weight (grams) | 47 |
