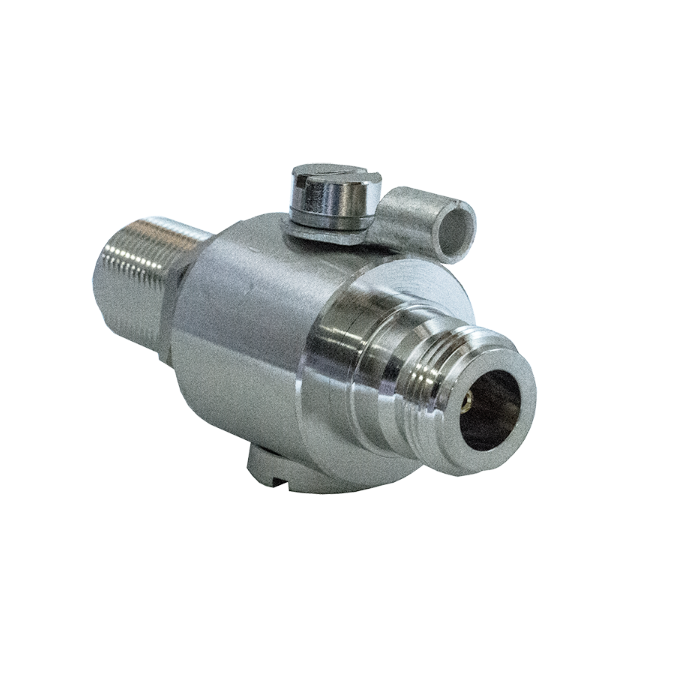

RSP-90-3-SNF-SNFBH
UL Certified Coaxial Surge Suppressor / Lightning Arrestor for RF Frequencies up to 3.5 GHz. N-female to N-female Bulkhead.
- Ideal for VHF, UHF, 700/800 Mhz public safety radio, 900 mhz ISM, LoRA, Spread Spectrum and RFID, Cellular systems
- RF Frequency range: 100 MHz -3.5 GHz
- Insertion loss: < 0.2 dB
- Return loss: > 20 dB, VSWR: <1.2:1
- Max. load current: 0.416
- Residual Current (Leakage current to Ground): None
- Operating current (Continious current at Uc): None
- Max. discharge current (max. withstand @ 8/20 ?s by pole): 20 kA
- Protection mode: Common mode
- Protection level (@ In (8/20?s)): < 700 V
- Impulse current(2 x 10/350?s Test - D1 Category): 1 kA
- Nominal discharge current(8/20?s Test x 10 - C2 Category): 5 kA
- Max Radio output Power: 25 W
- Typical let through energy (50 ohms) input 4kV 1.2/50?s -2kA 8/20?s): 300 ?J
- DC Pass: true
- Insulation resistance: ?10 GOhms
Technical Specifications
| SKU | RSP-90-3-SNF-SNFBH |
|---|---|
| Manufacturer | RFMAX |
| Color | Chrome |
| Connector 1 | N-Female |
| Connector 2 | N-Female Bulkhead |
| Working Frequency | 150 MHz VHF |
| Working Frequency 2 | 450 MHz UHF |
| Working Frequency 3 | 700/800 Public Safety |
| Working Frequency 4 | 900 MHz ISM, LoRA, Spread Spectrum or RFID |
| Working Frequency 5 | 3G/4G/LTE 617-3800 MHz |
| Height/Length (mm) | 64 mm |
|---|---|
| OK for Outdoor Use | Outdoor |
| IP Rating | IEC 61643-21 / EN 61643-21 / UL497C / UL497E |
| Max Input Power (W) | 25 |
| Mount Style | Bulkhead Mount |
| No Of Elements | 1 |
| Operating Temp (celsius) | (-40C) to (+85C) |
| Thickness/Diameter (mm) | 26 mm |
| VSWR: < X: 1 | 1.2:1 |
| Weight (grams) | 0.135 kg |
