RBCO-490-3-SC-FT
UHF Basecoil Antenna 440-520 MHz Field Tunable with Spring, 3 db for high power Radios
- 440-520 MHz Field Tunable mobile whip antenna for LMR, public safety, and M2M applications
- Omnidirectional base coil design with vertical polarization for 360° coverage
- Engineered for performance with 50 Ohm impedance, <2:1 VSWR, and 200W power handling
- Stainless steel whip with chrome NMO base for rugged vehicle installations

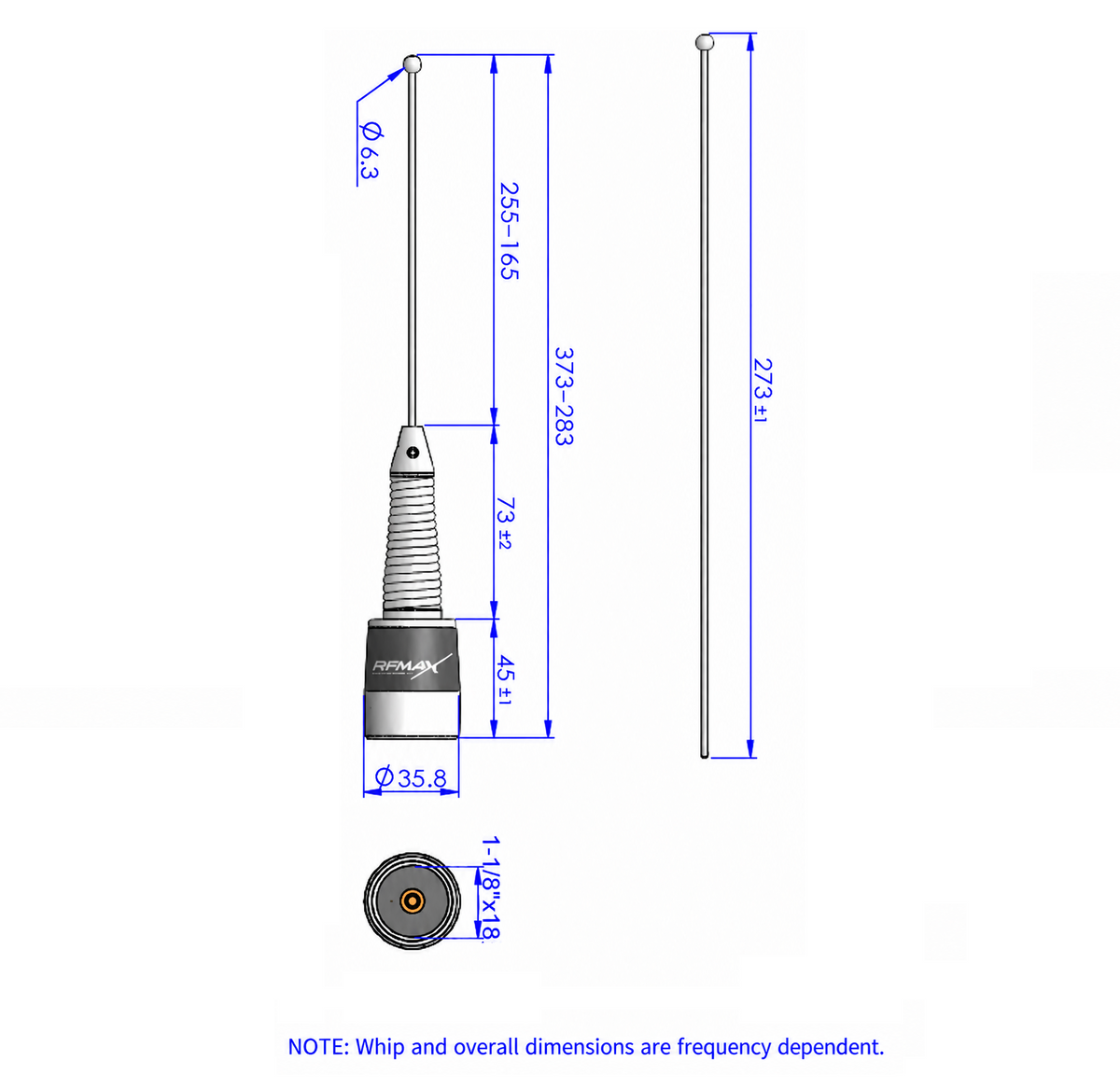

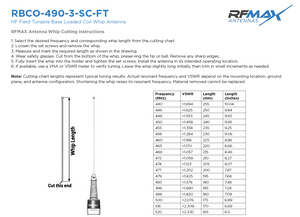

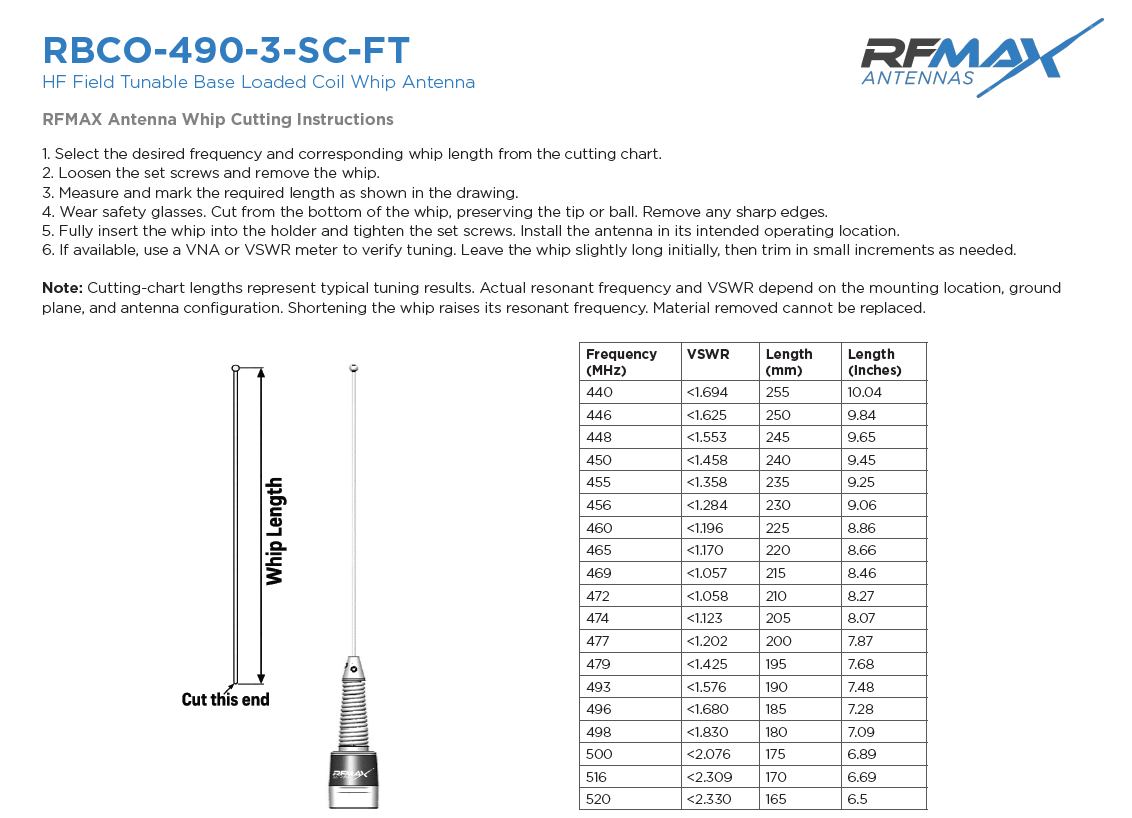

- Overall Length of 14.69", Cut chart provided
- IP67-rated, weatherproof construction for harsh outdoor environments
Technical Specifications
| SKU | RBCO-490-3-SC-FT |
|---|---|
| Manufacturer | RFMAX |
| Color | Chrome |
| Directional or Omni | Omni Directional |
| Working Frequency | 440-520 MHz |
| Antenna Category | UHF (380-600 MHz) |
| Gain | 3 dB |
| Ground Plane Required | Yes |
| Height/Length (inches) | 14.69 |
| Height/Length (mm) | 373 |
|---|---|
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Max Input Power (W) | 200W |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 1.41 |
| Thickness/Diameter (mm) | 35.8 |
| VSWR: < X: 1 | 2:1 |
