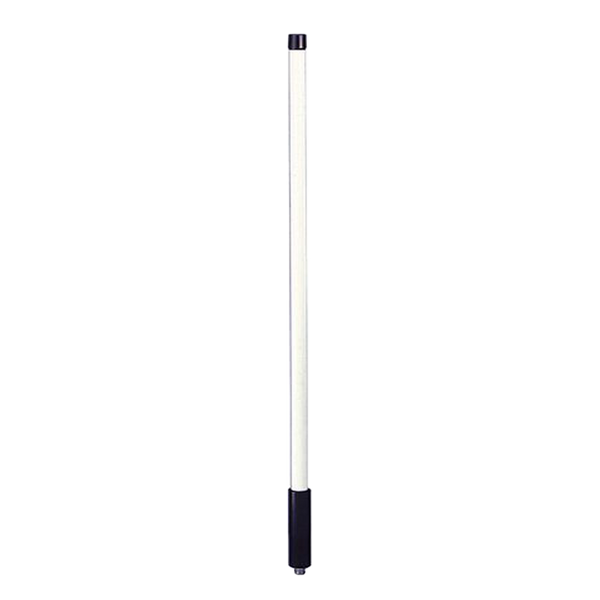

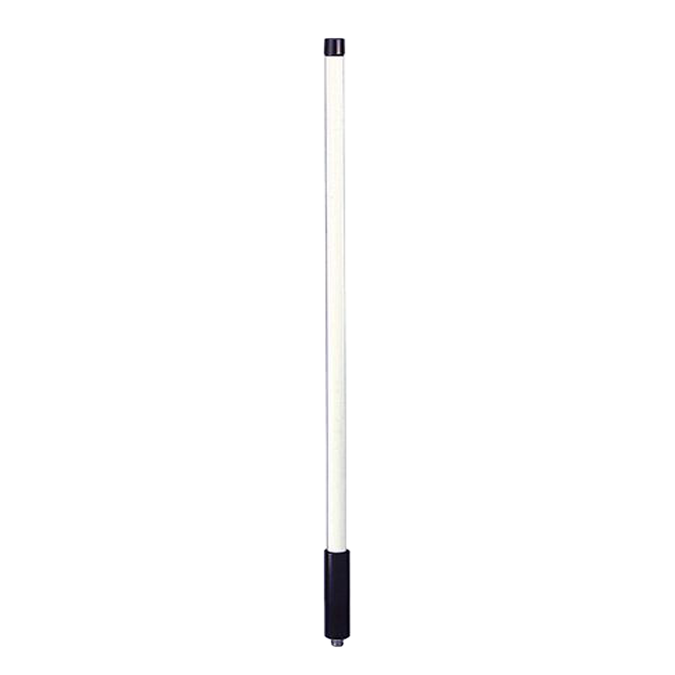

ROSA-150/450/758-SNF
Tri-Band Base Station Antenna VHF/UHF/P25, N-Female
- Tri-band base station antenna (VHF/UHF/P25) covering 138-174 MHz, 380-512 MHz, and 700-960 MHz
- 200W high-power omnidirectional antenna for full 360° public safety coverage
- Rugged fiberglass construction for long-term outdoor durability and reliability, 4.2 Ft tall
- 200 MPH wind survival rating for extreme weather deployments
- N-Female connector (50 Ohm) for secure, low-loss RF performance
- IP67-rated, all-weather design with wide operating range (-40°C to +80°C)
- Ideal for P25 systems, public safety, utilities, and mission-critical communications networks
Technical Specifications
| SKU | ROSA-150/450/758-SNF |
|---|---|
| Manufacturer | RFMAX |
| Color | White |
| Connector 1 | N-Female |
| Directional or Omni | Omni Directional |
| Working Frequency | 138-174 MHz |
| Working Frequency 2 | 380-512 MHz |
| Working Frequency 3 | 700-960 MHz |
| Antenna Category | Tri-band (VHF-UHF-700/800 MHz) |
| Gain | 2 dBi |
| Height/Length (inches) | 50.5 |
|---|---|
| Height/Length (mm) | 1282.7 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | White Fiberglass Radome |
| Max Input Power (W) | 200 Watts |
| Operating Temp (celsius) | -40°C to 80°C |
| Thickness/Diameter (inches) | Radome: 2" Base Body: 2.5" |
| Thickness/Diameter (mm) | Radome: 50.8mm Base Body: 63.5mm |
| VSWR: < X: 1 | <2.5:1 Max |
