RBC150/450/758

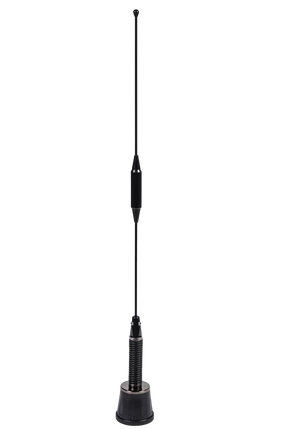

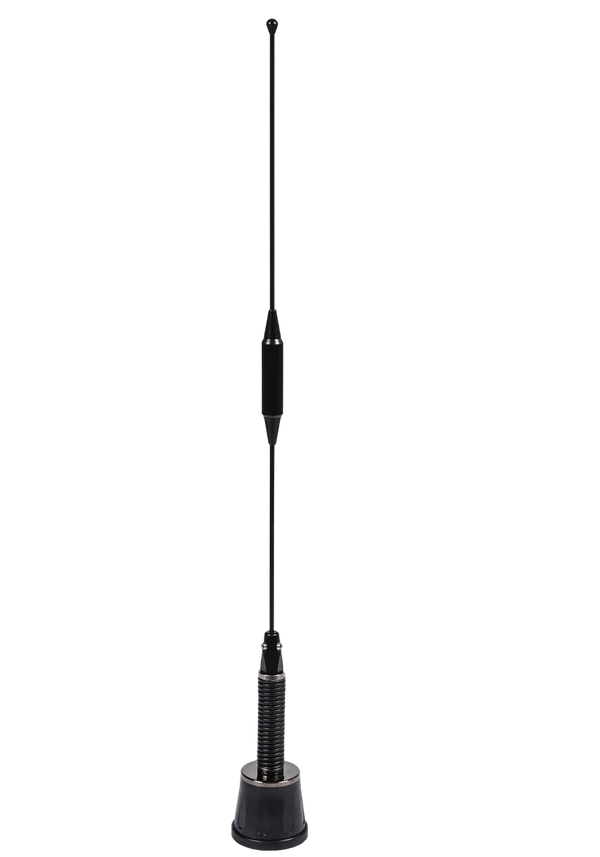

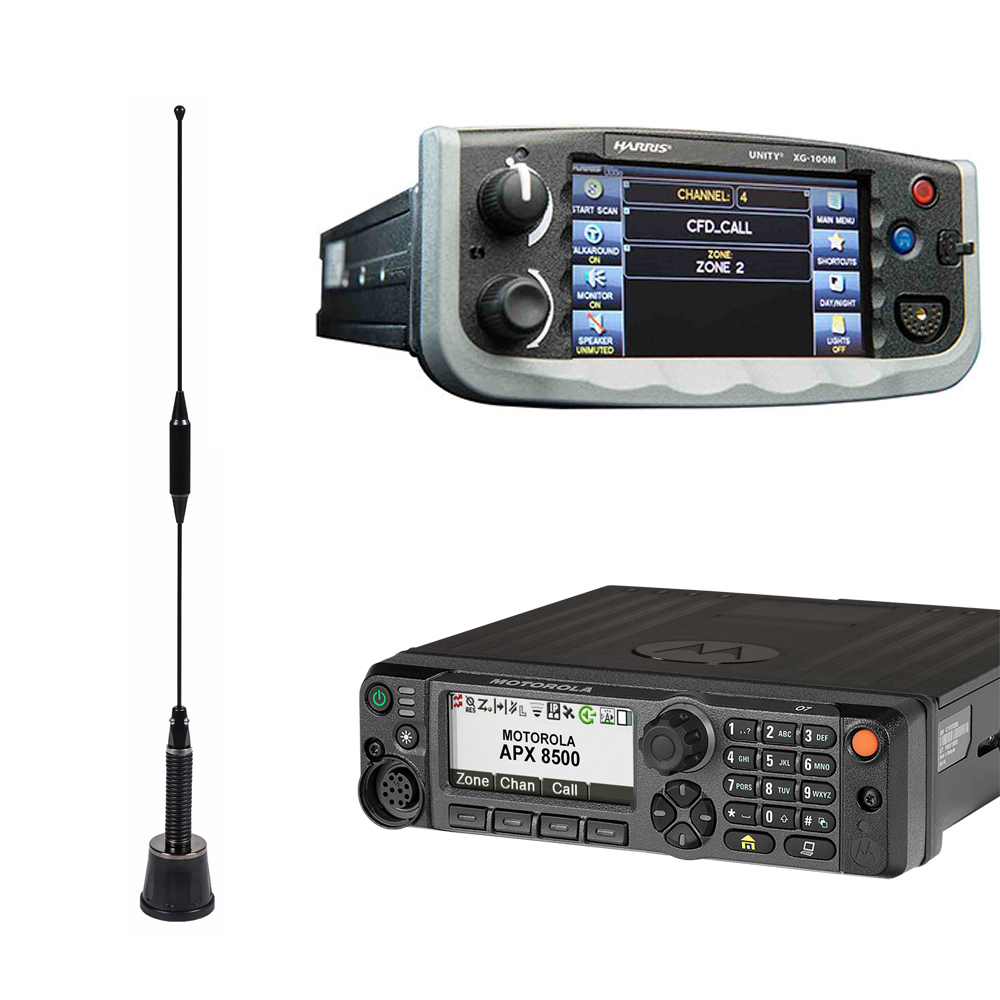

Tri-Band Antenna For Motorola APX8500 (AN000131A01) & Harris All band P25 Radio
Configuration
- Tri-band Whip antenna with a spring base designed for the Motorolas APX8500 and Harris Unity XG, Harris All band & All-band P25 Radios
- Equivalent to the PCTEL PCTWSLMR and Motorola AN000131A01 all-band MONOPOLE antenna
- Frequency: 150-174 MHz (VHF), 430-520 MHz (UHF) & 750-870 MHz (700/800/P25) offering a gain of 0dBi/5dBi/4dBi

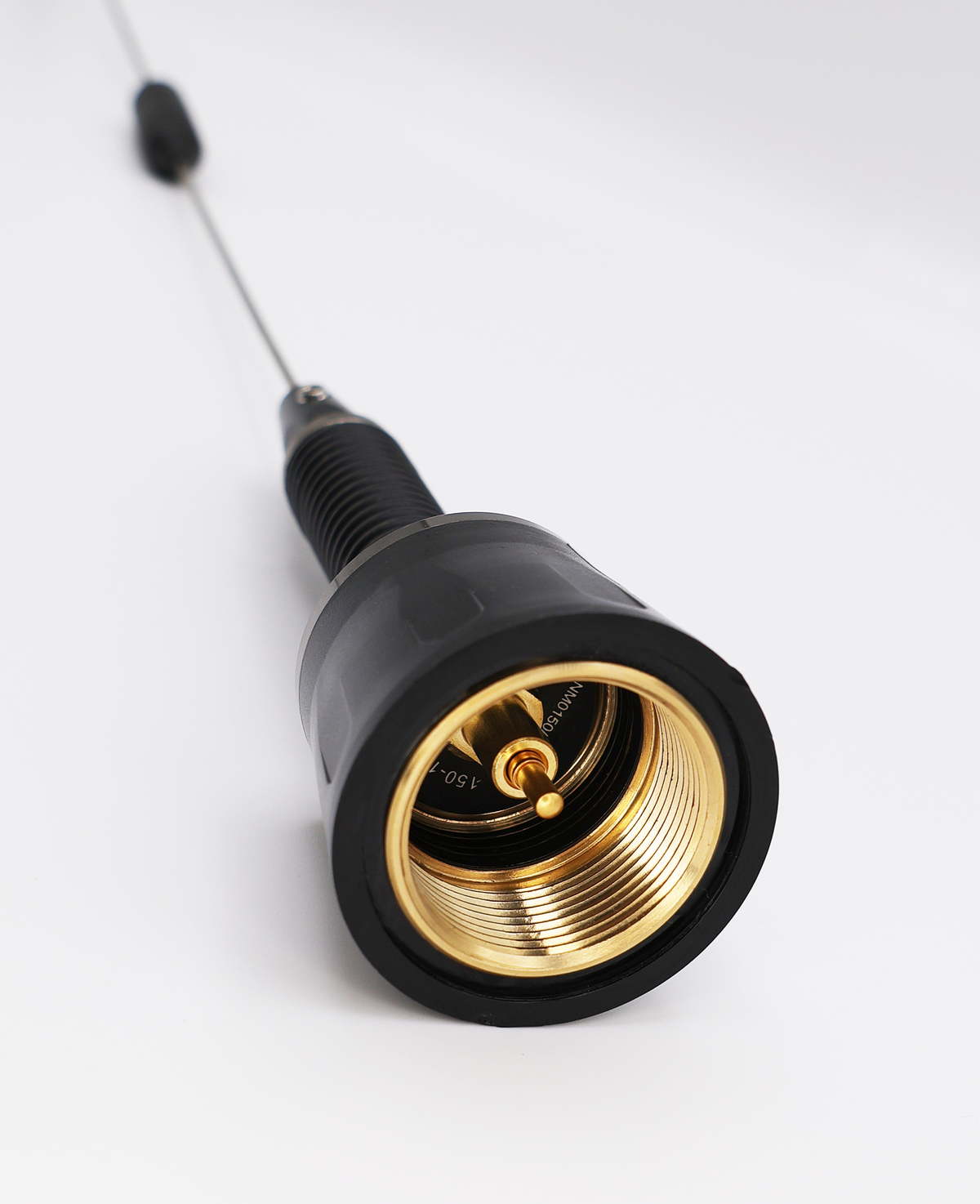

- These antennas have standard NMO / New Motorola mounting. NMO cable kitsmust be purchased separately on this website
- This antenna survives low hanging obstacles MUCH better than the AN000131A01 (PCTWSLMR)
- Compatible with: Motorola: APX8500, APX6500, Harris: Unity XG, DMR: CS800D

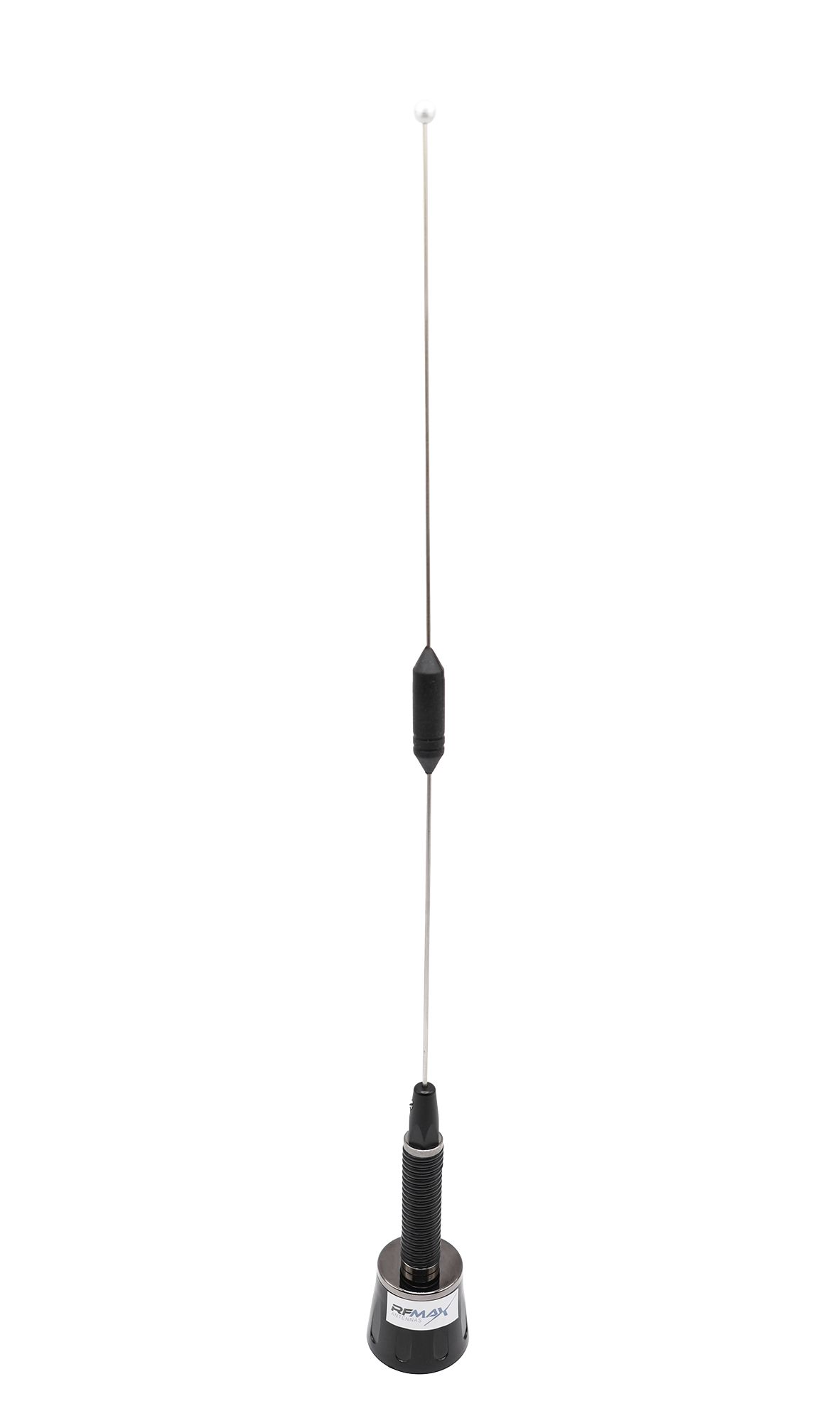

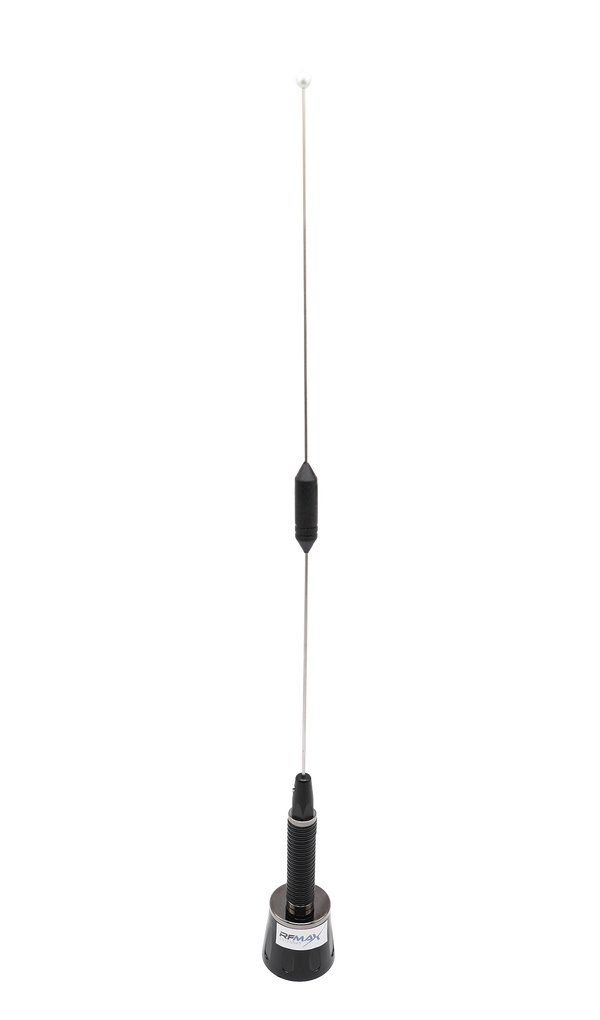

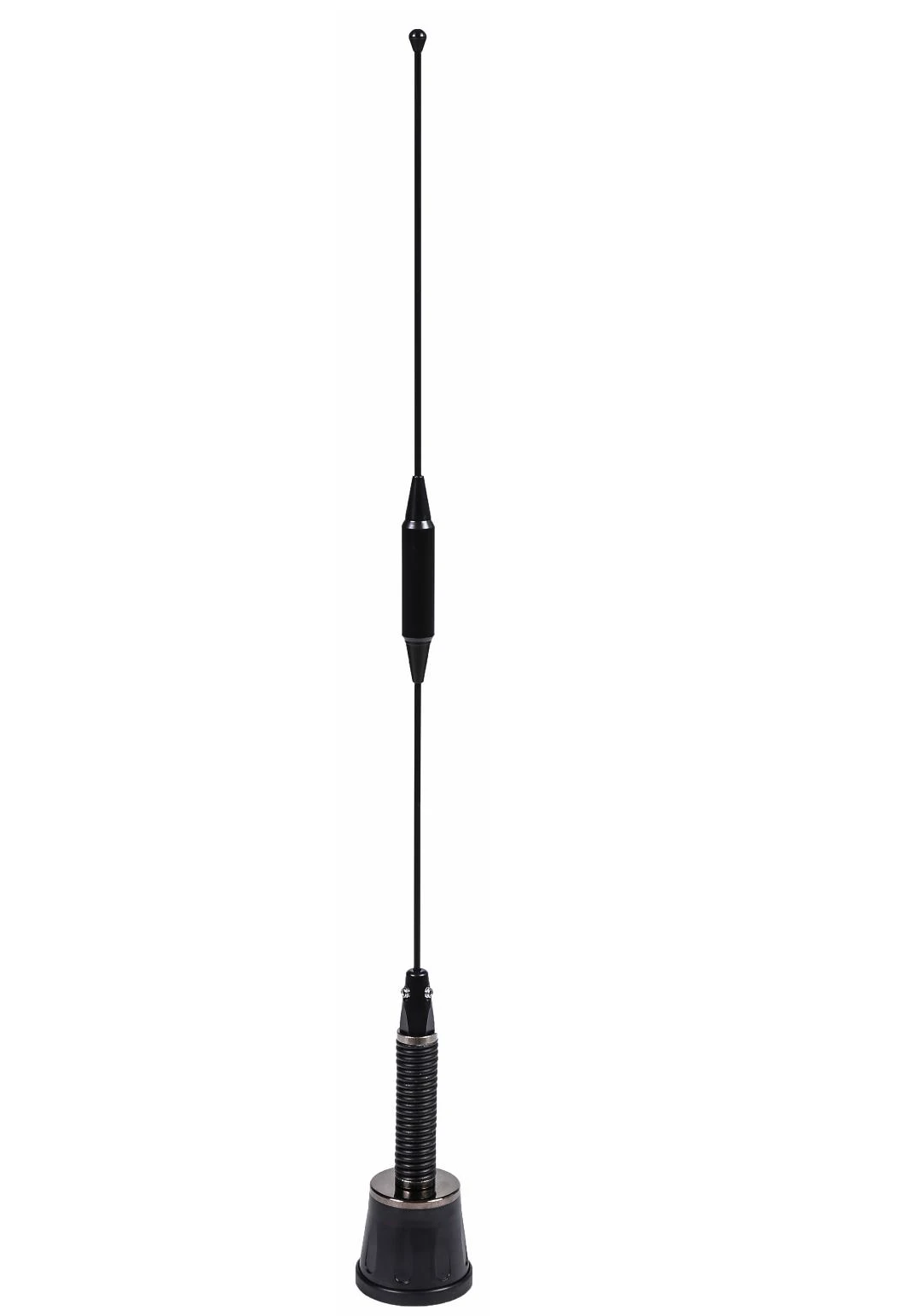

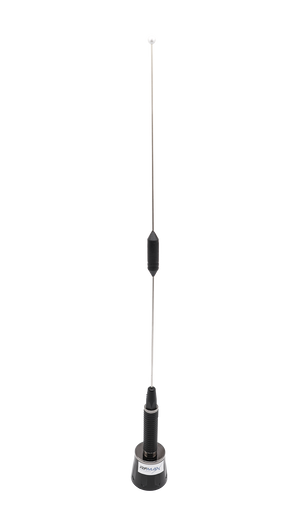

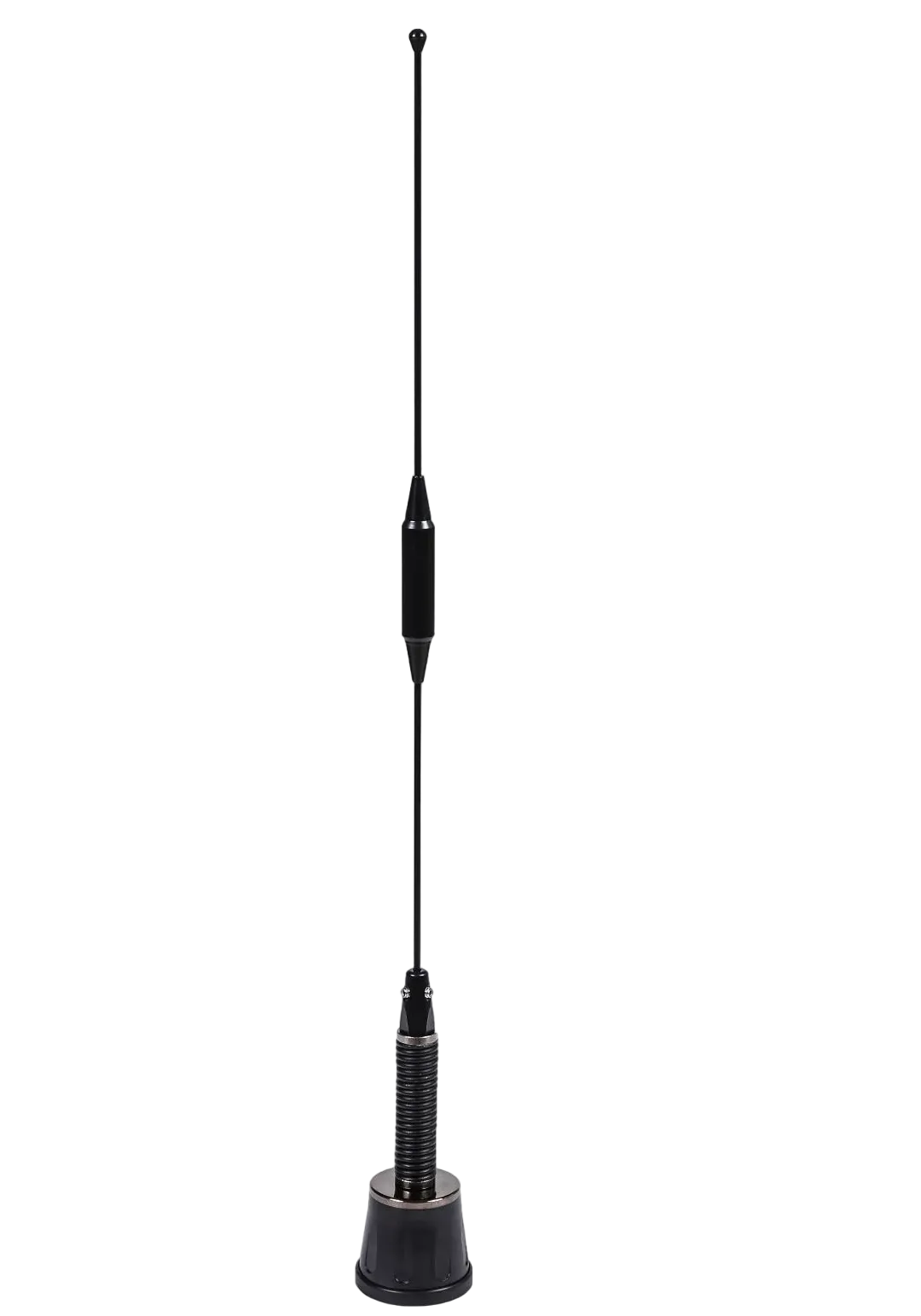

- Available in Standard Whip and Super Flexible Whip
Technical Specifications
| SKU | RBC150/450/758 |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | NMO |
| Directional or Omni | Omnidirectional |
| Working Frequency | VHF:150-174 MHz |
| Working Frequency 2 | UHF: 430-520 MHz |
| Working Frequency 3 | P25: 700/800: 750-870 MHz |
| Antenna Category | Tri-band (VHF-UHF-700/800 MHz) |
| Gain | Unity 0 dBi |
| Gain 2 | 5 dBi |
| Gain 3 | 4 dBi |
| Height/Length (inches) | 17.81 inches |
| Height/Length (mm) | 452.5 mm |
|---|---|
| IP Rating | IP67 |
| Material | Stainless Steel |
| Max Input Power (W) | 100 Watts |
| Mount Style | NMO |
| Operating Temp (celsius) | -40 to +85 C |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 1.61 inches |
| Thickness/Diameter (mm) | 40.9 mm |
| VSWR: < X: 1 | <2:1 at 150-165, 430-490 & 750-870 MHz. <2.5:1 at 165-174 & 490-520 MHz |
| Weight (grams) | 205 grams |
| Weight (lbs) | 0.45 lbs. |
