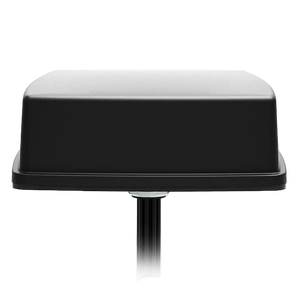

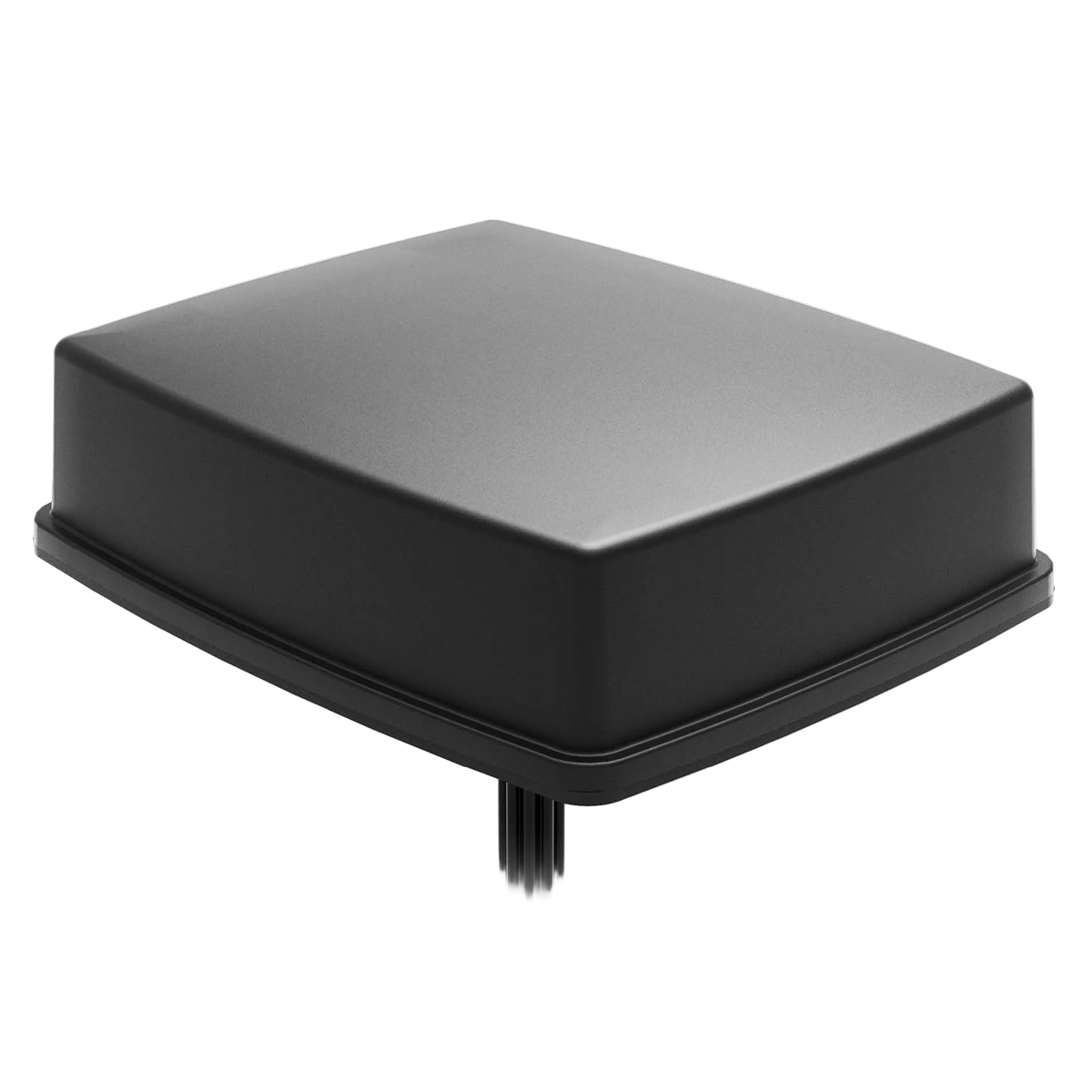

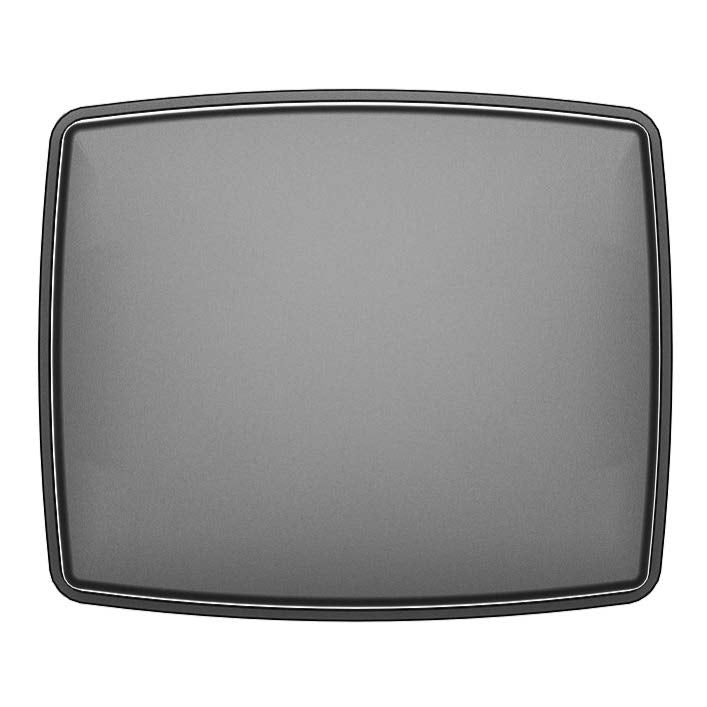

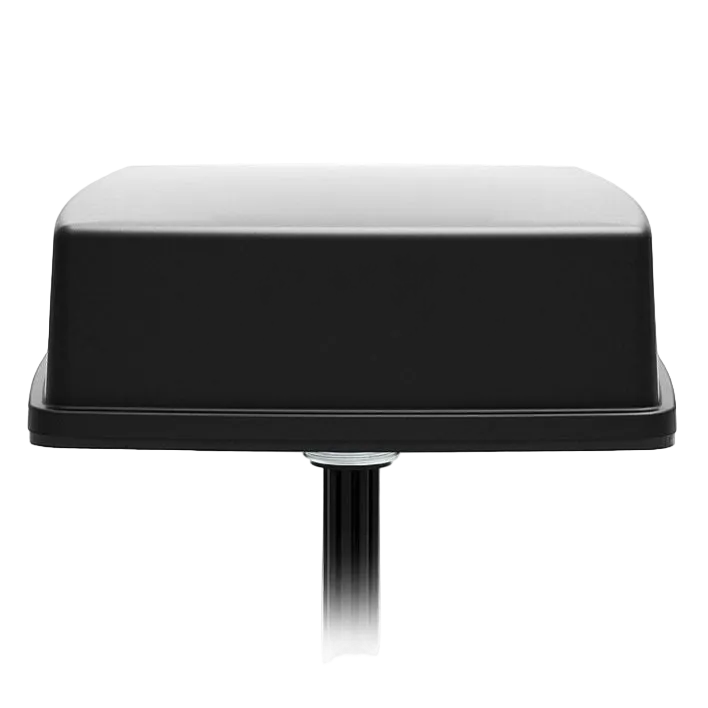

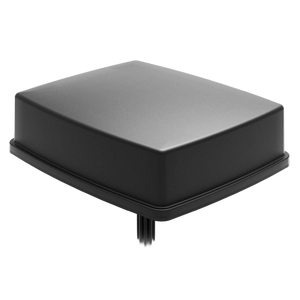

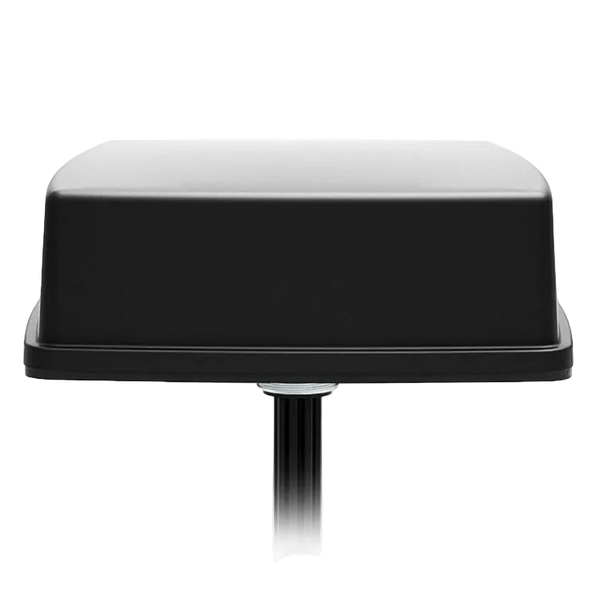

RTDM-G452W-2-S4S2R-B
"Transit" Style Antenna, 7 in 1 or 9 in 1, 4x4 MiMo 5G, GPS and WiFi, low profile
Configuration
- Cellular bands: 617960 / 14272690 / 33005000 / 51505925 MHz
- Wi?Fi bands: 24002500 / 49205925 / 59257125 MHz
- Gain: up to ~3 dBi (low band), ~5 dBi (mid band), ~4.66.7 dBi (high/Wi?Fi bands)
- Impedance / VSWR: 50 Ohm, ?2.0:1
- Connectors: SMA-Male (cellular & GNSS), RP-SMA Male (Wi?Fi)
- Dimensions: 7.8" L × 6.5" W × 2.0" H
- Max input power: 25W
- Design: Omnidirectional, ground-plane independent
- Environmental rating: IP67/IP69, outdoor/vehicular rated
- 7-in-1 antenna configuration: 4× 5GNR/LTE, 2× Wi?Fi 6E, 1× GNSS (GPS)
- 9-in-1 antenna configuration: 4× 5GNR/LTE, 4× Wi?Fi 6E, 1× GNSS (GPS)
Technical Specifications
| SKU | RTDM-G452W-2-S4S2R-B |
|---|---|
| Manufacturer | RFMAX |
| Cable Type | D302 |
| Color | Black |
| Connector 3 | SMA-Male |
| Connector Type | RP SMA-Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 |
| Working Frequency 2 | 1427-2690 |
| Working Frequency 3 | 3300-5000 |
| Working Frequency 4 | 5150-5925 |
| Working Frequency 5 | 2400-2500 |
| Working Frequency 6 | 4920-5925 |
| Working Frequency 7 | 5925-7125 |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 3.0 - 6.0 dBi |
| Gain | 3 dBi |
| Gain 2 | 5 dBi |
| Gain 3 | 4.6 dBi |
|---|---|
| Gain 4 | 5 dBi |
| Gain 5 | 4.2 dBi |
| Gain 6 | 6.7 |
| Gain 7 | 6.3 |
| Ground Plane Required | No |
| Height/Length (inches) | 7.8 |
| Height/Length (mm) | 199 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67, IP69 |
| Material | ASA |
| Max Input Power (W) | 25W |
| Operating Temp (celsius) | -40 to +85 |
| VSWR: < X: 1 | <2:1 |
| Weight (lbs) | 4 |
| Width (inches) | 6.5 |
| Width (mm) | 167 |
