RDA-900-STM

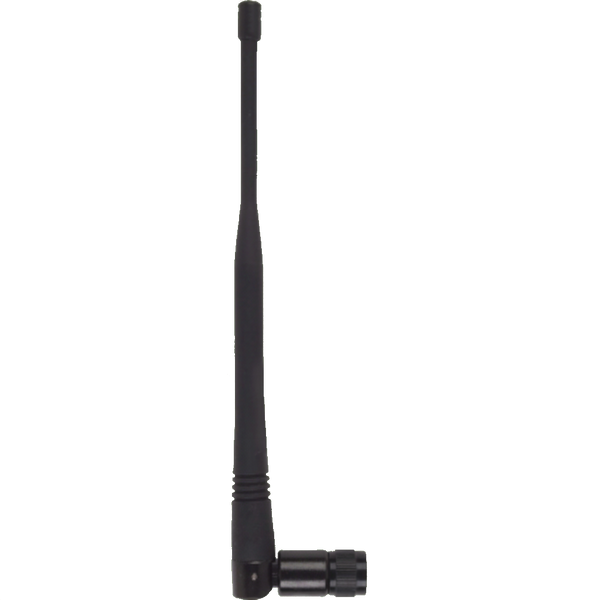

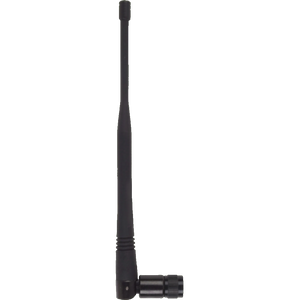

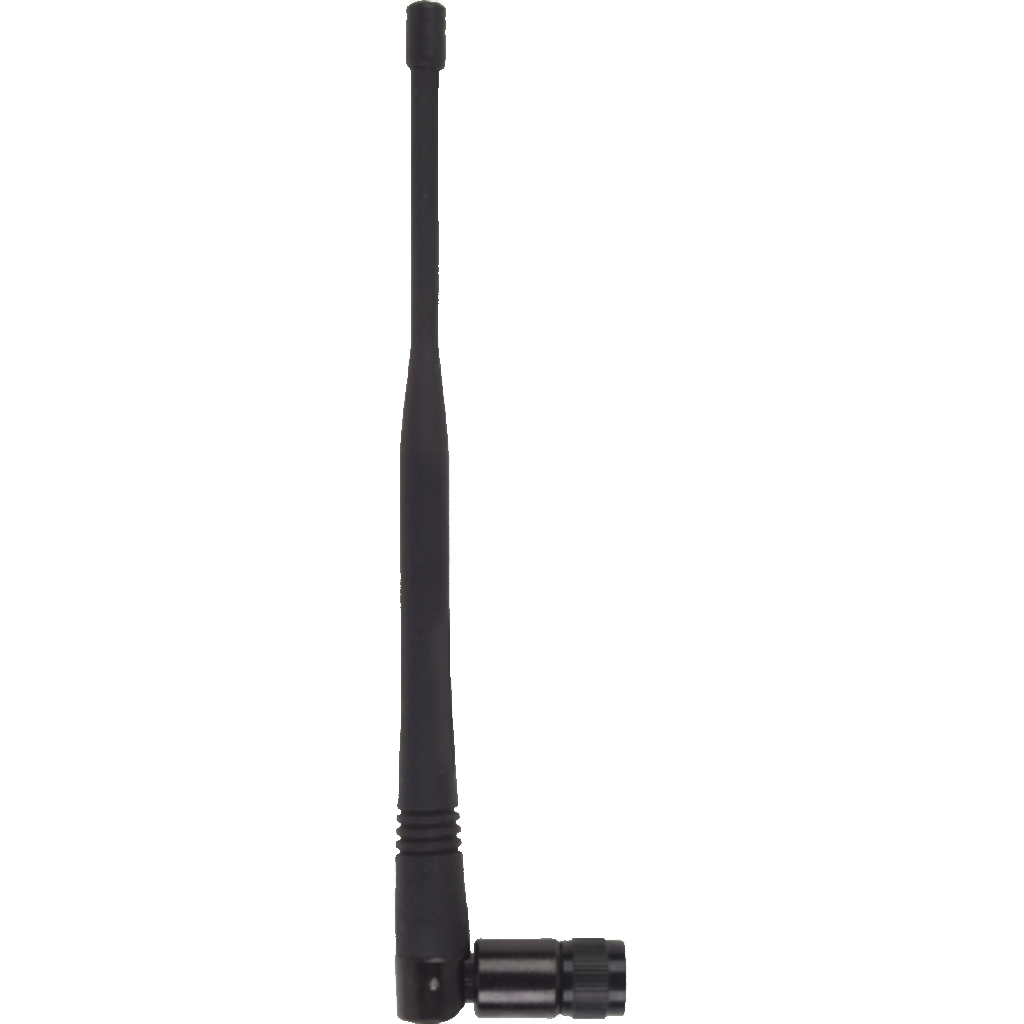

Stubby Antenna 900 MHz Indoor Omnidirectional Dipole Antenna for LoRa LoRaWAN& ISM band Modems and Gateways, TNC Male
- Slim, blade-style Omni-directional dipole antenna with articulating knuckle and TNC connector
- Working Frequency: 900 MHz LoRa, LoRaWAN & ISM bands.
- This antenna is designed to accommodate indoor communications for Internet of Things (IOT) applications.
- This is also suitable for 900 MHz spread spectrum applications, SCADA system radios
- Compatible with Second Sight MDS Orbit Platform, Orbit MCR 900 MHz, Orbit ECR, TransNET, iNet, and SD, and Freewave FGR2-CE-U, FGR2-PE-U, FGR3-CE-U, Z9-P2, Z9-PE, Z9-PE2, and Z9-PE-DEVKIT
Technical Specifications
| SKU | RDA-900-STM |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Directional or Omni | Omnidirectional |
| Working Frequency | 902-928 MHz |
| Antenna Category | 900 MHz |
| Gain | 1.7 dBi |
| Height/Length (inches) | 8.11 |
| Height/Length (mm) | 206 mm |
|---|---|
| Operating Temp (celsius) | -30 to +75 C |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 0.28 |
| Thickness/Diameter (mm) | 7 |
| VSWR: < X: 1 | 0.084027778 |
| Width (inches) | 1.4 |
| Width (mm) | 35 |
