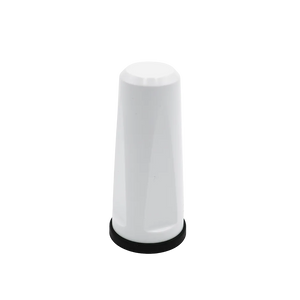

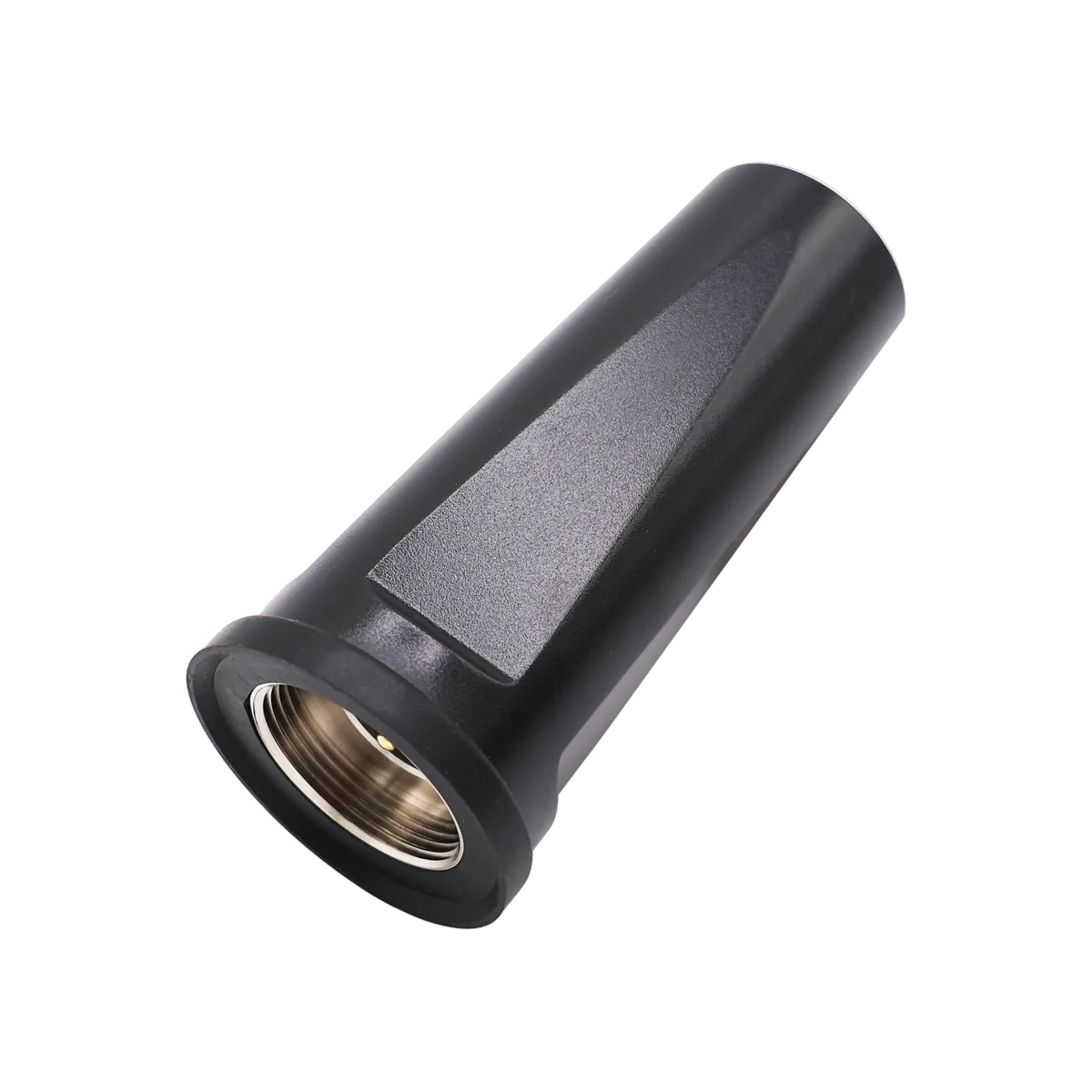

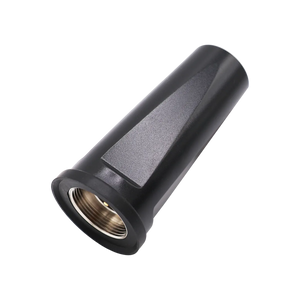

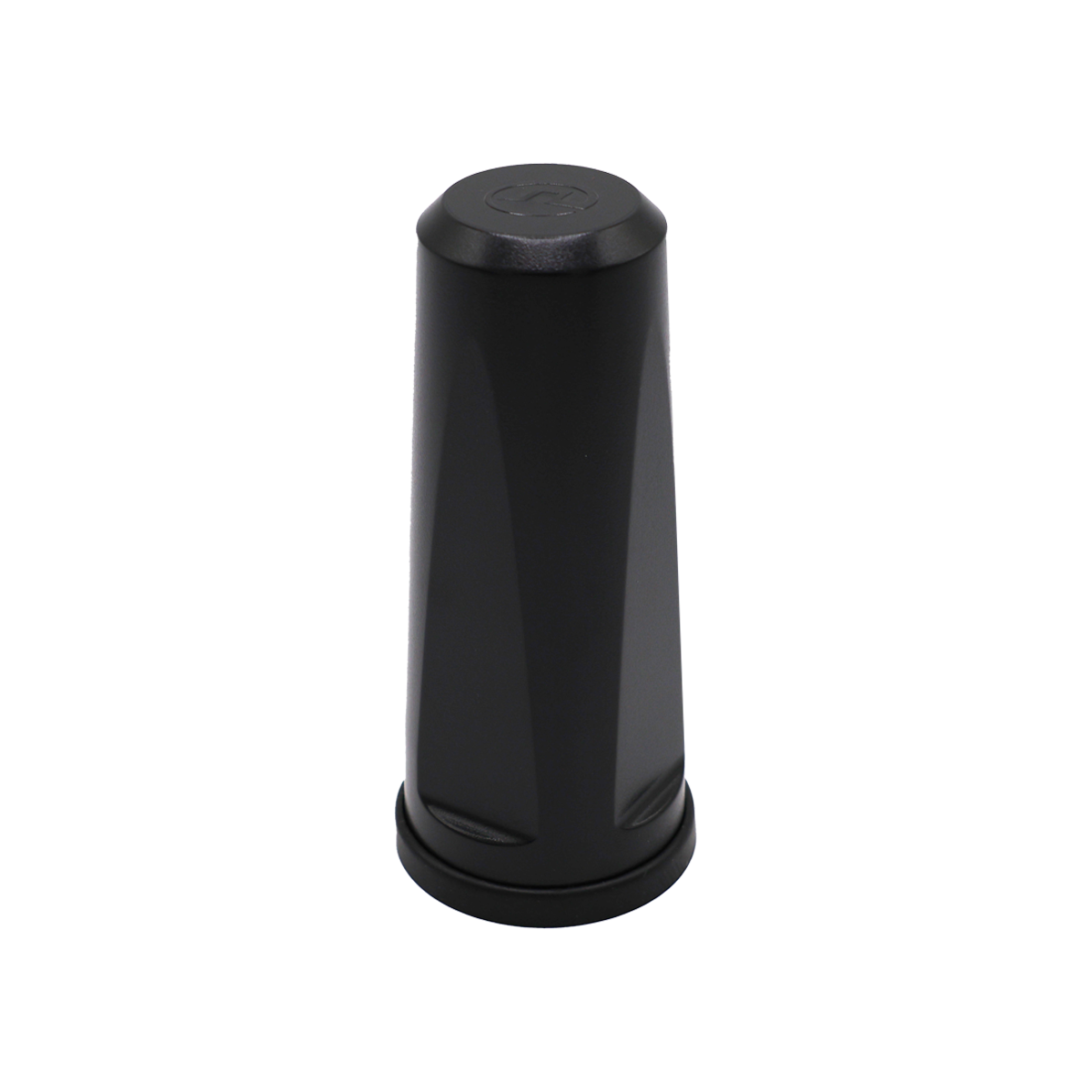

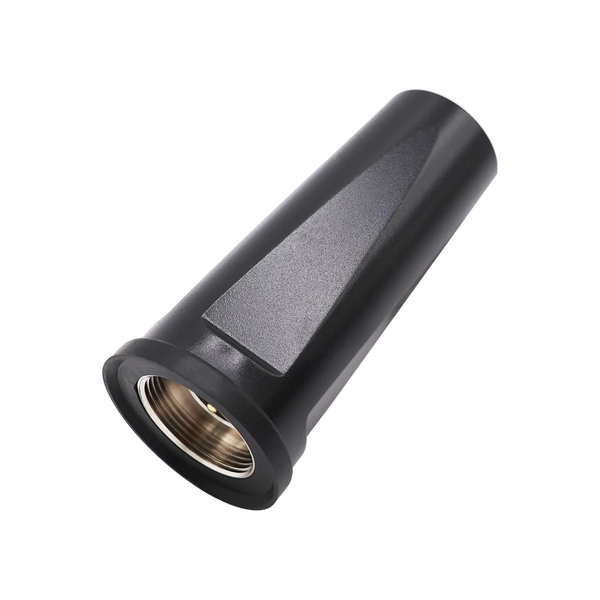

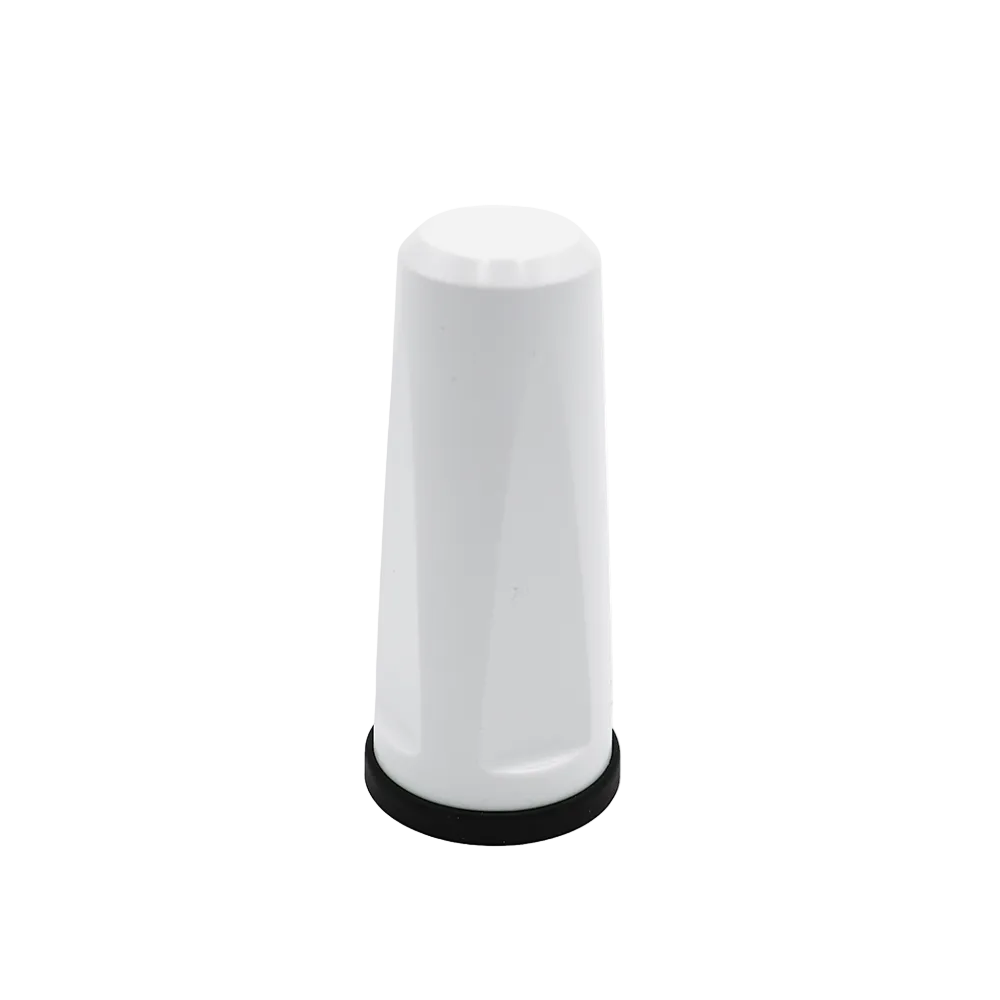

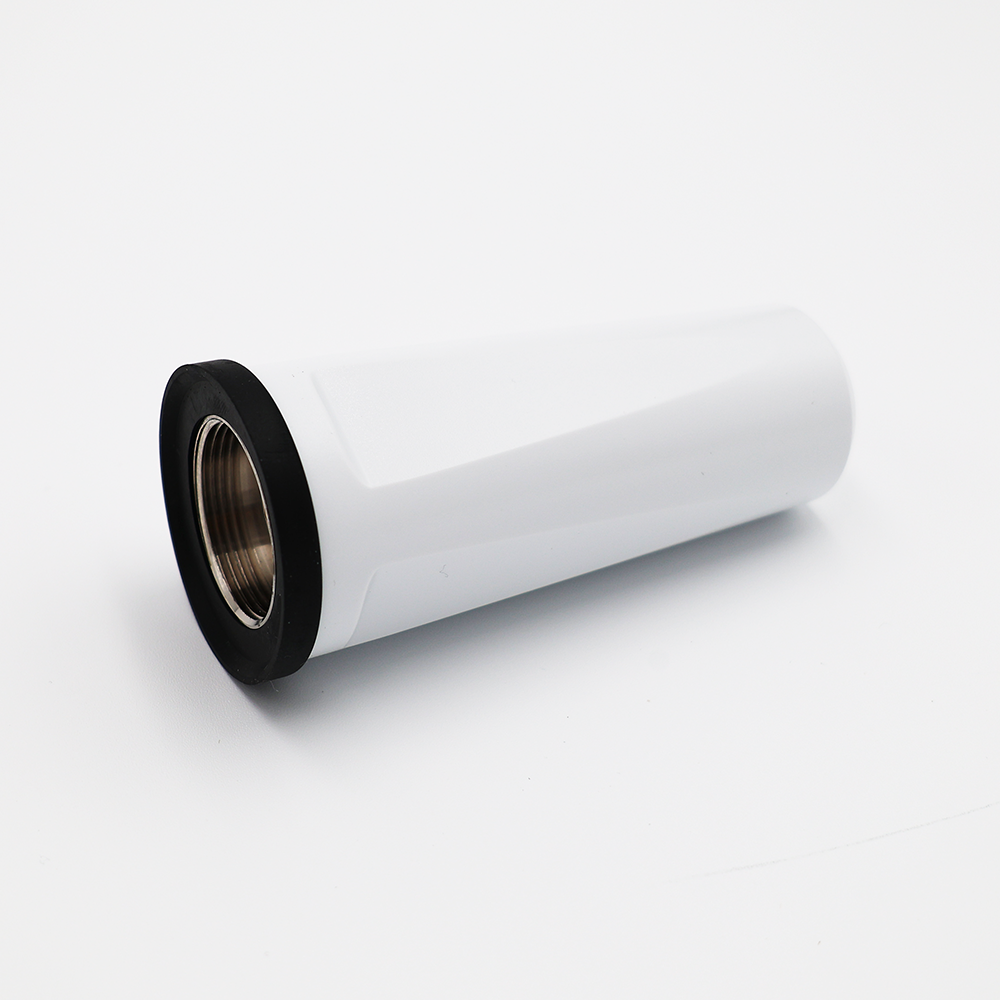

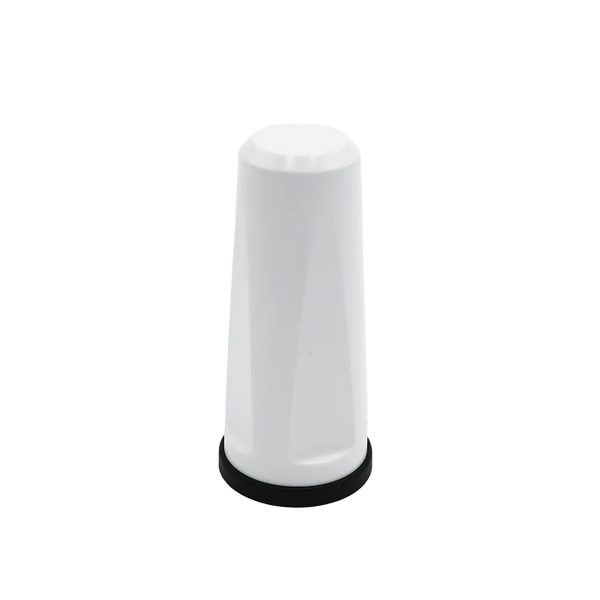

RSGB-4G/5G-3-NMO
Shotglass Omni Antenna For Cellular 4G/LTE, Band 71 & 5G. NMO Mount IP67, 617-960/1695-7152 MHz
Configuration
- Working Frequency 617-960/1695-7125 MHz
- 4G / 5G (LTE), Dual Band WiFi Support
- Includes Band 71 (617- 698 MHz)
- Omni radiation pattern
- Average peak gain: 617-960 MHz 2dBi, 695-5925 MHz 5.5dBi
- Average power rating 45W
- Size Dia. 1.61 (40.9mm) Height 3.77 (95.9mm)
Technical Specifications
| SKU | RSGB-4G/5G-3-NMO |
|---|---|
| Manufacturer | RFMAX |

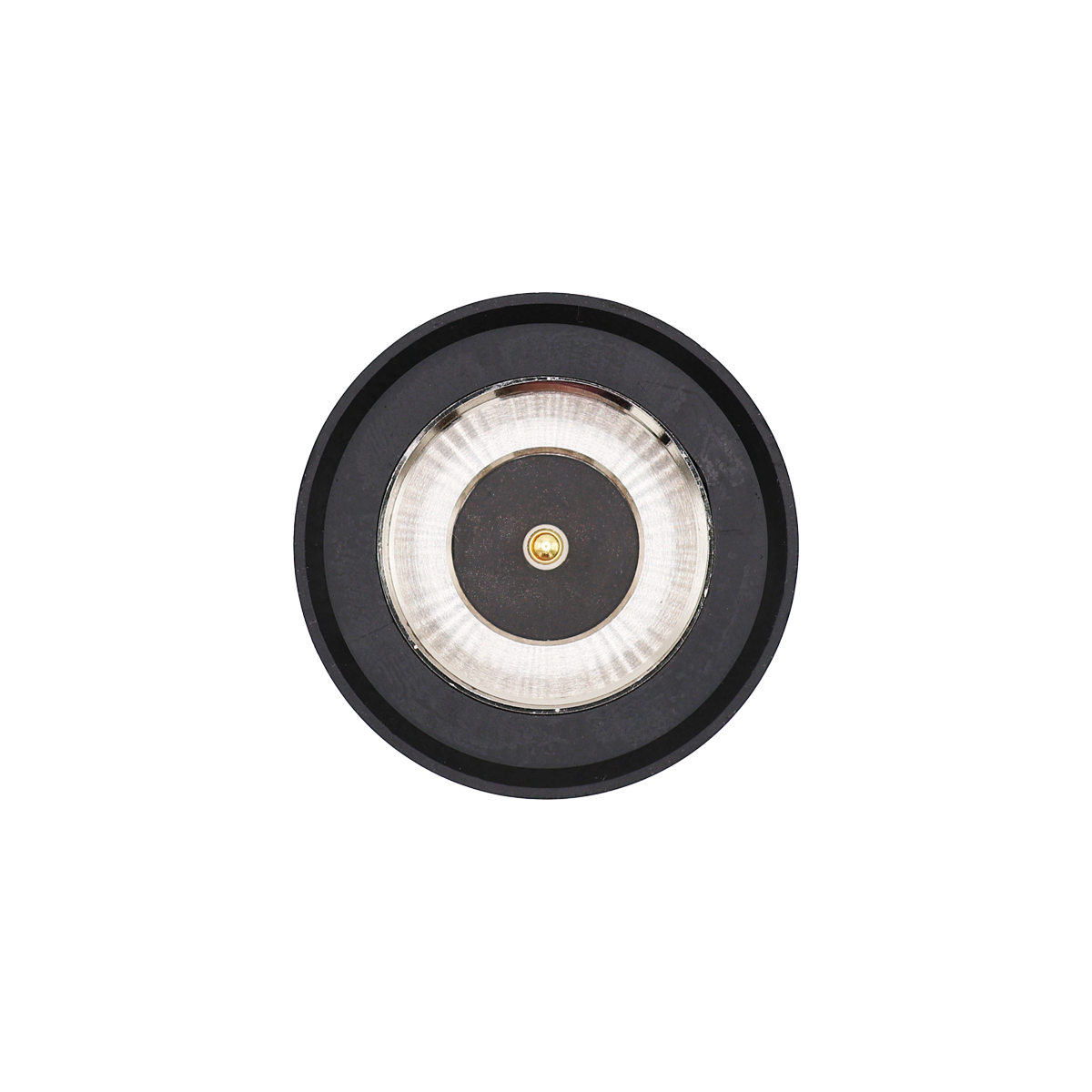

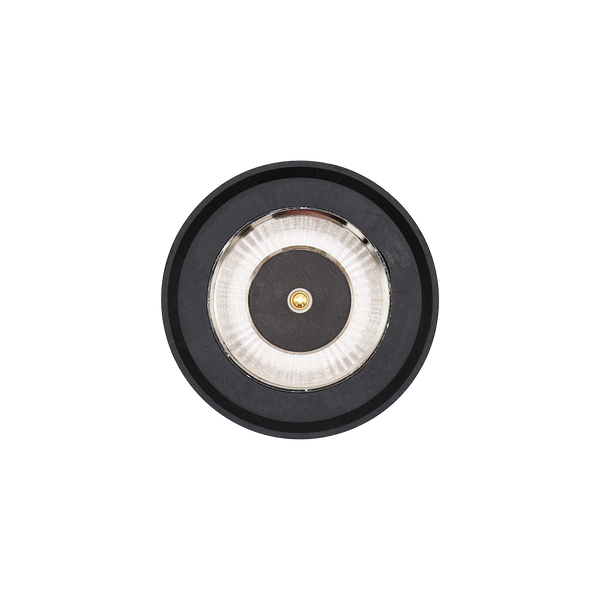

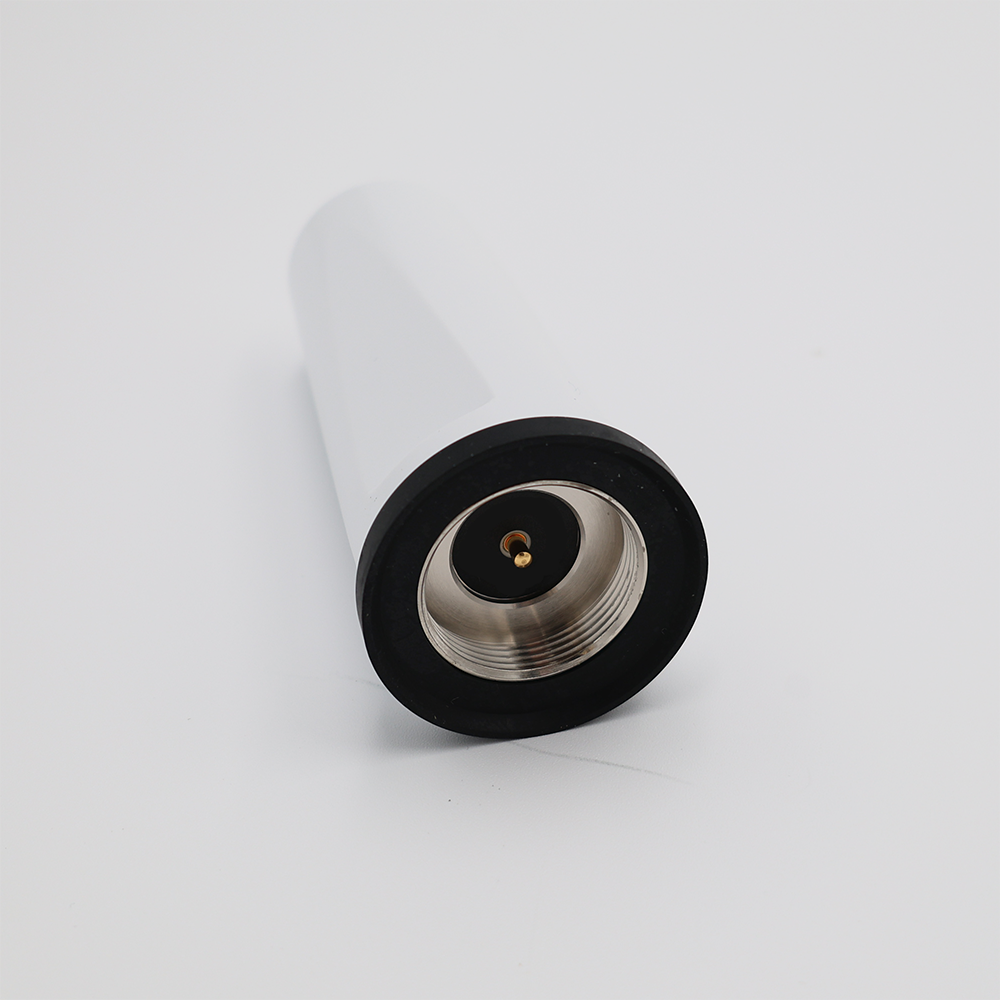

| Connector 1 | NMO |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 MHz |
| Working Frequency 2 | 1710-2700 MHz |
| Working Frequency 3 | 3300-4200 MHz |
| Working Frequency 4 | 4400-5000 MHz |
| Working Frequency 5 | 5150-7125 MHz |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Gain | Unity - 4 dBi |
| Gain | -1.7 dBi |
| Gain 2 | 2.6 dBi |
| Gain 3 | 4.2 dBi |
| Gain 4 | 3.0 dBi |
| Gain 5 | 3.4 dBi |
|---|---|
| Ground Plane Required | No |
| Height/Length (inches) | 3.77 |
| Height/Length (mm) | 95.9 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | PET + PC, UV RATED |
| Max Input Power (W) | 60W |
| Operating Temp (celsius) | -40 to + 85 |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 1.61 |
| Thickness/Diameter (mm) | 40.9 |
| VSWR: < X: 1 | 2:1 |
| Weight (grams) | 163 |
| Weight (lbs) | 0.17 Lbs |
