RSGB-4G/5G-3-NF

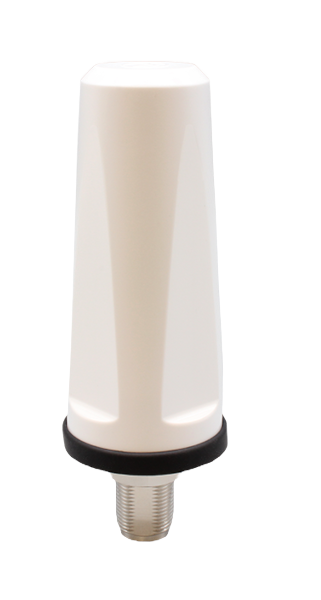

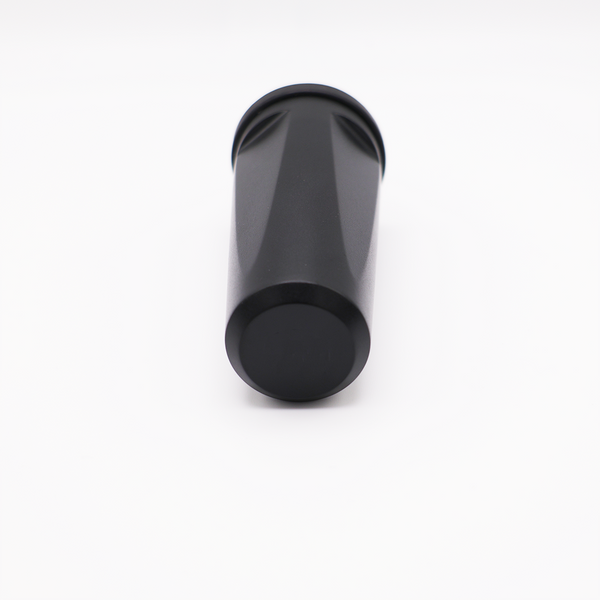

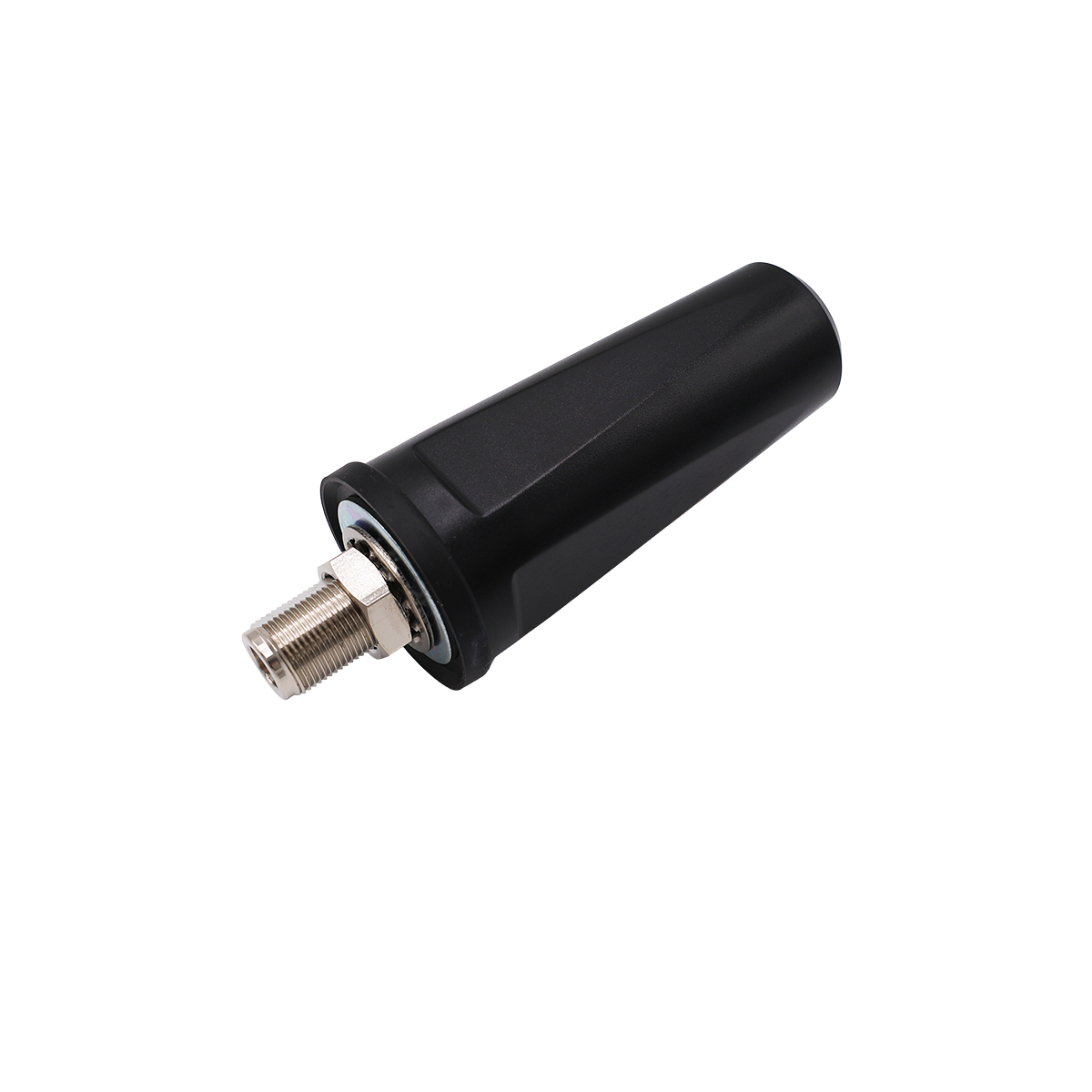

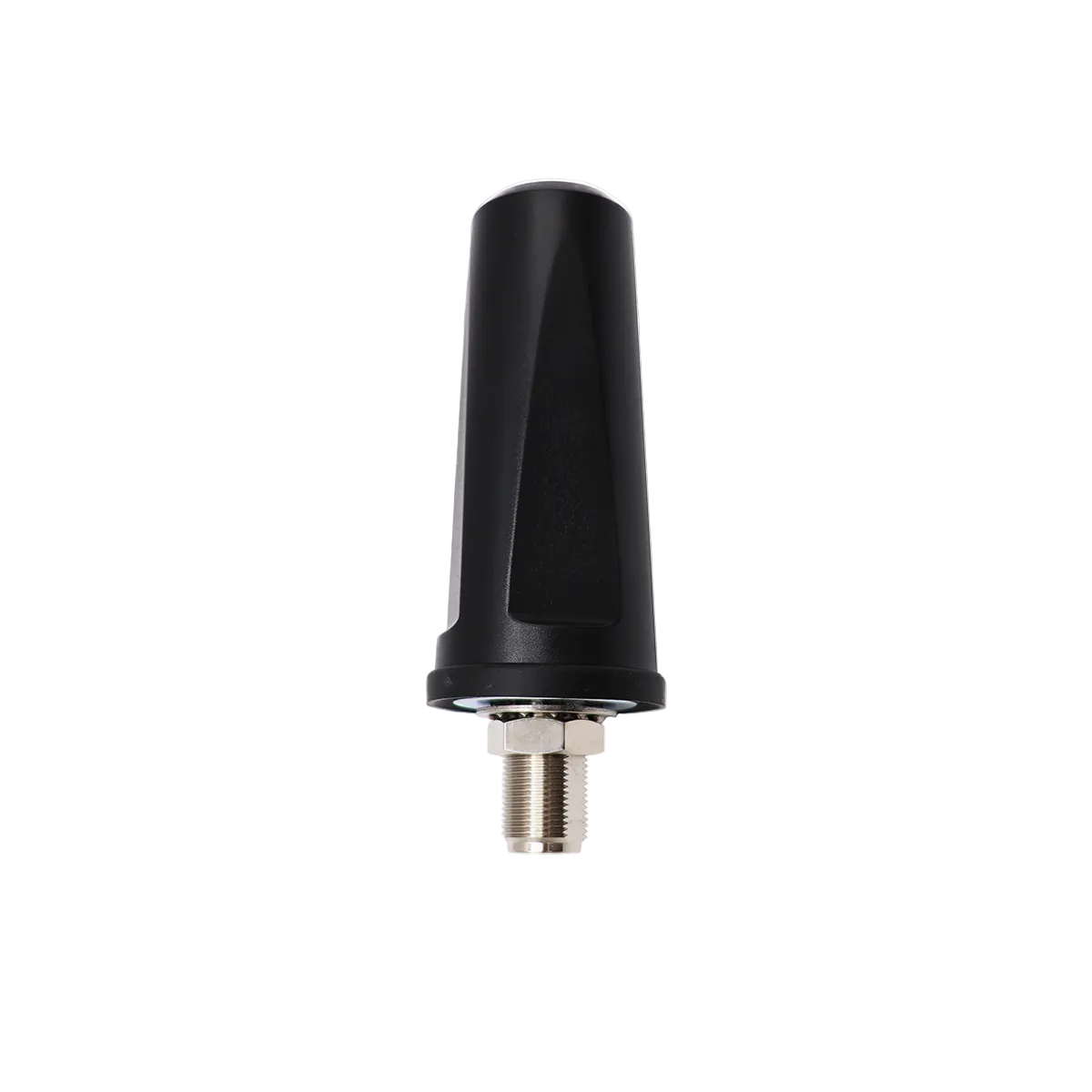

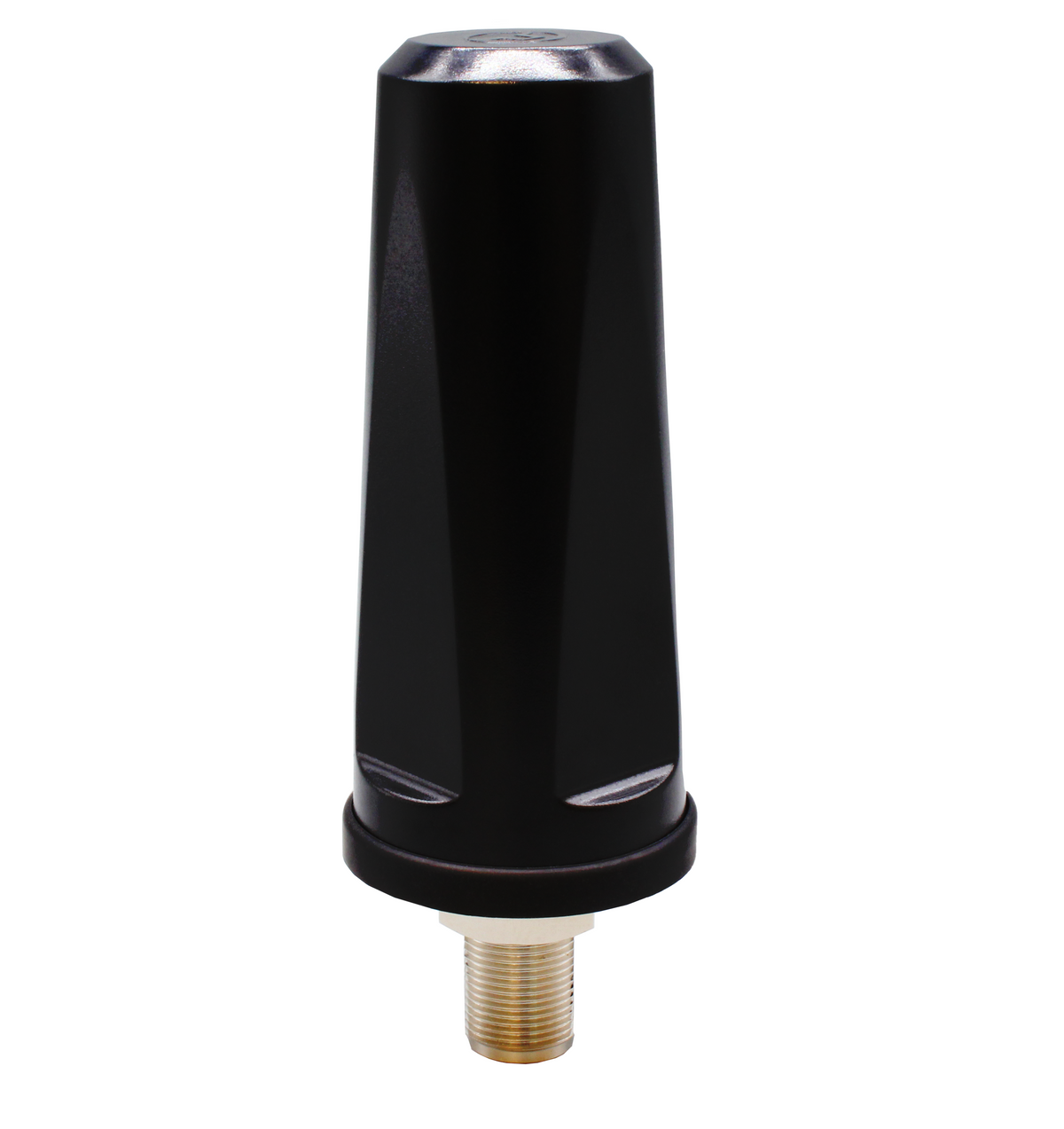

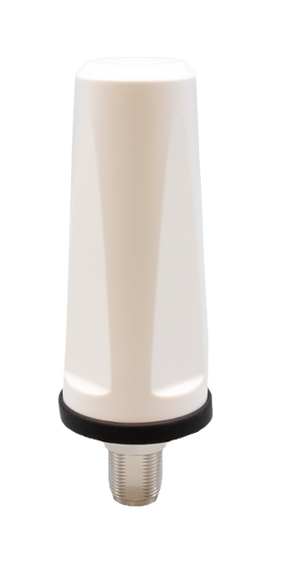

Shotglass Omni Antenna For Cellular 4G/LTE, Band 71 & 5G, IP67, 617-960/1695-7152 MHz, N-Female
Configuration
- Multi-band 4G LTE / 5G omnidirectional antenna covering 6177125 MHz for wide cellular compatibility
- Supports Band 71 and CBRS (Bands 42/48) for modern 5G and LTE network deployments

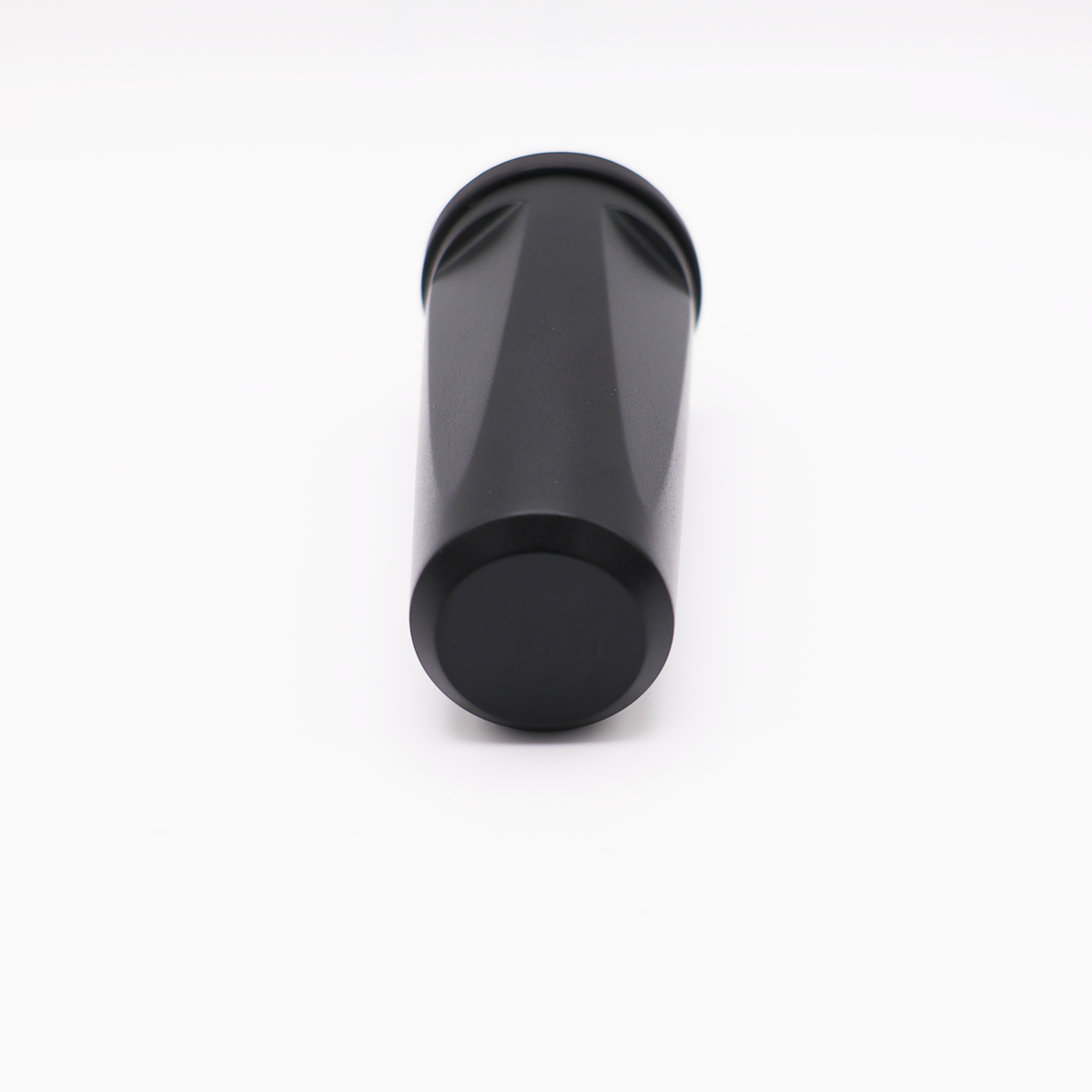

- Low-profile shotglass design with compact footprint (1.6 dia x 3.8 height) for discreet installs
- Delivers ~25 dBi gain for reliable 360° signal coverage across multiple bands

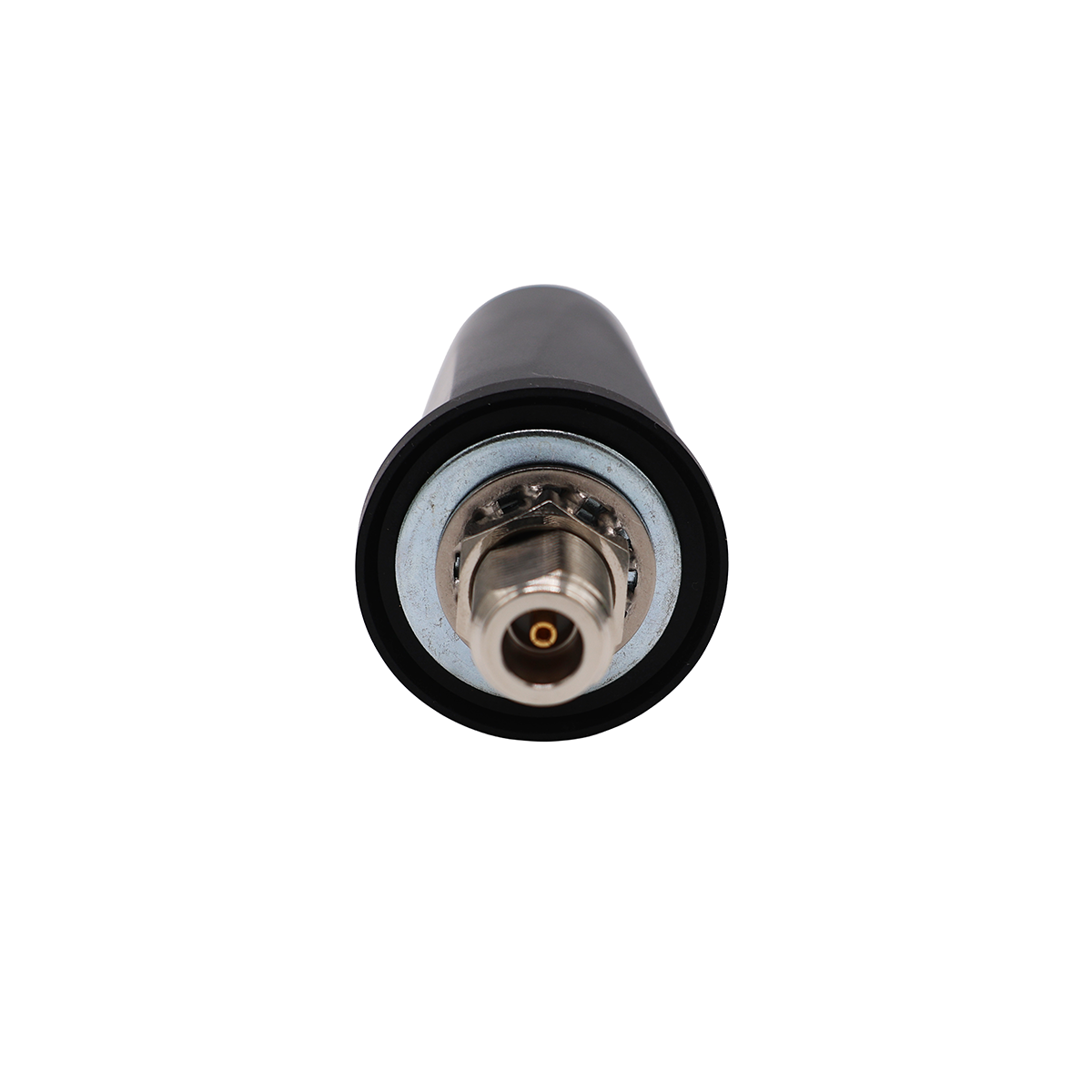

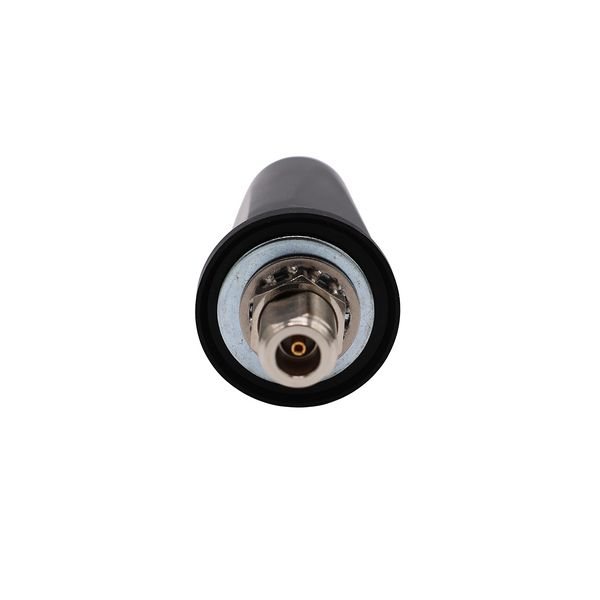

- Features N-Female permanent mount (50 Ohm) for secure, direct installation
- IP67-rated, rugged construction for outdoor, vehicular, and industrial environments
- Ideal for IoT, M2M, smart metering, kiosks, and cellular connectivity applications
Technical Specifications
| SKU | RSGB-4G/5G-3-NF |
|---|---|
| Manufacturer | RFMAX |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 MHz |
| Working Frequency 2 | 1695-7125 MHz |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Gain | 2 dBi |
| Gain 2 | 4 dBi |
| Ground Plane Required | Yes |
| Height/Length (inches) | 3.77 inches (plus N-Female Connector) |
| OK for Outdoor Use | Outdoor |
|---|---|
| IP Rating | IP67 |
| Max Input Power (W) | 60 Watts |
| Mount Style | Direct Mount |
| Operating Temp (celsius) | -40 to +85 C |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 1.61 inches |
| VSWR: < X: 1 | 3:1 - 2.5:1 |
| Weight (grams) | 163 grams |
| Weight (lbs) | 0.36 Lbs |
