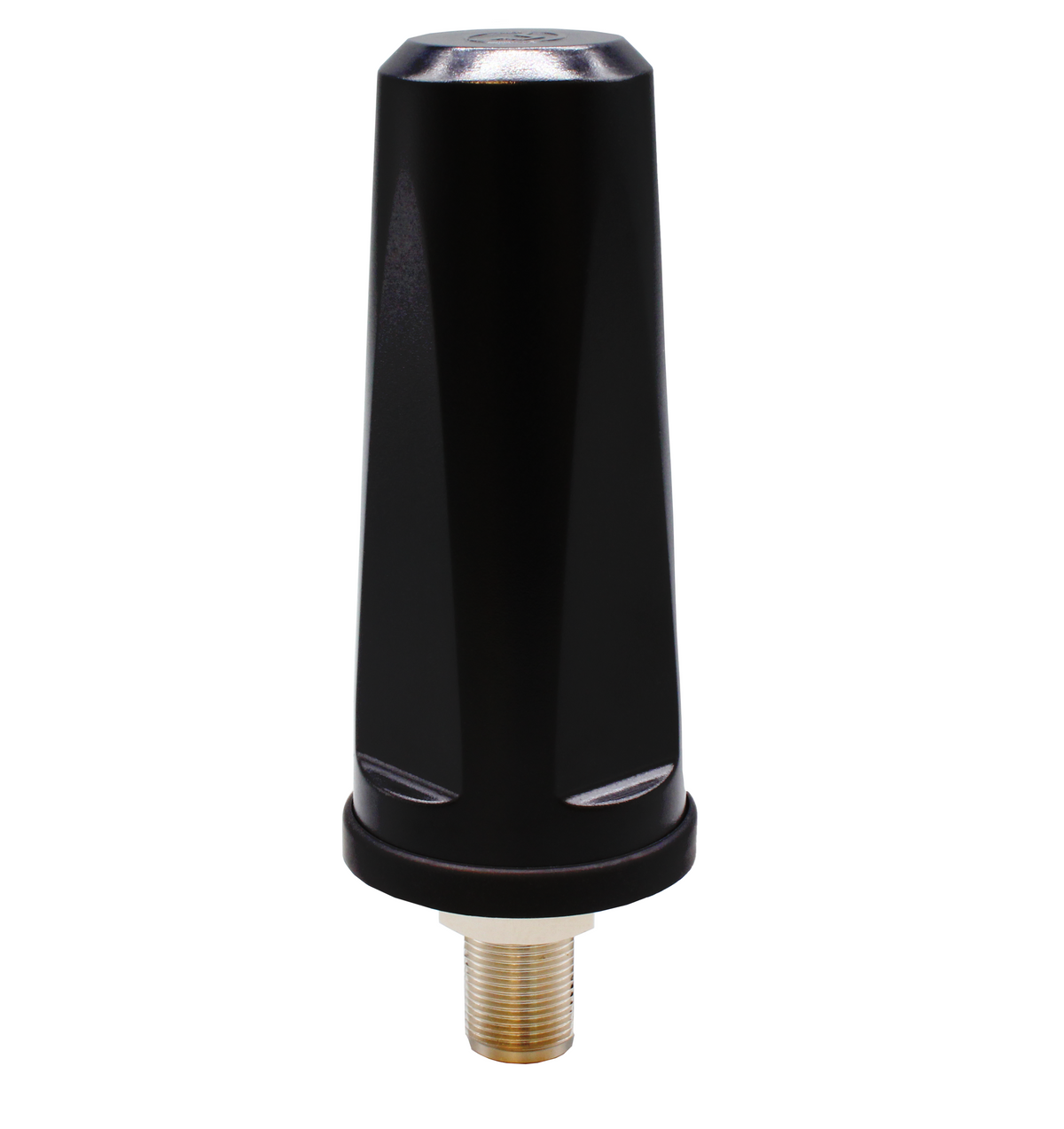

RSGB-60/71-3-NF-NGPDC
Shotglass/Low Profile Omni Antenna For 5G/LTE, Band 71, 617-7125 MHz, N-Female, Ground Plane Independent, DC Grounded
- Shotglass Omni Antenna For Cellular 4G/LTE, Band 71 & 5G (600-7125 MHz)
- Ground Plane Independent and DC Grounded
- 617-960 MHz (-1.7 dBi), 1710-2700 MHz (2.6 dBi), 3300-4200 MHz (4.2 dBi), 4400-5000 MHz (3.0 dBi), 5150-7125 MHz (3.4 dBi)
- Antenna Style: Low Profile Antenna, Black
- Max Input Power (W): 10W, IP Rating: IP67
- Material: PET + PC, UV RATED
- Operating Temp (celsius): -40 to + 85
- OK for Outdoor Use: Outdoor
- Ground Plane Required: No
Technical Specifications
| SKU | RSGB-60/71-3-NF-NGPDC |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 MHz |
| Working Frequency 2 | 1710-2700 MHz |
| Working Frequency 3 | 3300-4200 MHz |
| Working Frequency 4 | 4400-5000 MHz |
| Working Frequency 5 | 5150-7125 MHz |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Gain | Unity - 4 dBi |
| Gain | -1.7 dBi |
| Gain 2 | 2.6 dBi |
| Gain 3 | 4.2 dBi |
| Gain 4 | 3.0 dBi |
| Gain 5 | 3.4 dBi |
|---|---|
| Ground Plane Required | No |
| Height/Length (inches) | 3.77 |
| Height/Length (mm) | 95.9 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | PET + PC, UV RATED |
| Max Input Power (W) | 10W |
| Operating Temp (celsius) | -40 to + 85 |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 1.61 |
| Thickness/Diameter (mm) | 40.9 |
| VSWR: < X: 1 | 0.084027778 |
| Weight (grams) | 163 |
| Weight (lbs) | 0.36 |
