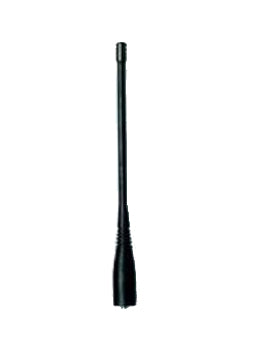

RQWD-9/24-RTM
Rugged and Rigid Outdoor Rated, Rubber Antenna for 900 MHz ISM With RPTNC-Male
- Quarter Wave, rubber duck, rigid style antenna with RP-TNC Male connector
- Ideal for 900 MHz digital spread spectrum radios and wireless video transmitters and receivers
- Operating Frequency: 896-940 MHz or 2.4 GHz
- Gain: 2.5 dBi over 1/4 wave
- VSWR: 2:1 max at resonance

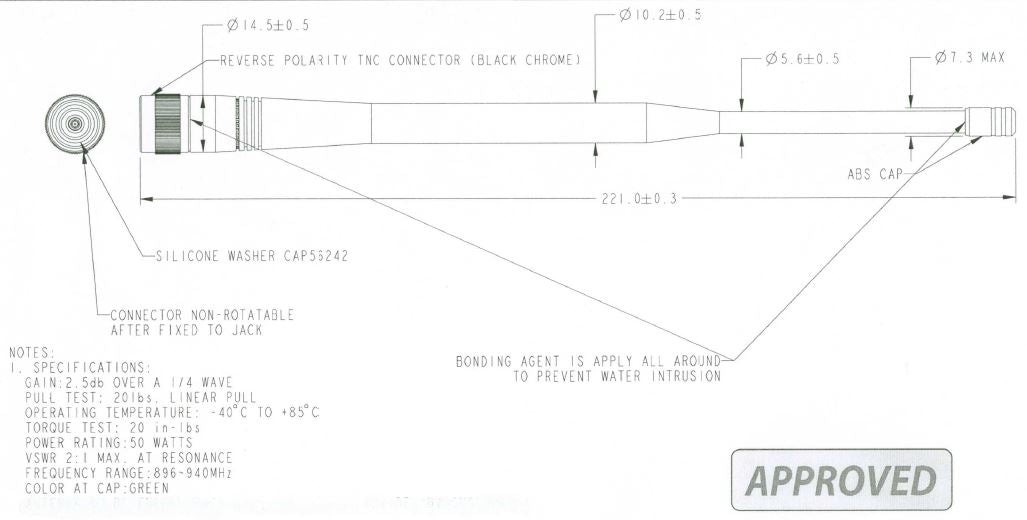

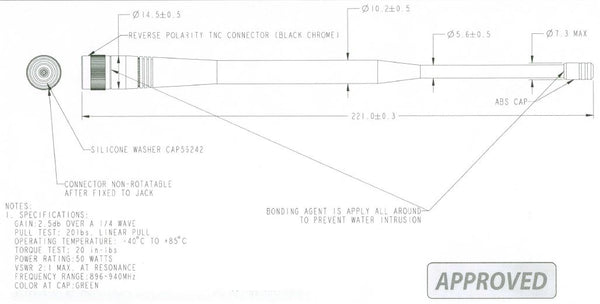

- Length: 221 mm / 8.7 inches
- Operating Temp: -40 to +85 C
- Pull Test: 20 Lbs. Linear Pull
- Torque Test: 20 inch-lbs.
- Bonding agent applied to all seams to prevent water intrusion
Technical Specifications
| SKU | RQWD-9/24-RTM |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | RP TNC-Male |
| Connector Type | Connector - Bottom |
| Directional or Omni | Omnidirectional |
| Working Frequency | 896-940 MHz |
| Working Frequency 2 | 2400 MHz |
| Antenna Category | 900 MHz |
| Gain | 2.5 dBi |
| Gain 2 | 2.5 dBi |
|---|---|
| Height/Length (inches) | 8.7 |
| Height/Length (mm) | 221 |
| Operating Temp (celsius) | (-40) to 85 |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 0.57 |
| Thickness/Diameter (mm) | 14.5 |
| VSWR: < X: 1 | 0.084027778 |
| Weight (lbs) | 0.1 |
