RSFDBG4WSSS

3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi

  • Units Available: 4830
List Price: Regular price $145.00
3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi
3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi

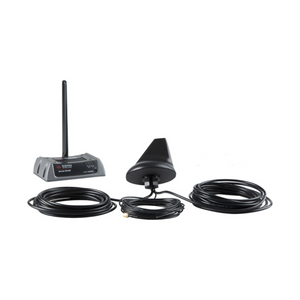

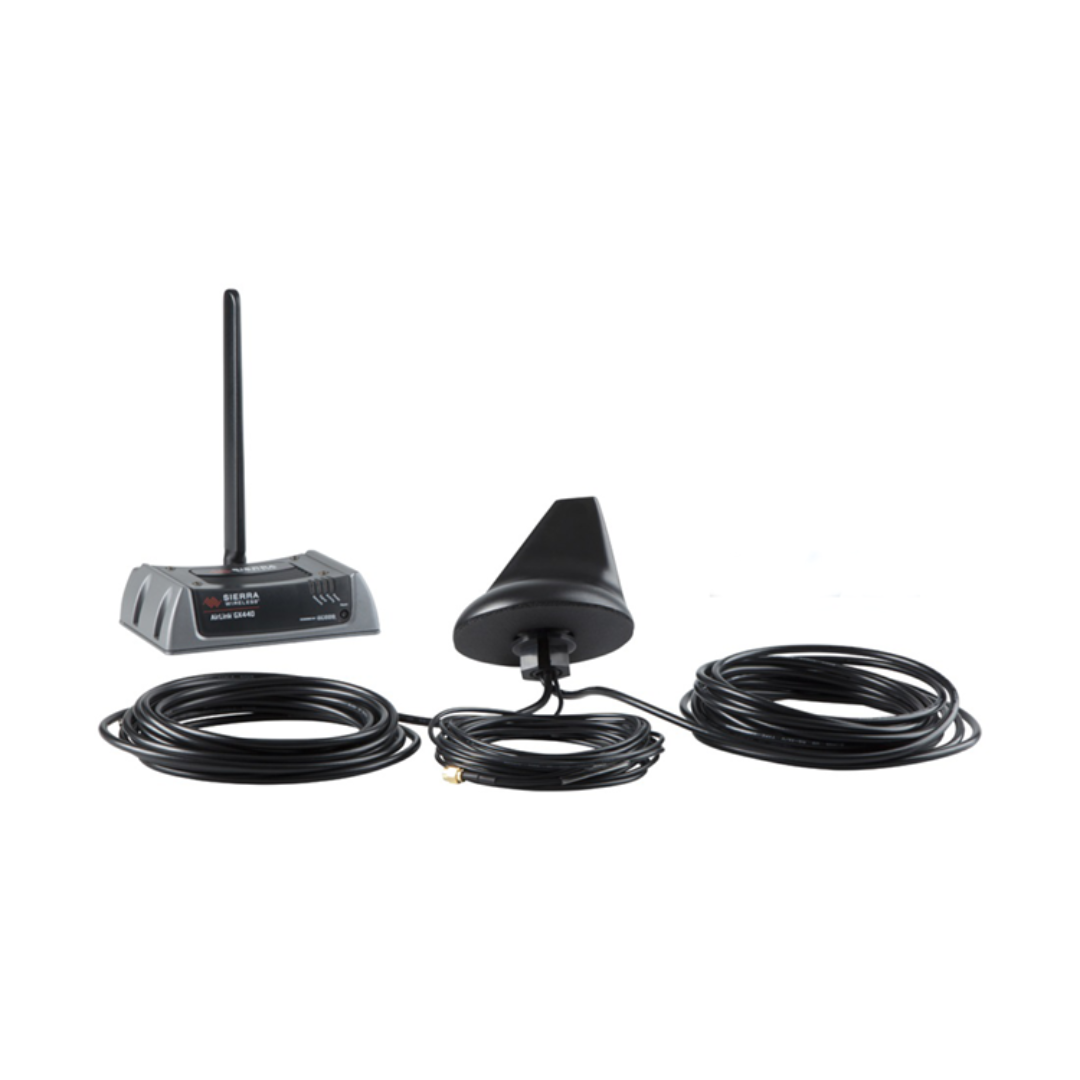

RSF-DB-G4W-SSS with modem (Modem not Included)

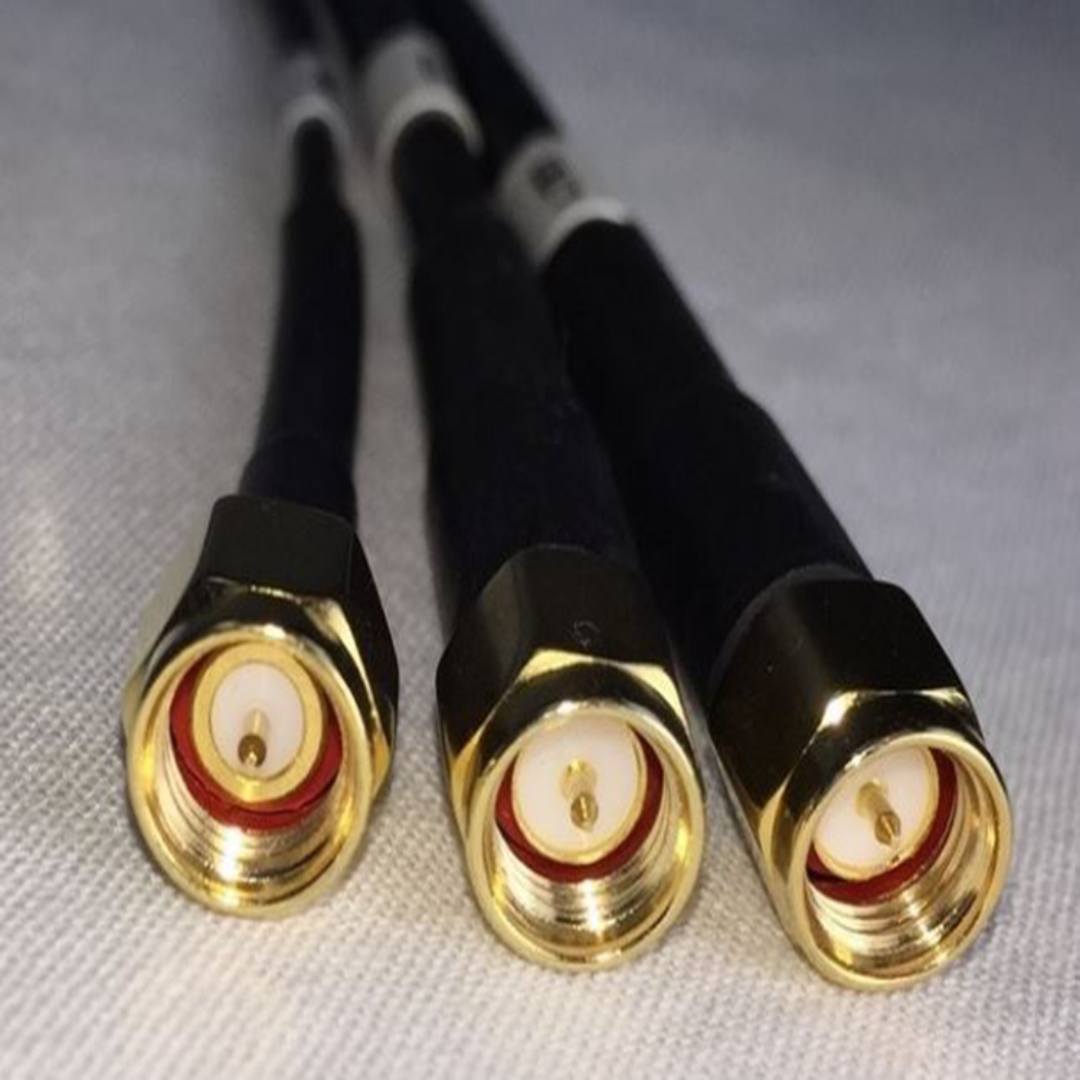

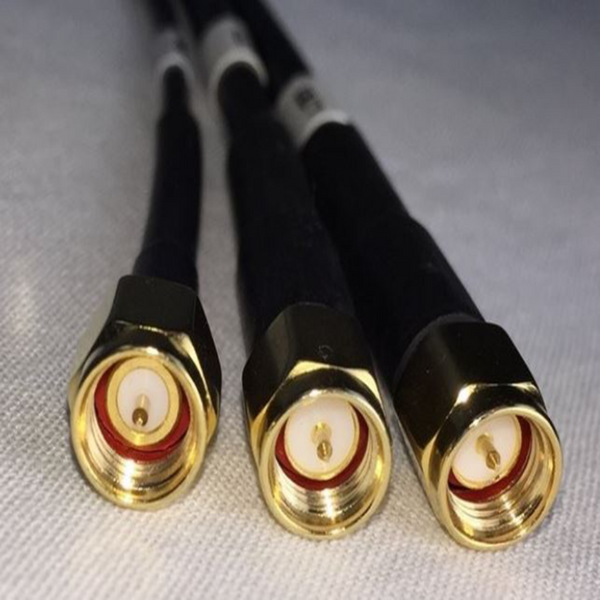

(3) SMA Male Connectors
Grey_arrow@2x Created with Sketch.
Created with Sketch.
RSFDBG4WSSS

3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi

  • Units Available: 4830
List Price: Regular price $145.00

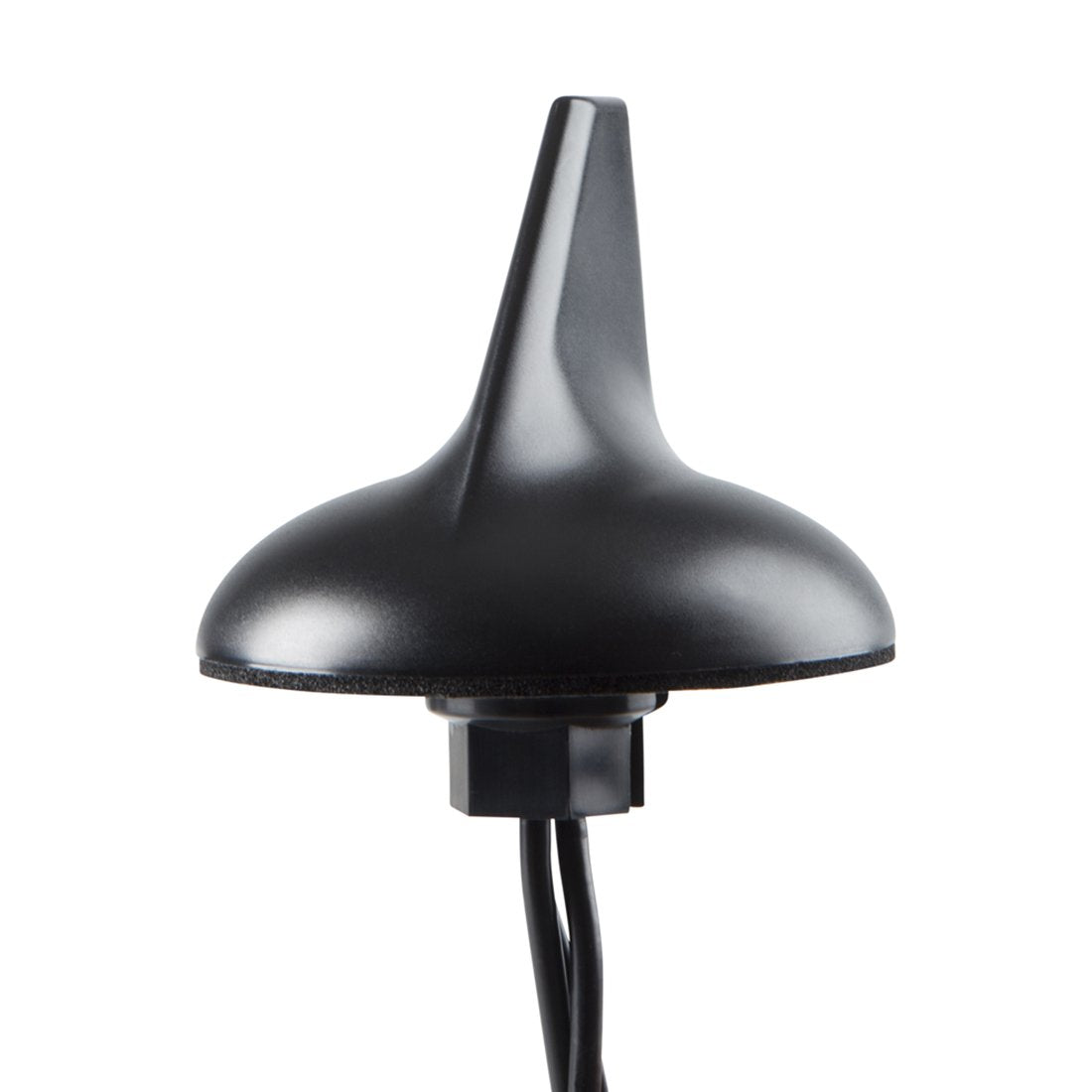

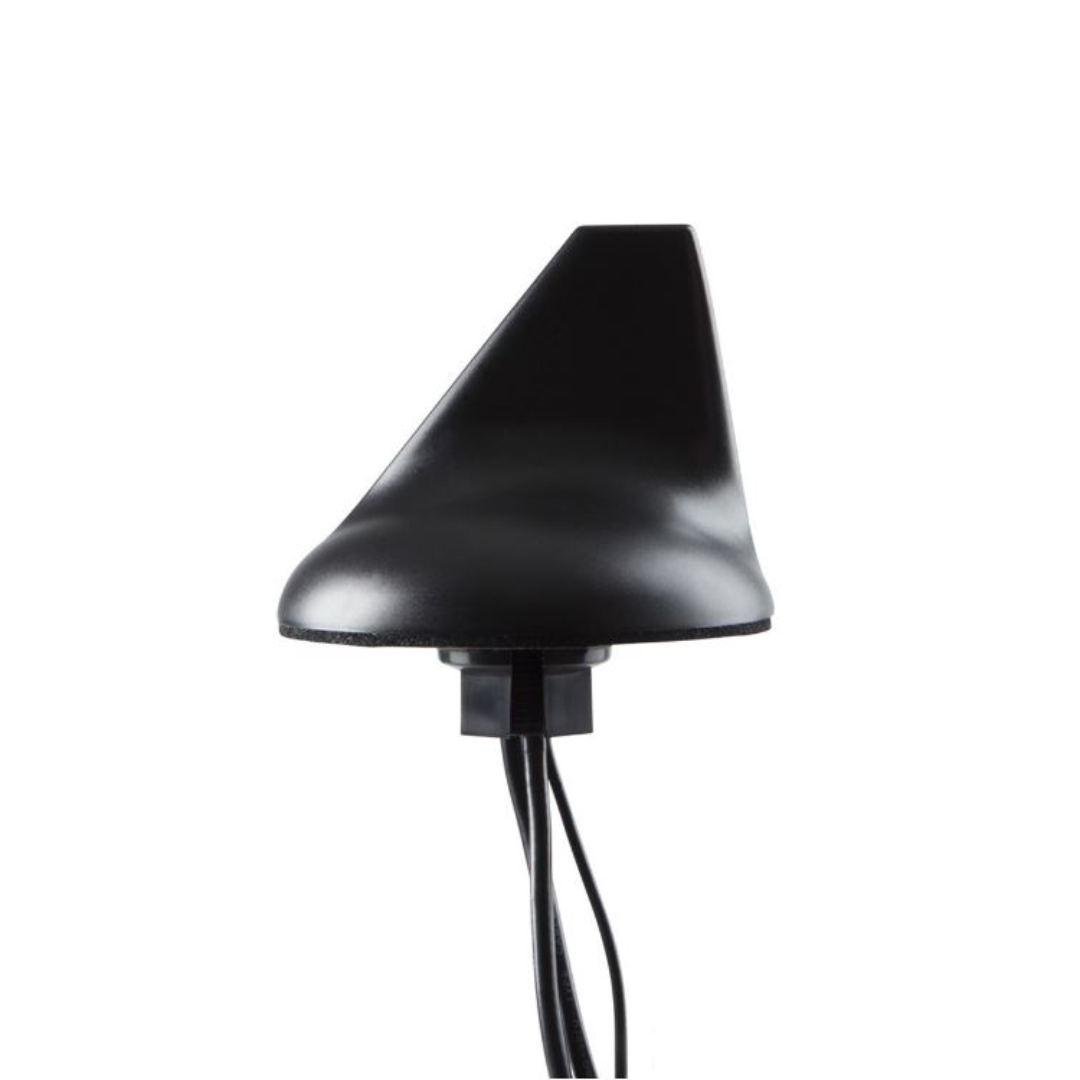

The RFMAX RSF-DB-G4W-SSS is a black, 3-in-1, roof mounted, SharkFin style antenna for use with the industry leading In-Vehicle modems. This vehicular multi-band antenna is the best choice when you are looking for high performance at an economical price. The antenna is ideal for combining 1575 MHz GPS, 698-2700 3G/4G/LTE cellular data communication and 2.4 / 5 GHz WIFI/WLAN in one, small, covert package. Equivalent to antennas from TaoGlas, Mobile Mark and Antennas Plus. Optimized for use with Cradlepoint & Sierra Wireless modems: LS300, GX440, GX450 & RV50.

Description BlueArrow Created with Sketch.

The RFMAX RSF-DB-G4W-SSS is a black, 3-in-1, roof mounted, SharkFin style antenna for use with the industry leading In-Vehicle modems.  This vehicular multi-band antenna is the best choice when you are looking for high performance at an economical price.  The antenna is ideal for combining 1575 MHz GPS, 698-2700 3G/4G/LTE cellular data communication and 2.4 / 5 GHz WIFI/WLAN in one, small, covert package.  The threaded antenna mounting stud and hex nut can accommodate up to a 5/8” (16 mm) thick roof surface. The RSF-DB-G4W-SSS has 3 cables to optimally support the different technologies: 3G/4G/ LTE data communication is supported on a low-loss RG-58 cable with SMA-Male connector.  WIFi/ WLAN operates on a separate RG-58 cable. The 26 dB gain GPS antenna has its own RG-174 cable.

FEATURES:

  • Single antenna: 3.5" tall x 4" diameter supports all 3 signals (GPS,Cellular,WIFI)
  • Combines 3 high performance elements: GPS + WIFI + 3G/4G/LTE
  • 3 Separate 17 ft. cables with SMA connectors offer installation flexibility
  • Easily mounted through a single 3/4” hole
  • Optimized for use with Cellular modems and In-Vehicle Routers from Sierra Wireless, Cradlepoint, MultiTech, Microhard
  • Perfect for Airlink LS300, GX400, GX450, RV50 & RV50x



APPLICATIONS:

    • Public Safety / Police Vehicles: patrol cars & covert
    • Taxi Cabs, Livery Cars, Limosines
    • Utility Company Trucks & Vans - Fleeet Management
