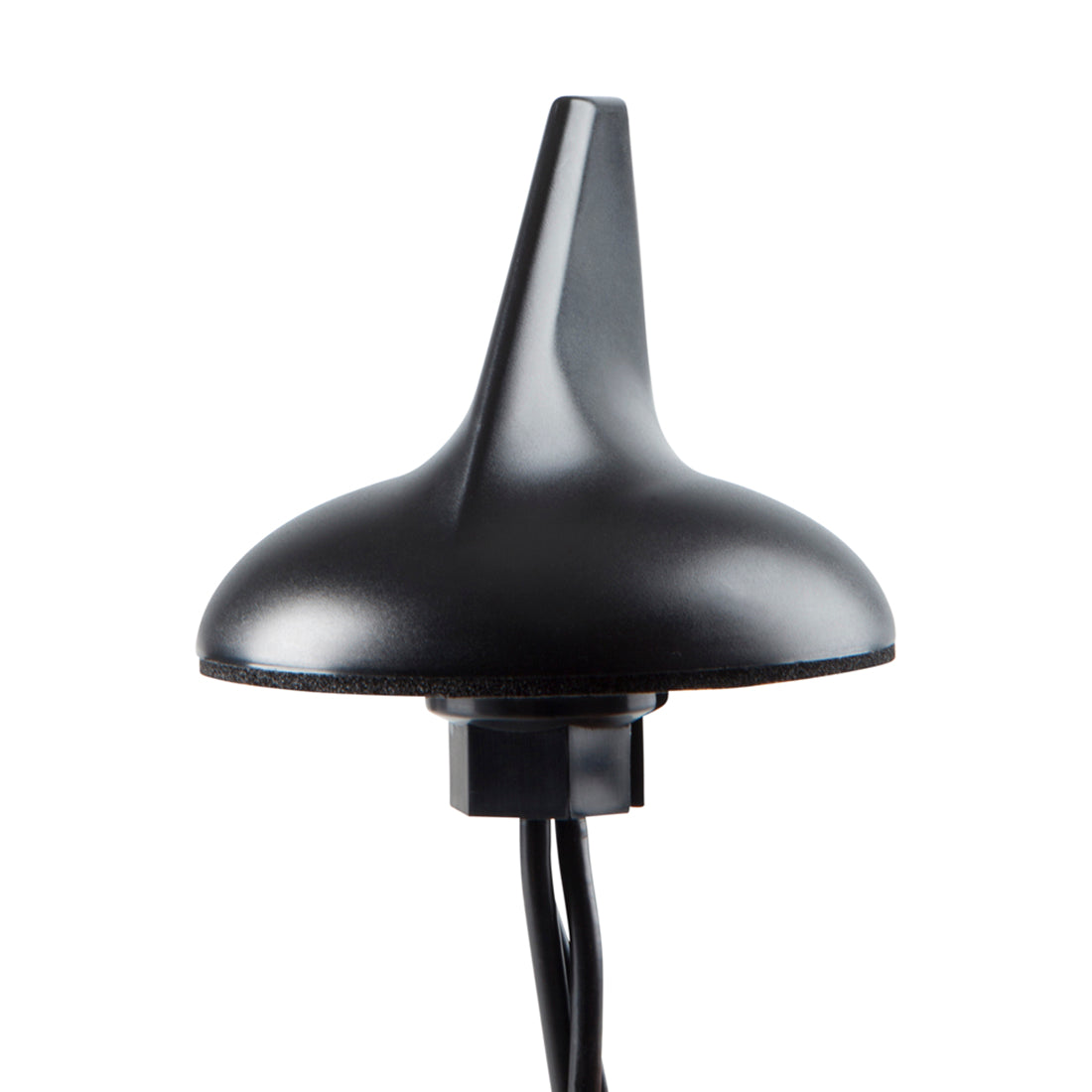

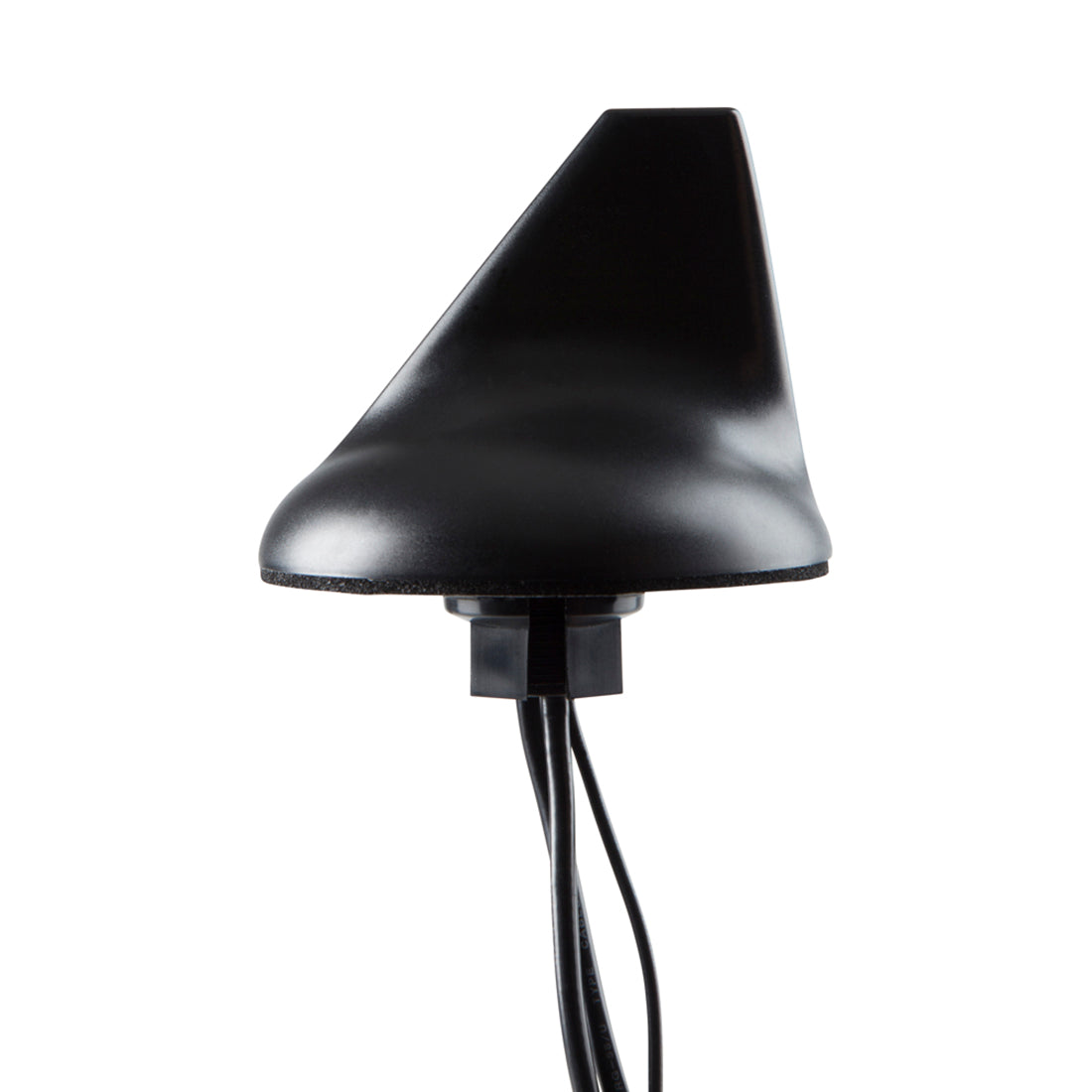

The RFMAX RSF-DB-G4W-FFS 3-in-1 Roof Mount Sharkfin style antenna is the best choice for a roof mounted unit operating from 698 thru 5875 MHz. The antenna is ideal for combining 1575 MHz GPS, 698-2700 3G/4G/LTE cellular data communication and 2.4 / 5 GHz WIFI/WLAN in one, small, covert package.

The threaded antenna mounting stud can accommodate up to a 5/8” (16 mm) thick roof surface. The RSF-DB-G4W-FFS has 3 cables to optimally support the different technologies. 3G/4G/ LTE machine-2-machine data communication is supported on a low-loss RG-58 cable with FME connector. The WIFi/ WLAN operates on a separate RG-58 cable with FME connector.. The 26 dB gain GPS antenna has its own RG-174 cable with SMA-Male connector.

FEATURES:

• Single antenna: 3.5" tall x 4" diameter supports all 3 signals (GPS,Cellular,WIFI)
• Combines 3 high performance elements: GPS + WIFI + 3G/4G/LTE
• 3 Separate 17 ft. cables offer installation flexibility.
• Connectors: GPS has SMA-Male.  Cellular & WiFi have FME.
• Easily mounted through a single 3/4” hole

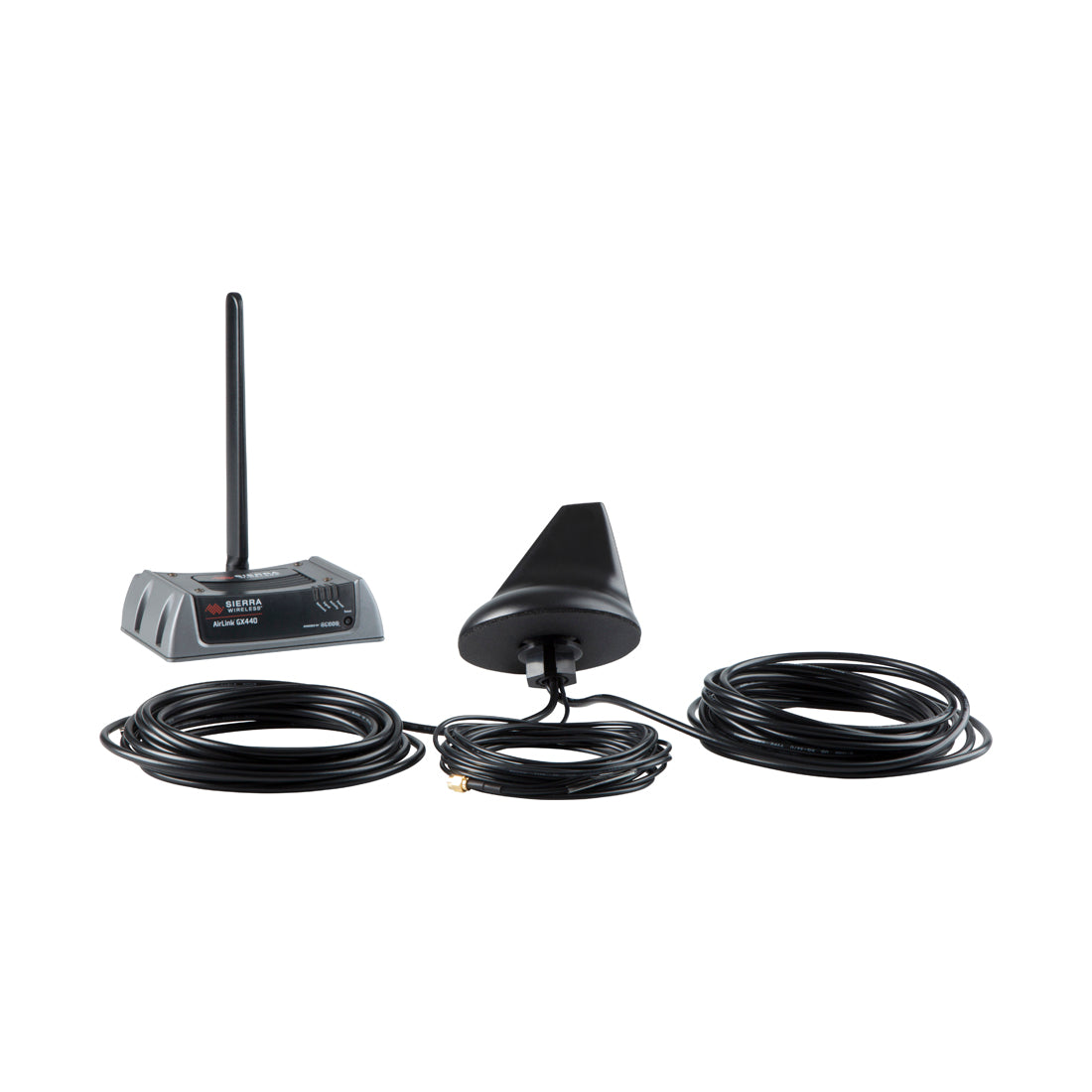

• Optimized for use with Cellular modems and gateways from Sierra Wireless, Cradlepoint, MultiTech, Microhard, etc.

APPLICATIONS:
