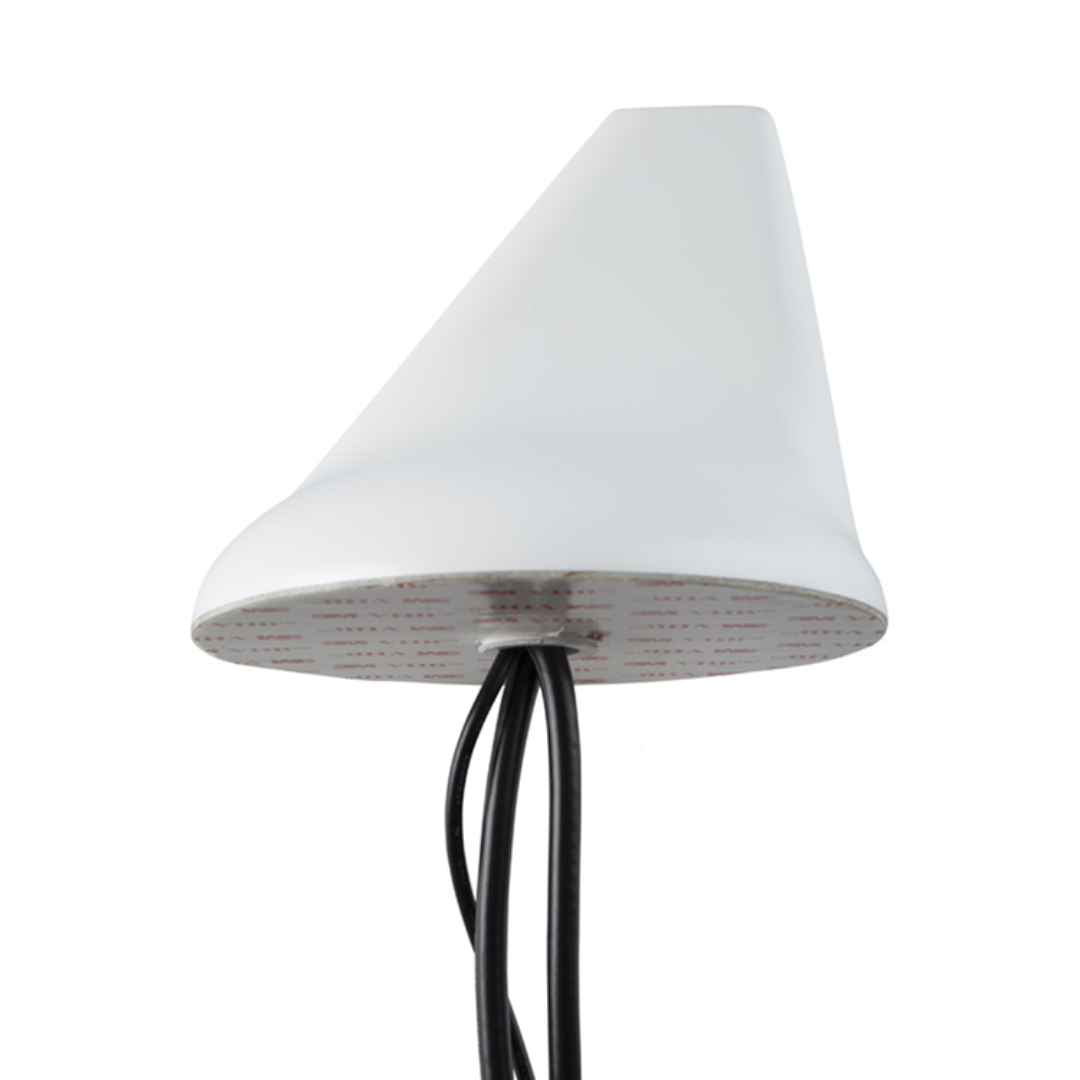

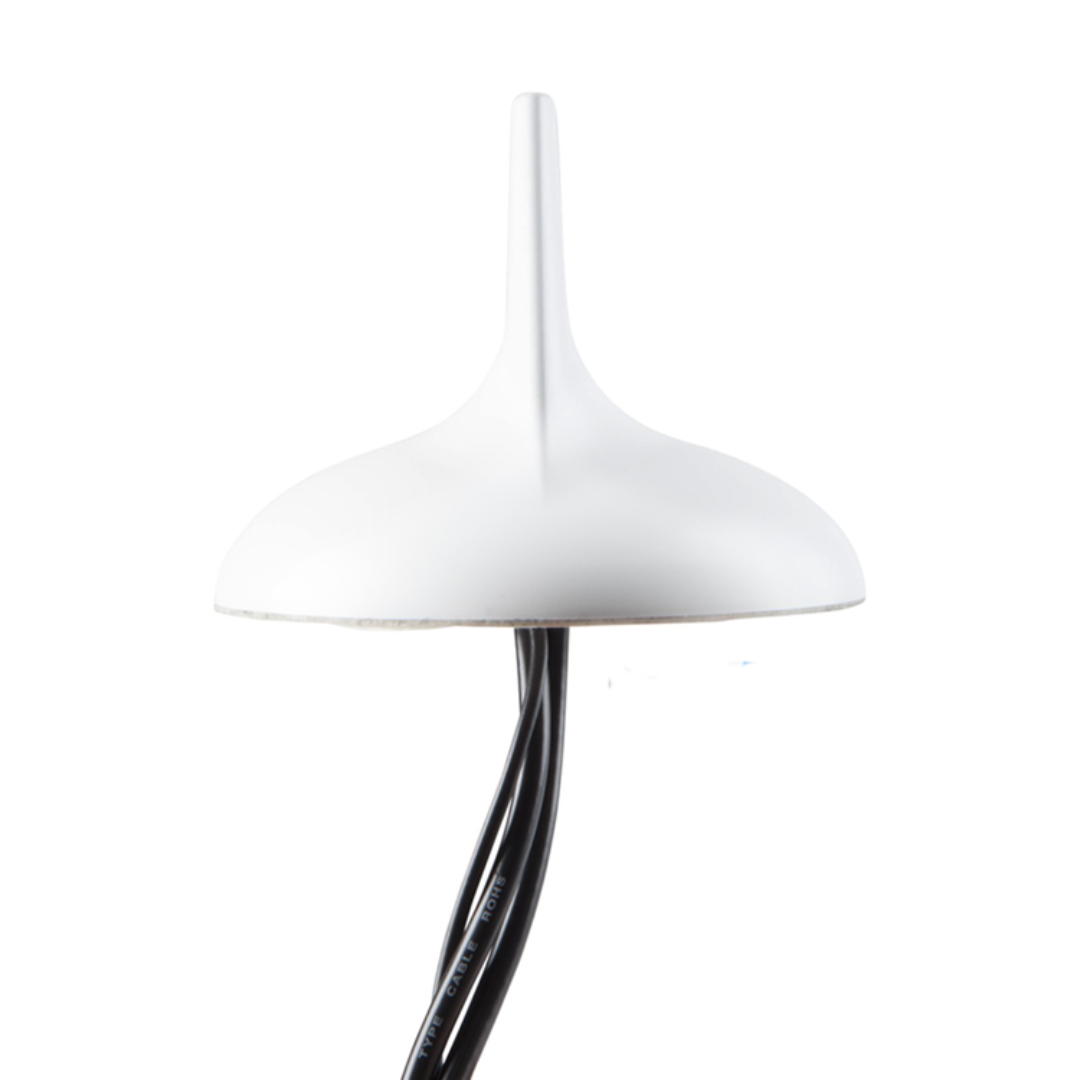

The RFMAX RSF-AW-G4W-SSS is a white, adhesive mount 3-in-1 Roof Mount Sharkfin style antenna and is the best choice for a roof mounted unit operating from 698 thru 5875 MHz. The antenna is ideal for combining 1575 MHz GPS, 698-2700 3G/4G/LTE cellular data communication and 2.4 / 5 GHz WIFI/WLAN in one, small, covert package.

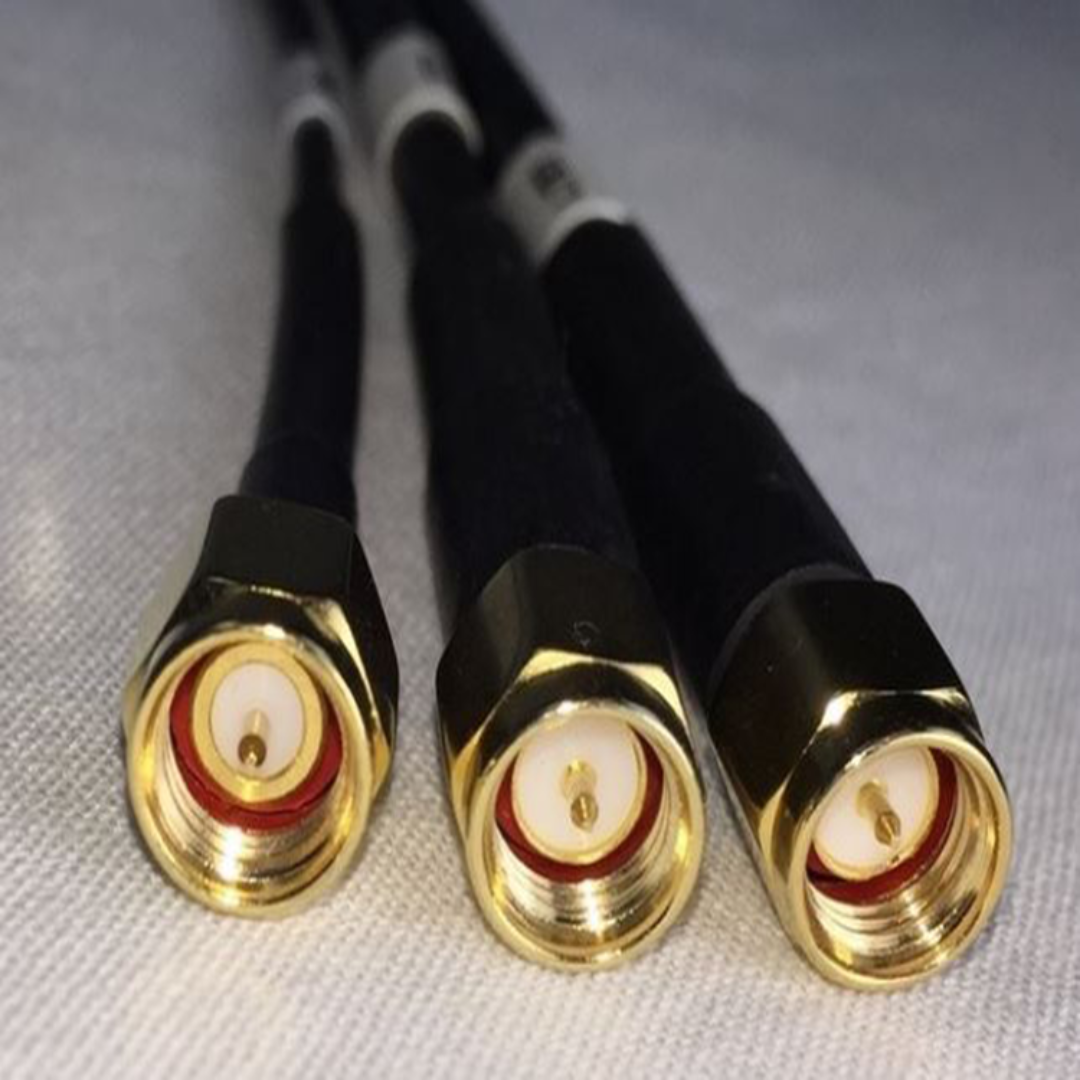

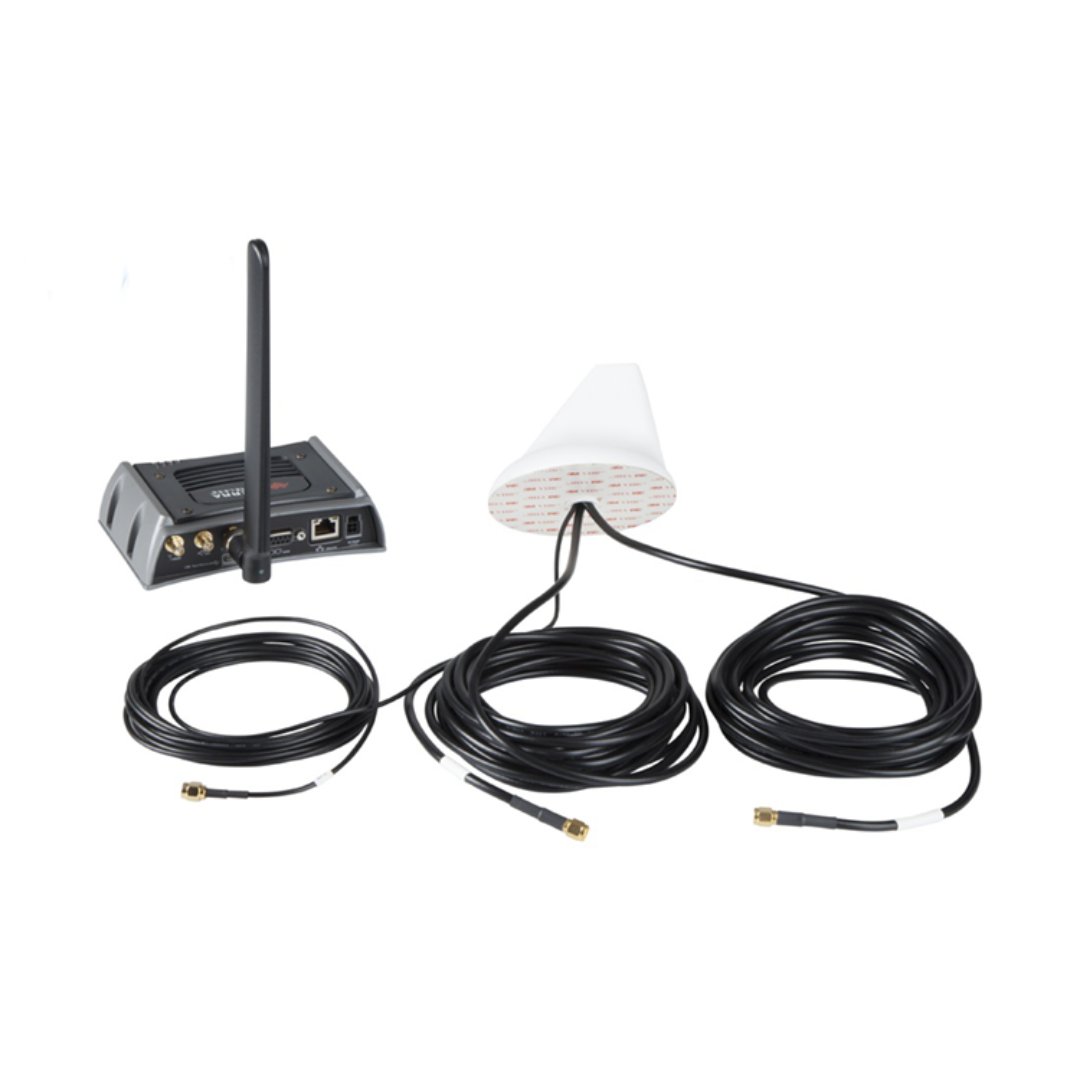

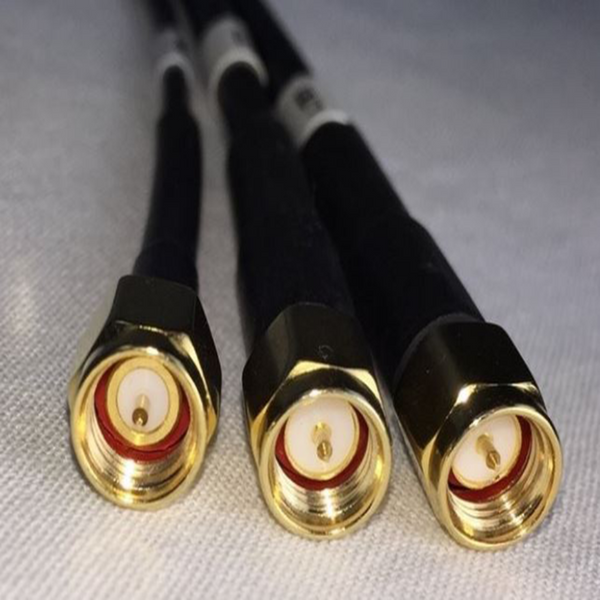

The adhesive mounting pad can accommodate any metallic roof surface. The RSF-AW-G4W-SSS has 3 cables to optimally support the different technologies. 3G/4G/ LTE machine-2-machine data communication is supported on a low-loss RG-58 cable. The WIFi/ WLAN operates on a separate RG-58 cable. The 26 dB gain GPS antenna has its own RG-174 cable. Field test for best performance with modems/gateway/routers from Sierra Wireless AirLink series: LS300, RV50, RV50x, GX400, GX440 & GX450.
