G44-17SSS

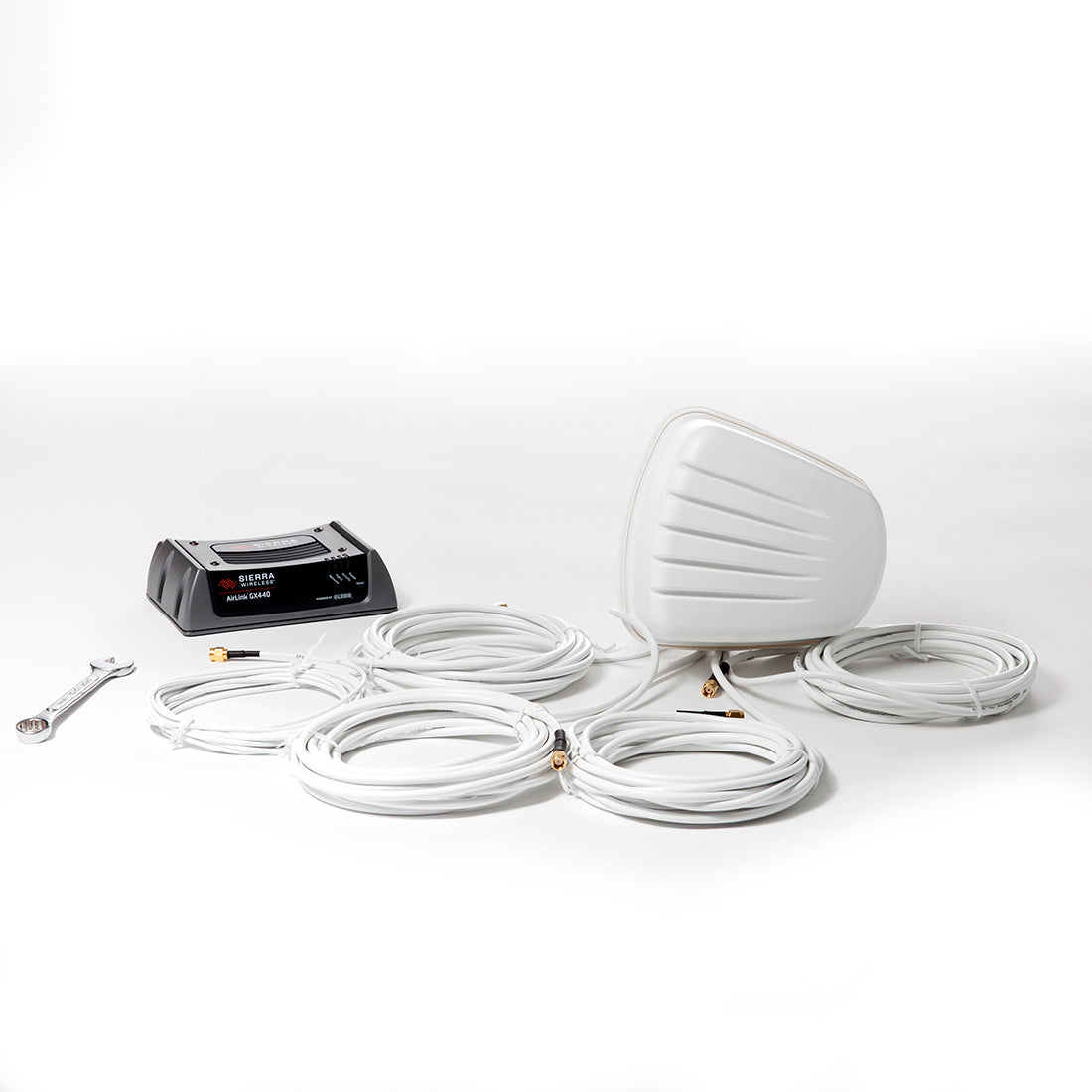

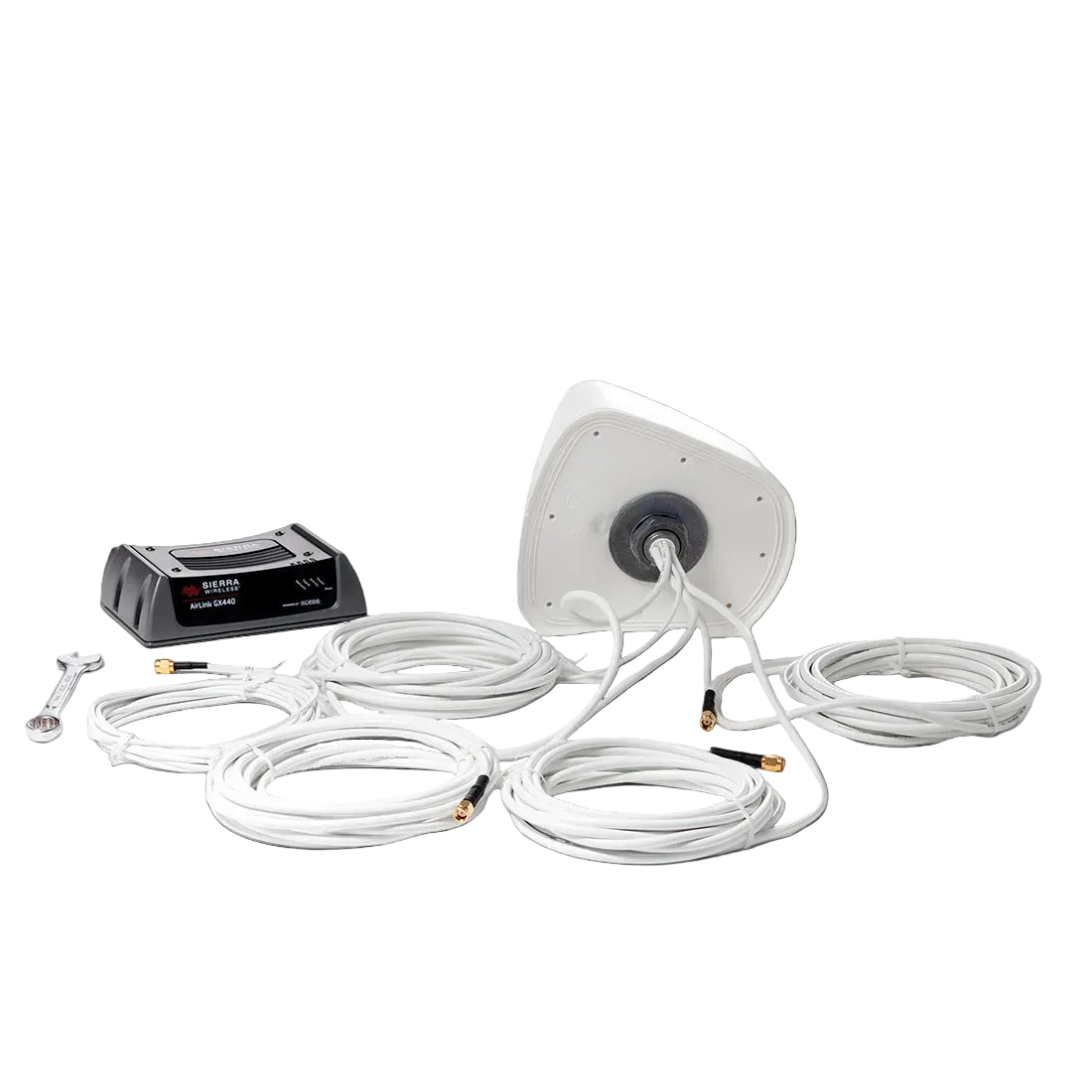

RFMAX Legacy Multi Element Antenna for Vehicles, MiMo 4G + WiFi + GNSS, White/Black, 17 Ft Cable
Configuration
Color

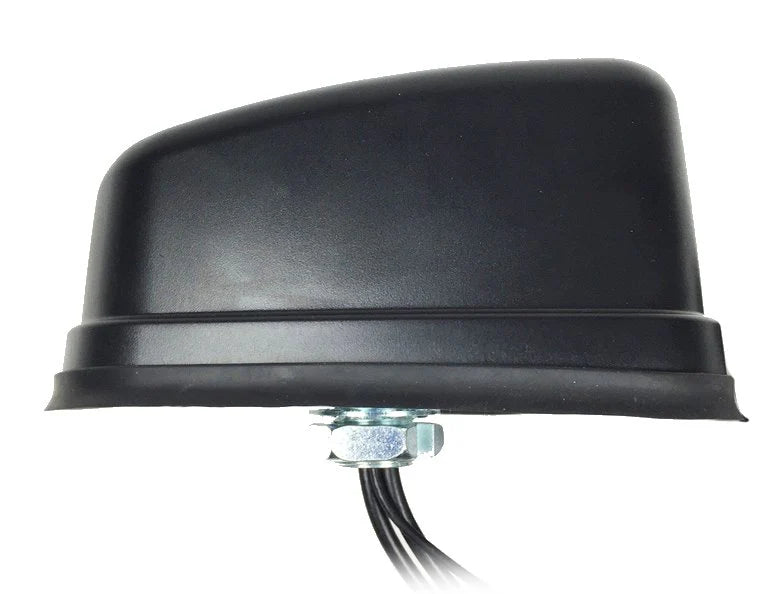

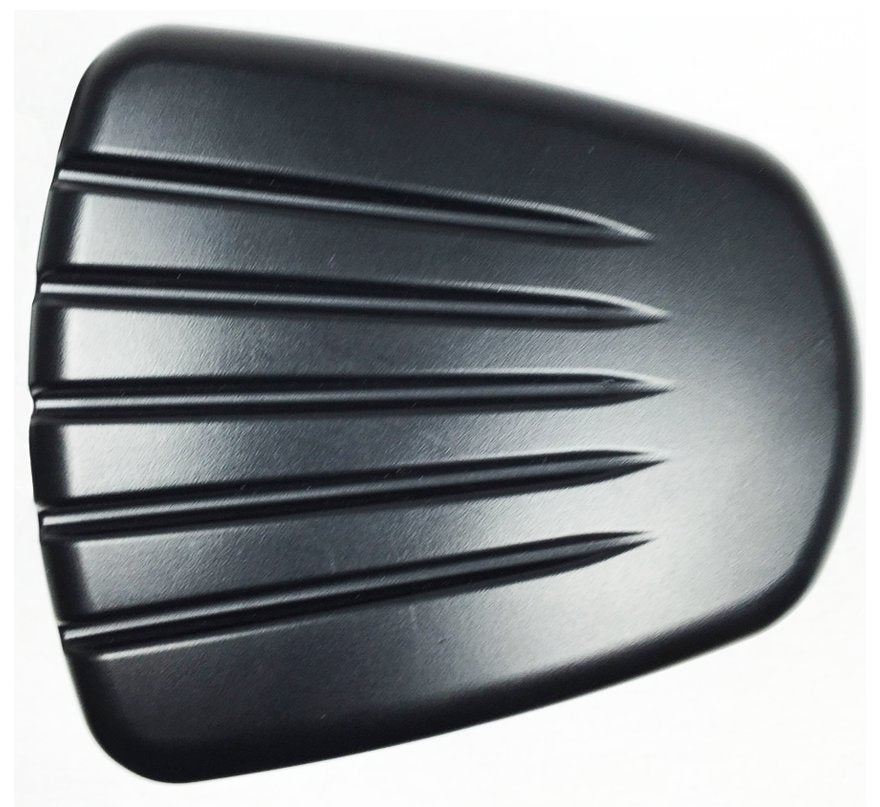

- This rugged, low profile antenna is optimized for use with today's high data-rate cellular modems
- This antenna is ideal for utility trucks and vans (electric, gas, water, cable) or for Police, Ambulance, Fire and other public safety vehicles transmitting video and other mission critical information through the LTE channels while also accessing GPS enabled services

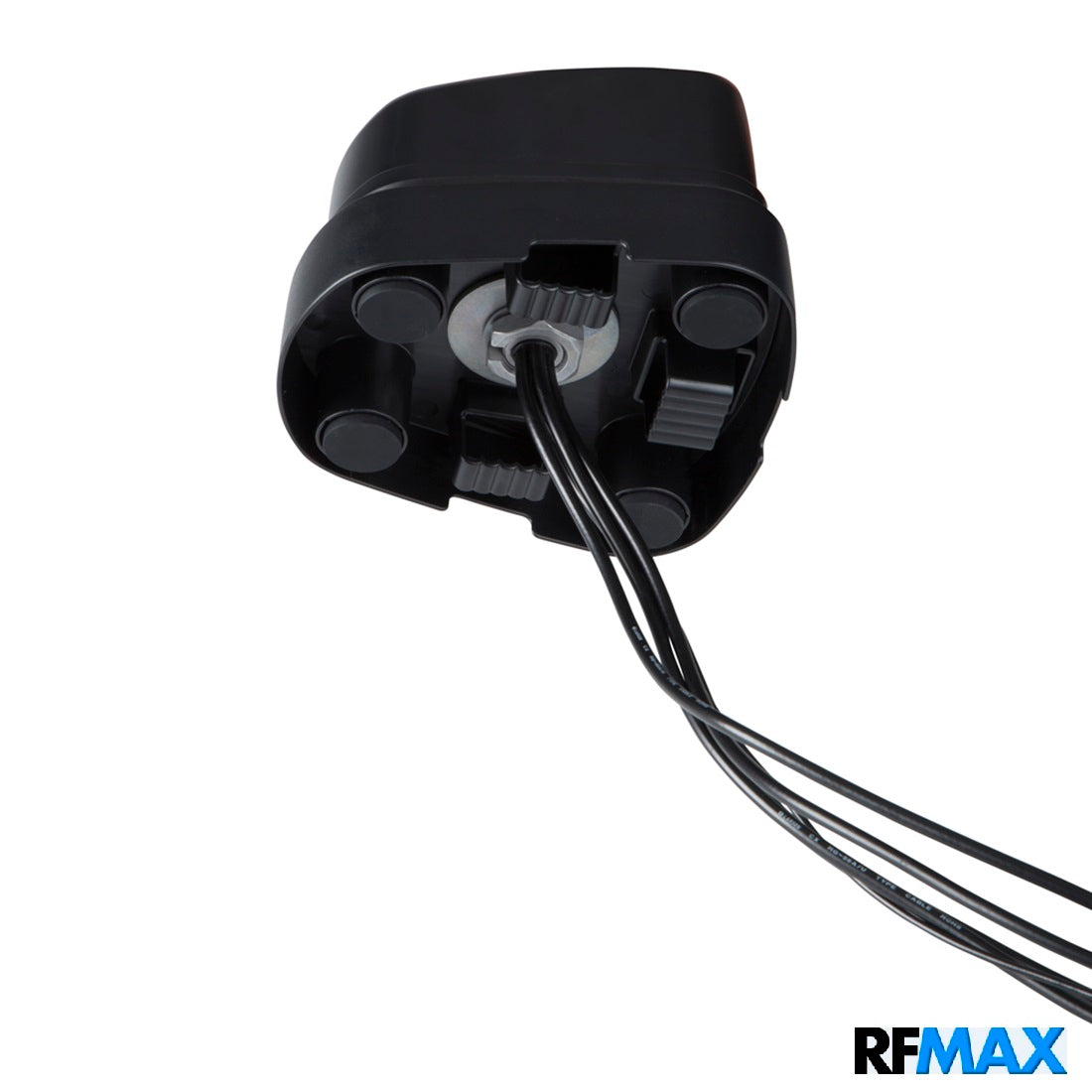

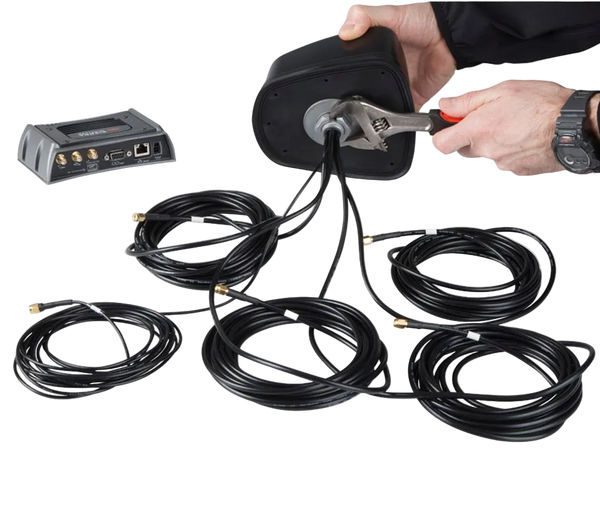

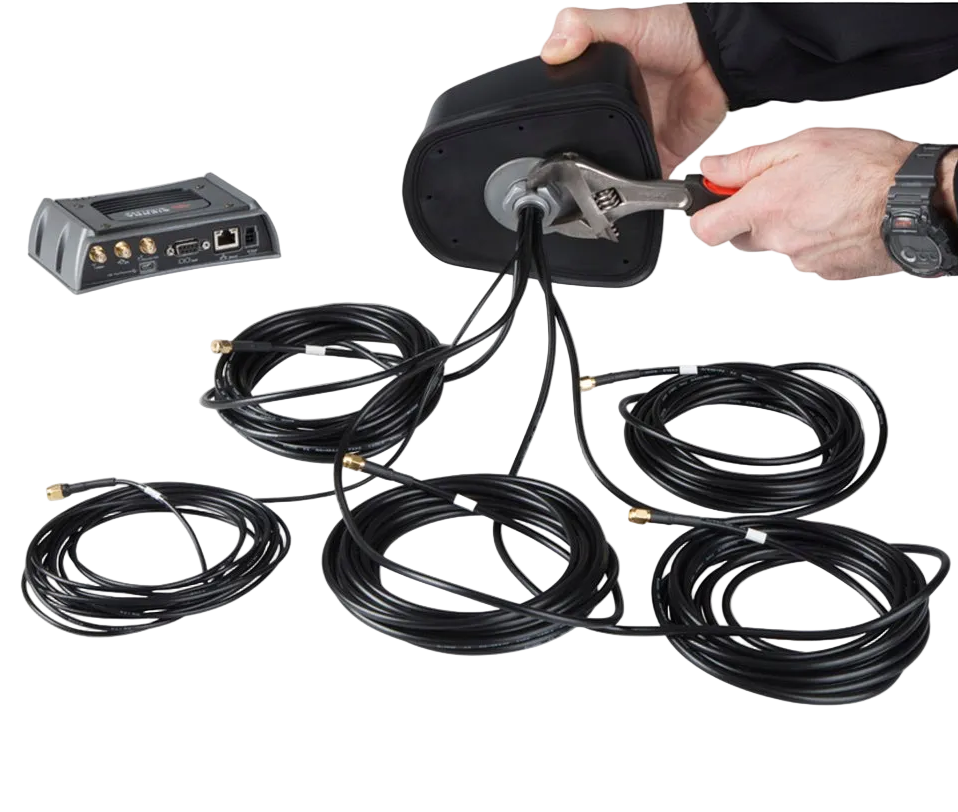

- Mount using the included stainless steel stud, or the G44-HDMM mag-mount (sold seperately)

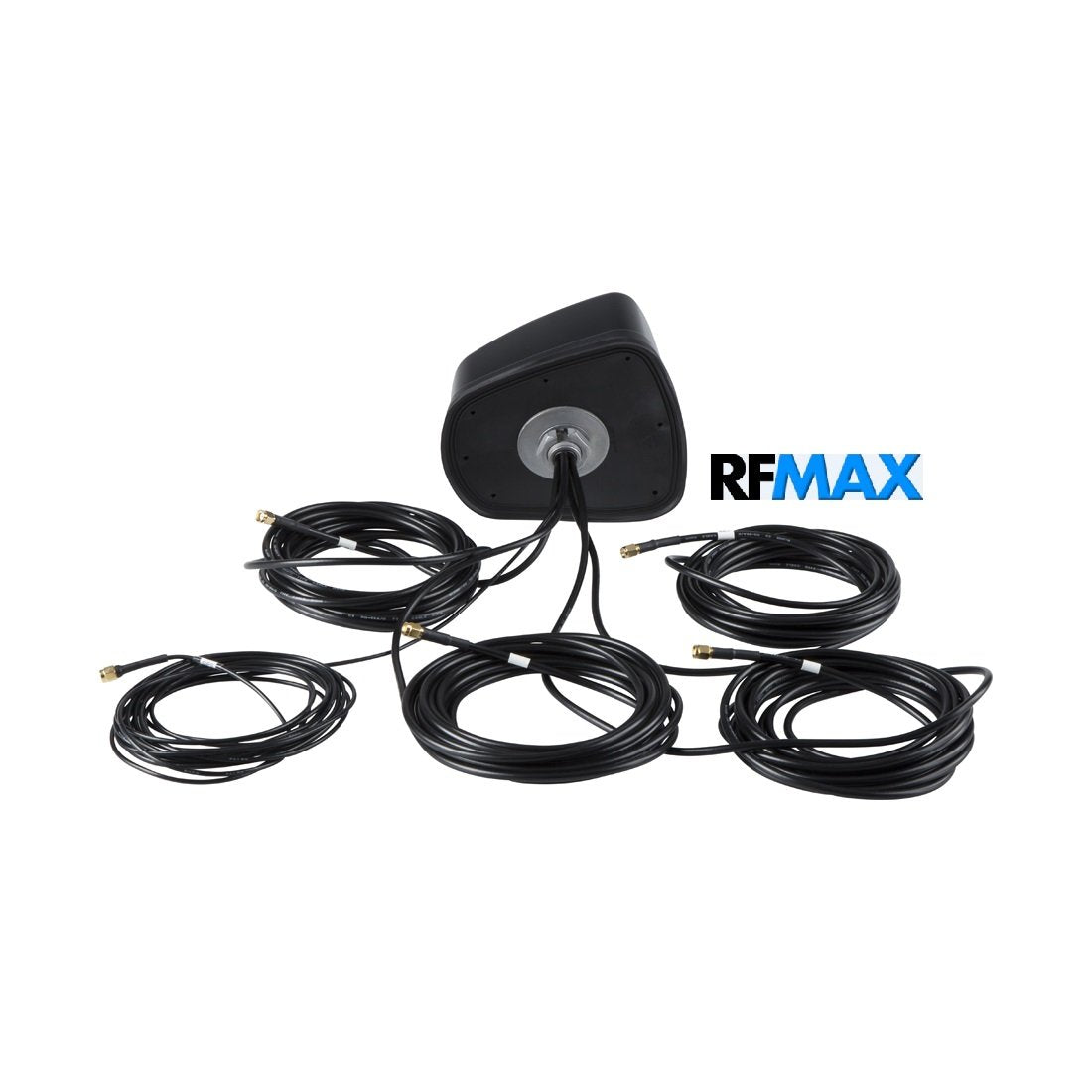

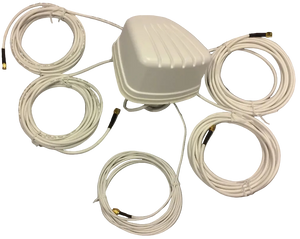

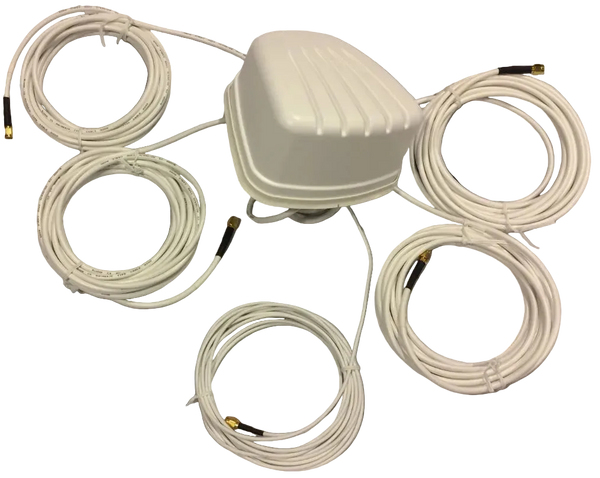

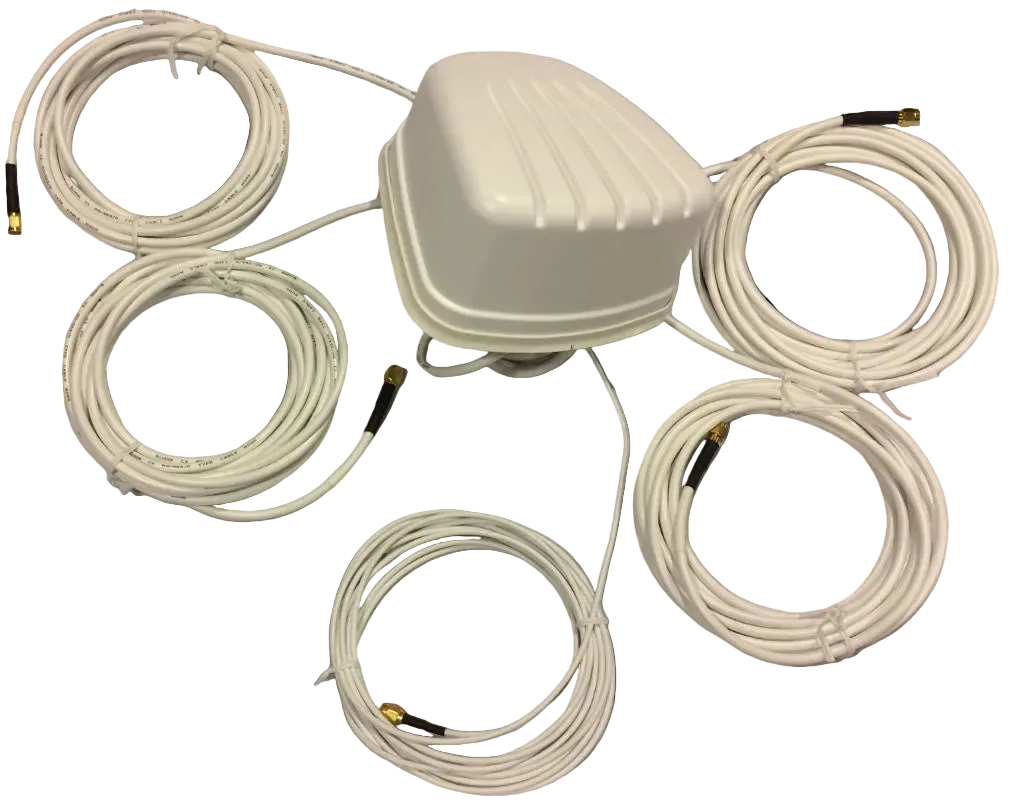

- Comes in White and Black, Can hold upto 2x LTE, 2x WiFi and 1x GNSS.

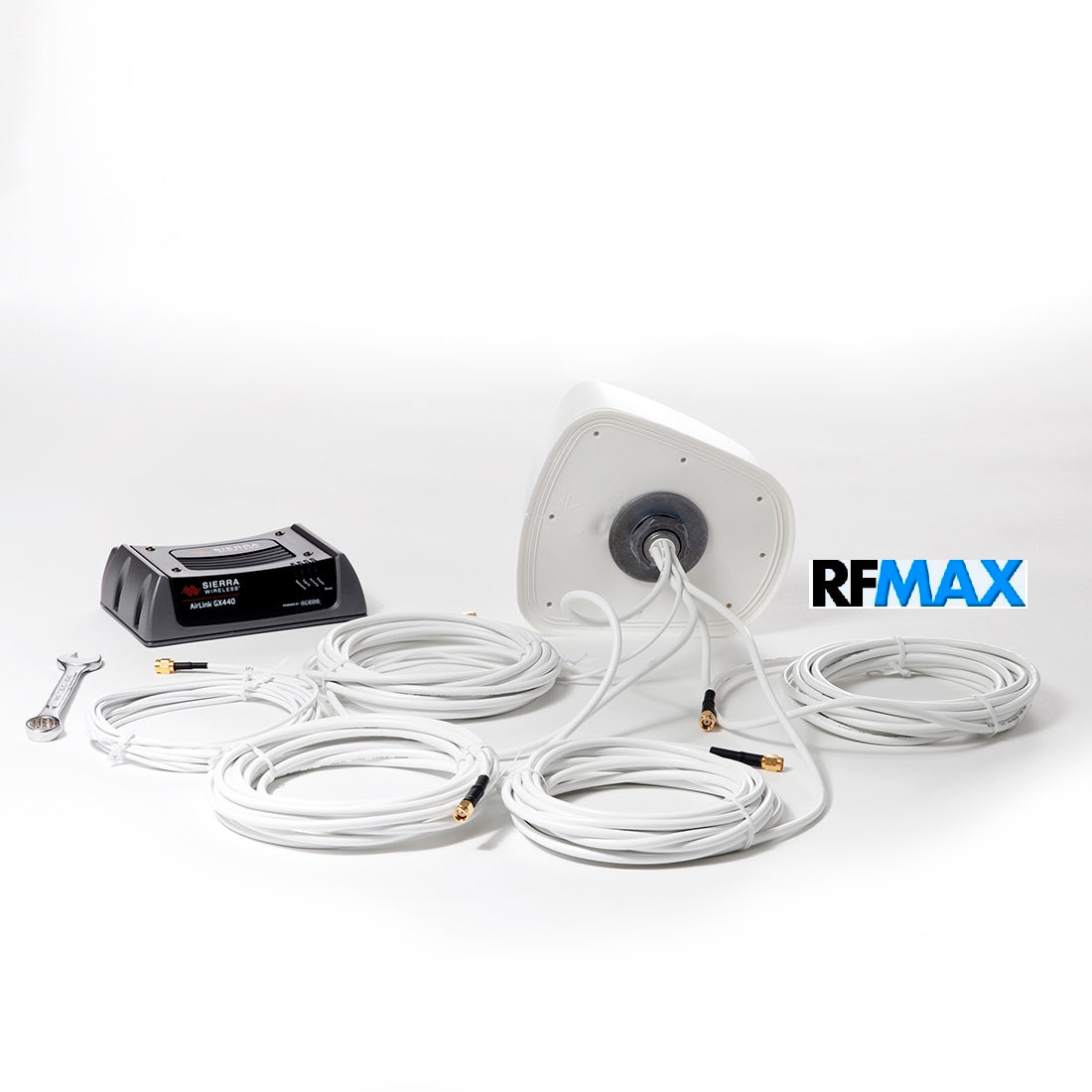

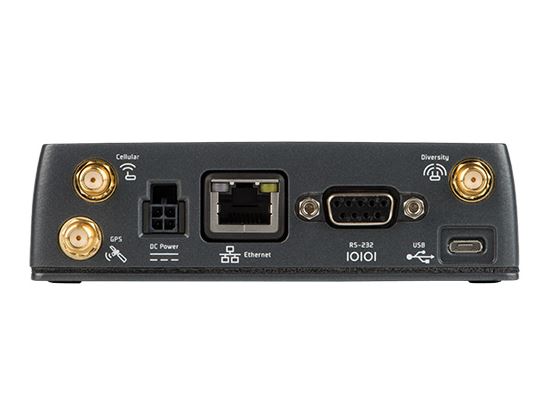

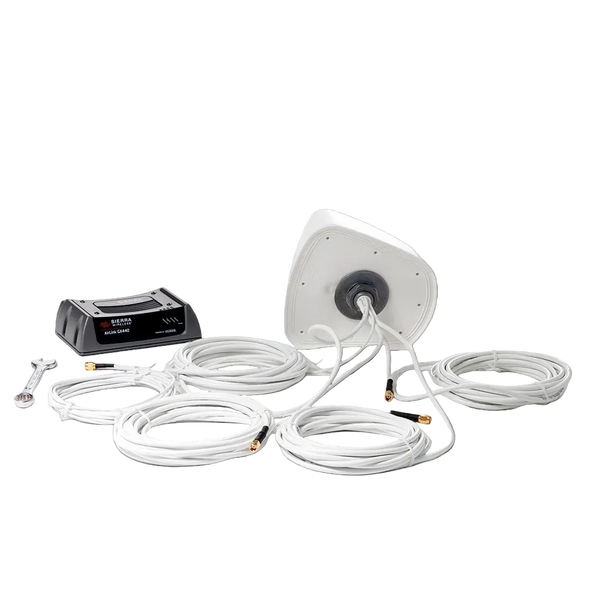

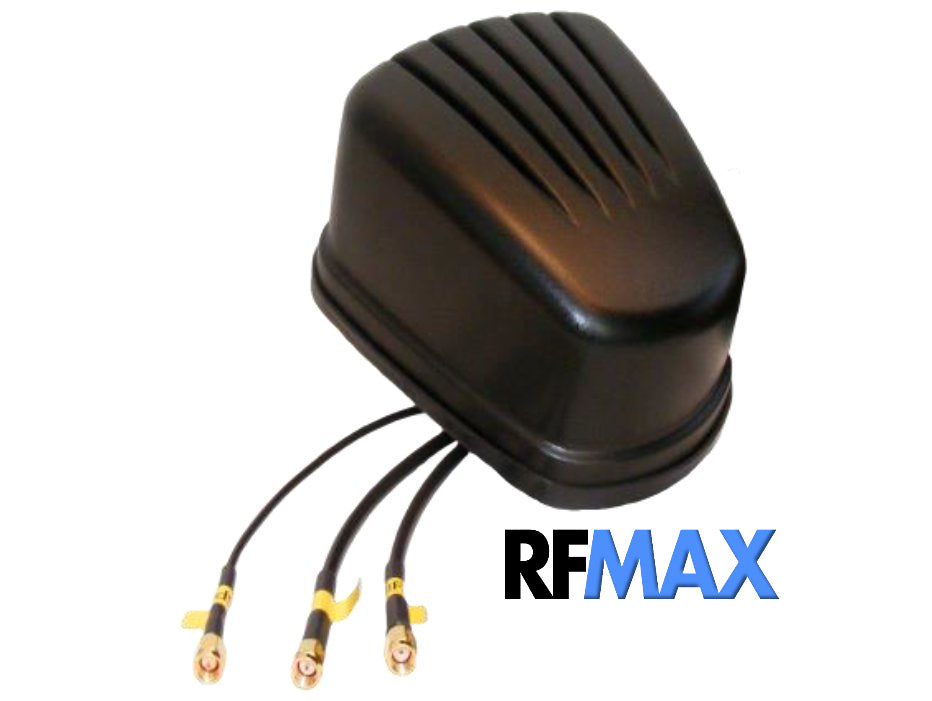

- 3 in 1 is Compatible with Sierra Wireless GX400, GX440, GX450, RV50 and RV50x

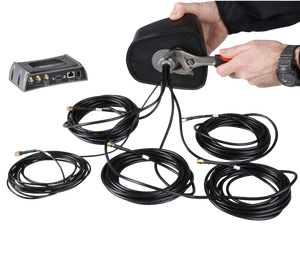

- 5 in 1 is Compatible with Sierra Wireless Airlink GX450 and Cradlepoint IBR900 & IBR1100

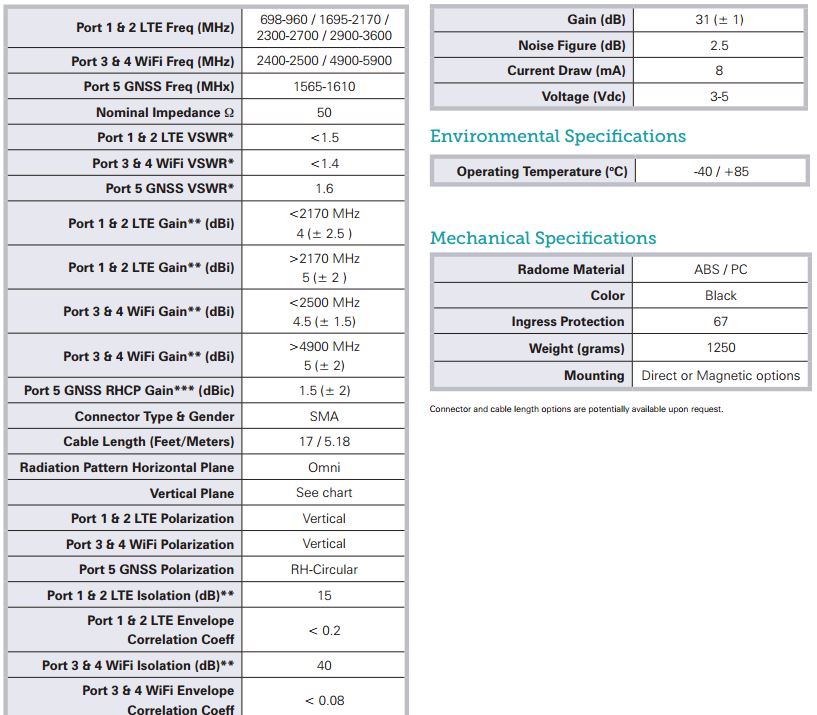

Technical Specifications
| SKU | G44-17SSS |
|---|---|
| Manufacturer | RFMAX |
| Cable Length (inches) | 17 feet / 204 inches |
| Cable Length (mm) | 5.18 meters / 5182 mm |
| Color | Black |

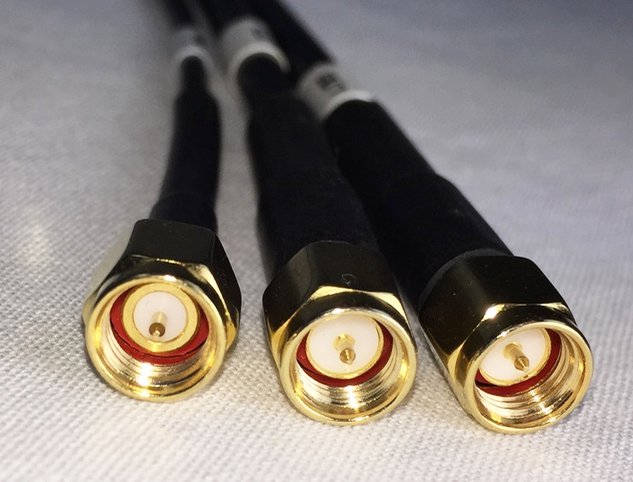

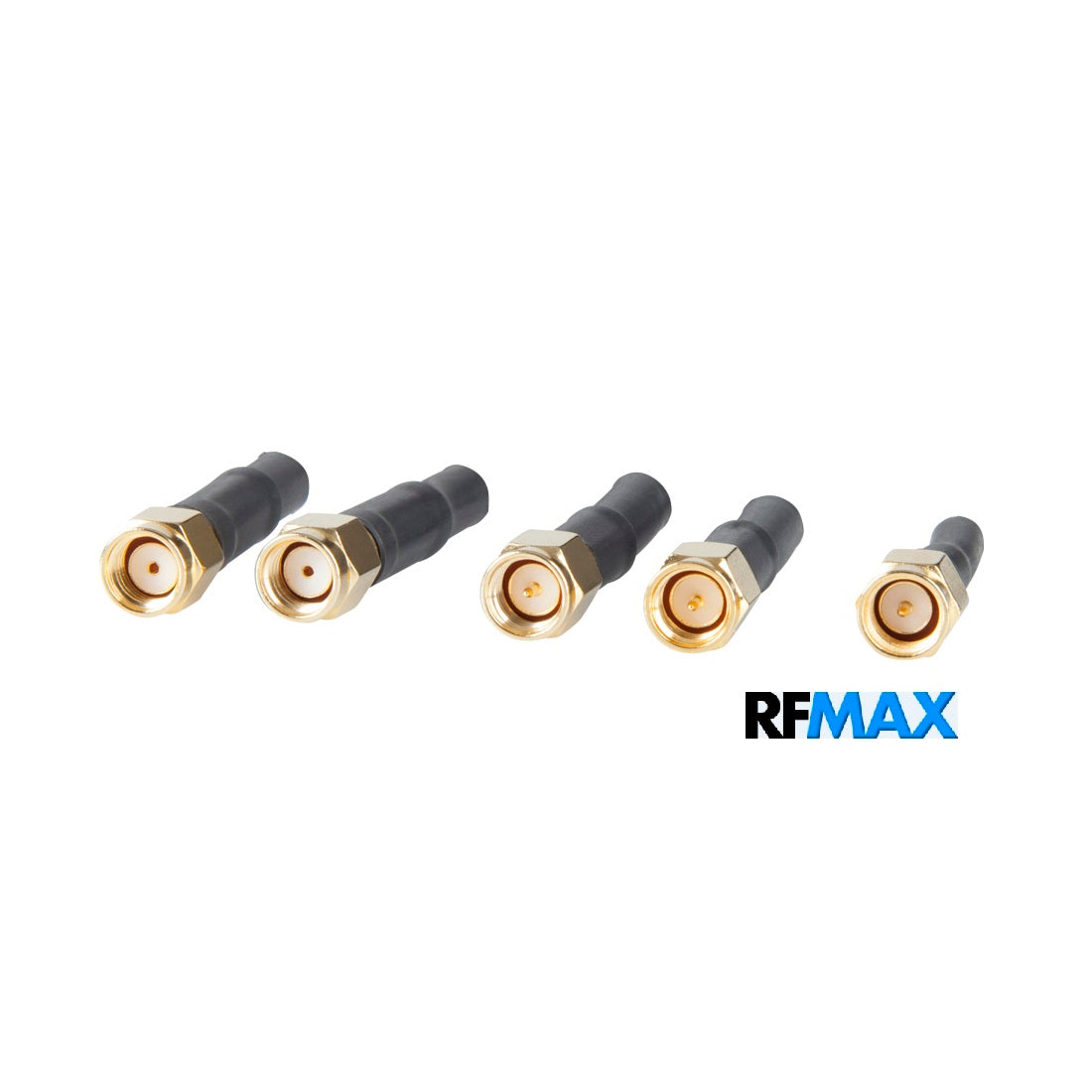

| Connector 1 | SMA-Male |
| Connector 2 | RP SMA-Male |
| Connector Type | Cable - Bottom Entry |
| Directional or Omni | Omnidirectional |
| Working Frequency | 698-2700 MHz 3G/4G/LTE |
| Working Frequency 2 | 2400-2500 / 4900-5900 MHz WiFi / WLAN |
| Working Frequency 3 | 15.75.42 - 1609 MHz (GPS/Glonass) |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 4-5 dBi |
| Gain 2 | 4.5 - 5 dBi |
| Gain 3 | 31 dBi (active) at 3 or 5V |
| Ground Plane Required | No |

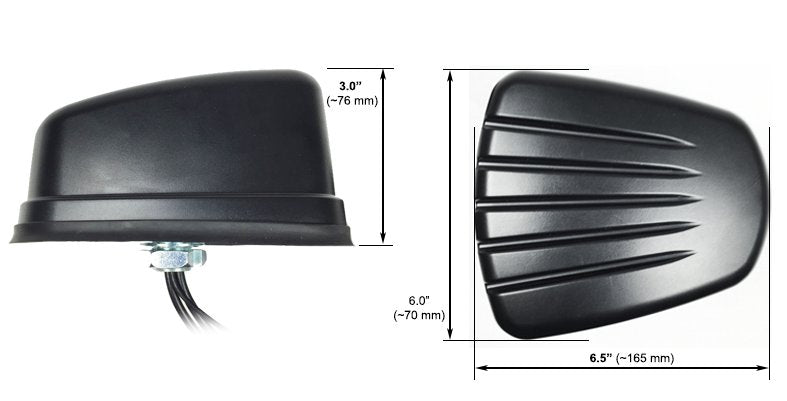

| Height/Length (inches) | 6.5 in. long |
|---|---|
| Height/Length (mm) | 165 mm long |

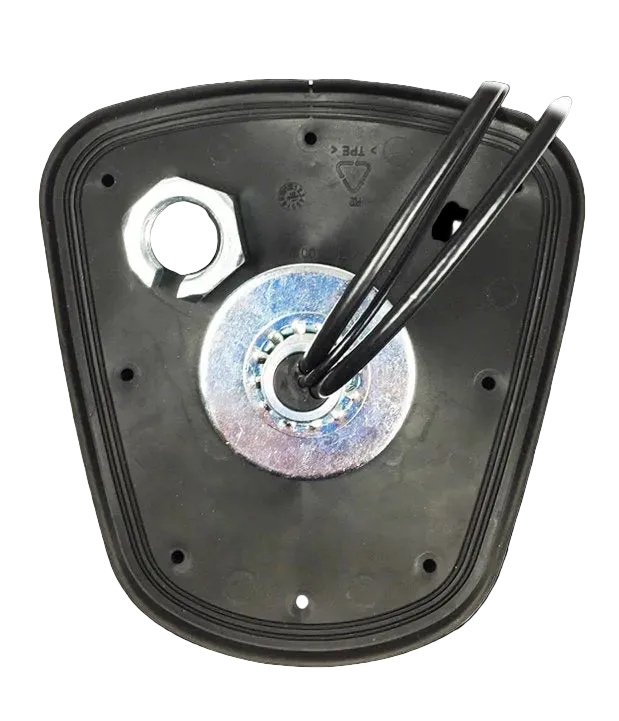

| Includes | Rubber Gasket, Lock Washer & Split Hex Nut |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | ABS Plastic / Polycarbonate |
| Max Input Power (W) | 20 Watts |

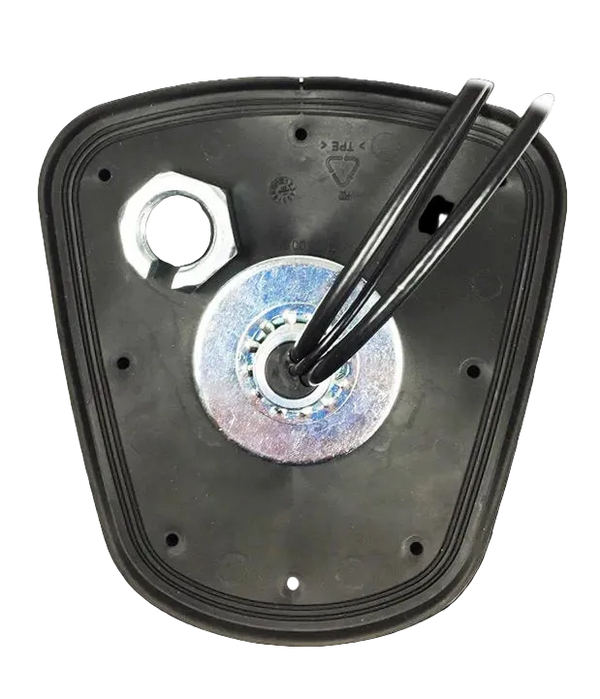

| Mount Style | Through hole / direct roof mount (use 7/8" hole) |

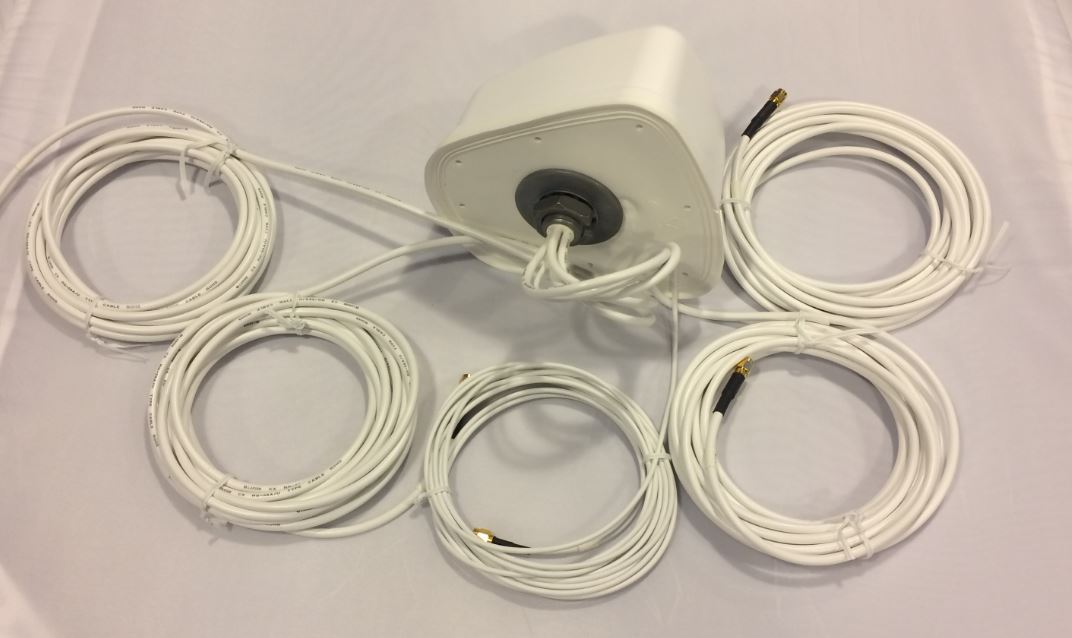

| Number of Cables | 3 or 5 |
| Operating Temp (celsius) | MIL-STD 810G -40 to +85 C |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 3 in. thick |
| Thickness/Diameter (mm) | 76 mm thick |
| VSWR: < X: 1 | <1.7 |
| Width (inches) | 6 in. wide |
| Width (mm) | 152 mm wide |
