RPOR-TH-865/902-8L-RTF

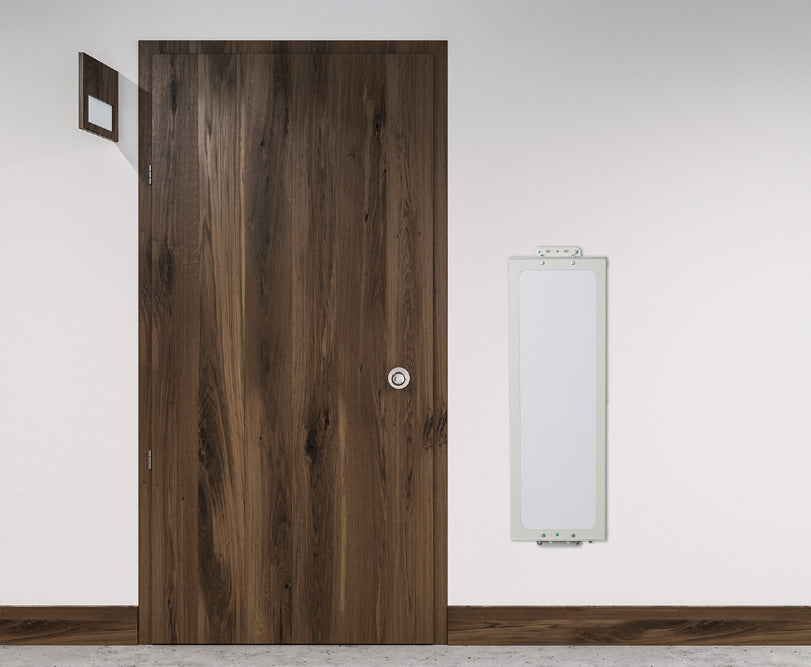

RFID Thin Wall Portal FLEXANTENNA for In-Building Choke Points
- Focused Multi-Linear Beams - Captures All Tag Orientations
- A slim profile, Less than 2" Thick, 12.8" Wide and 38" Tall
- FCC 902-928 MHz and ETSI 865-868 MHz Band Coverage
- Flush Wall Mount or U-Bolt Pole Mount Available (sold seperately)
- Strong Near-Field Performance and Tightly Controlled READ ZONE
- Thin & lightweight means low-cost shipping and easy installation
- RPTNC-Female Edge Connector (cable not included)
- This unit is a great alternative to the SLS D-100 model
Technical Specifications
| SKU | RPOR-TH-865/902-8L-RTF |
|---|---|
| Manufacturer | RFMAX |
| Color | White |
| Connector 1 | RP-TNC Female (on bottom edge) |
| Directional or Omni | Directional |
| Working Frequency | 902-928 MHz |
| Working Frequency 2 | 865-868 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Gain | 8 dBi (FCC) |
| Gain 2 | 7.5 dBi (ETSI) |
| Height/Length (inches) | 38 |
| Height/Length (mm) | 965.2 |
|---|---|
| Material | Flame Retardant ABS |
| Max Input Power (W) | 10 Watts |
| Mount Style | Flush Mount |
| Operating Temp (celsius) | -20ºC to 60ºC (-4ºF to + 140ºF) |
| Polarity | Multilinear |
| Thickness/Diameter (inches) | 1.94 |
| Thickness/Diameter (mm) | 49.27 |
| Weight (lbs) | 24 |
| Width (inches) | 12.8 |
| Width (mm) | 325.12 |
