PCE12106-04B

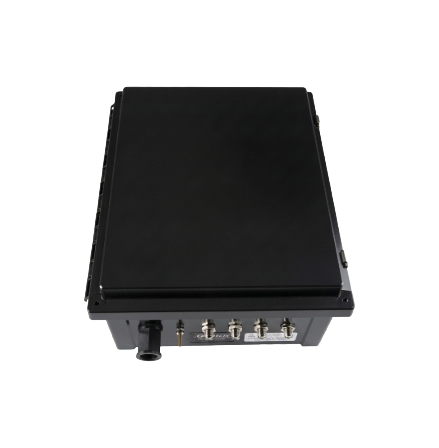

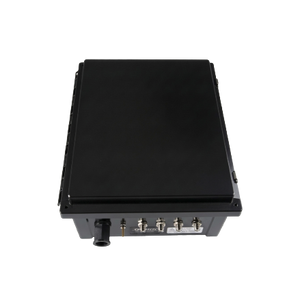

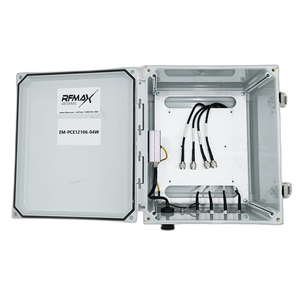

RFID Reader Enclosure 12x10x6 inch for Impinj R700, 4 RP-TNC Female Ports
Configuration
- Enclosure size: 12" H × 10" W × 6" D
- Material: Heavy-duty polycarbonate construction
- Environmental rating: NEMA 4 / IP66 weatherproof design
- Weight: Approx. 10 lbs
- Mounting: Wall or mast mount with integrated mounting tabs

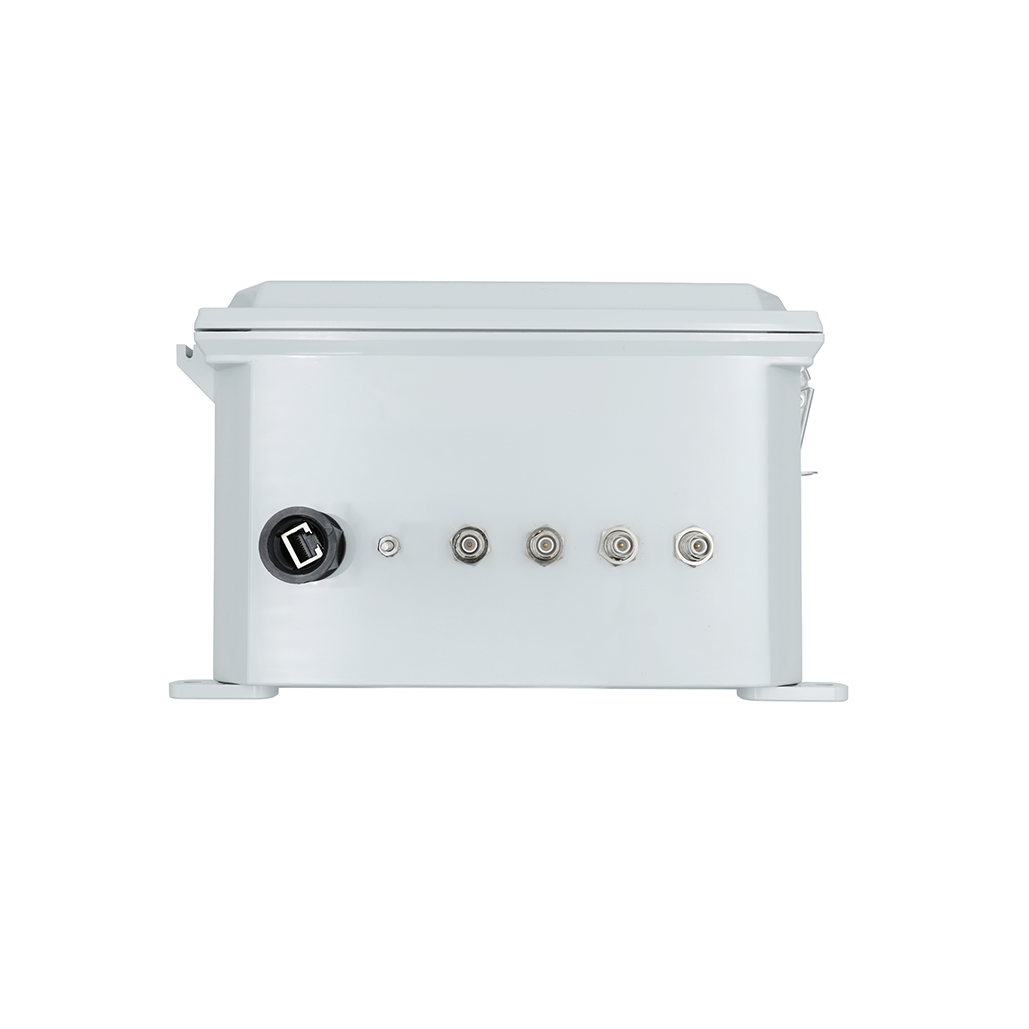

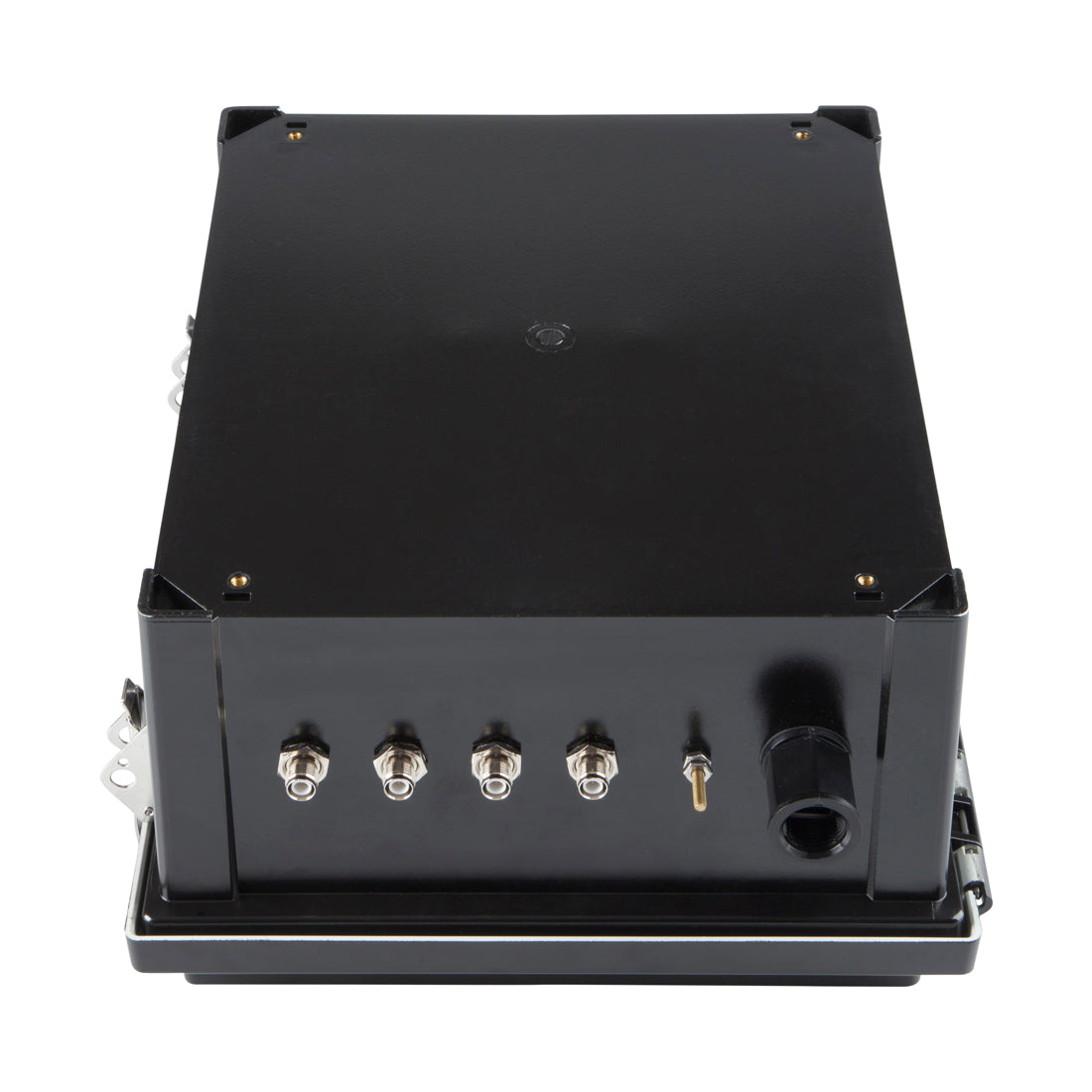

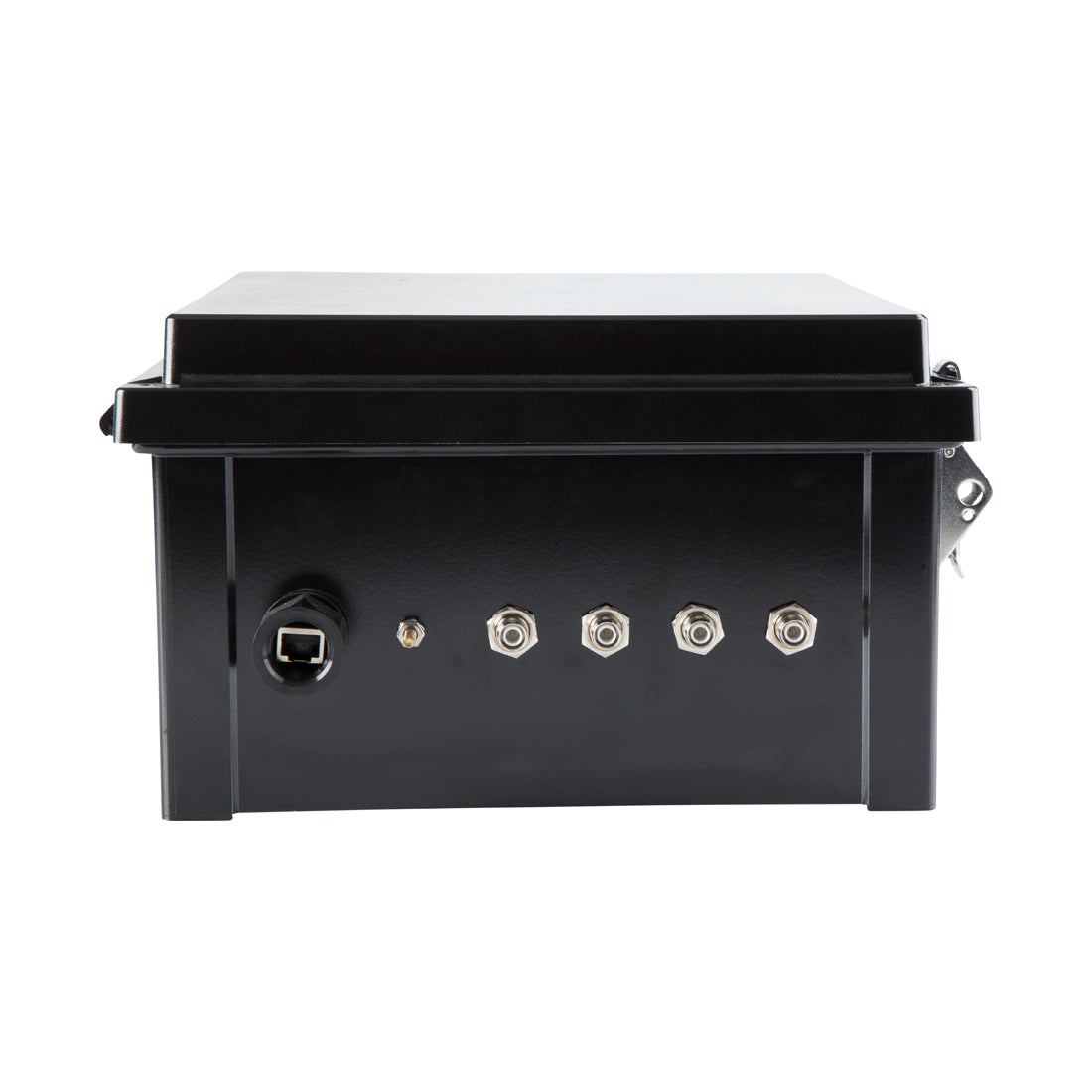

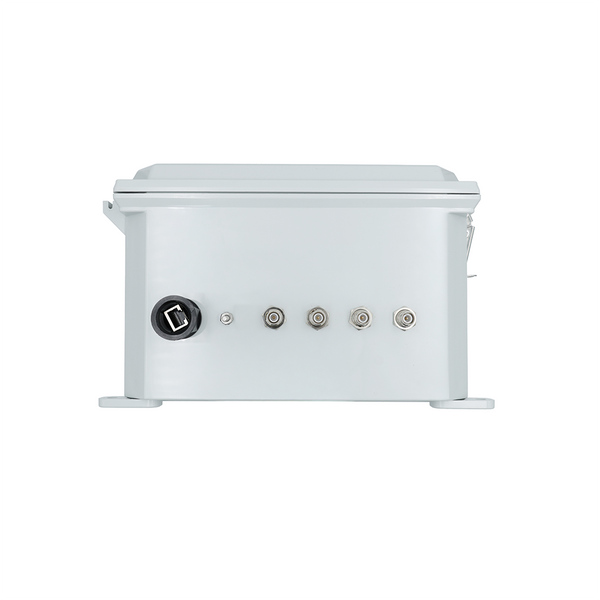

- Connector interfaces: (4) bulkhead RP-TNC Female RF ports

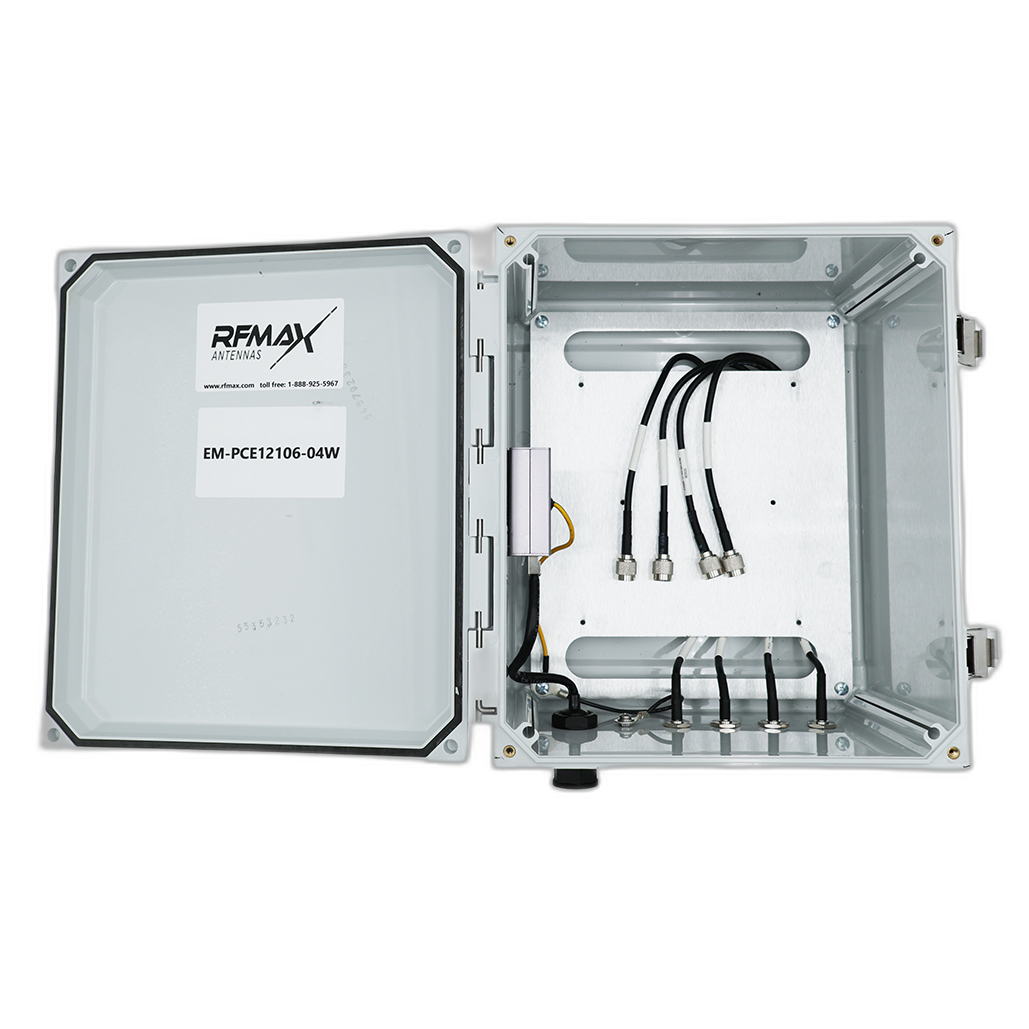

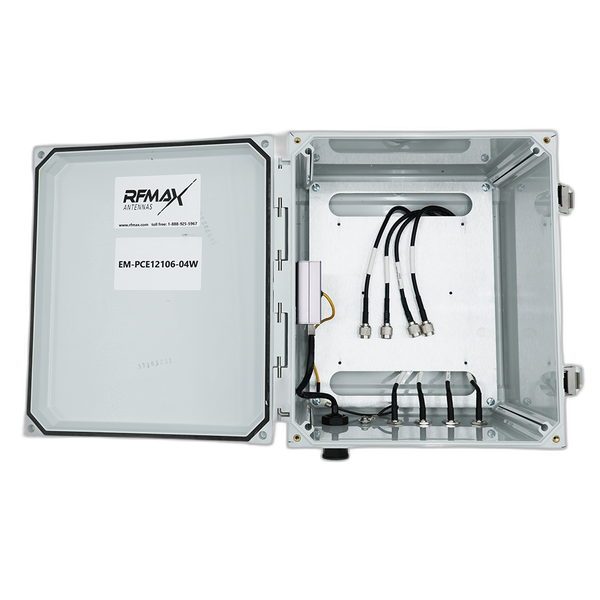

- Cable integration: Pre-installed internal coax cables
- Power interface: PoE entry port with internal surge protection

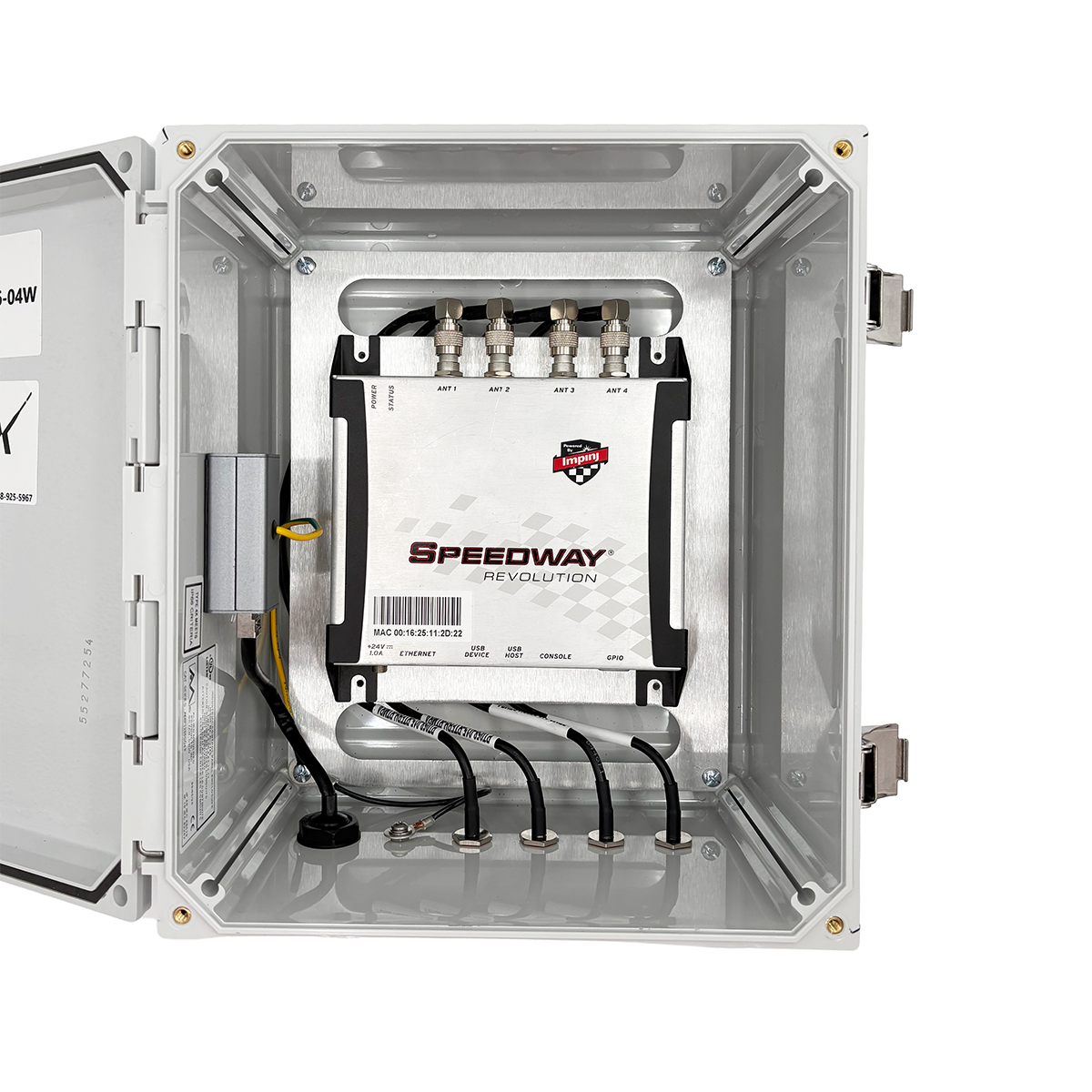

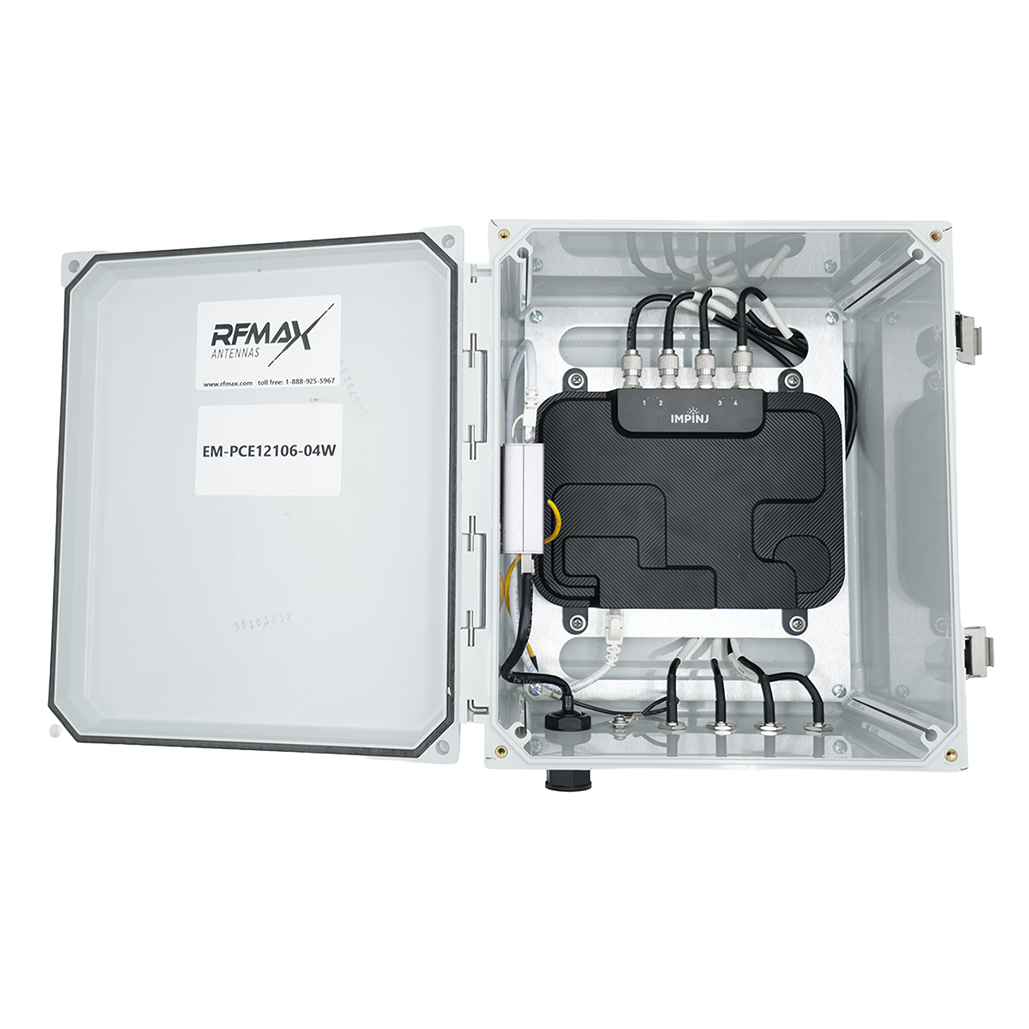

- Internal structure: Aluminum backplate (pre-drilled for multiple RFID readers)
- Grounding: Integrated brass grounding lug

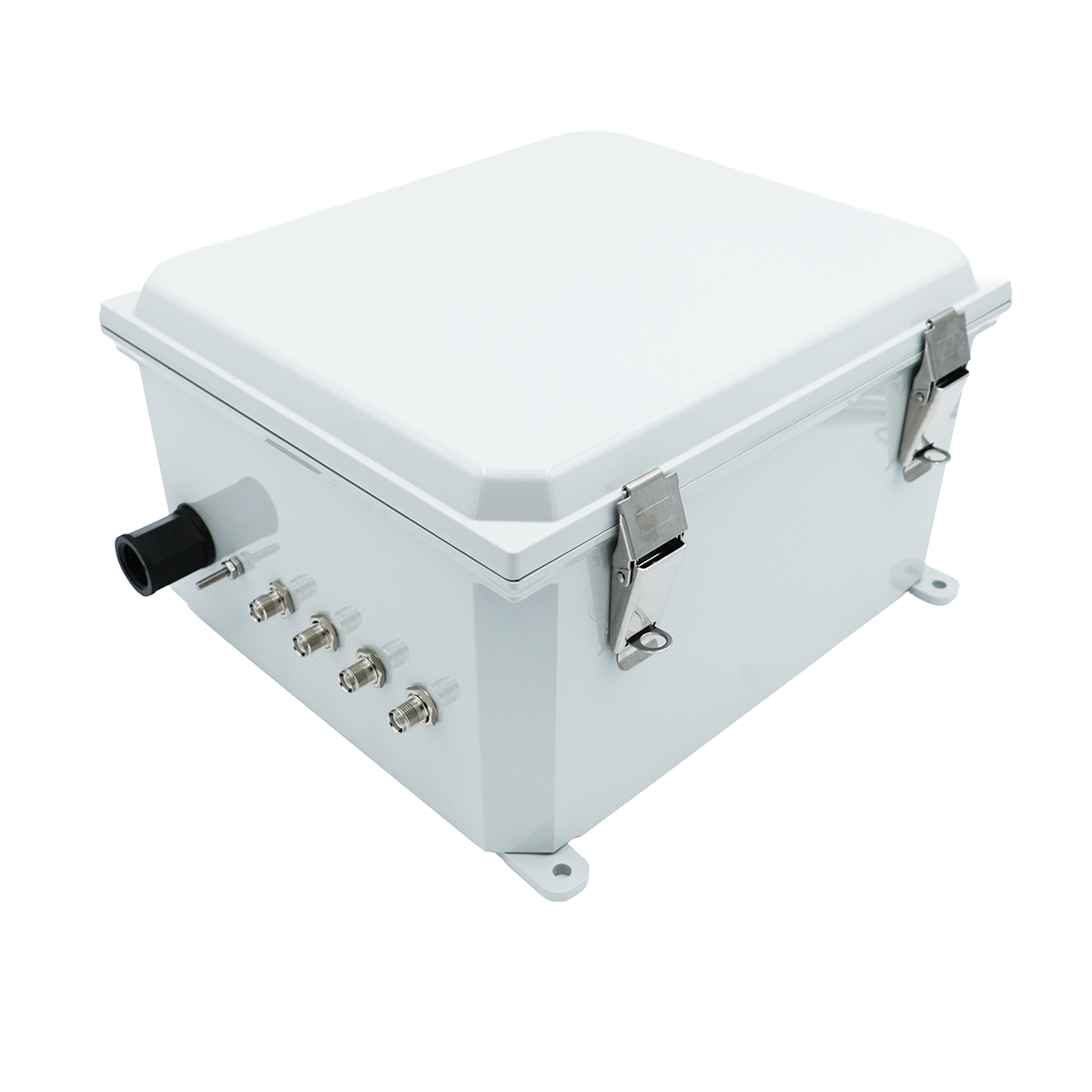

- Design: Sealed enclosure with stainless steel locking latches
Technical Specifications
| SKU | PCE12106-04B |
|---|---|
| Manufacturer | RFMAX |
| Connector 1 | RP TNC-Female |
| Connector Type | Connector - Bottom |
| Height/Length (inches) | 12 |
| Height/Length (mm) | 305 |
| Includes | Wall Mounting Tabs |
| IP Rating | IP66 |
| Material | Polycarbonate |
|---|---|
| Mount Style | Mast or Wall |
| Thickness/Diameter (inches) | 6 |
| Thickness/Diameter (mm) | 152 |
| Weight (grams) | 4535 |
| Weight (lbs) | 10 |
| Width (inches) | 10 |
| Width (mm) | 254 |
