RCPA-902-11-RTF

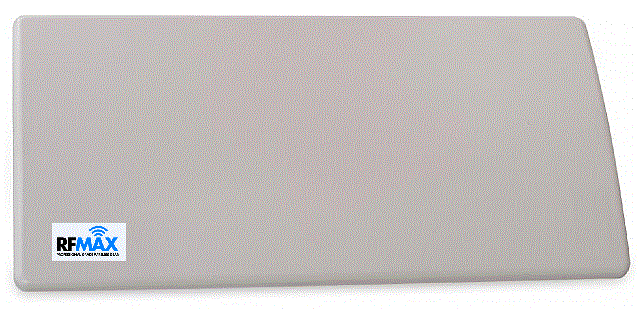

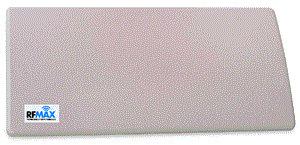

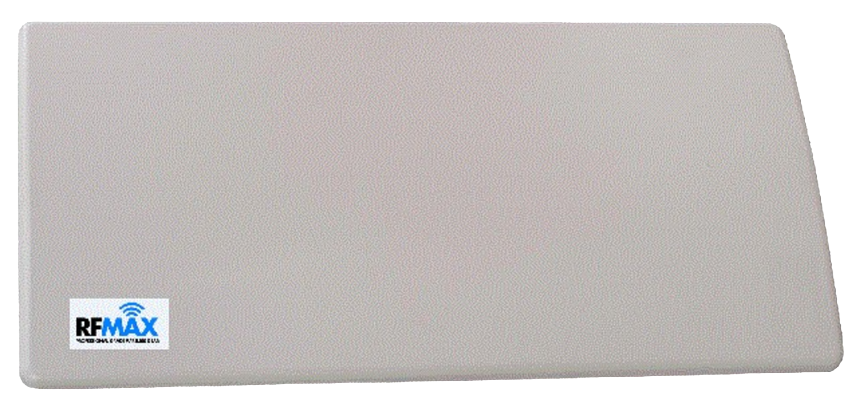

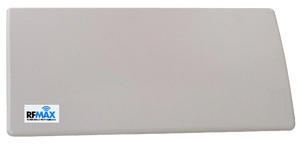

RFID Pannel Antenna 25 x 12.5 inch IP-67 Right hand Circularly Polarized 902-928 MHz, High gain
- High-gain UHF RFID antenna (902-928 MHz) for long-range tag reading and portal applications
- 11 dBic gain with RHCP circular polarization for consistent reads regardless of tag orientation
- Directional beamwidth: 63° (H) x 30° (V) for focused coverage at choke points
- IP67-rated outdoor design for harsh environments and all-weather performance
- Large format 25.6" x 12.6" panel for extended read zones and improved accuracy
- RPTNC-Female connector (rear mount) for secure, low-loss RF connections
- Ideal for RFID portals, asset tracking, inventory systems, and industrial automation
Technical Specifications
| SKU | RCPA-902-11-RTF |
|---|---|
| Manufacturer | RFMAX |
| Connector 1 | RP TNC-Female |
| Connector Type | Connector - Rear RPTNC-Female |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Gain | 11 dBic |
| Height/Length (inches) | 25.6 |
| Height/Length (mm) | 650 |
| IP Rating | 67 |
| Material | Plastic |
|---|---|
| Mount Style | Mast or Wall, 90mm 4-stud pattern at 90mm |
| Operating Temp (celsius) | -55 to +71 c |
| Polarity | RHCP Circular |
| Thickness/Diameter (inches) | 1.25 |
| Thickness/Diameter (mm) | 32 |
| Weight (grams) | 2800 |
| Weight (lbs) | 7.5 |
| Width (inches) | 12.6 |
| Width (mm) | 320 |
