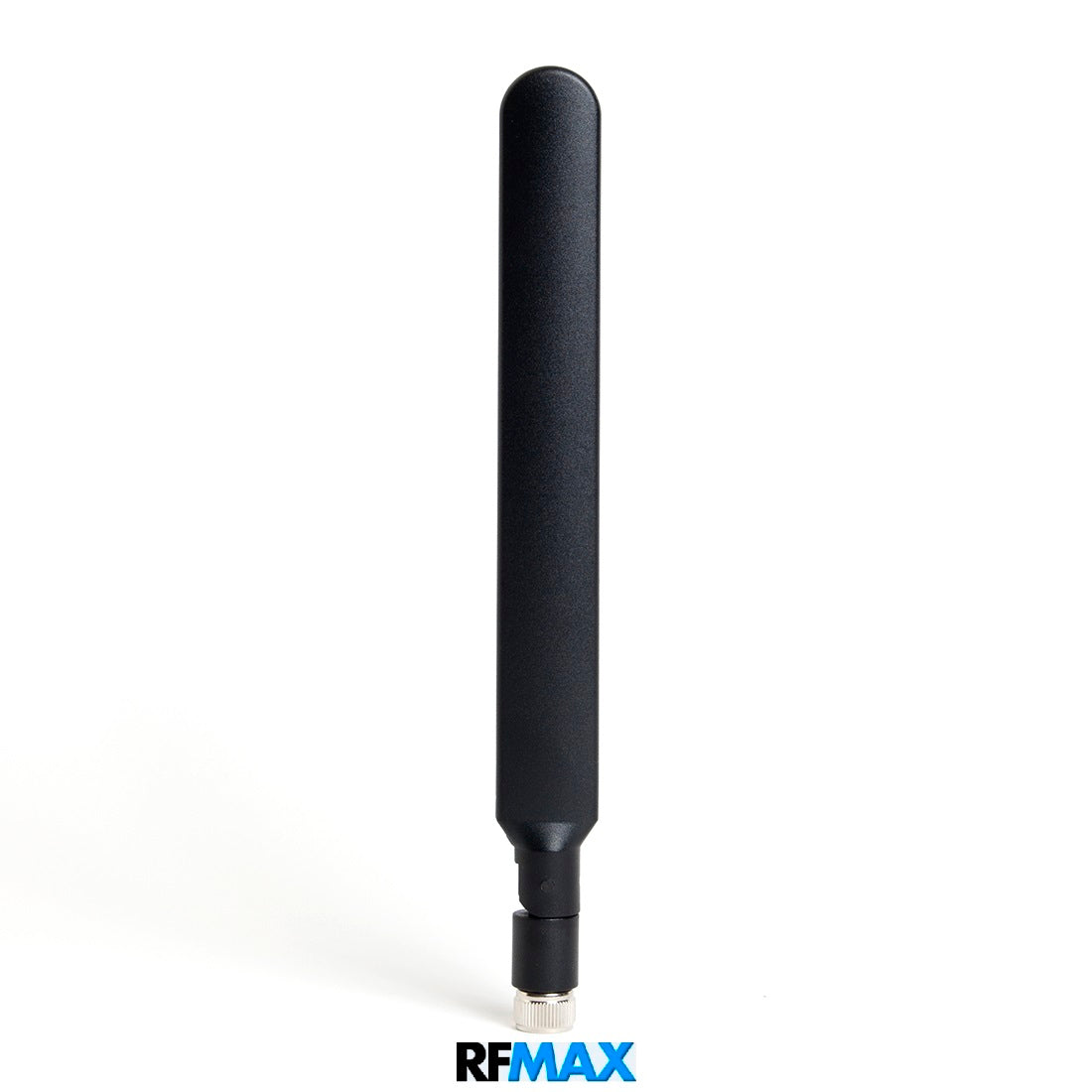

The RDA698/2700STM is an RFMAX Hi-Gain Dipole Antenna for 698-2700 MHz 3G/4G/LTE cellular coverage with an articulating knuckle and standard TNC Male Connector. This blade, or paddle style antenna is designed for use with 3G and 4G/LTE cellular modems, access points, routers , gateways and small base station applications. The RDA698/2700STM covers all AT&T, Verizon and Sprint legacy 3G bands, plus the 4G/LTE frequency ranges of 698-960/1710-2170/2500-2700 MHz providing omnidirectional radiation with a gain of 2 dBi.

Features

• 3G-4G/LTE Blade Style DiPole Antenna
• Operates at 698-960/1710-2170/2500-2700 MHz
• Up to 2 dBi High-Gain

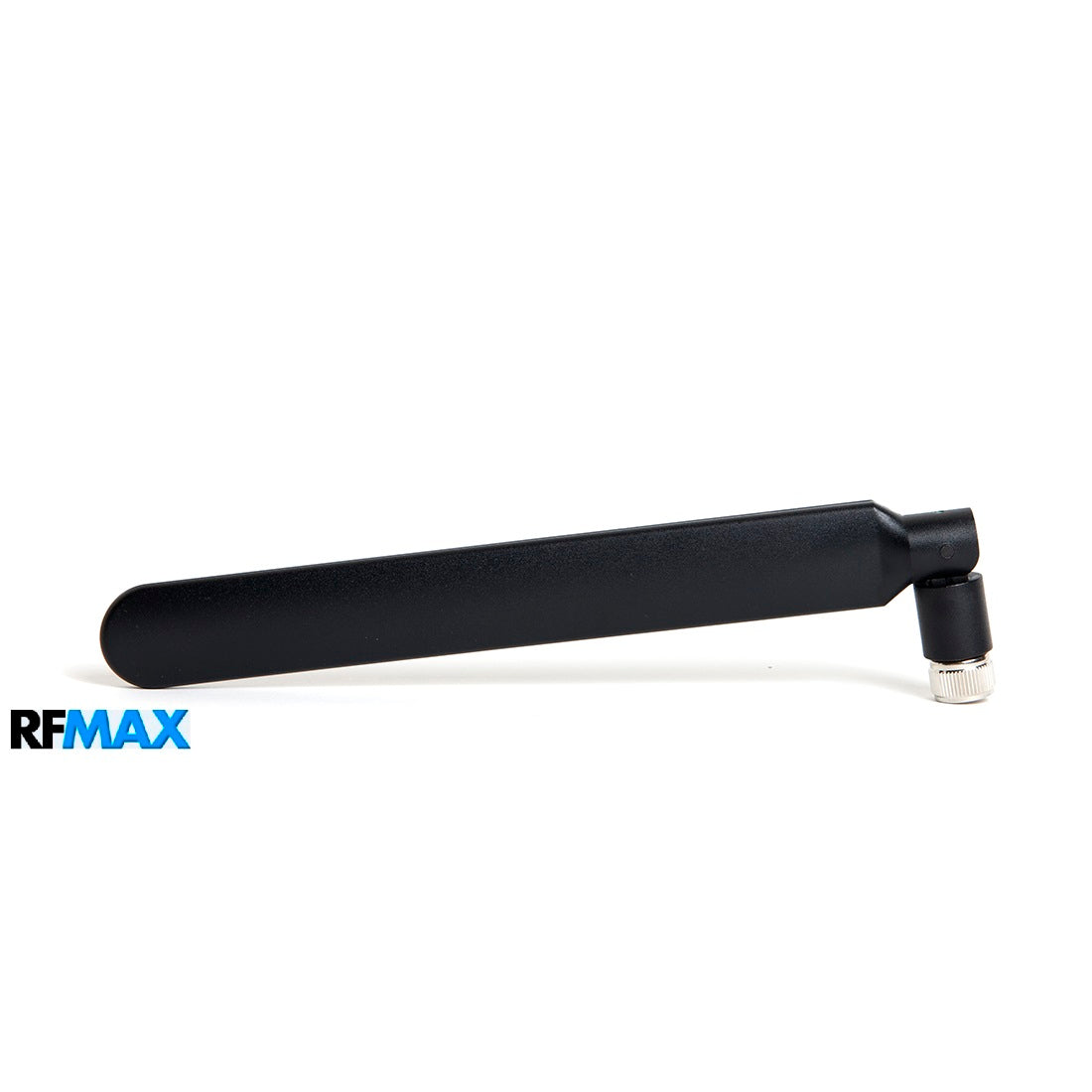

• Articulating Knuckle & Standard TNC Male connector
• RoHS Compliant

Product Applications

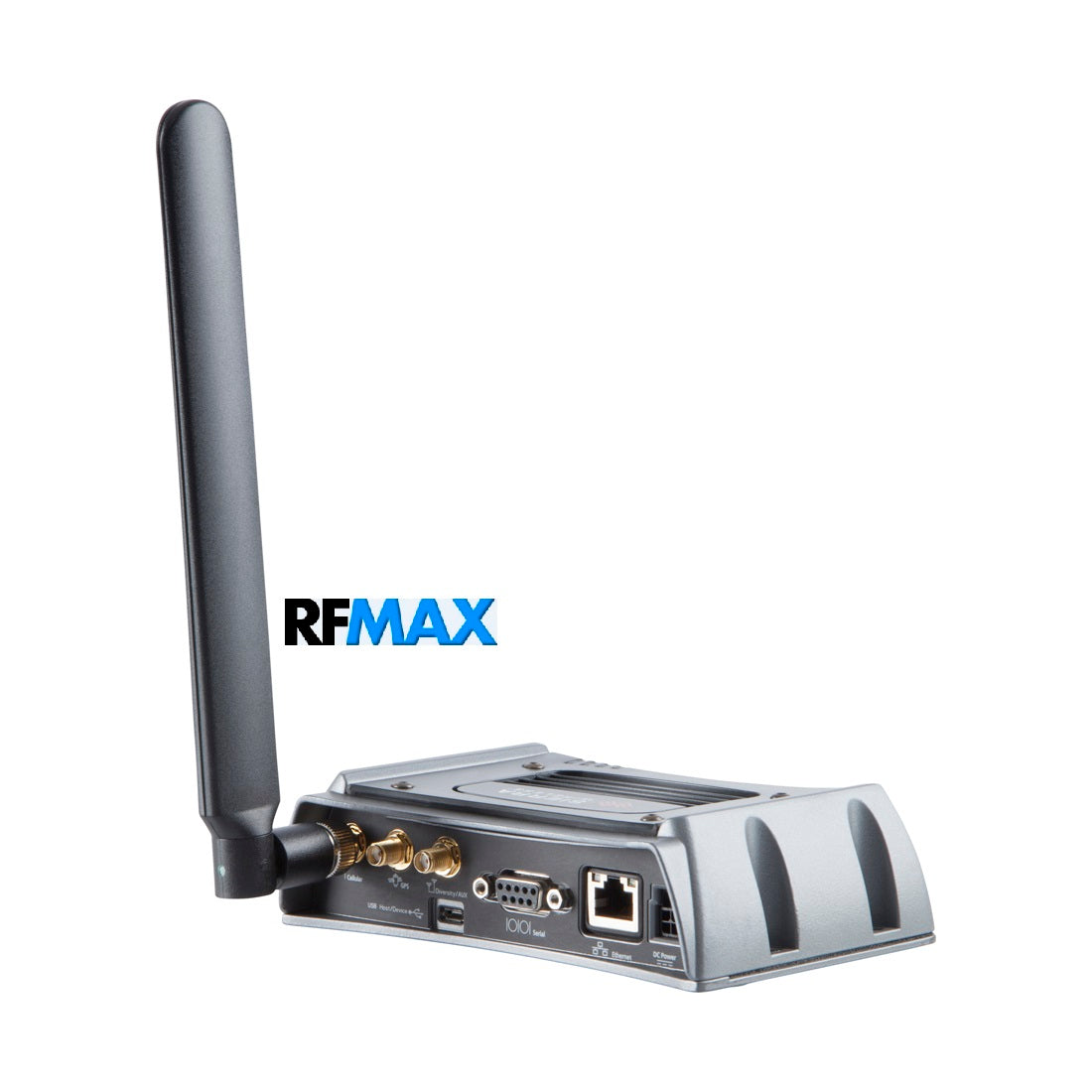

• 3G/4G/LTE Cellular Modem, Router, Hub, Gateway or Access point
• Small Cellular Base Stations
• Femto Cells
• This is not suitable for 2.4 / 5 GHz WiFi
