RBMM44SS12

RBMM-44-SS-12: MiMo 3G/4G/LTE Magnetic Mount Cellular Antenna for Kiosks, ATM & Digital Signage. Dual 12 ft. Cables & SMA Connectors

  • Unit is out of stock
List Price: Regular price $95.00
Sale Price: $75.00
RBMM-44-SS-12: MiMo 3G/4G/LTE Magnetic Mount Cellular Antenna for Kiosks, ATM & Digital Signage. Dual 12 ft. Cables & SMA Connectors
RBMM-44-SS-12: MiMo 3G/4G/LTE Magnetic Mount Cellular Antenna for Kiosks, ATM & Digital Signage. Dual 12 ft. Cables & SMA Connectors
RBMM-44-SS-12: MiMo 3G/4G/LTE Magnetic Mount Cellular Antenna for Kiosks, ATM & Digital Signage. Dual 12 ft. Cables & SMA Connectors
RBMM-44-SS-12: MiMo 3G/4G/LTE Magnetic Mount Cellular Antenna for Kiosks, ATM & Digital Signage. Dual 12 ft. Cables & SMA Connectors
Grey_arrow@2x Created with Sketch.
Created with Sketch.
RBMM44SS12

RBMM-44-SS-12: MiMo 3G/4G/LTE Magnetic Mount Cellular Antenna for Kiosks, ATM & Digital Signage. Dual 12 ft. Cables & SMA Connectors

  • Unit is out of stock
List Price: Regular price $95.00
Sale Price: $75.00

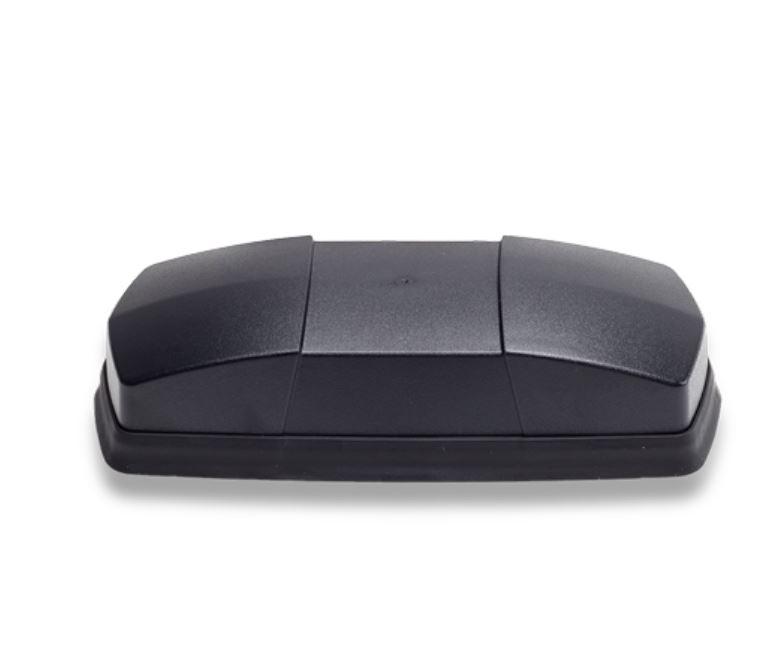

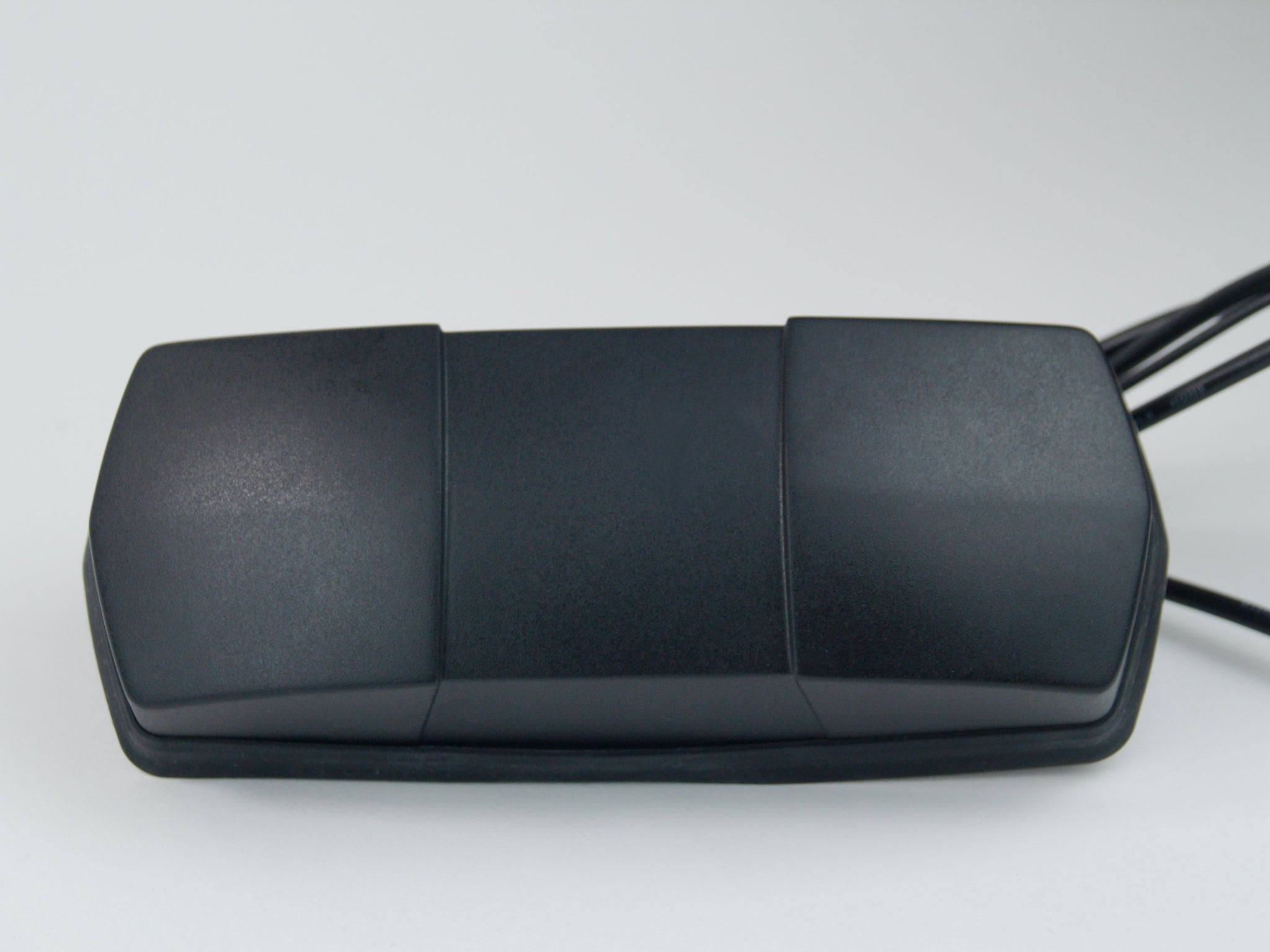

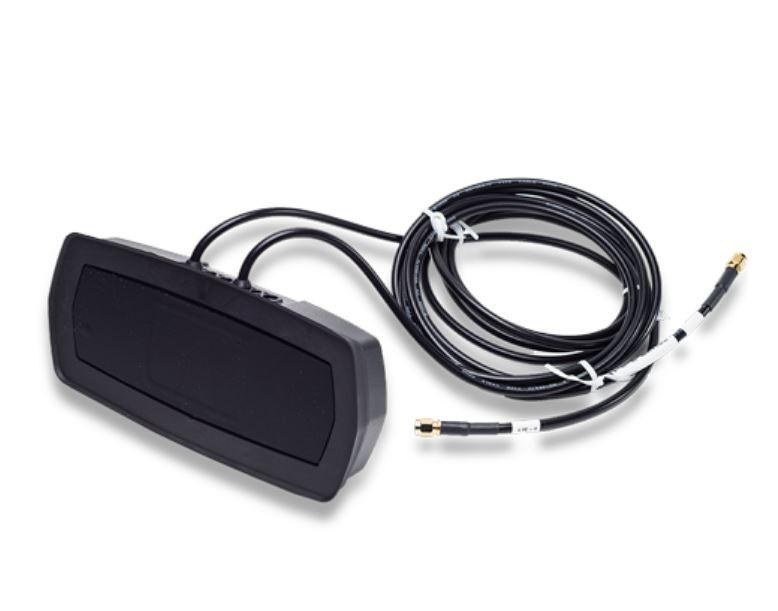

The RFMAX "Brick" antenna # RBMM-44-SS-12 is a compact, ultra-rugged mag-mount antenna designed for M2M machine-to-machine applications like Digital Signage Lottery and ATM machines. The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches. This antenna was designed to exceed all 3G/4G/LTE specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. This unit was designed for use with dual 3G/4G or MiMo LTE cellular modem gateways from Cradlepoint, Sierra Wireless, and PepLink. Our "Brick" antenna is easy to install using the high-pull strength magnetic mounting which resists would-be vandals and is IP65 rated for year-round indoor or outdoor use. The super-efficient wireless technology built into these antennas allows for FAST access to the cellular network. This ensures that ATM machines are able to clear bank transactions in seconds, and digital signage is able to upload & download media content at maximum speed. The antenna includes dual 12 foot long, low loss cables with SMA male connectors, and is also available in PERMANENT mount (see part # RBDM-44-SS-12) Optimized for Cradlepoint IBR200, IBR600, Sierra Wireless RV50, Digi WR11, Digi WR31 etc.

Description BlueArrow Created with Sketch.

RFMAX "Brick" Antenna Size: 7.9 x 3.4 x 1.8 Inches Same footprint as Antenna Plus, but lower profile Out-performs all similar antennas including Ventus CDA & CQA Elements: Dual 3G-4G Cellular / MiMo LTE High Gain at all frequencies for maximum connection speeds Designed for Indoor or Outdoor Installations (IP65 rated) Easy to install Magnetic Mounting, Rugged & Vandal Resistant Approved for use with all major carriers: AT&T, Verizon, Sprint Optimized for Cradlepoint IBR200, IBR600, Sierra Wireless RV50, Digi WR11, Digi WR31 etc.

Specifications BlueArrow Created with Sketch.

cable length 12
cable type LMR195
color Black
connector 1 SMA-Male
connector 2 SMA-Male
frequency 1 698-960 MHz
gain 1 1.5 dBi @ 698-960 MHz
gain 2 4.5 dBi @ 1710-2690 MHz
impedance 50 Ohm
material UV Stable, UL94 Radome
mount style Magnetic Mount
operating temp celsius -40 to +85 C
plenum fire rating UL-94
vswr <2:1
