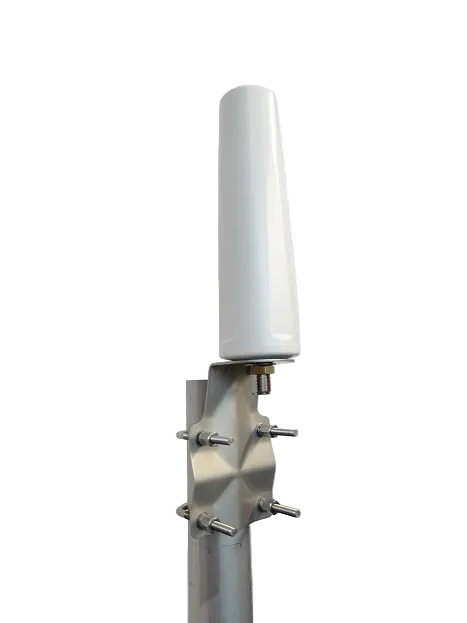

ROSA-600/71-3-SNF-DC

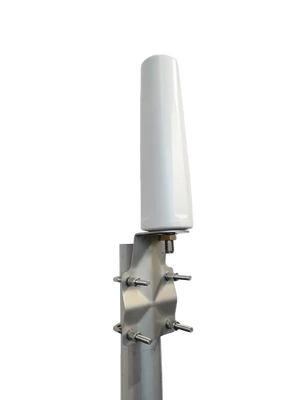

Radome Omni Base Station Antenna for 5G/LTE, 617-7125 MHz. Direct N-Female Connector
- Wideband Coverage; 617-960/1450-7125 MHz, N-Female
- Covers WiFi-6E, 4G/5G-FR1
- Includes Band 71 & CBRS Bands 42, 48
- Includes Mounting Bracket
- 72-Hour Salt Spray Rating, DC Grounded
- 2.5 dBi (617-960 MHz), 4.0 dBi (1450-4200 MHz), and 4.3 dBi (4400-7125 MHz)
Technical Specifications
| SKU | ROSA-600/71-3-SNF-DC |
|---|---|
| Manufacturer | RFMAX |
| Color | Grey |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 MHz |
| Working Frequency 2 | 1450-2700 MHz |
| Working Frequency 3 | 3300-4200 MHz |
| Working Frequency 4 | 4400-5000 MHz |
| Working Frequency 5 | 5150-7125 MHz |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Gain | 2.0 - 5.0 dBi |
| Gain | 2.2 dBi |
| Gain 2 | 3.0 dBi |
| Gain 3 | 5.0 dBi |
| Gain 4 | 4.1 dBi |
| Gain 5 | 3.3 dBi |
| Ground Plane Required | No |
|---|---|
| Height/Length (inches) | 8.64 |
| Height/Length (mm) | 219.4 |
| Includes | Mounting Hardware Included |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | PET + PC, UV RATED |
| Max Input Power (W) | 10W |
| Operating Temp (celsius) | -40 to + 85 |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 2.45 |
| Thickness/Diameter (mm) | 62.2 |
| VSWR: < X: 1 | 0.084027778 |
| Weight (grams) | 620 |
| Weight (lbs) | 1.37 |
