R9028LPVSSF
RFID Antenna for Impinj-Zebra-Alien-ThingMagic RFID Readers. Low Profile,10x10 Inch with 100mm VESA Mount

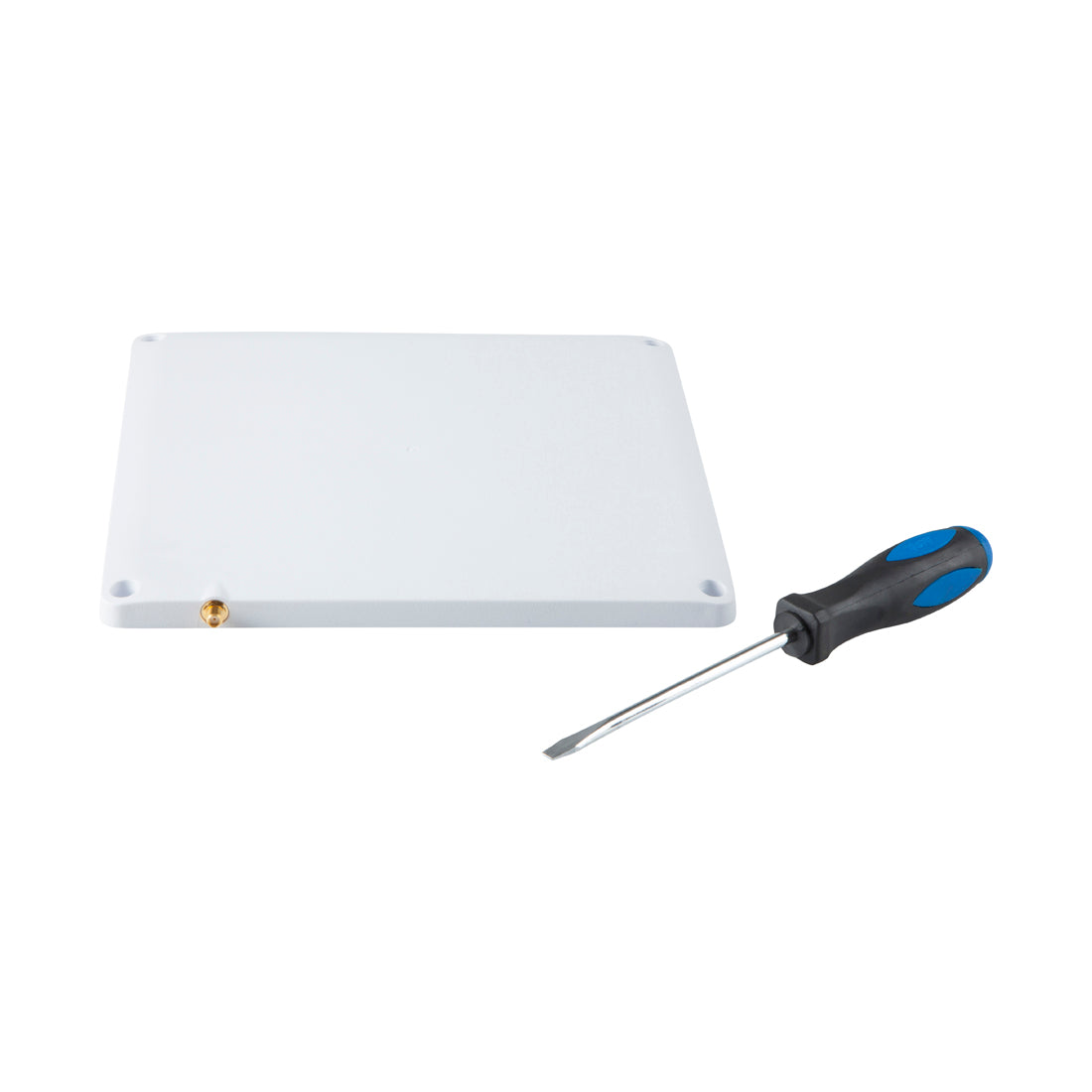

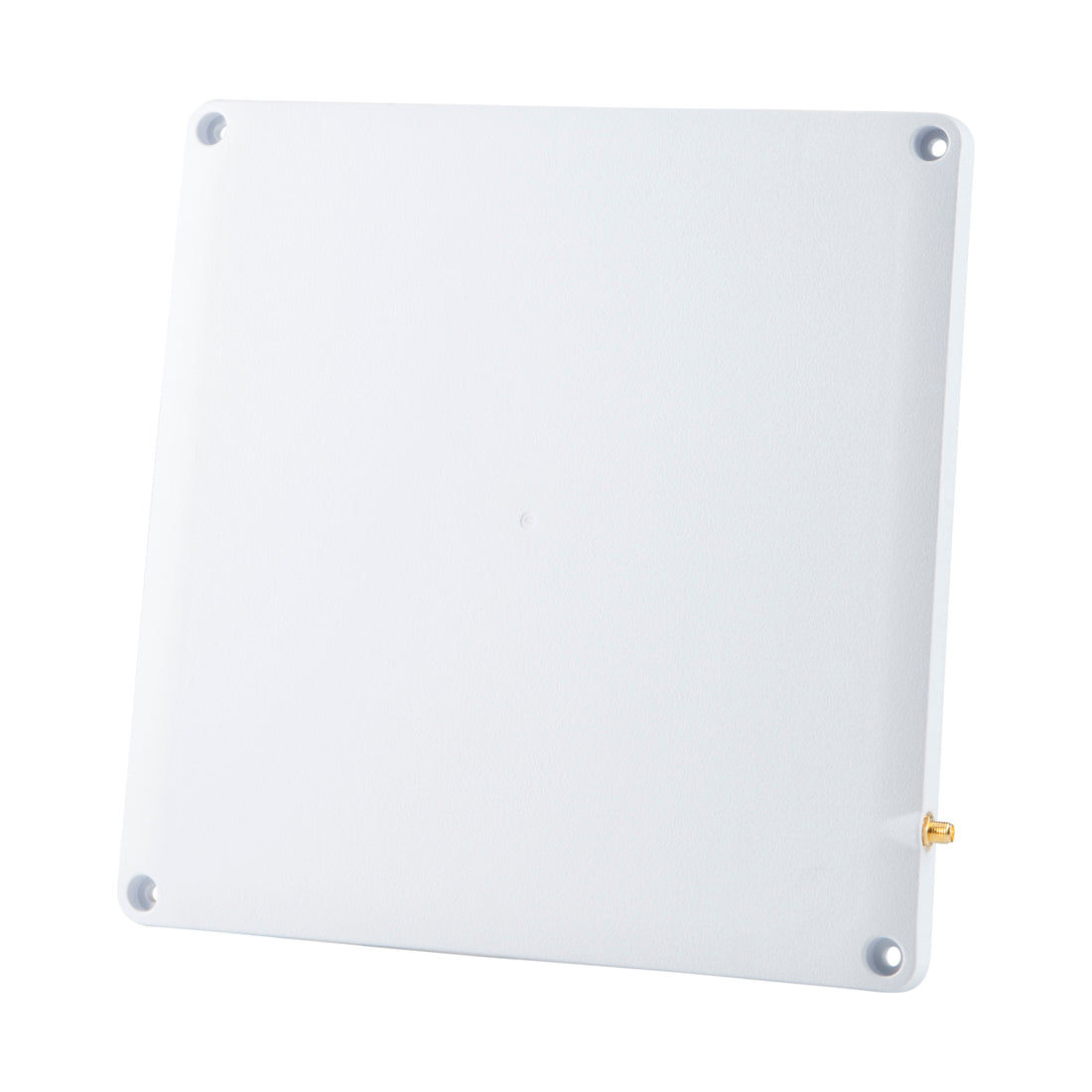

The R9028-LPV-SSF Circularly Polarized FCC outdoor RFID Antenna from RFMAX measures in at 10x10 inches. This unit operates at 8.5 dBic gain, covers 68 x 68 degrees beamwidth, and is THE BEST choice for a low profile, IP67 rated passive UHF RFID applications in the FCC band of 902-928 Mhz and is designed to maximize the performance of FCC UHF readers from Impinj, Motorola/Zebra, Alien Tech, and ThingMagic.

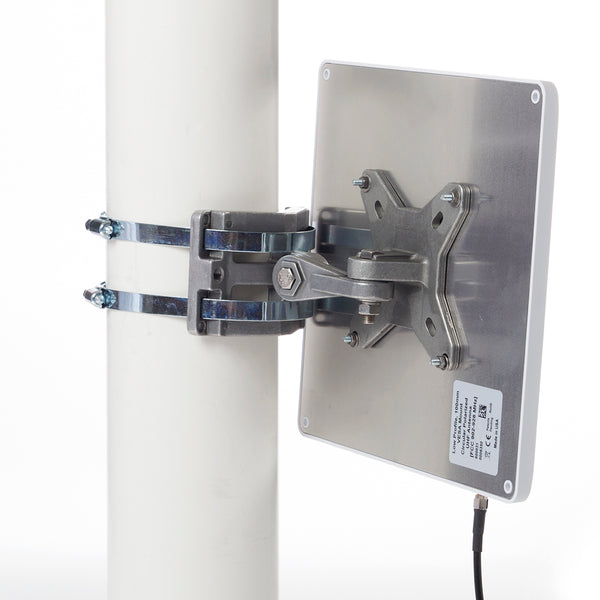

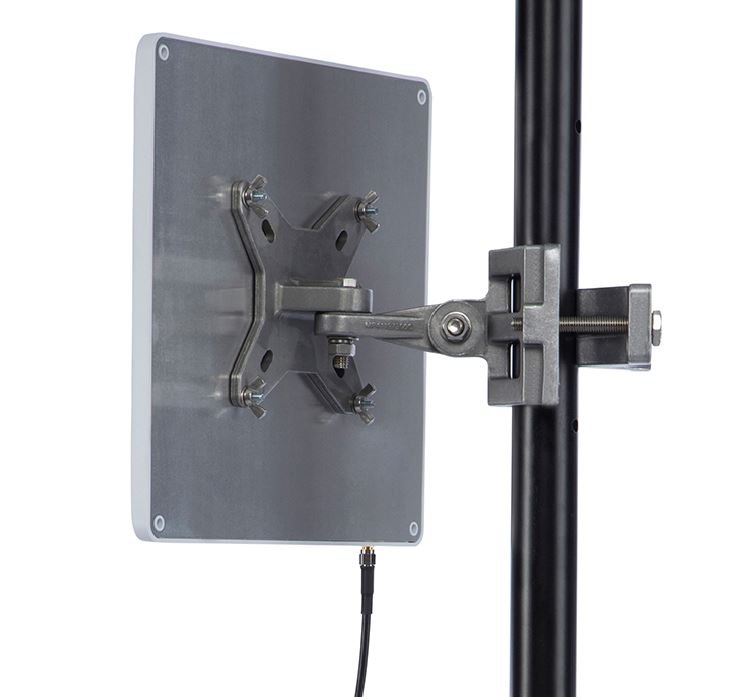

The unit carries a full IP67 rating, thus it is well suited for outdoor installation, and comes with a fixed, side entry standard SMA-Female Connector. There are 4 threaded studs for mounting on the back plate, in the 100mm VESA pattern.
*Includes M4 studs at 100mm spacing. Ships with M4 hex nut, washers and lock washers.
Technical Specifications
| Color | White |
|---|---|
| connector | SMA Female |
| dimentions in | 9.25 x 9.85 x 0.55 (L x W x H) |
| Antenna Category | 902-928 MHz FCC |
| gain | 8.5 dBiC |
| Includes | M4 hex nut, washers and lock washers |
|---|---|
| IP Rating | 67 |
| Material | UV-Resistant ABS |
| polarity | Right Hand Circular |
