R8658LPFSSF

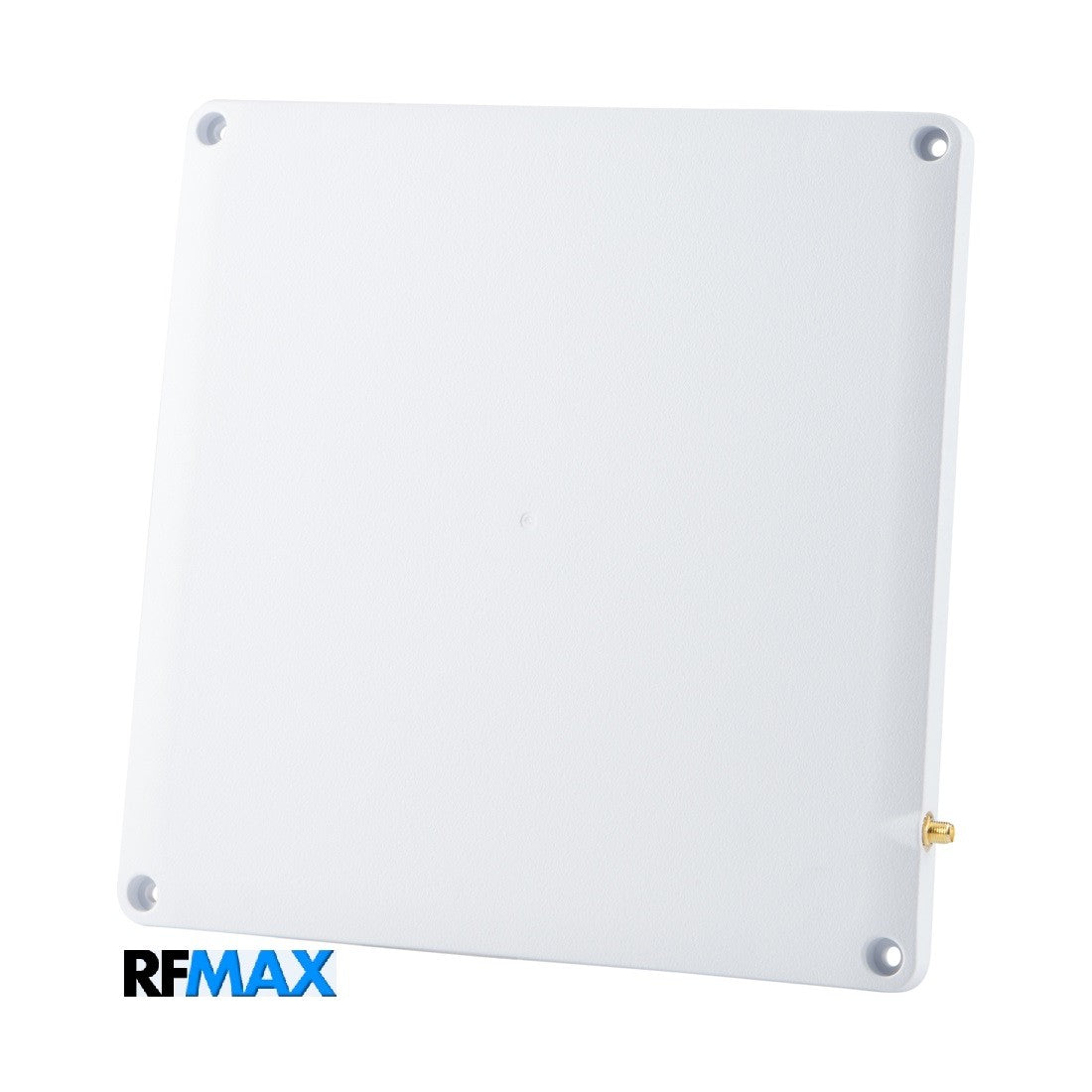

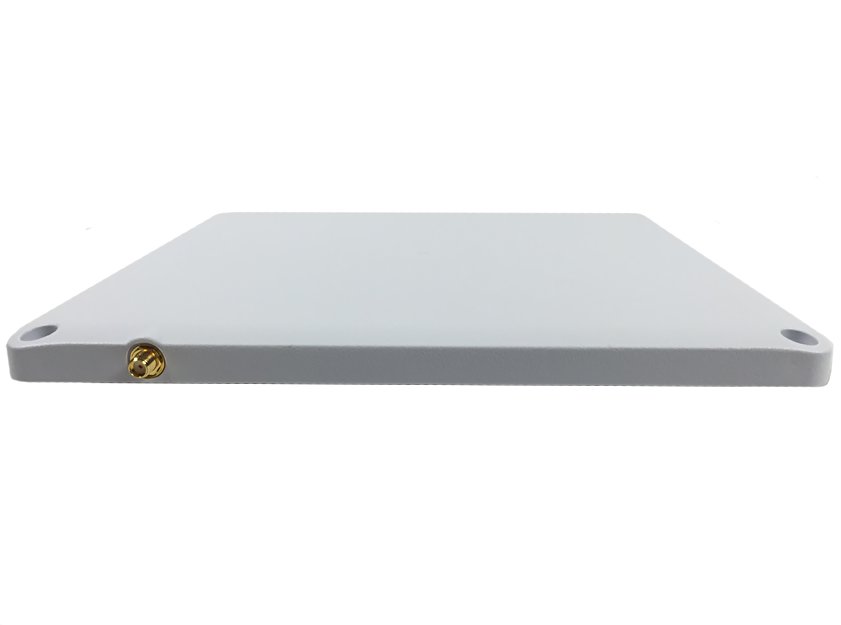

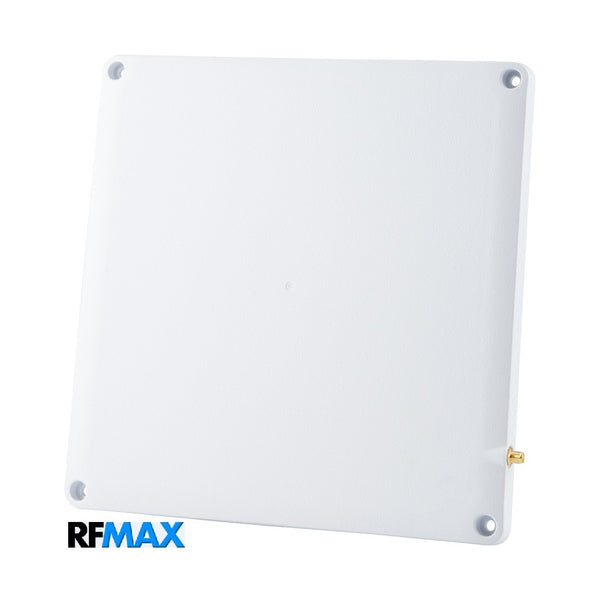

Low Profile Flush Mount 10x10 inch IP-67 Circularly Polarized RFID Antenna - ETSI

  • Units Available: 39
List Price: Regular price $149.00
Low Profile Flush Mount 10x10 inch IP-67 Circularly Polarized RFID Antenna - ETSI
Low Profile Flush Mount 10x10 inch IP-67 Circularly Polarized RFID Antenna - ETSI
Grey_arrow@2x Created with Sketch.
Created with Sketch.
R8658LPFSSF

Low Profile Flush Mount 10x10 inch IP-67 Circularly Polarized RFID Antenna - ETSI

  • Units Available: 39
List Price: Regular price $149.00

The RFMAX R8658-LPF-SSFis the newest low-profile, flush mountingcircularly polarized panel antenna for UHF RFID. The mounting profile of this antenna is smaller and more aestheticallypleasing than any other RFID antenna on the market today. This antenna was specifically designed by RFID professionals - for RFID professionals. The RFMAX engineers worked to design-in the very best UHF RFID performance in the smallest possible package.

FEATURES:

  • ETSI UHF RFID Frequency: 865-868 Mhz
  • 865-868 MHz: 8.5 dBic Max Gain (1-2dBaxial ratio)
  • RHCP, 68x68 Degree Beamwidth
  • Water/Dust Rating: IP67
  • Temp Range: -20 to +70 C
  • Fixed SMA-Female Connector
  • 4 corner mounting holes
  • VSWR: 1.3:1

Description BlueArrow Created with Sketch.

The RFMAX R8658-LPF-SSFis the newest low-profile, flush mountingcircularly polarized panel antenna for UHF RFID. The mounting profile of this antenna is smaller and more aestheticallypleasing than any other RFID antenna on the market today. This antenna was specifically designed by RFID professionals - for RFID professionals. The RFMAX engineers worked to design-in the very best UHF RFID performance in the smallest possible package.

FEATURES:

  • ETSI UHF RFID Frequency: 865-868 Mhz
  • 865-868 MHz: 8.5 dBic Max Gain (1-2dBaxial ratio)
  • RHCP, 68x68 Degree Beamwidth
  • Water/Dust Rating: IP67
  • Temp Range: -20 to +70 C
  • Fixed SMA-Female Connector
  • 4 corner mounting holes
  • VSWR: 1.3:1

Specifications BlueArrow Created with Sketch.

color White
connectors SMA Female
