PCE2016828W

20x16x8 inch Prewired Weatherproof Enclosure for Zebra FX9500 & FX9600 8 Port RFID Readers

  • Units Available: 8
List Price: Regular price $1,033.00
20x16x8 inch Prewired Weatherproof Enclosure for Zebra FX9500 & FX9600 8 Port RFID Readers
20x16x8 inch Prewired Weatherproof Enclosure for Zebra FX9500 & FX9600 8 Port RFID Readers
20x16x8 inch Prewired Weatherproof Enclosure for Zebra FX9500 & FX9600 8 Port RFID Readers
Grey_arrow@2x Created with Sketch.
Created with Sketch.
PCE2016828W

20x16x8 inch Prewired Weatherproof Enclosure for Zebra FX9500 & FX9600 8 Port RFID Readers

  • Units Available: 8
List Price: Regular price $1,033.00

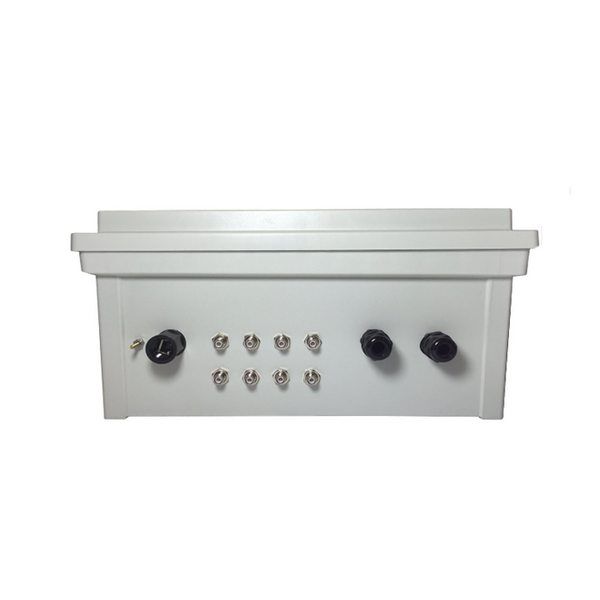

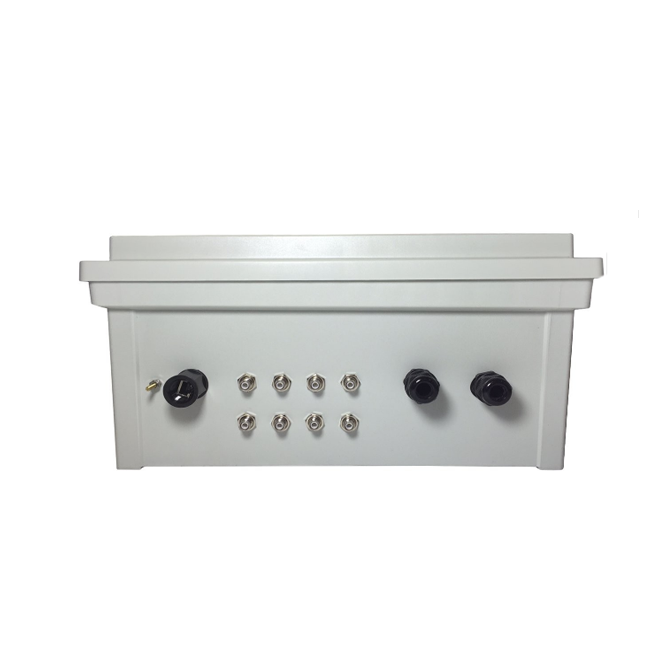

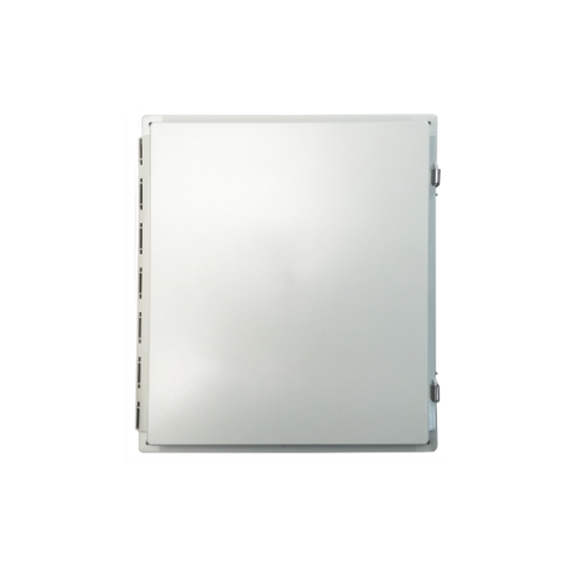

RFMAX Weatherproof IP-66 Rated RFID Reader Enclosure for 8 port readers, like FX9500 & FX9600. This box features high quality 2-piece construction of extremely durable polycarbonate with locking quick-release stainless steel latches and integrated polyurethane gasket to seal out the elements. Used for indoor or outdoor wall or mast mounting of RFID readers in harsh industrial environments.

FEATURES:

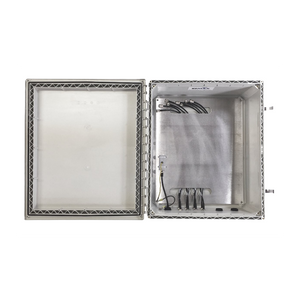

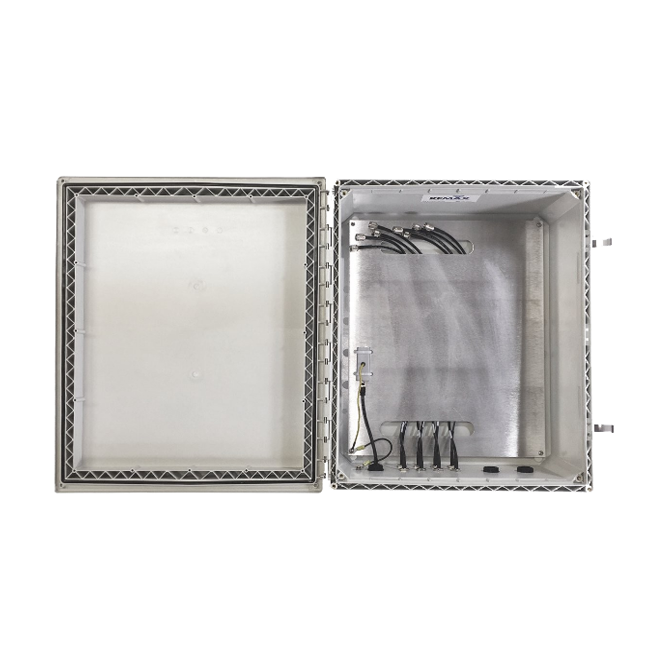

  • Large, 20x16x8 inch size allows room for reader, GPIO, WiFi Access Point, AC Power
  • Configurable Aluminum Mounting Plate Pre-installed
  • (8) Jumper Cables: RPTNC-Male & Bulkhead RPTNC Female Connectors
  • (2) General Purpose weather-tight glands
  • (1) POE surge suppressor
  • (1) Grounding tab

Formerly Part # PCE20168-008

Description BlueArrow Created with Sketch.

20x16x8 inch NEMA 4 polycarbonate enclosure for 8 port RFID readers from Zebra, Impinj, ThingMagic, Alien, etc.

INCLUDES:

  • Mounting plate big enough for Reader, GPIO and power supply
  • (1) POE/ethernet gland
  • (1) POE surge suppressor
  • (2) General purpose gland
  • (8) Bulkhead RPTNC-female cables

Specifications BlueArrow Created with Sketch.
