RSPL-SSF-2-SSF

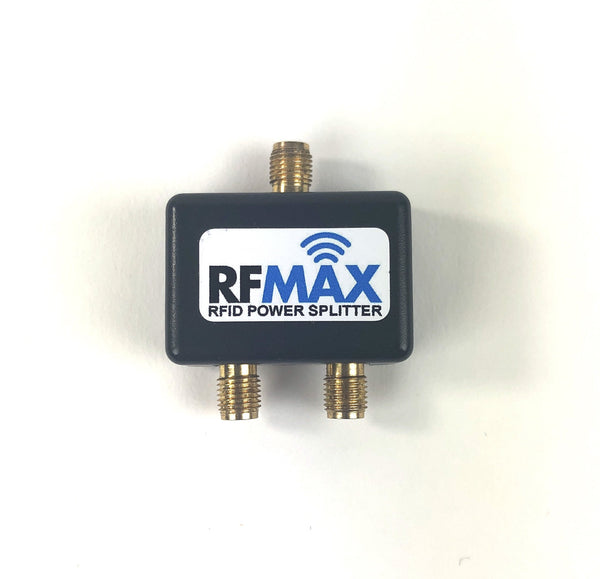

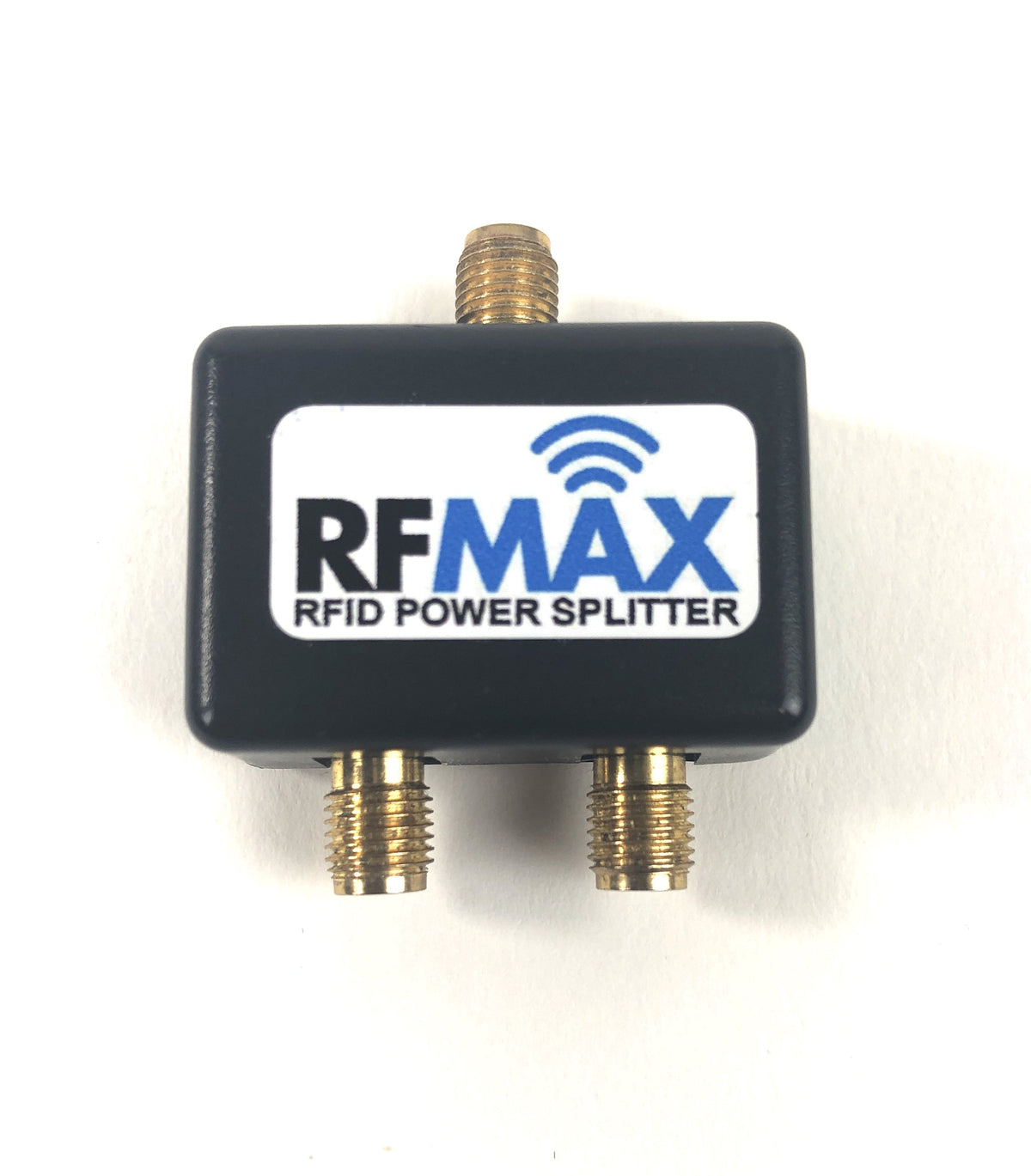

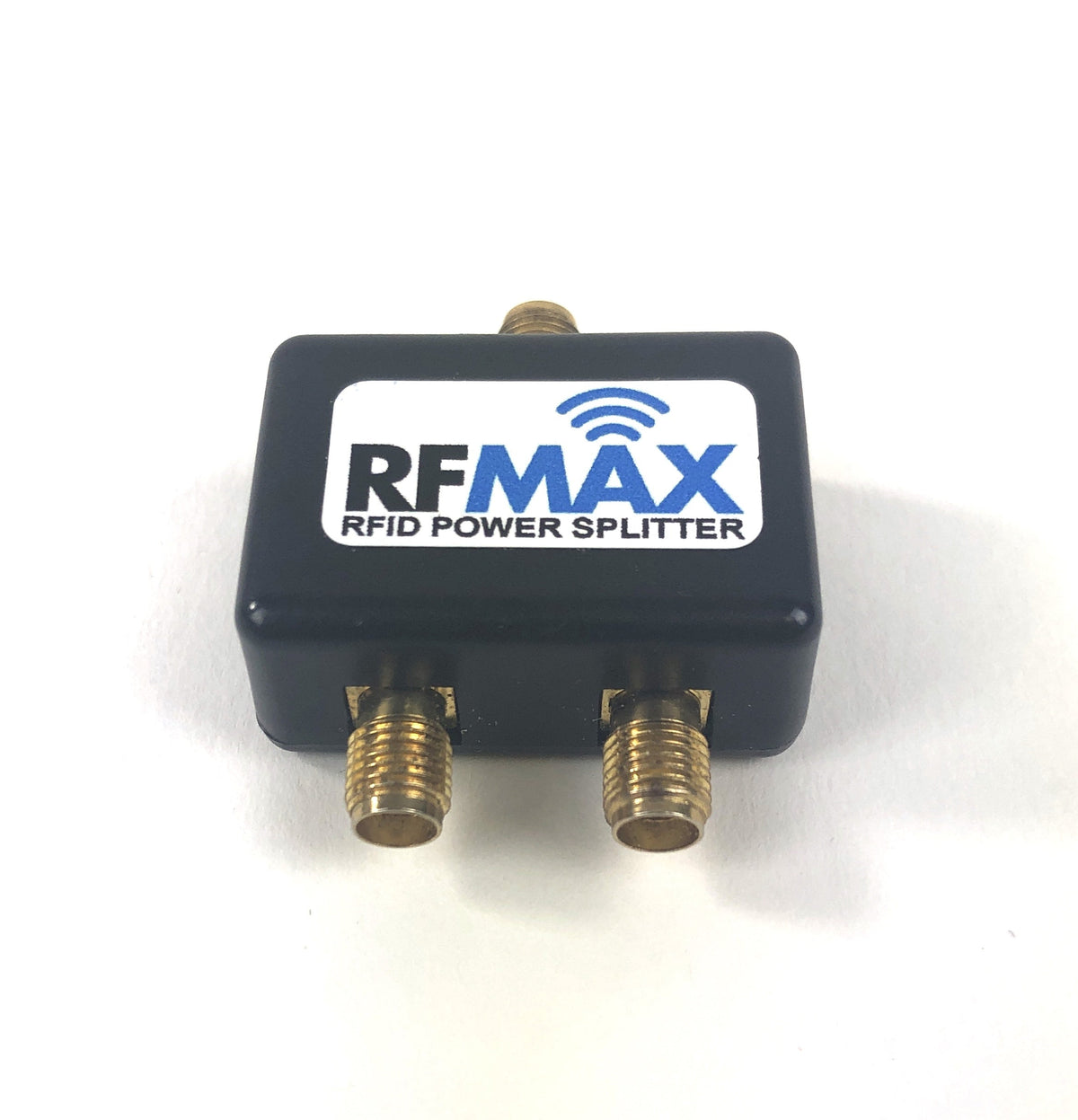

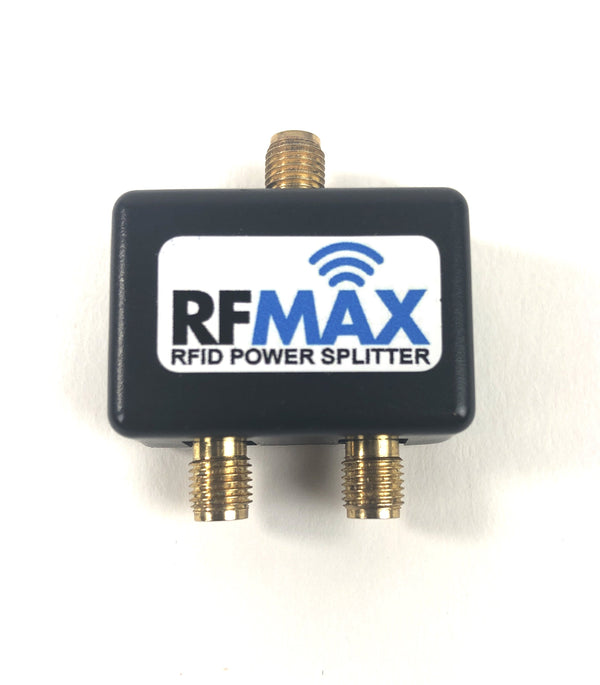

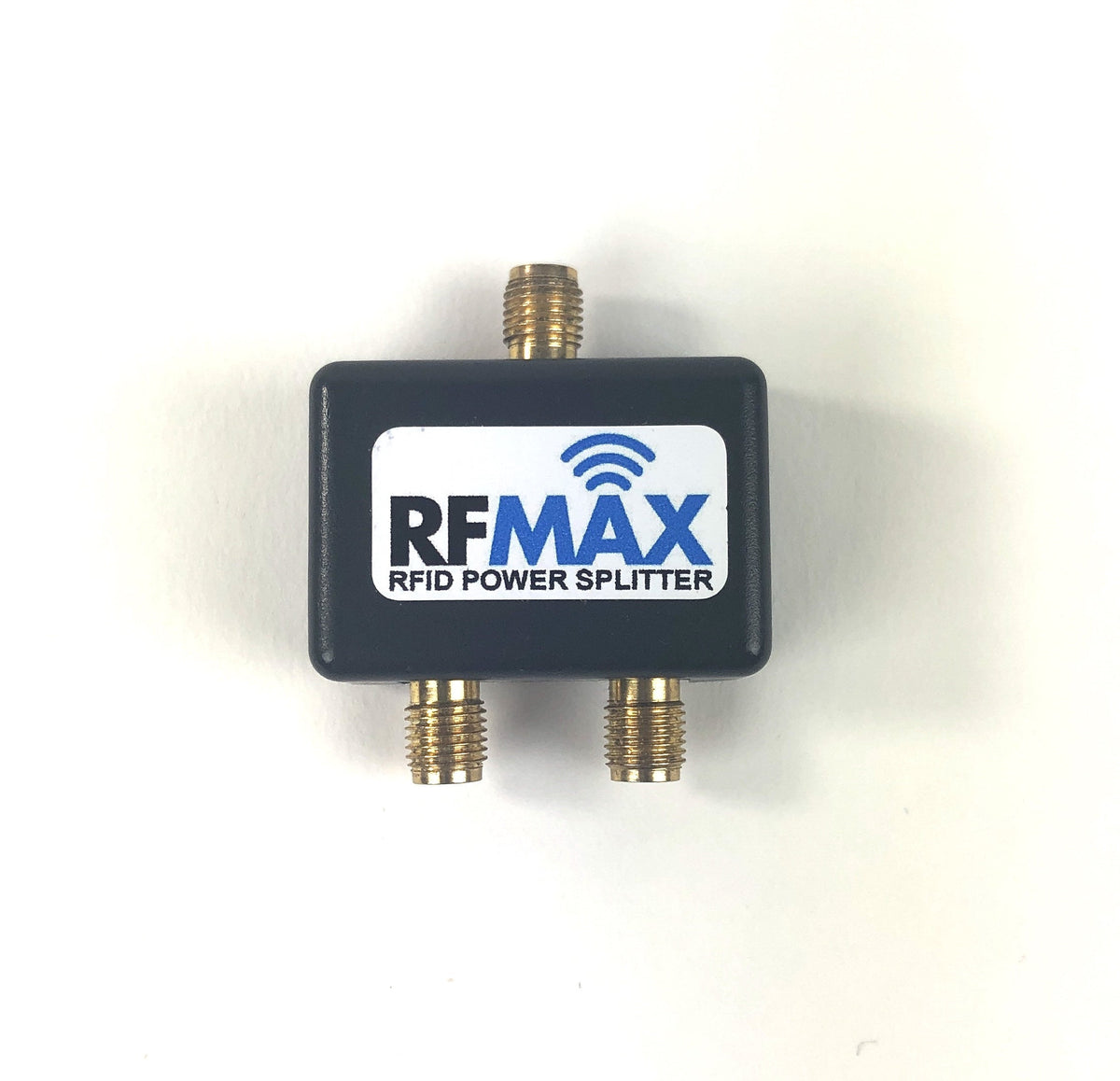

Multiplexer/ Splitter for UHF RFID applications - 2 port
- It allows two antennas to be used on a single output.
- Used as a splitter it gives -3dB loss per output, as per theory
- It gives +3dB as a combiner with in-phase signals, as per theory
- Maintains 75% read range on both outputs.
- Inputs and outputs are matched to 50 Ohms
- Exceptionally low VSWR 1 to 1.2
- Can be used to drive two orthogonal linear antennas for cross-polarization
- The circuit filters out WIFI, Bluetooth, mobiles and other interferers above 1GHz.
Technical Specifications
| SKU | RSPL-SSF-2-SSF |
|---|---|
| Manufacturer | RFMAX |
| Working Frequency | 902-928 MHz |
|---|
