RKIT-RBC-APX7500
Motorola APX7500 Antenna & Diplexer Kit
Configuration
- Tri-band antenna & diplexer kit for Motorola APX7500 covering VHF, UHF, and 700/800 MHz bands
- All-in-one solution combines antenna + diplexer to enable single-antenna multi-band operation

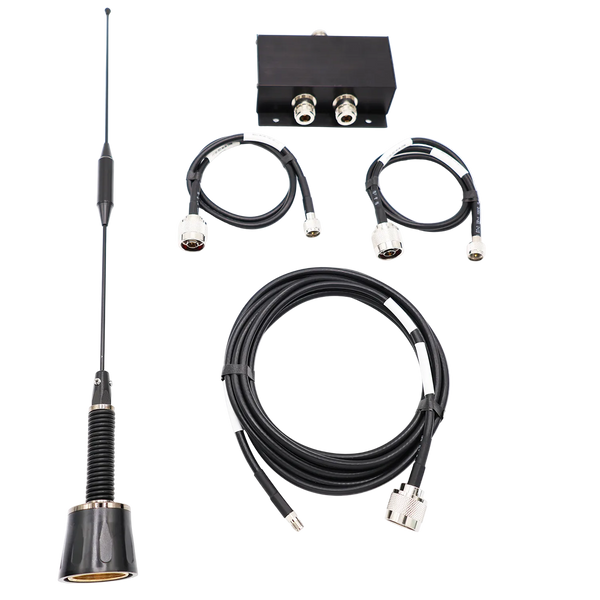

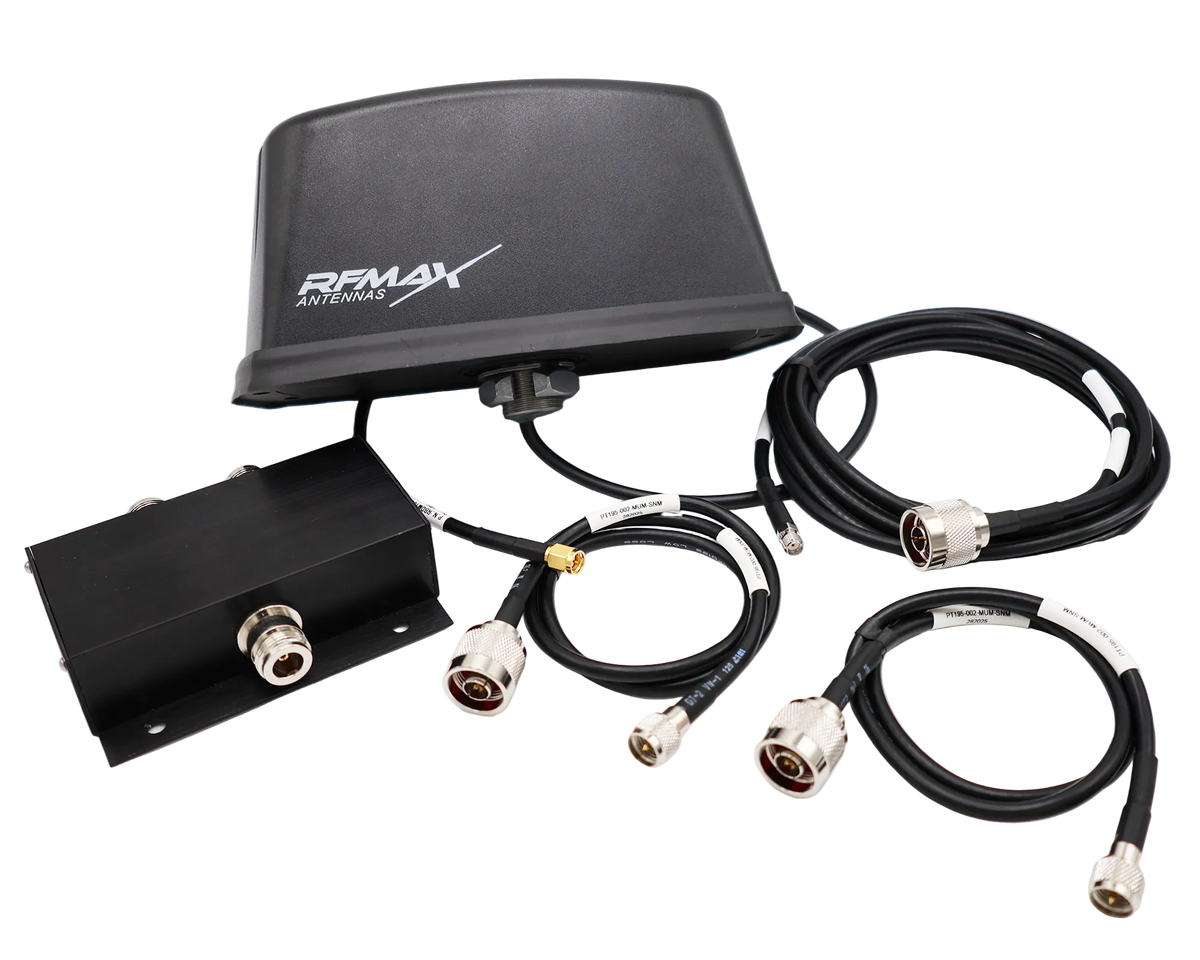

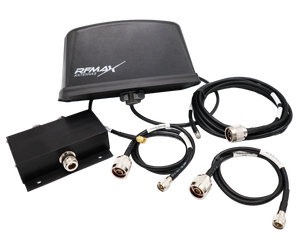

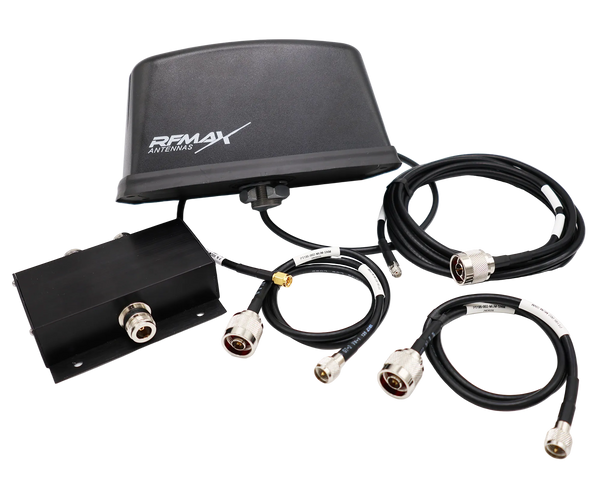

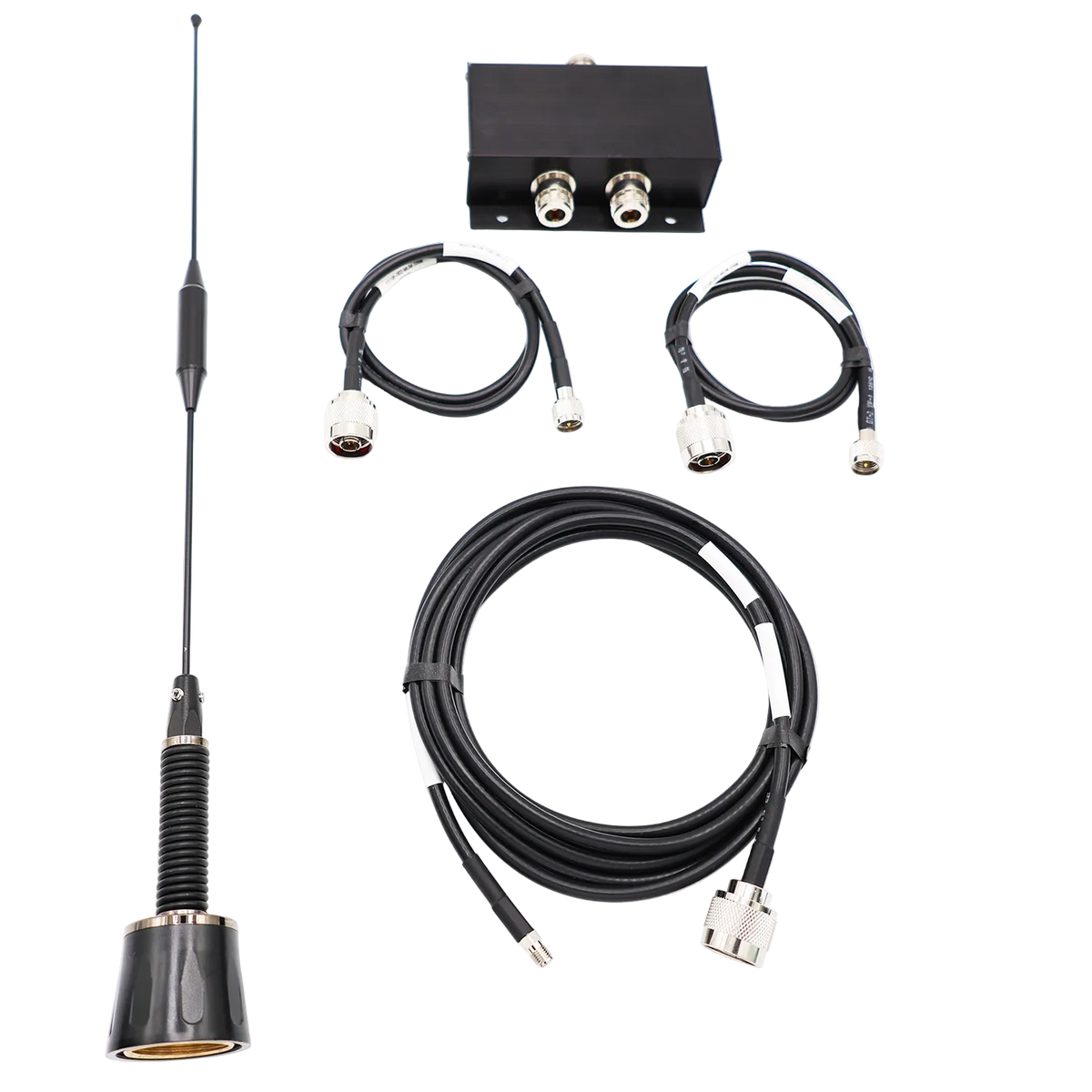

- Includes low-profile multi-element (brick) antenna or Whip style antenna, diplexer, and pre-configured cable assemblies for simplified installs
- Omnidirectional coverage for consistent, mission-critical RF performance
- Optimized with ?2.0:1 VSWR for efficient signal transmission across all bands
- Designed for public safety, police, fire, EMS, and LMR applications
- Rugged indoor/outdoor design with operating range from -20°C to +60°C
Technical Specifications
| SKU | RKIT-RBC-APX7500 |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Directional or Omni | Omnidirectional |
| Working Frequency | 150-160 MHz |
| Working Frequency 2 | 470-512 MHz |
| Working Frequency 3 | 750-870 MHz |
|---|---|
| Antenna Category | Tri-band (VHF-UHF-700/800 MHz) |
| OK for Outdoor Use | Outdoor |
| Operating Temp (celsius) | -20 to +60 |
| VSWR: < X: 1 | <2.0:1 |
