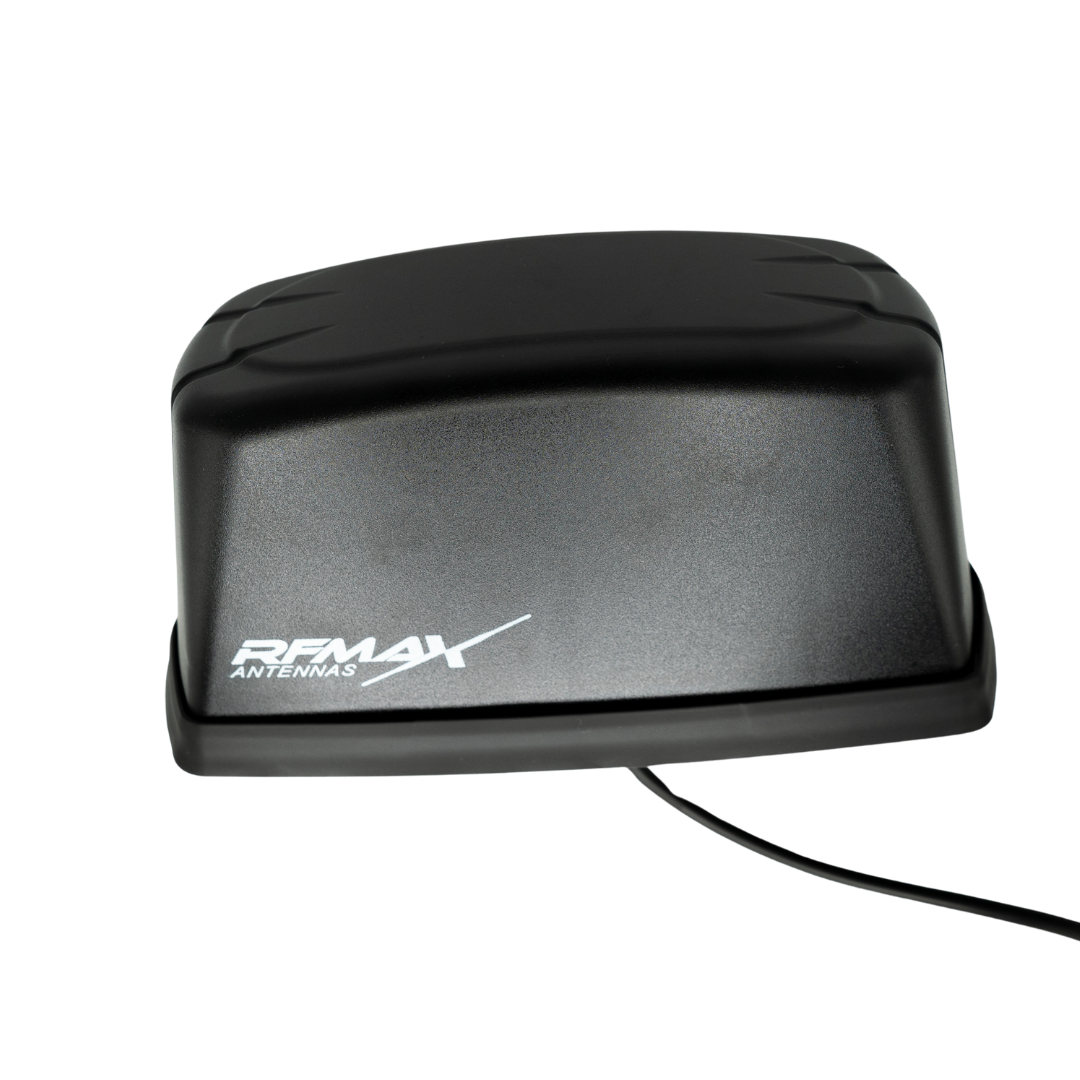

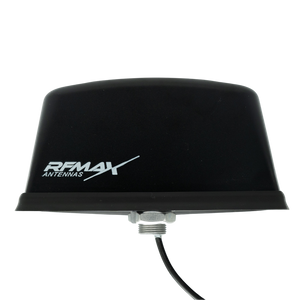

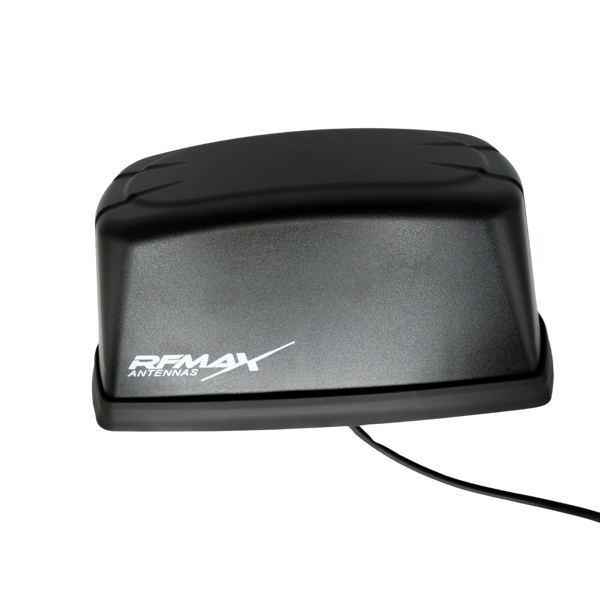

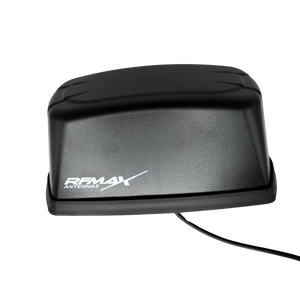

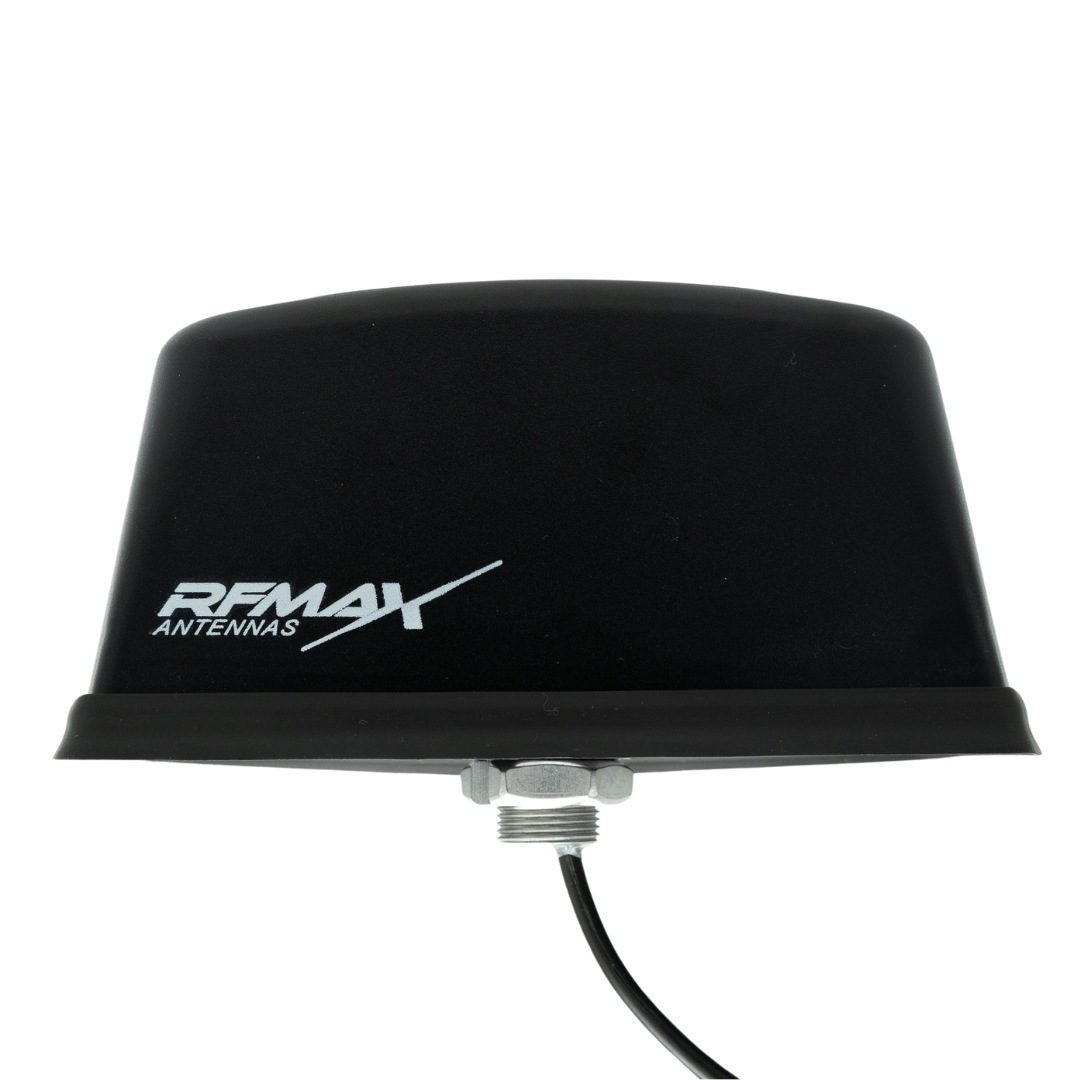

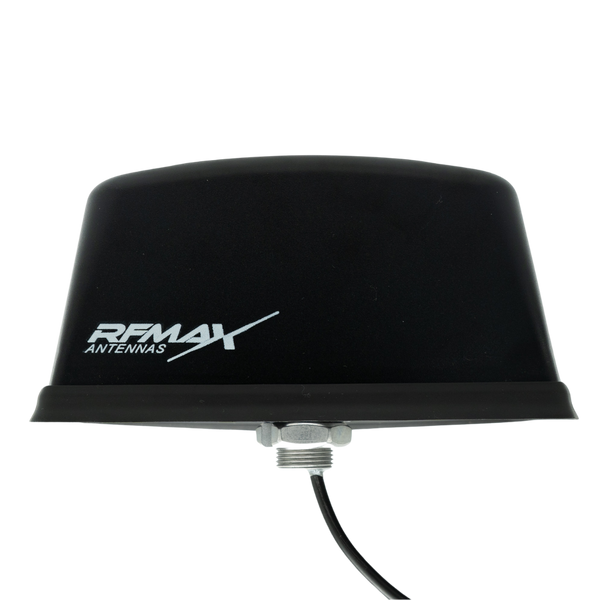

RBDM-155/455/758-17K-M-B
Low Profile Triband "Brick V2" Antenna VHF, UHF & P25 with Mini UHF Male connector
Configuration
A true "low-profile" roof mounted antenna with Tri-band capability to support VHF, UHF and 700/800 MHz P25 radio communication
No More Broken Antennas! Less than 4 inches tall. 8 in. long & 3.5 in. wide
- Requires 7/8" hole for mounting this antenna
- Antenna ships with 2 foot cable & Includes 15 Ft Jumper with Mini UHF Male
- Contact us for more info: techsupport@arcadianinc.com
- Available in White or Black

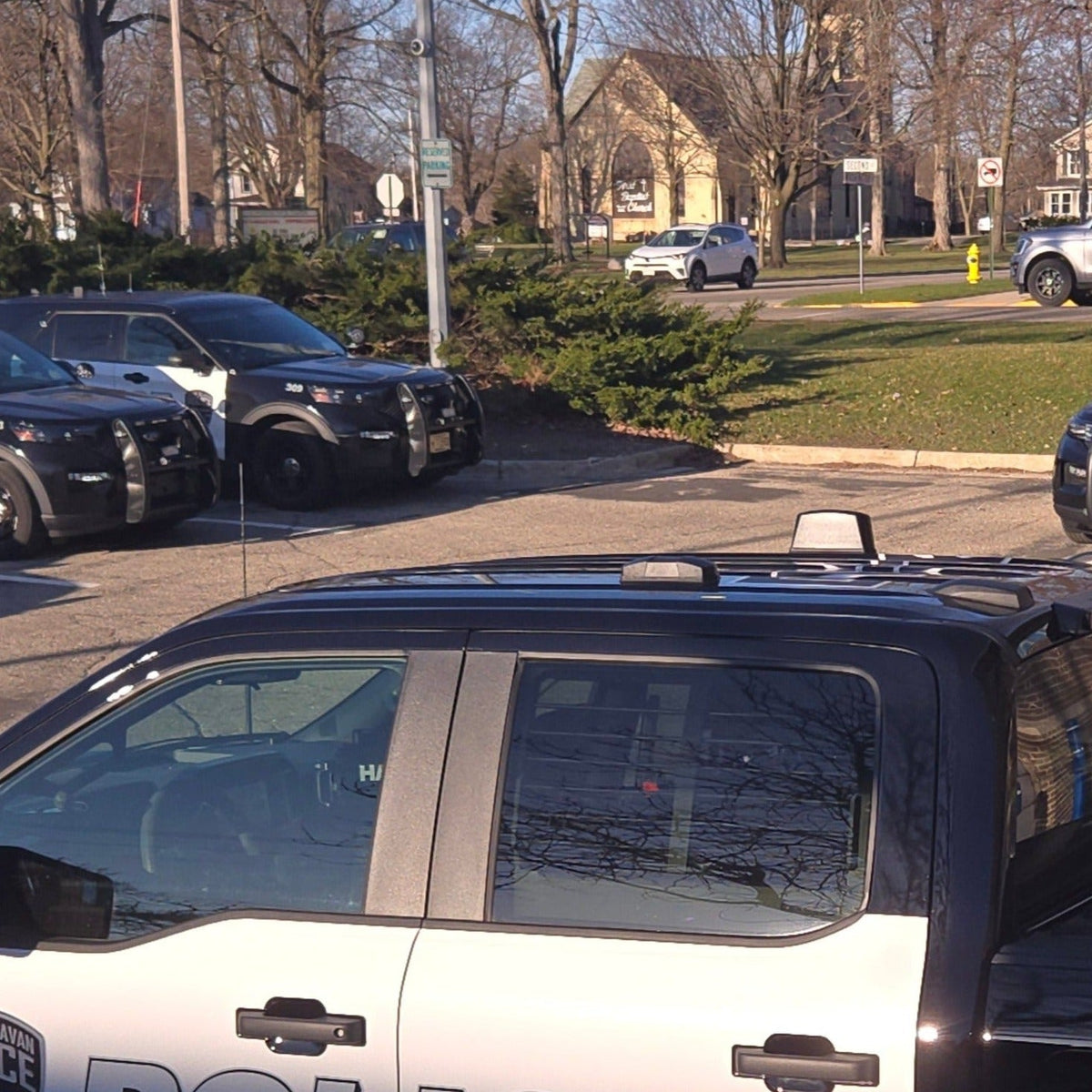

USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR? ADD THIS GASKET
Technical Specifications
| SKU | RBDM-155/455/758-17K-M-B |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | Mini UHF Male/ Mini-PL259/ MPL |
| Directional or Omni | Omnidirectional |
| Working Frequency | VHF:150-160 MHz |
| Working Frequency 2 | UHF: 450-470 MHz |
| Working Frequency 3 | P25: 700/800: 750-870 MHz |
| Antenna Category | Tri-band (VHF-UHF-700/800 MHz) |
| Gain | VHF: -1 dBi |
| Gain 2 | UHF: 1.4 dBi |
| Gain 3 | P25 700/800: 2.7 dBi |
| Ground Plane Required | Yes-Mount on Metal Roof |
|---|---|
| Height/Length (inches) | 3.78 inches tall |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Length pt240 cables | 17 Ft |
| Material | UV Stable Plastic Antenna & Rubber Gasket |
| Max Input Power (W) | 100 Watts Max Input Power |

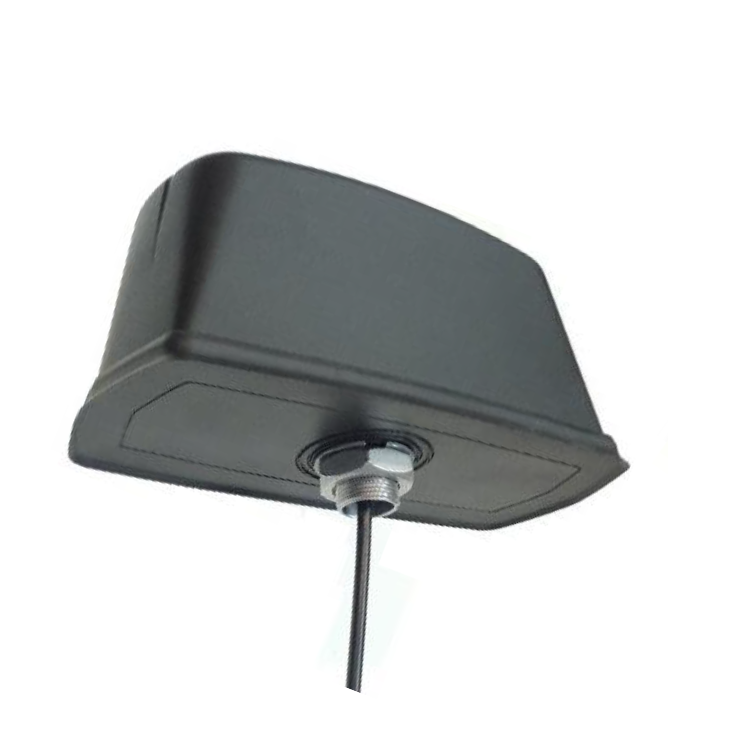

| Mount Style | Direct Mount with 7/8" Stud |
| Operating Temp (celsius) | -40 to +85 C |
| Thickness/Diameter (inches) | Length: 8 inches. Width at base: 3.5 inches. |
| VSWR: < X: 1 | VHF: 2.2:1 at 150-160 MHz. UHF: 2:1 at 450-470 MHz. P25: 2:1 at 750-870 MHz |
| Weight (lbs) | 1.16 lbs. |
