RBDM-155/455/758-17K-Q-W

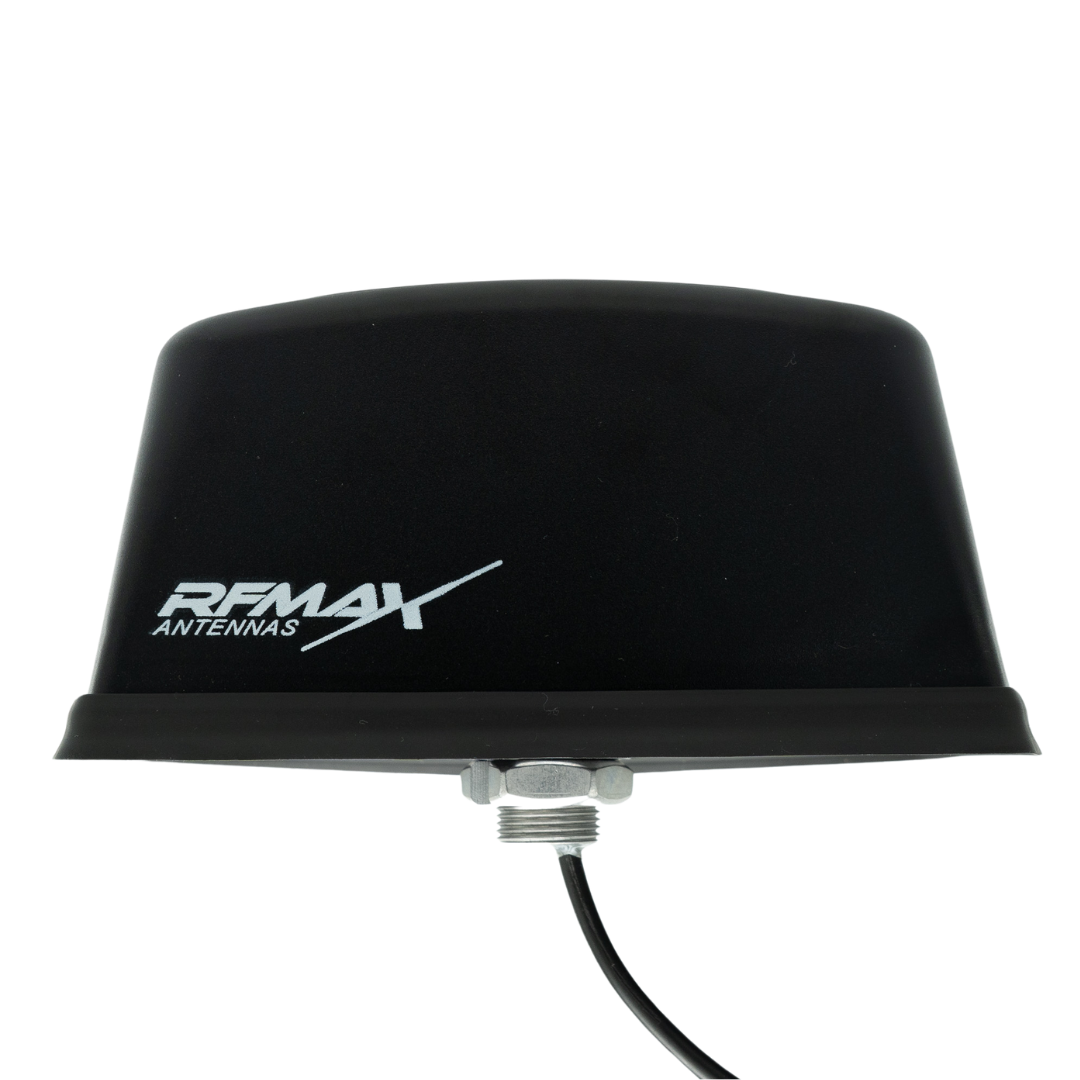

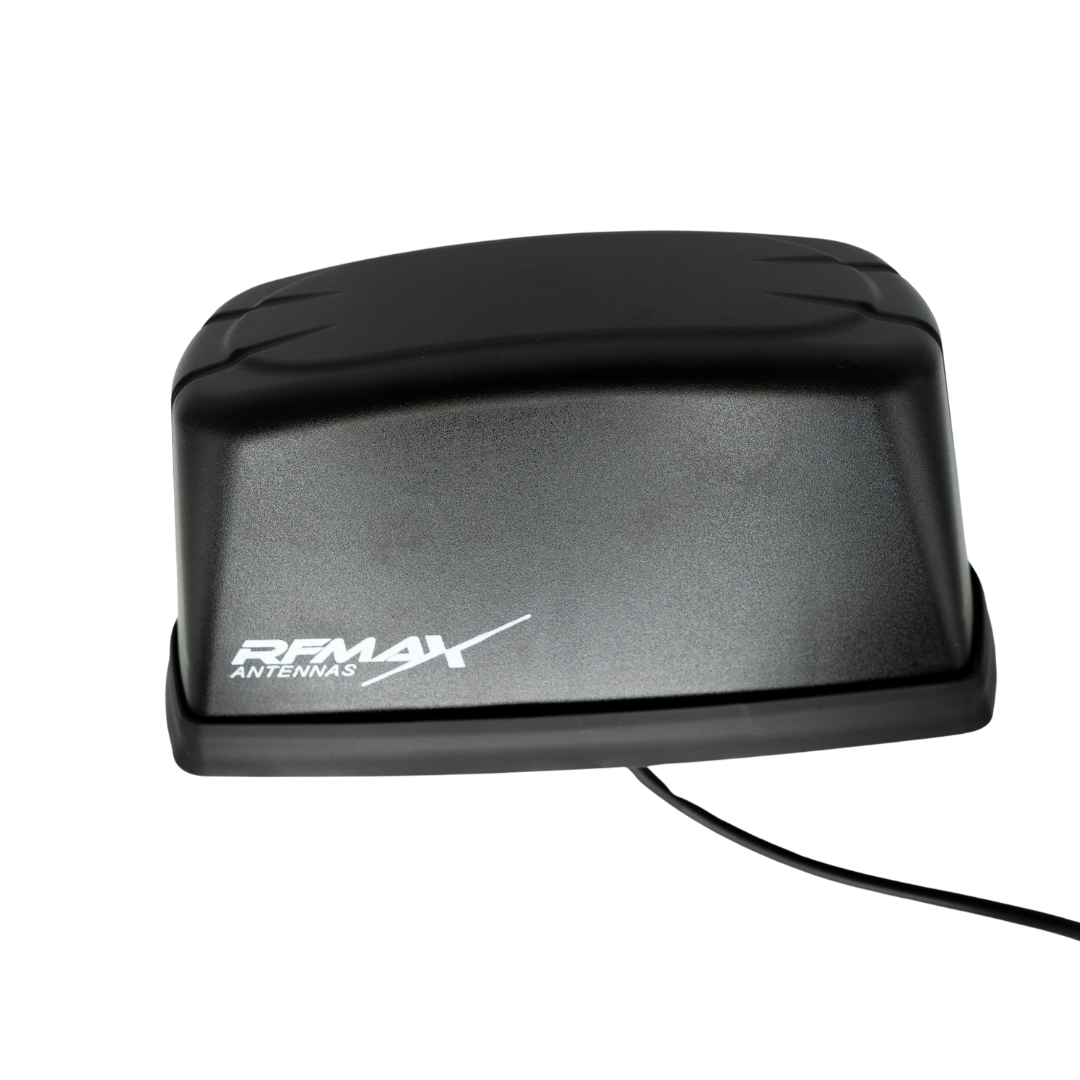

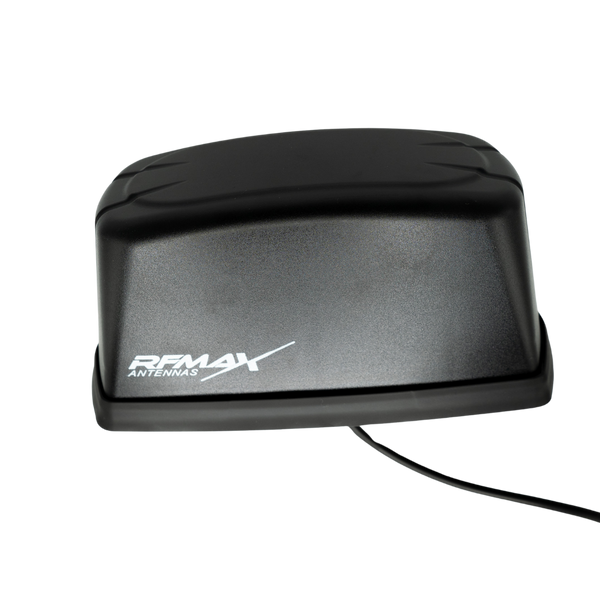

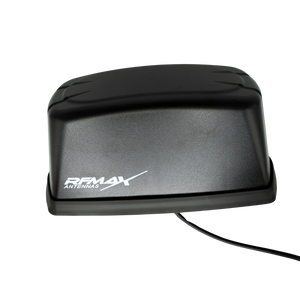

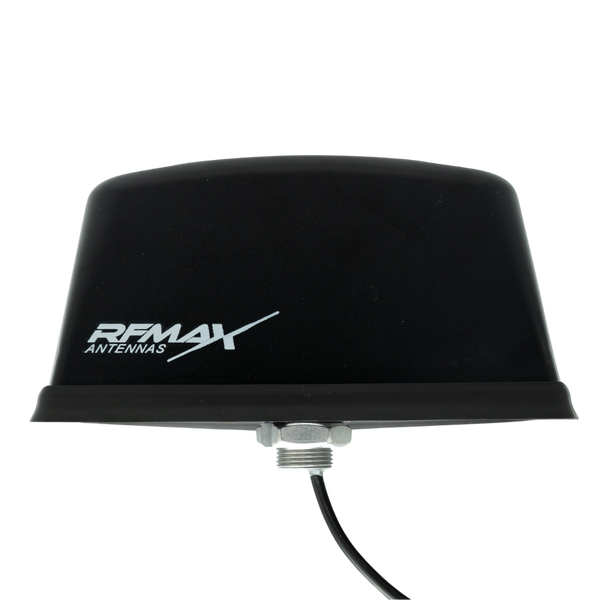

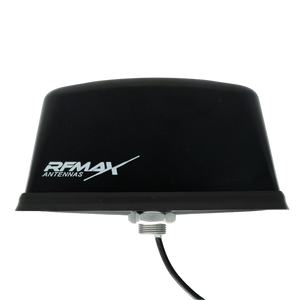

Low Profile Tri-band "Brick V2" Antenna, QMA Male for Motorola APX8500 All-Band P25 Radio
Configuration

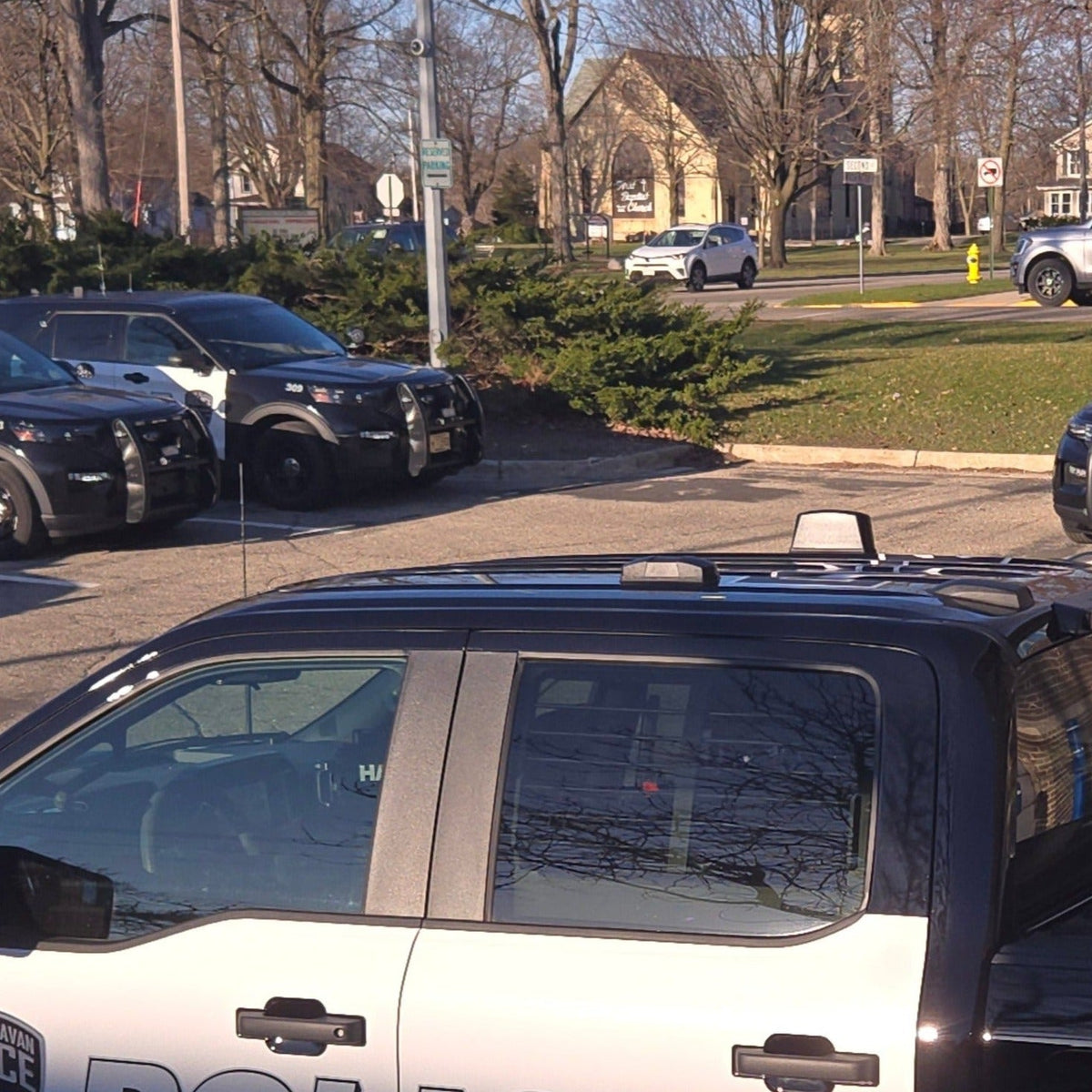

A true "low-profile" roof mounted antenna with Tri-band capability to support VHF, UHF and 700/800 MHz P25 radio communication
No More Broken Antennas! Less than 4 inches tall. 8 in. long & 3.5 in. wide
- Requires 7/8" hole for mounting this antenna
- Antenna ships with 2 foot cable & Includes 15 Ft Jumper with QMA Male
- Comes in different frequencies: 150-160 / 440-470 / 758-859 MHz or 150-160 / 470-512 / 758-859 MHz or 155-165 / 406-430 / 758-859 MHz

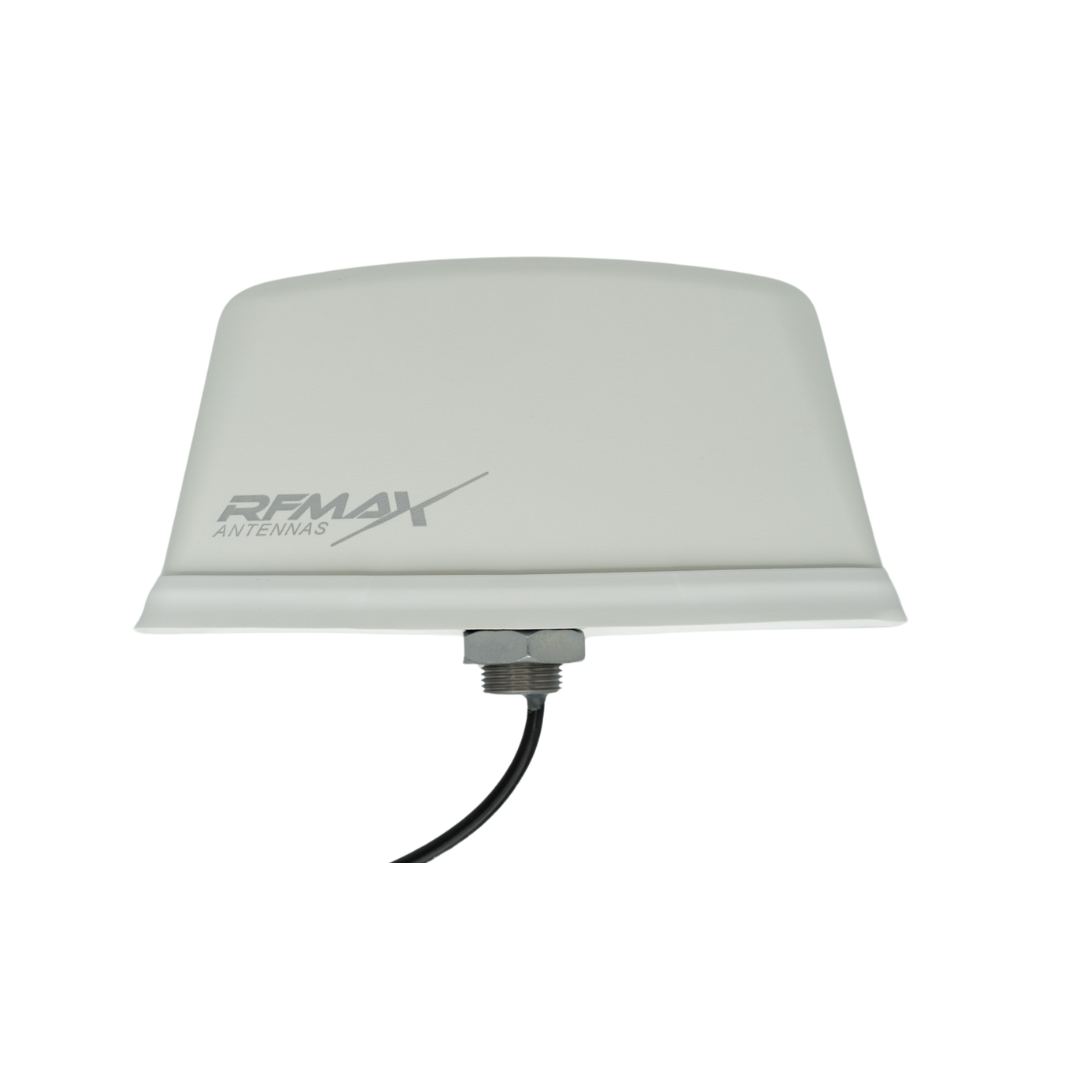

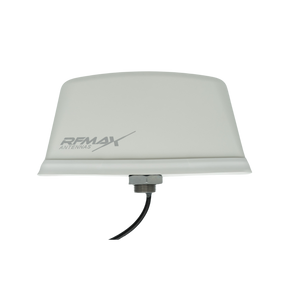

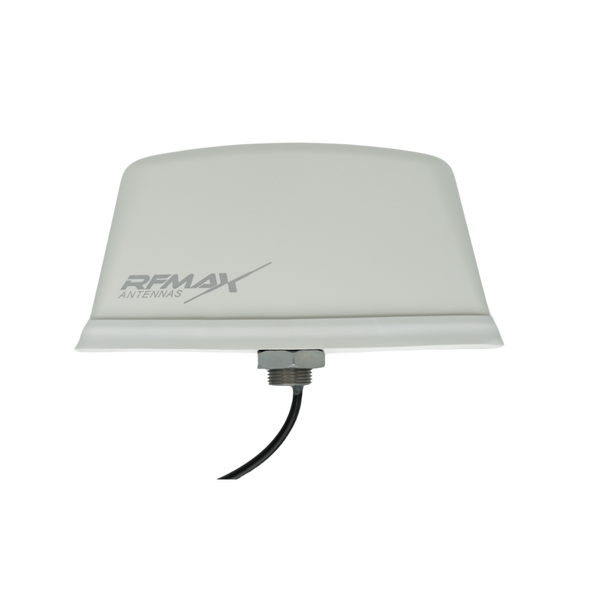

- Available in White or Black
USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR? ADD THIS GASKET
Technical Specifications
| SKU | RBDM-155/455/758-17K-Q-W |
|---|---|
| Manufacturer | RFMAX |
| Connector 1 | QMA-Male |
| Directional or Omni | Omnidirectional |
| Antenna Category | Tri-band (VHF-UHF-700/800 MHz) |
| Ground Plane Required | Yes-Mount on Metal Roof |
| Height/Length (inches) | 3.78 inches tall |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
|---|---|
| Length pt240 cables | 2 + 15 Ft |
| Material | UV Stable Plastic Antenna & Rubber Gasket |
| Max Input Power (W) | 100 Watts Max Input Power |

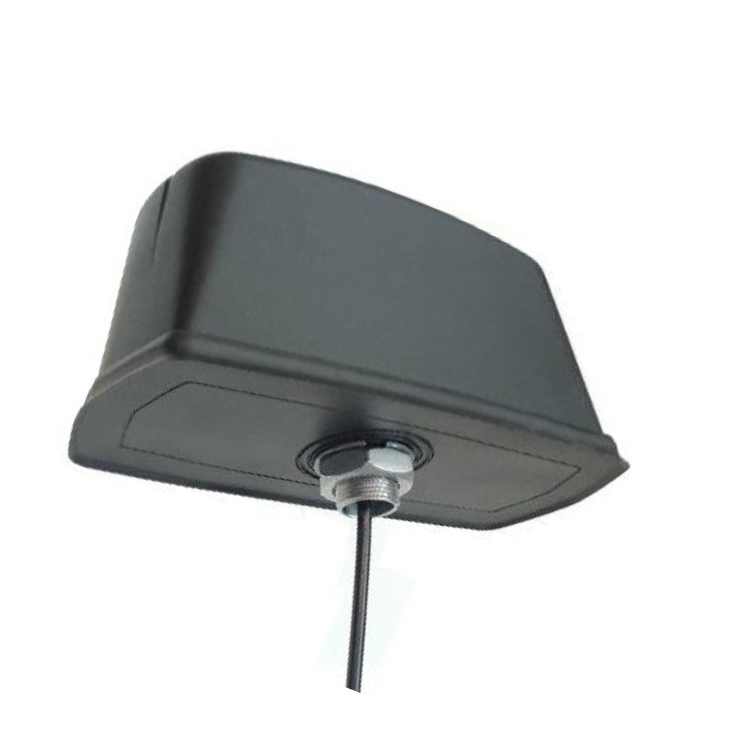

| Mount Style | Direct Mount with 7/8" Stud |
| Operating Temp (celsius) | -40 to +85 C |
| Thickness/Diameter (inches) | Length: 8 inches. Width at base: 3.5 inches. |
| Weight (lbs) | 1.16 lbs. |
