Low profile Tri-Band Antenna For Motorola APX8500 T-Band P25 Radio | RBDM-155/490/758-17-S-B

  • Unit is out of stock
List Price: $331.20
Low profile Tri-Band Antenna For Motorola APX8500 T-Band P25 Radio | RBDM-155/490/758-17-S-B
Low profile Tri-Band Antenna For Motorola APX8500 T-Band P25 Radio | RBDM-155/490/758-17-S-B
Grey_arrow@2x Created with Sketch.
Created with Sketch.
RBDM15549075817SB

Low profile Tri-Band Antenna For Motorola APX8500 T-Band P25 Radio | RBDM-155/490/758-17-S-B

  • Unit is out of stock
List Price: $331.20
Ships in 10-12 Weeks

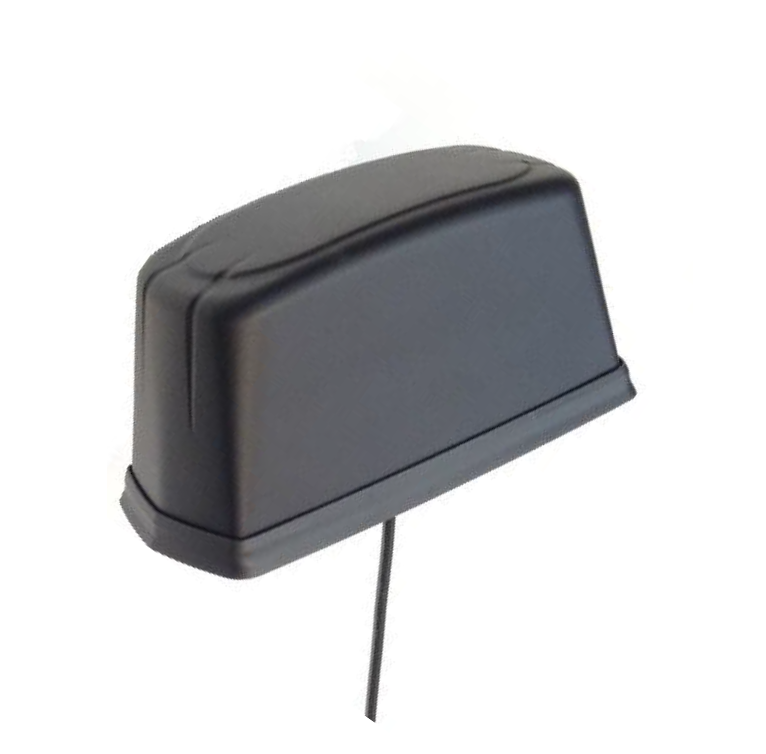

The RFMAX low profile antenna # RBDM-155/490/758-17-S-B is the first of it's kind! A true "low-profile" roof mounted antenna with Tri-band capability to support VHF, UHF and 700/800 Mhz P25 radio communication. This antenna was specifically designed to work with the Motorola APX8500™ All-Band P25 mobile police radio. It's also fully compatible with the L3-Harris Unity XG-100M™.
** NO MORE BROKEN ANTENNAS !!! **

  • Less than 4 inches tall. 8 inches long. 3.5 inches wide.
  • Fits ALL vehicles (use RBDM Gasket for Ford Explorer) including Chevy Tahoe and Dodge Durango
  • VHF: 153-157 MHz
  • UHF: 470-510 MHz
  • P25: 750-870 MHz
  • 100 Watts Max Power

USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR? ADD PART# RBDM-GASKET

    Description BlueArrow Created with Sketch.

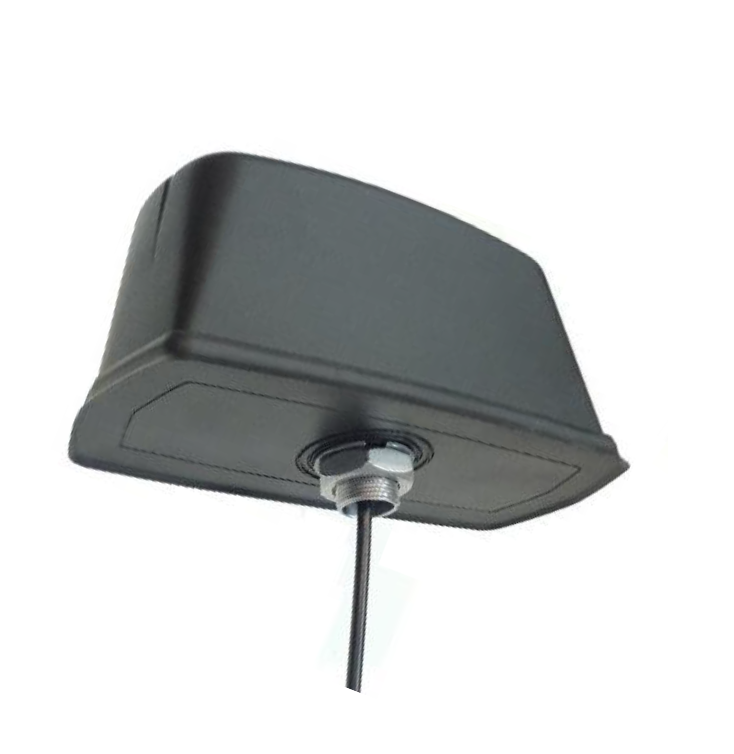

    This antenna is equivalent to the Motorola AN000131A01 all-band antenna and operates over 153-157MHz for VHF, 470-510 MHz for UHF & 750-870MHz for P25. These antennas are stud mounted, thru-the-roof for maximum performance (not NMO) and include 17 feet of low loss cable, pre-installed. This antenna sits BELOW THE LIGHT BAR so it is not affected by parking garages or low hanging branches and DOES NOT need to come off in the car wash. This antenna mounts to ANY public safety vehicle, including Chevy Tahoe, Dodge Charger or Durango, Ford Explorer PIU. (Ford Explorer gasket sold separately, click here RBDM-GASKET)

    Documents BlueArrow Created with Sketch.

    ViewDocument Created with Sketch. Datasheet

    Specifications BlueArrow Created with Sketch.

    color Black
    connector 1 17 foot coax with SMA (QMA, Mini UHF and TNC adapters included)
    frequency range Tri-band (VHF-UHF-700/800 MHz)
    ip rating IP67
    lenght (in) 3.78 inches tall
    material UV Stable Plastic Antenna & Rubber Gasket
    mfg part# RBDM-155/490/758-17-S-B
    operating temp (celsius) -40 to +85 C
    technology UHF/VHF/P25 (700-800) Triband
    thick (in) Length: 8 inches. Width at base: 3.5 inches.
    type "Brick" Multi-Element Antenna
    weight (lbs) 1.16 lbs.
