R3LHP-DM-24/55-17-R-B

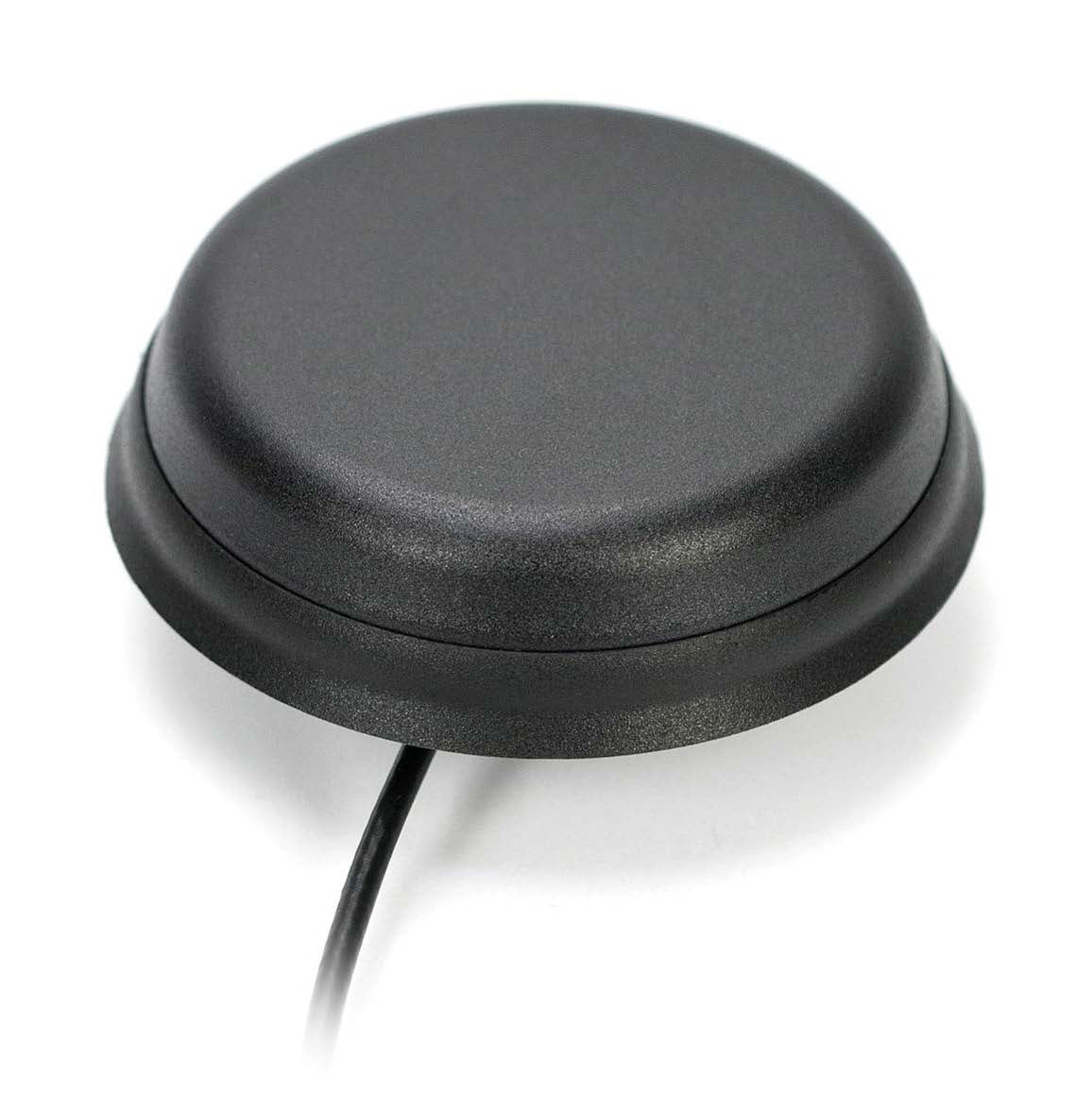

Low-Profile Dual-Band 2.4/5 GHz WiFi "Hockey Puck" Antenna
- This is a rugged, low-profile dual-band WiFi antenna engineered for high-performance wireless connectivity
- Designed for Wi-Fi 6/6E, Bluetooth, and Zigbee applications (2.4-2.5 GHz and 4.9-6 GHz bands)
- Ground-plane-independent puck antenna delivers up to 4.9 dBi peak gain, IP67/IP69K weather protection
- 17 feet of LL-195 cable with an RP-SMA male connector for easy integration into IoT gateways, kiosks, M2M systems, and industrial networks.
Technical Specifications
| SKU | R3LHP-DM-24/55-17-R-B |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | RP-SMA Male |
| Directional or Omni | Omni Directional |
| Working Frequency | 2410-2490 MHz |
| Working Frequency 2 | 4920-5925 MHz |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Gain | 4.9 dBi |
| Gain 2 | 4.5 dBi |
| Ground Plane Required | No |
| Height/Length (inches) | 0.59 |
|---|---|
| Height/Length (mm) | 15 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67/IP69K |
| Material | ASA UV Stable |
| Max Input Power (W) | 25W |
| Number of Cables | 1 |
| Operating Temp (celsius) | -40°C to +85°C |
| Thickness/Diameter (inches) | 3.04 |
| Thickness/Diameter (mm) | 77.3 |
| VSWR: < X: 1 | <1.5:1 |
