RBDM-155/490/758-GW-17K-Q-B

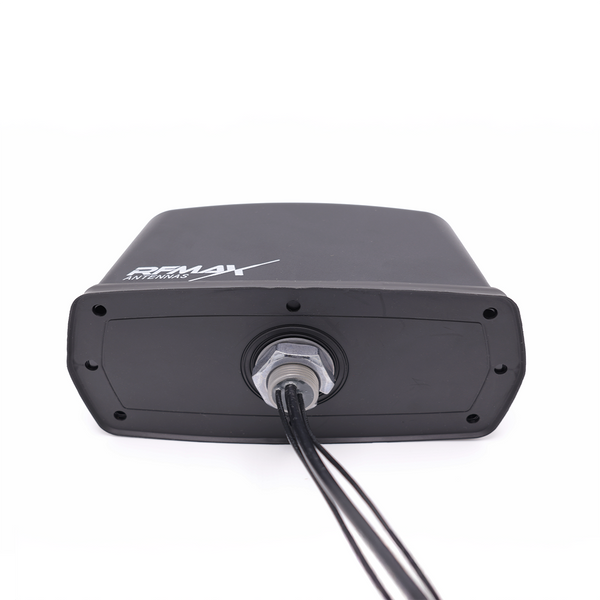

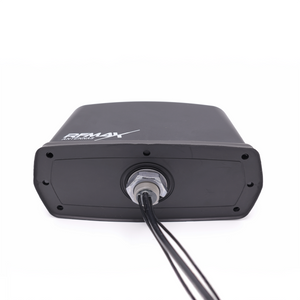

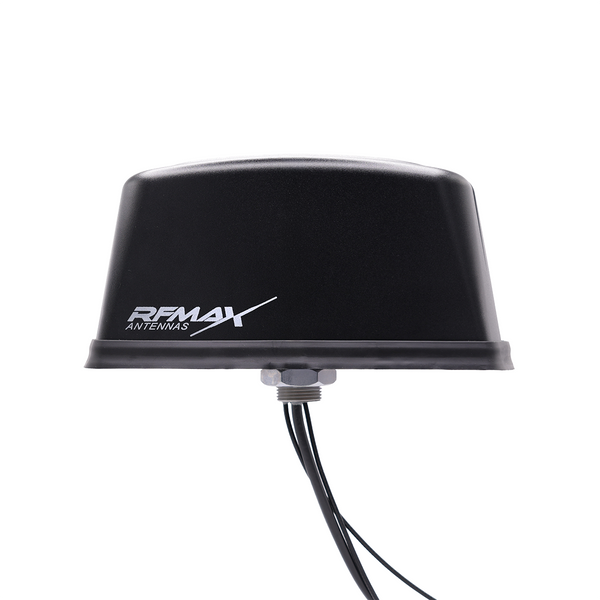

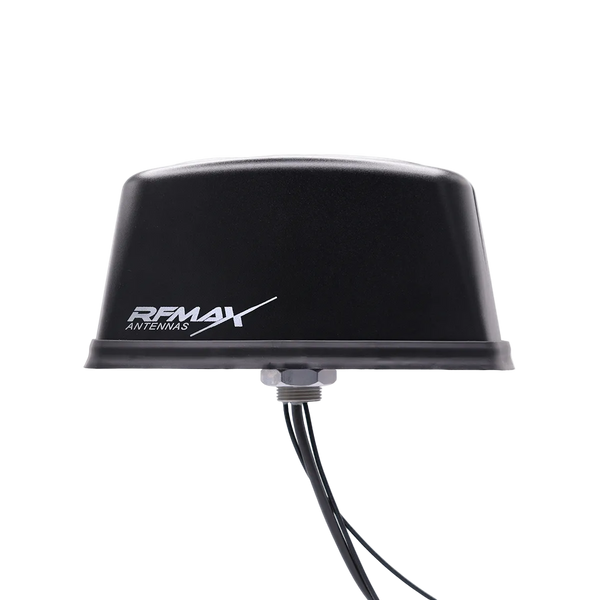

Low profile all-in-1 (VHF/UHF/P25 + WiFi + GPS) "Brick V2" Antenna for Motorola APX8500, 17 ft QMA Male, Black
The RFMAX RBDM-155/490/758-GW-17K-Q-B is a true 3-in-1 LOW-PROFILE roof mount antenna designed for the Motorola APX8500 and other tri-band mobile radios. Supporting VHF (150-160 MHz), UHF (450-512 MHz), and 700/800 MHz P25 communications, this rugged antenna ensures seamless connectivity across all mission-critical bands. Integrated GPS (L1/L2/L5) and Wi-Fi 2.4/5/6 GHz capabilities provide enhanced positioning accuracy and enable over-the-air (OTA) updates for modern fleet and public-safety applications.
- NO MORE BROKEN ANTENNAS !!!
- All-in-1 Solution Antenna with cable lines for VHF/UHF/P25, GPS and WiFi in one single antenna
- Less than 4 inches tall. 8 inches long. 3.5 inches wide.
- Fits ALL vehicles (use RBDM Gasket for Ford Explorer) including Chevy Tahoe and Dodge Durango
- Not affected by parking garages or low-hanging branches and DOES NOT need to come off in the car wash
- Requires 7/8" hole for mounting this antenna
- Antenna ships with 2 foot cable & Includes 15 Ft Jumper with QMA Male for all three leads
- Contact us for more info: techsupport@arcadianinc.com
USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR? ADD THIS GASKET
Technical Specifications
| SKU | RBDM-155/490/758-GW-17K-Q-B |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | QMA-Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | VHF:150-160 MHz |
| Working Frequency 2 | UHF: 450-512 MHz |
| Working Frequency 3 | P25: 700/800: 750-870 MHz |
| Working Frequency 4 | WiFi: 2.4-2.5 / 4.9-7.125 GHz |
| Antenna Category | Tri-band (VHF-UHF-700/800 MHz) |
| Gain | VHF: -1 dBi |
| Gain 2 | UHF: 1.9 dBi |
| Gain 3 | P25 700/800: 3.6 dBi |
| Gain 4 | WiFi: 6 dBi at 2.4 GHz / 4 dBi at 4.9-7.125 GHz |
| Ground Plane Required | Yes-Mount on Metal Roof |
|---|---|
| Height/Length (inches) | 3.78 inches tall |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Length pt240 cables | 2 Ft + 15 Ft cable extensions |
| Material | UV Stable Plastic Antenna & Rubber Gasket |
| Max Input Power (W) | 100 Watts Max Input Power |
| Mount Style | Direct Mount with 7/8" Stud |
| Number of Cables | 3 |
| Operating Temp (celsius) | -40 to +85 C |
| Thickness/Diameter (inches) | Length: 8 inches. Width at base: 3.5 inches. |
| VSWR: < X: 1 | VHF: 2.2:1 at 150-160 MHz. UHF: 2.5:1 at 450-512 MHz. P25: 2:1 at 750-870 MHz. WiFi: 2:1 at 2.4-7.125 GHz |
| Weight (lbs) | 1.16 lbs. |
