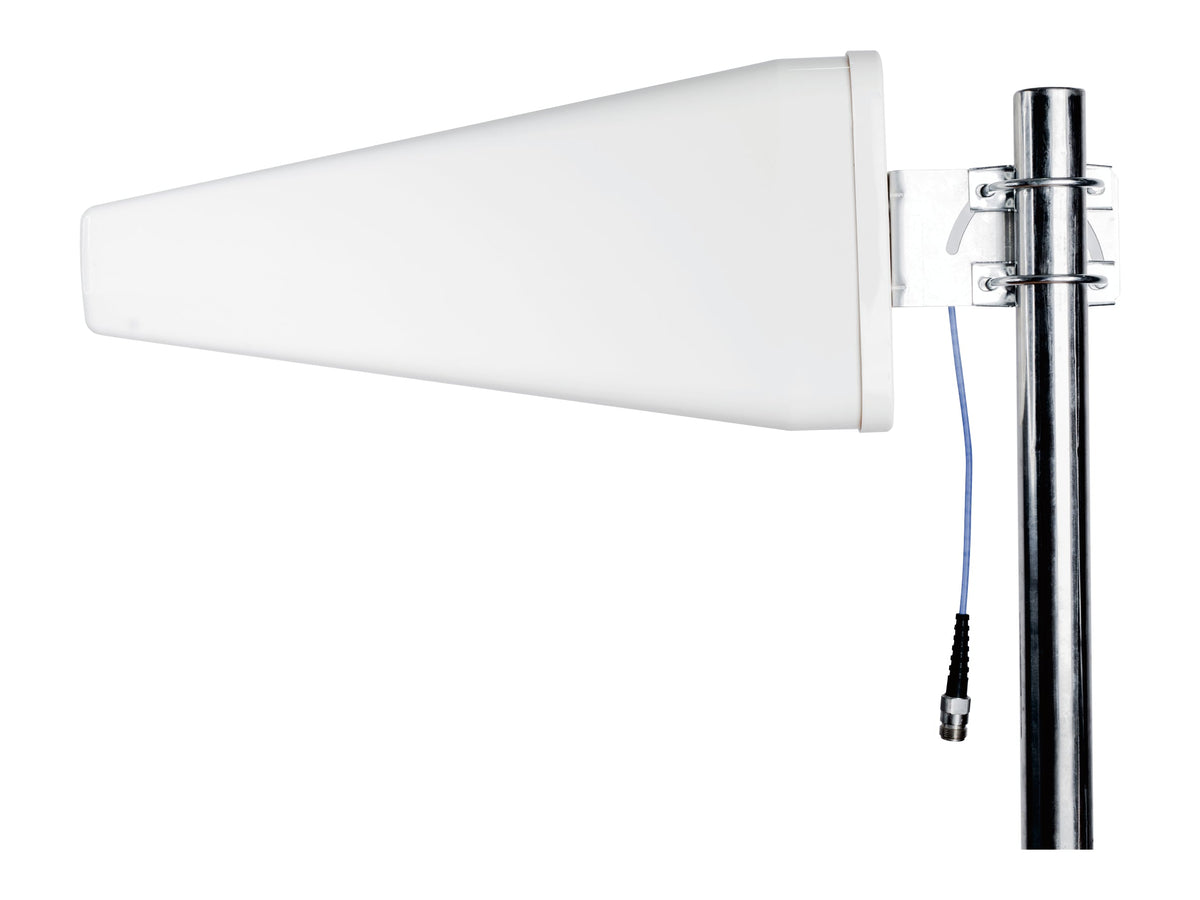

RYE-600/71-8-SNF
Log Periodic Yagi Antenna for 5G/LTE, 617-7125 MHz
- Multi-band directional Yagi antenna covering 617-6000 MHz for 4G LTE, 5G, and Wi-Fi applications
- Delivers consistent performance with 7-9 dBi gain across five frequency bands for reliable signal strength
- Designed with 50 Ohm impedance, VSWR ? 1.8:1, and 50W max input power for stable RF performance
- Compact, lightweight design (17.3" x 8.3", 1.2 lbs) with vertical polarization for easy deployment
- IP54-rated, UV-protected ABS housing suitable for outdoor use in harsh environments (-40°C to +55°C)
- Includes mounting hardware and requires no ground plane, simplifying installation
- Ideal for 5G/4G, IoT, and broadband connectivity applications requiring directional coverage
Technical Specifications
| SKU | RYE-600/71-8-SNF |
|---|---|
| Manufacturer | RFMAX |
| Color | White |
| Directional or Omni | Directional |
| Working Frequency | 617-806 MHz |
| Working Frequency 2 | 806-960 MHz |
| Working Frequency 3 | 1710-2700 MHz |
| Working Frequency 4 | 3300-4000 MHz |
| Working Frequency 5 | 4900-6000 MHz |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Gain | 7-9 dBi |
| Gain | 7.5 dBi |
| Gain 2 | 7.5 dBi |
| Gain 3 | 9 dBi |
| Gain 4 | 9 dBi |
| Gain 5 | 7 dBi |
|---|---|
| Ground Plane Required | No |
| Height/Length (inches) | 17.32 |
| Height/Length (mm) | 440 |
| Includes | Mounting Hardware Included |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP54 |
| Material | ABS, UV Protected |
| Max Input Power (W) | 50W |
| Operating Temp (celsius) | -40 to + 55 |
| Polarity | Vertical |
| VSWR: < X: 1 | 1.8:1 |
| Weight (lbs) | 1.2 |
| Width (inches) | 8.27 |
| Width (mm) | 210 |
