ROSA900SNF

IoT Antenna for LoRa / ISM. 902-928 MHz. Outdoor Rated with N-Female Connector

  • Units Available: 49
List Price: Regular price $129.00
IoT Antenna for LoRa / ISM. 902-928 MHz. Outdoor Rated with N-Female Connector
IoT Antenna for LoRa / ISM. 902-928 MHz. Outdoor Rated with N-Female Connector
IoT Antenna for LoRa / ISM. 902-928 MHz. Outdoor Rated with N-Female Connector
Grey_arrow@2x Created with Sketch.
Created with Sketch.
ROSA900SNF

IoT Antenna for LoRa / ISM. 902-928 MHz. Outdoor Rated with N-Female Connector

  • Units Available: 49
List Price: Regular price $129.00

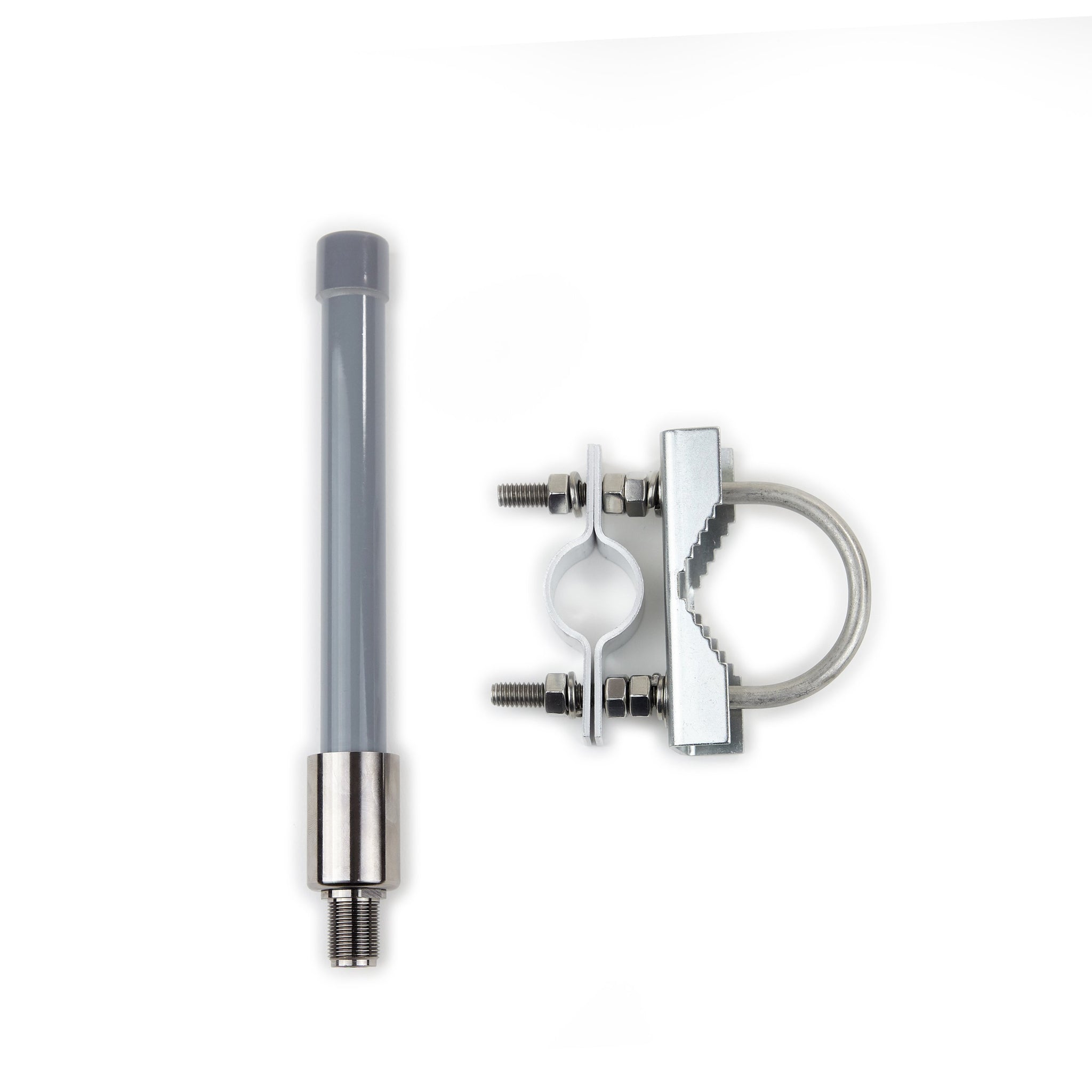

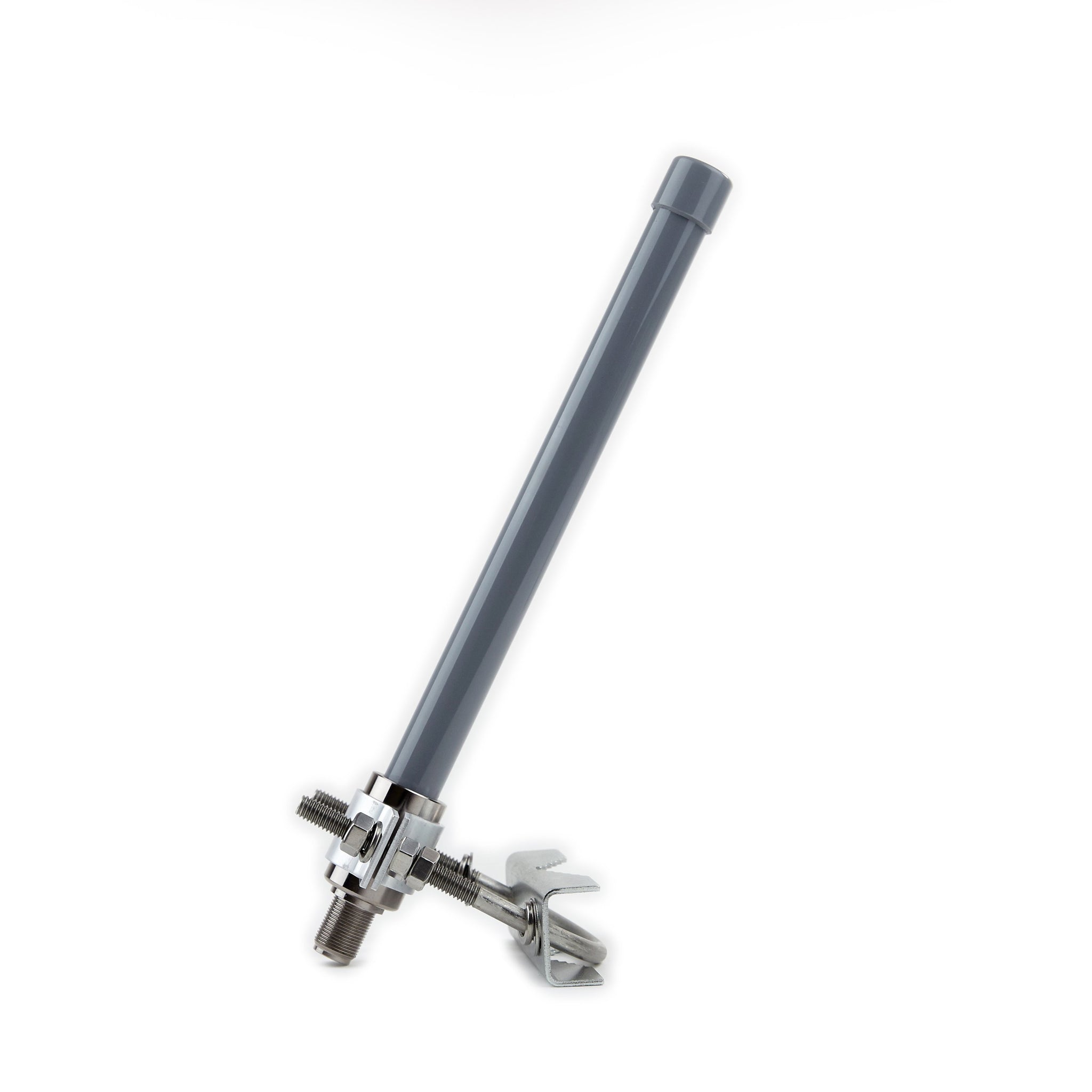

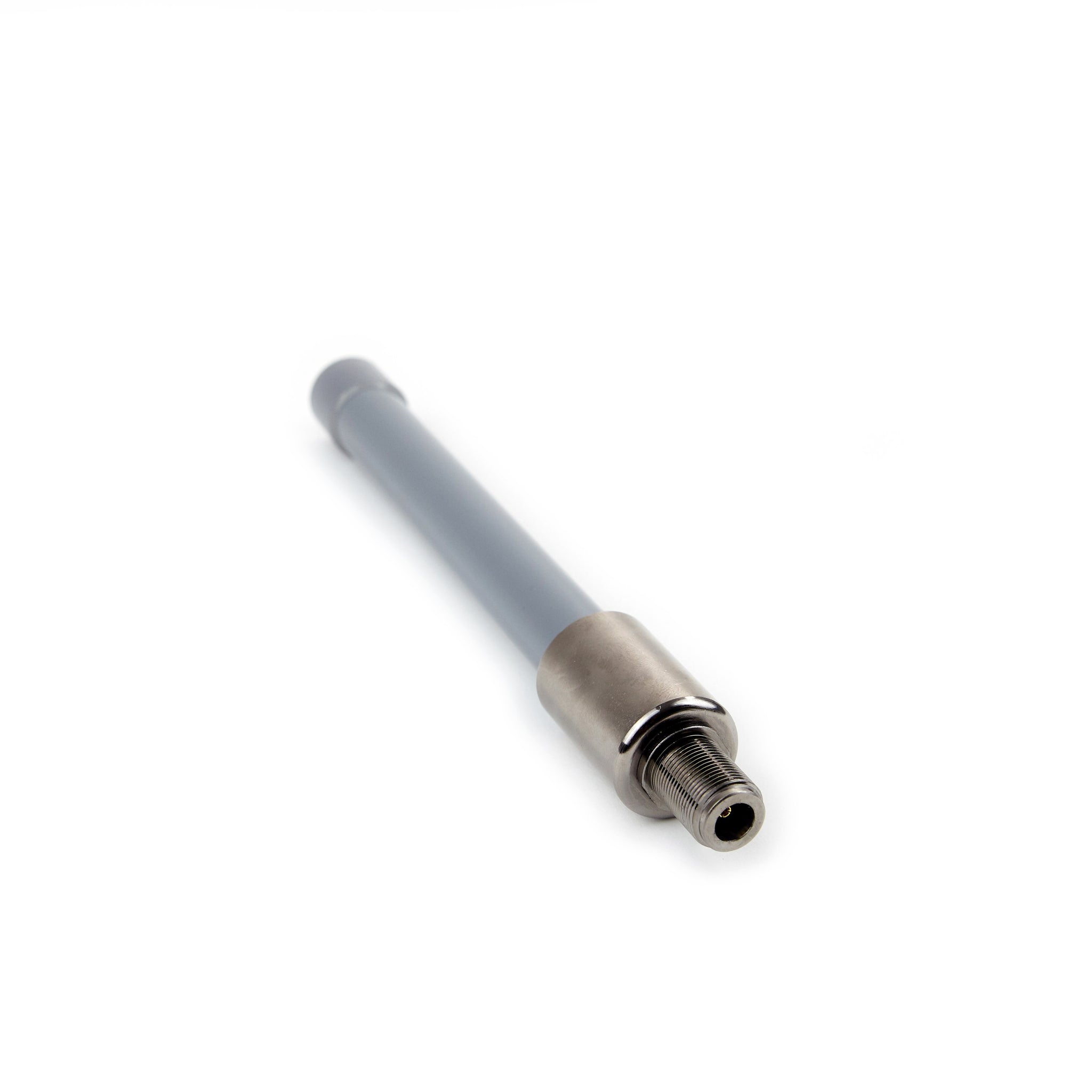

The ROSA-900-SNF from RFMAX is an outdoor rated, omnidirectional stick antenna with N-Female for IoT use in the US 902-928 MHz bands. This ISM band / 33 Centimeter (33 cm) Omni antenna has a "weep hole" with a waterproof membrane so that it can be used indoors or outdoors, mounted right-side-up or up-side-down. Optimized to increase the performance of today's most popular 900 MHz M2M modems and gateways for ISM or LoRA from Digi, Freewave, Moxa, Tektelik, MultiTech, etc. This is also suitable for 900 MHz spread spectrum applications, SCADA system radios that operate in the unlicensed 896-940 MHz frequency range and for all applaications working in 900 ISM Band.

  • LoRa / ISM Frequency Range of 902-928 MHz / 33 Centimeter (33 cm)
  • Gain: 2.7 dBi
  • VSWR: <1.5:1
  • Small Size: Length=8.85 inches, Diameter=1.1 inches
  • Max Power Rating: 5 Watts
  • Operating Temp: -40 to +85 C
  • Operates with modems from Tektelic, Digi, Freewave, Moxa, MultiTech, etc.

PLEASE NOTE: Bracket is sold separately.

Please select an option!
Essential Items (Must make a selection):

Description BlueArrow Created with Sketch.

The ROSA-900-SNF from RFMAX is an outdoor rated, omni-directional stick antenna with N-Female for IoT use in the LoRa or ISM bands. This antenna can be used indoors or outdoors and is perfect for IoT - Internet of Things applications.

Technical Notes:

  • LoRa / ISM Frequency Range of 902-928 MHz / 33 Centimeter (33 cm)
  • Gain: 2.7 dBi
  • VSWR: <1.5:1
  • Small Size: Length=8.85 inches, Diameter=1.1 inches
  • Max Power Rating: 5 Watts
  • Operating Temp: -40 to +85 C
  • Operates with modems from Tektelic, Digi, Freewave, Moxa, MultiTech, etc.
