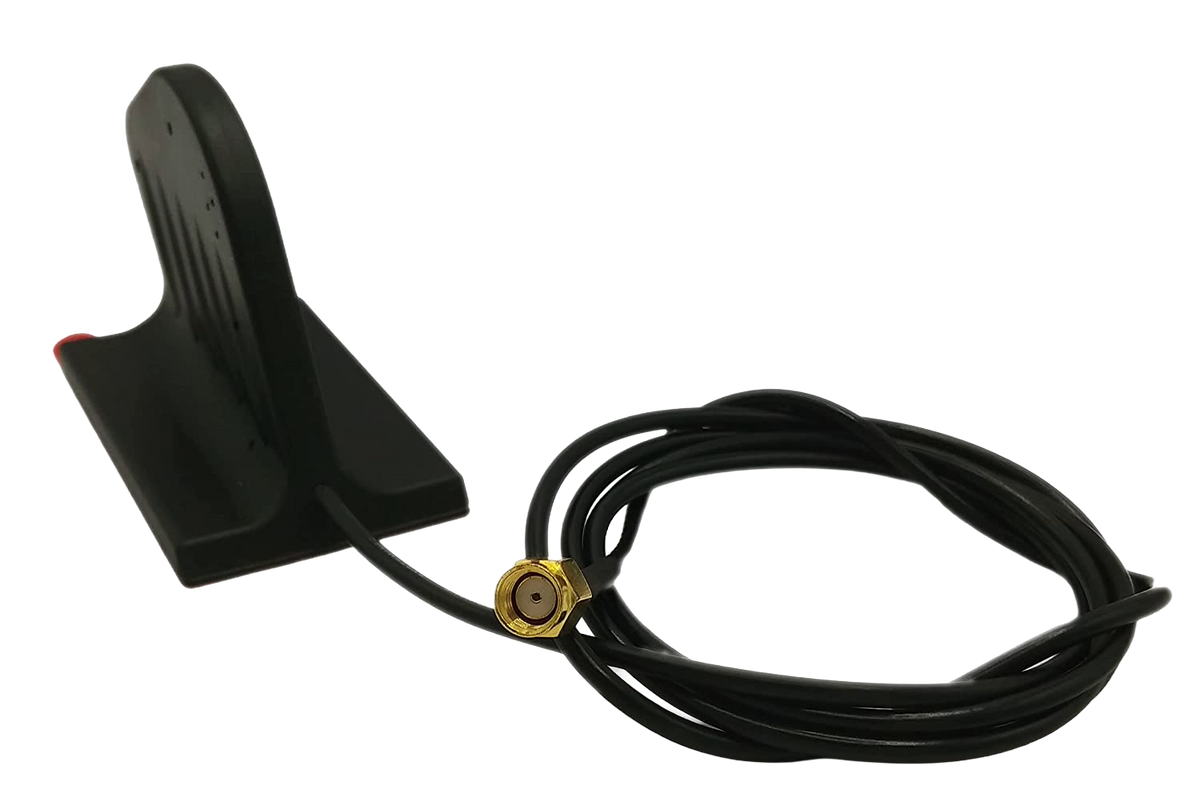

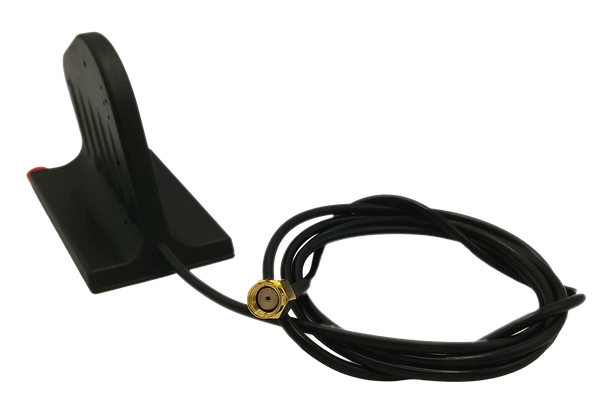

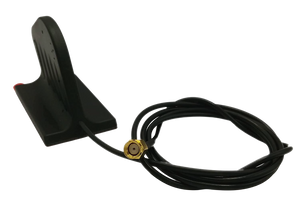

RWSA-24-3-R-B
High Performance Bluetooth Antenna 2.4-2.485 GHz Windshield Mount
Configuration
- Frequency range: 2.42.485 GHz (Bluetooth / 2.32.5 GHz operating range)
- Gain: ~2.5 dBi (omnidirectional)
- Impedance / VSWR: 50 Ohm, ?2.0:1
- Connector: RP-SMA Male
- Antenna type: Dipole, omnidirectional
- Dimensions: Approx. 2.6" H × 1.6" W × 2.8" D
- Mounting: Windshield mount (VHB adhesive)
- Works with Meraki, D-link DWL520, Linksys WMP11, WET11, Netgear MA311, or D-link APs
- This antenna is equivalent to Watchguard/Motorola part# WGP02504
- Environmental rating: Indoor/Outdoor (IP67-rated)
Technical Specifications
| SKU | RWSA-24-3-R-B |
|---|---|
| Manufacturer | RFMAX |
| Directional or Omni | Omnidirectional |
| Working Frequency | 2.3 - 2.5 GHz |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Gain | 2.5 dBi |
|---|---|
| Height/Length (mm) | 67 |
| Thickness/Diameter (mm) | 70 |
| VSWR: < X: 1 | < 2.0:1 |
| Width (mm) | 40 |
