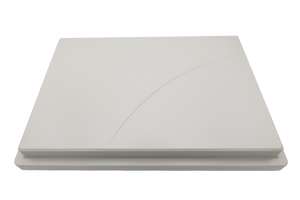

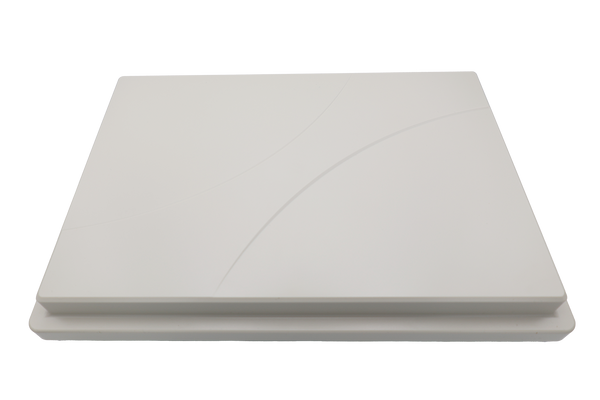

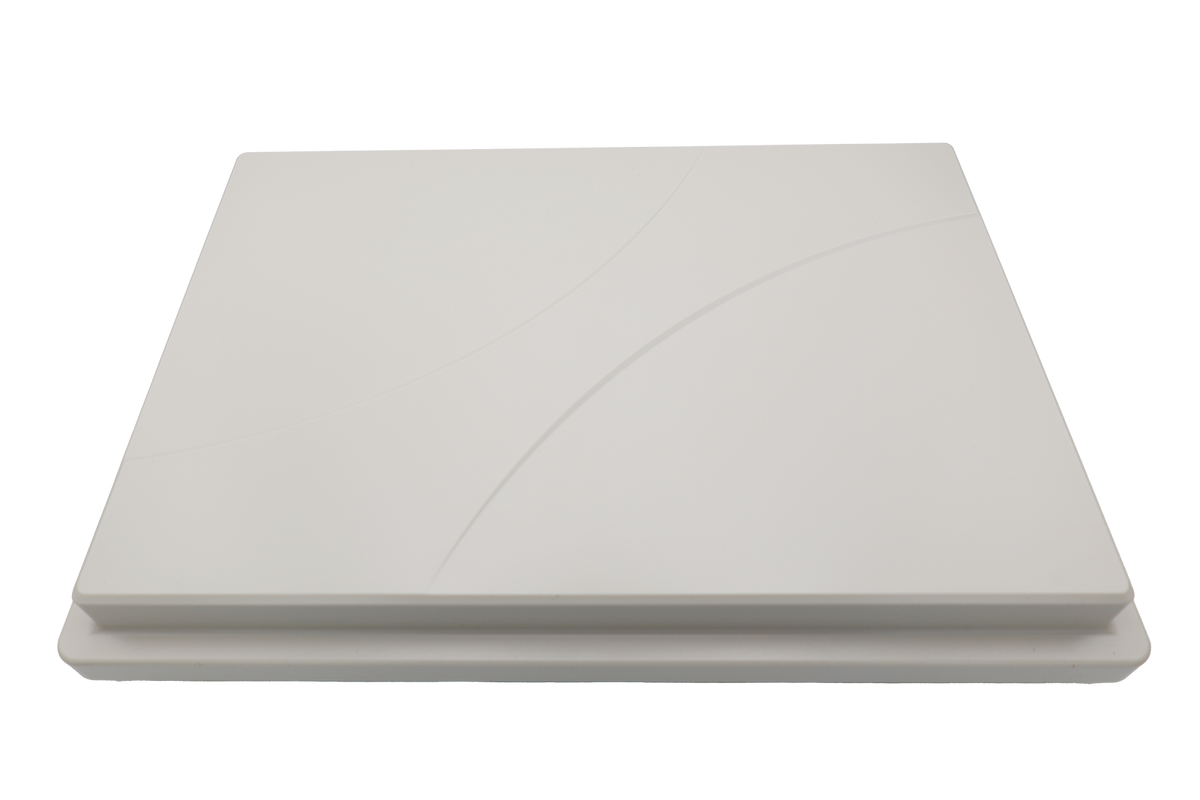

RPAN-4W-NF-W

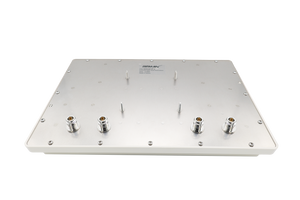

High-Gain 4x4 MIMO WiFi Panel Antenna, Dual-Band 2.4/5 GHz
- 4x4 MIMO, Dual Band WiFi
- Dual Polarization, 2 V-Pol and 2 H-Pol

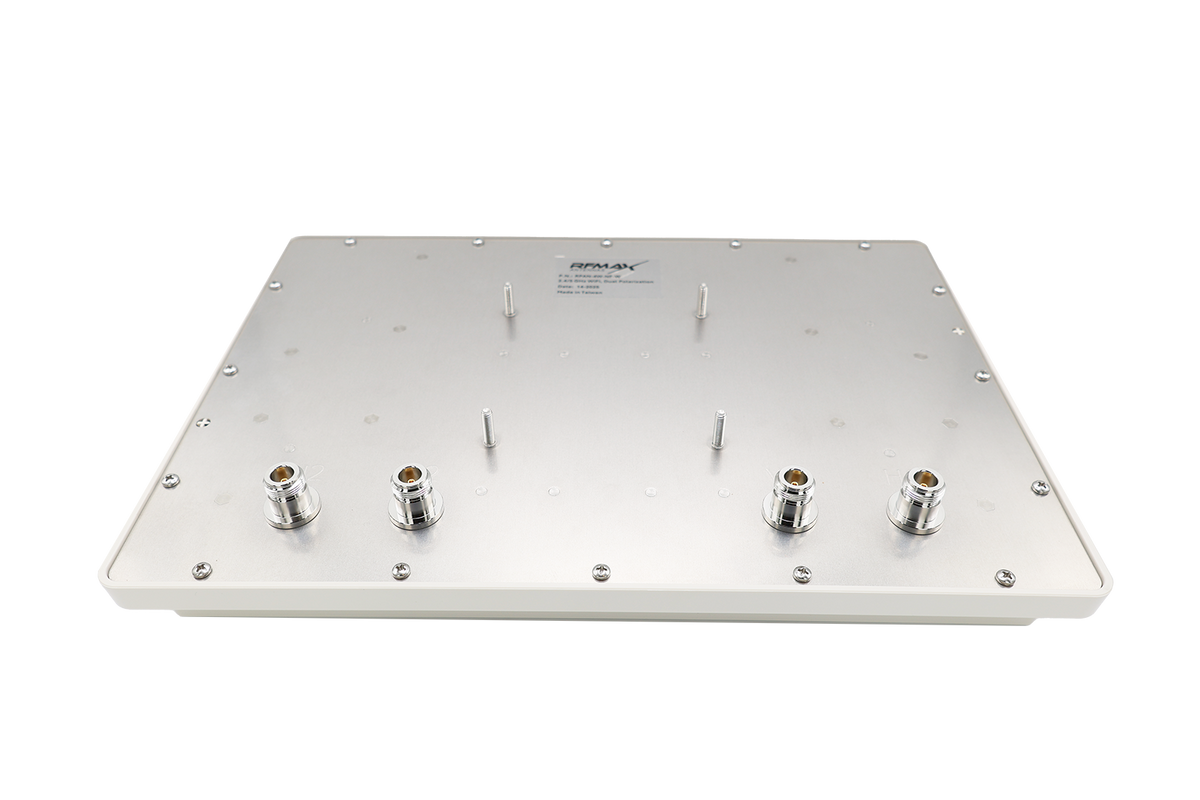

- Direct N-Female Connectors

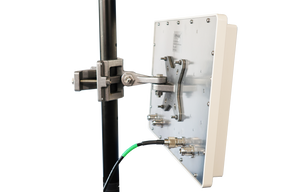

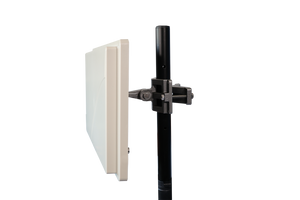

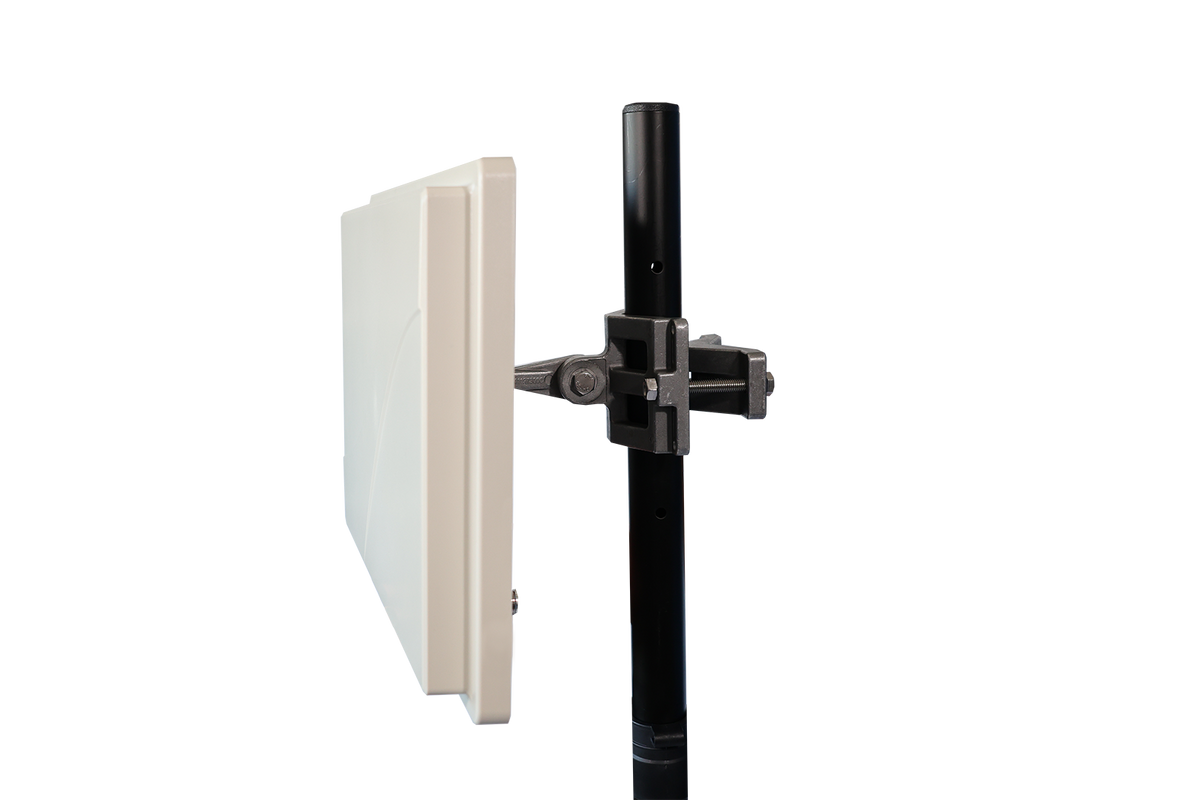

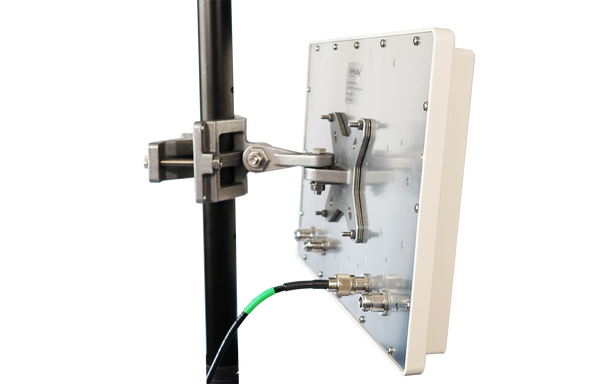

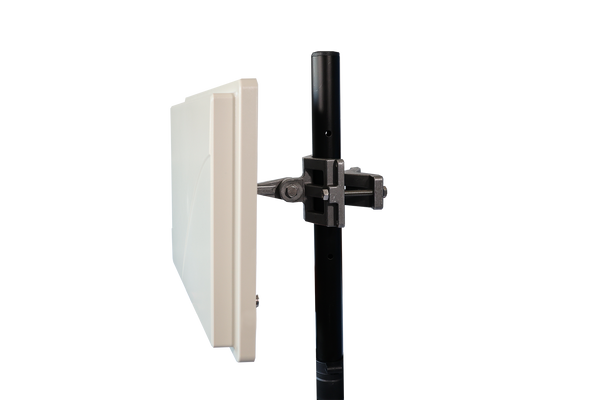

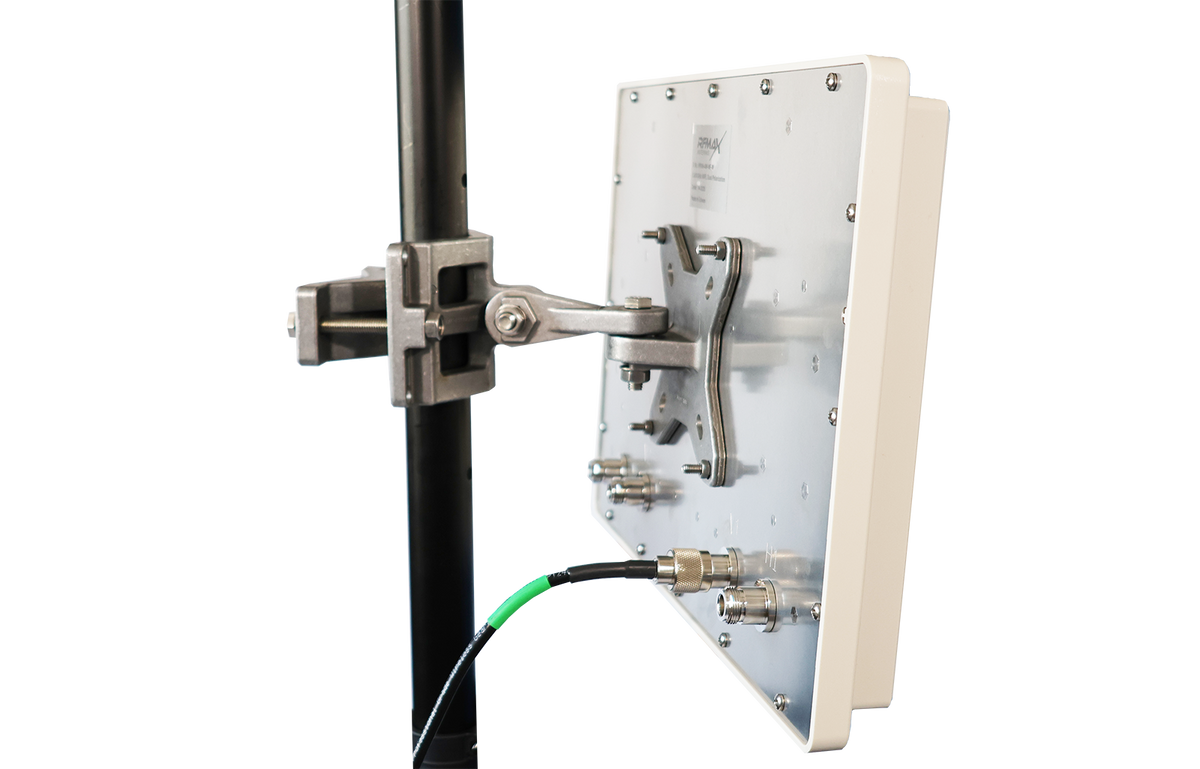

- 100mm Vesa Mount Pattern for Easy Installation
- Wide Beamwidth; 127° Azimuth & 55° Elevation
- High Efficiency, 78% Efficiency at 2.4 GHz
- High Gain, 9.9 dBi Peak Gain
Technical Specifications
| SKU | RPAN-4W-NF-W |
|---|---|
| Manufacturer | RFMAX |
| Color | White |
| Connector 1 | N-Female (x4) |
| Connector Type | N-Female (x4) |
| Directional or Omni | Directional |
| Working Frequency | 2.4-2.5 |
| Working Frequency 2 | 5.1-5.8 GHz |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Gain | 7.7 dBi (2.4 GHz V-Pol 1) |
| Gain 2 | 8.7 dBi (2.4 GHz V-Pol 2) |
| Gain 3 | 9.3 dBi (5 GHz V-Pol 1) |
| Gain 4 | 9.3 dBi (5 GHz V-Pol 2) |
| Gain 5 | 8.4 dBi (2.4 GHz H-Pol 1) |
| Gain 6 | 8.2 dBi (2.4 GHz H-Pol 2) |
| Gain 7 | 7.1 dBi (5.0 GHz H-Pol 1) |
| Gain 8 | 7.7 dBi (5.0 GHz H-Pol 2) |
|---|---|
| Height/Length (inches) | 10.4 |
| Height/Length (mm) | 263 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | PET+PC UV Rated |
| Mount Pattern | 100mm VESA |
| No Of Elements | 4x MIMO |
| Operating Temp (celsius) | -40 to +80 |
| Polarity | Dual Polarization (Horizontal and Vertical) |
| Thickness/Diameter (inches) | 2.3 |
| Thickness/Diameter (mm) | 59 |
| VSWR: < X: 1 | <2.0:1 |
| Width (inches) | 14.9 |
| Width (mm) | 378 |
