HDMNT-150MM

Heavy-Duty Antenna Mount for WLAN Access Point, Zebra AN480, Impinj IPJ-A1000, IPJ-A1001. MIST AP41, AP43, AP61.

  • Out of stock
List Price: $99.94

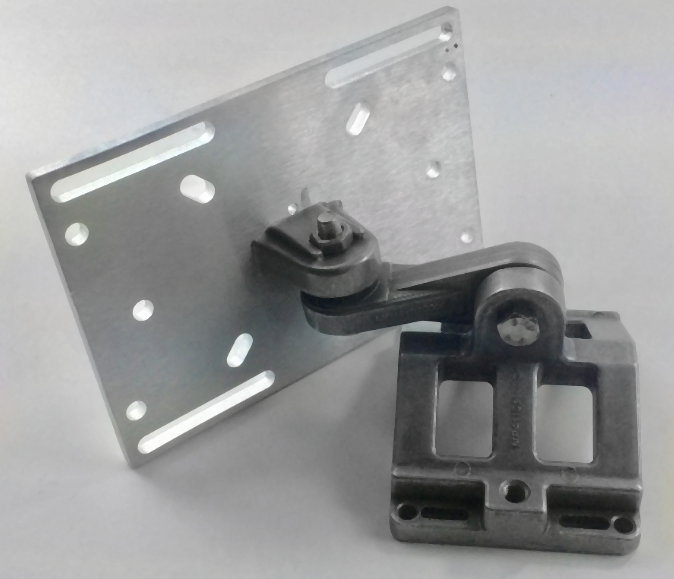

  • Universal Mounting Bracket for Wireless Access Points (AP's) Antennas, Digital Displays, TV Monitors, etc.
  • Made of Heavy Duty Die Cast Aluminum. Holds up to 40 Lbs.
  • Ideal for Antennas from Zebra, Impinj or MIST / Juniper.

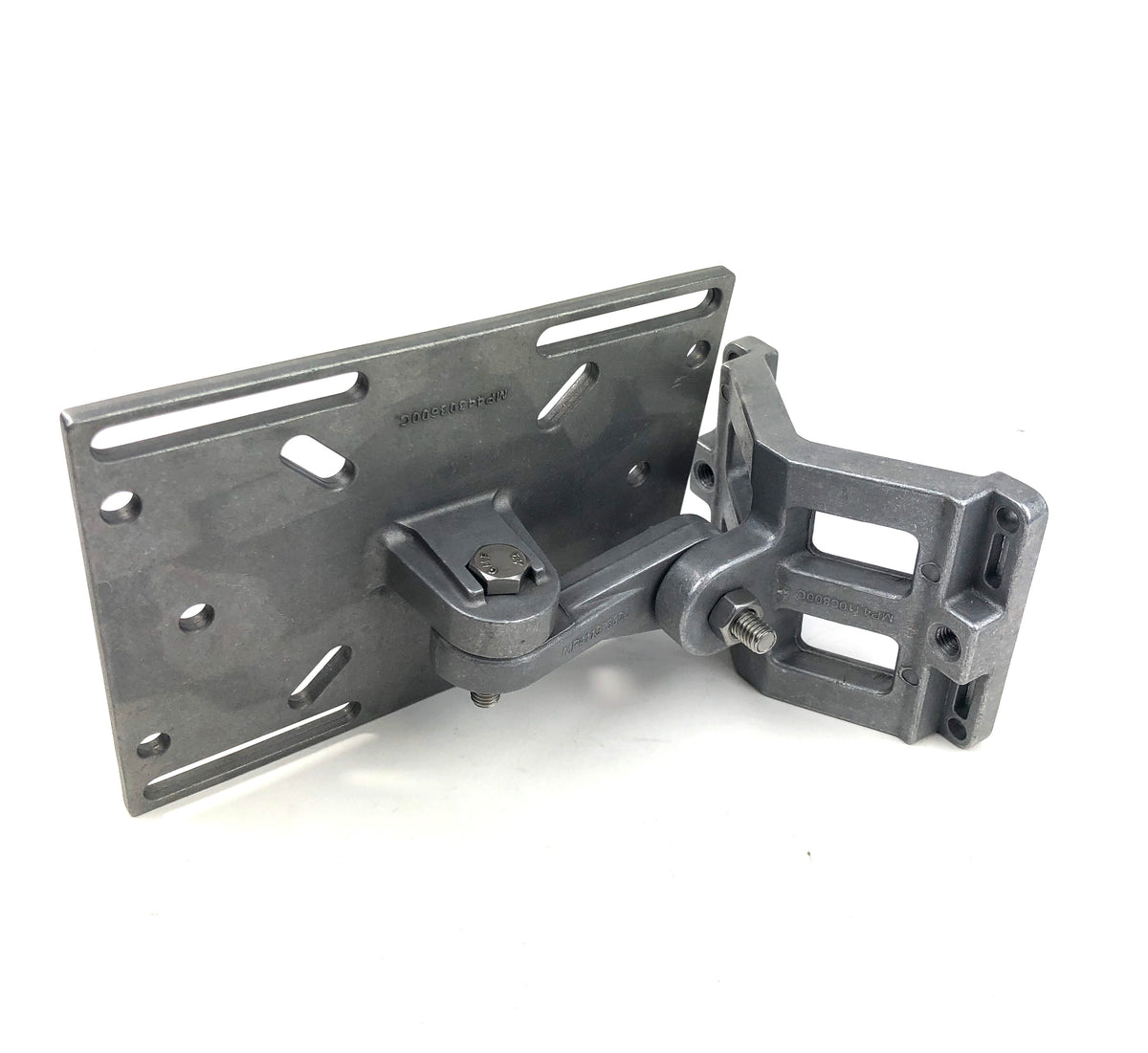

  • Easy to Assemble & Articulates in vertical and horizontal plane.
  • Mount to a Wall, Uni-Strut, or Pole with diameter of 1-3 inches.
  • Use ""hose clamps"" or ""worm gear clamps"" to attach the mount to a pole or bollard up to 12 inches in diameter.

Description BlueArrow Created with Sketch.

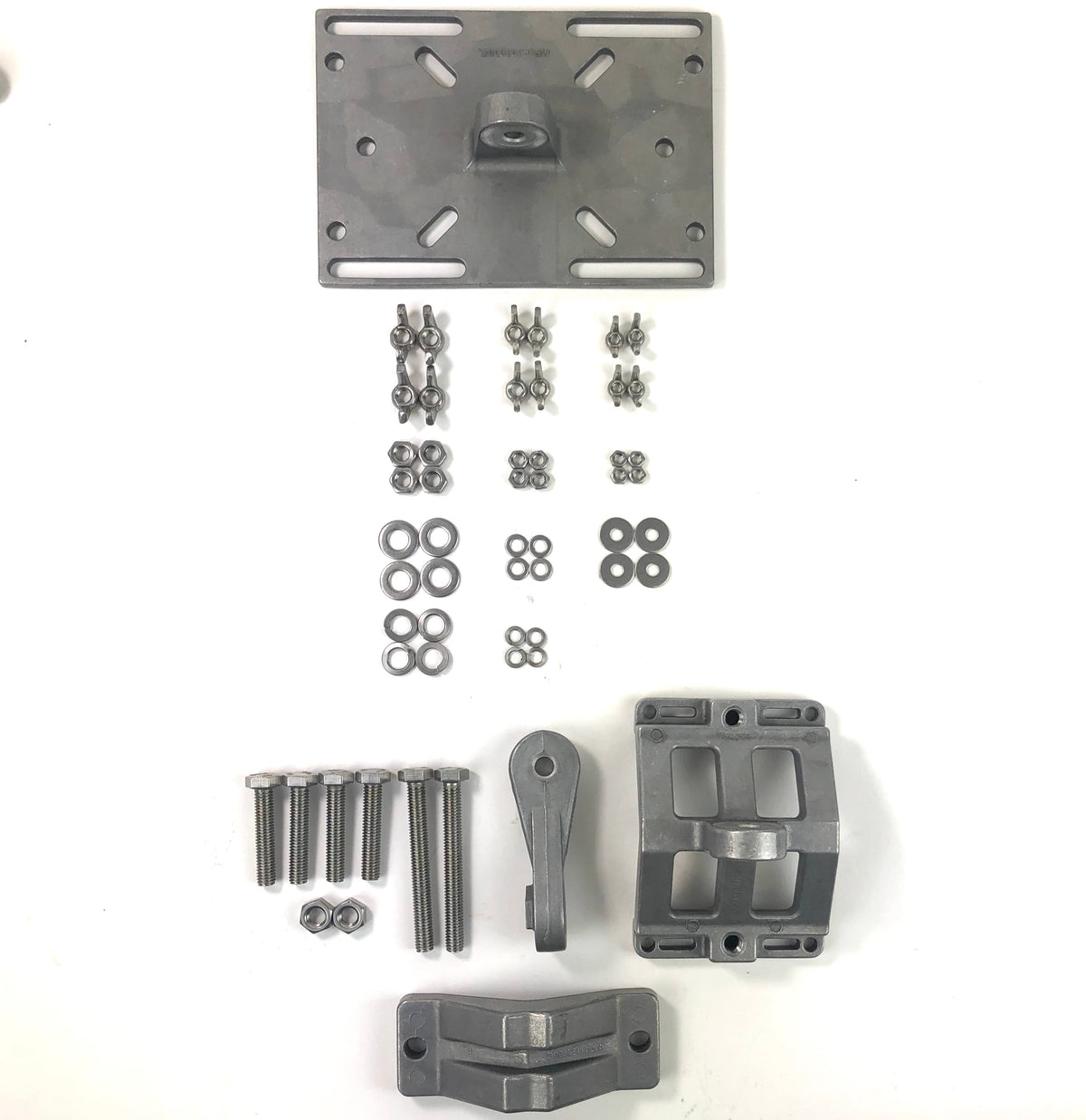

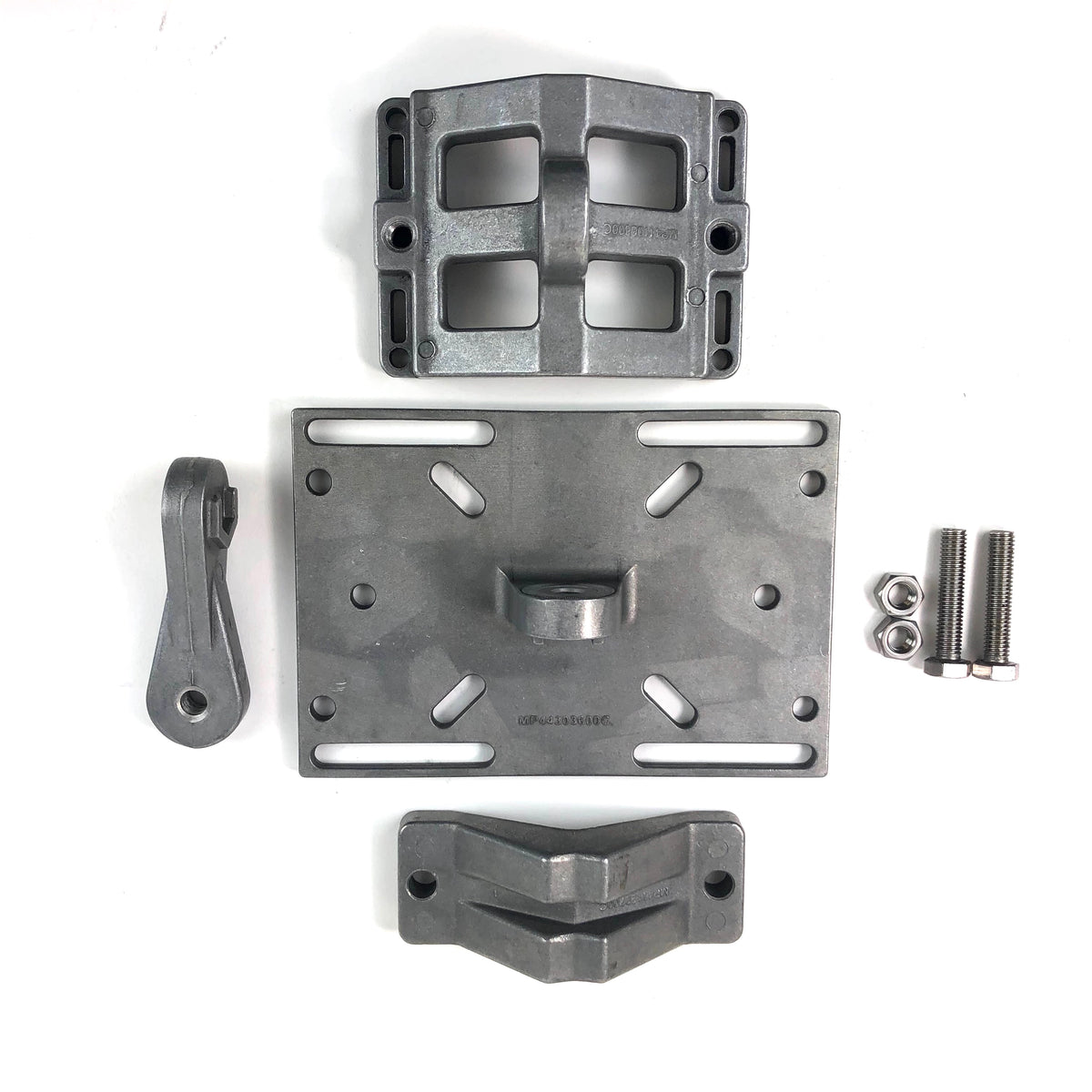

The HDMNT-150MM is THE ONE and ONLY heavy mounting bracket designed to mount RFID panel antennas from Zebra or Impinj including AN440, AN480, AN610*, AN620*, IPJ-A1000 & IPJ-A1001, and Invengo's XC-AF26 antennas. The mounting kit includes all of the hardware that you will need to mount directly to a wall or to a pole/mast. The unit easily adjusts to both the vertical and horizontal planes. Appropriate for indoor or outdoor mounting. *Zebra AN610 & AN620 require mounting plates to mate with this mount, see part numbers 71631 & 71632.

Documents BlueArrow Created with Sketch.

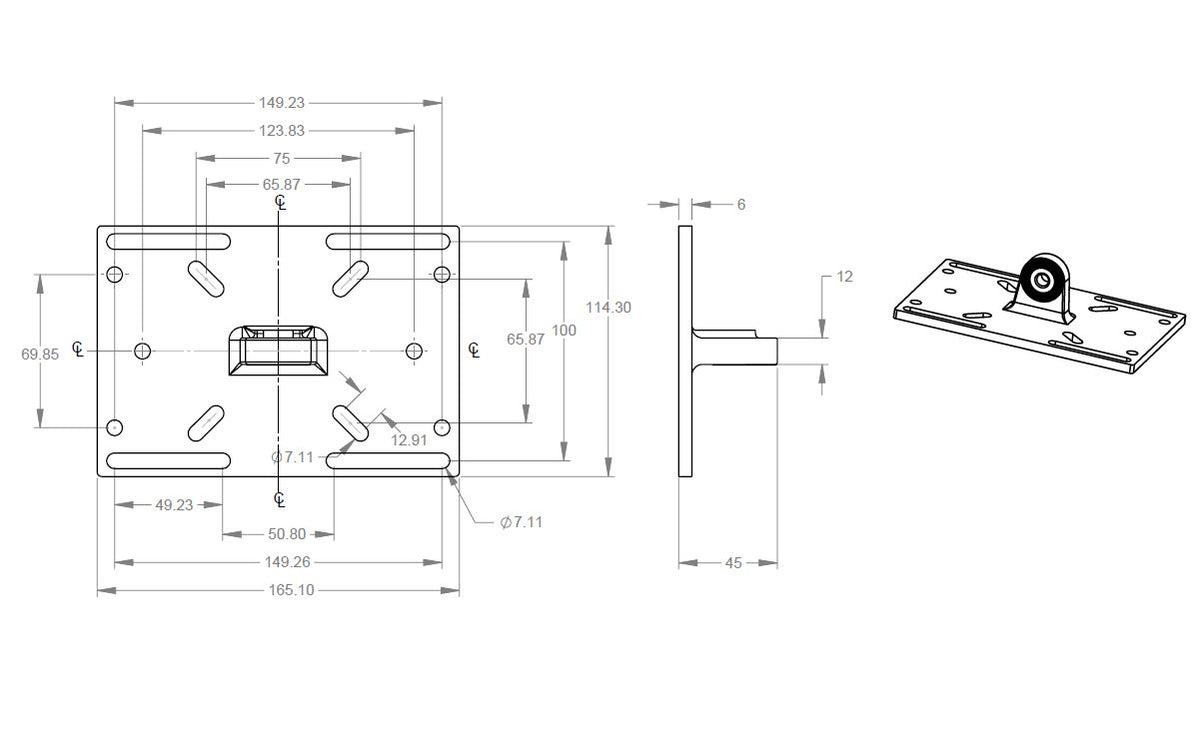

ViewDocument Created with Sketch. Installation Guide ViewDocument Created with Sketch. Installation Drawing

Specifications BlueArrow Created with Sketch.

color Grey
dimensions 7"x 5" x 4"

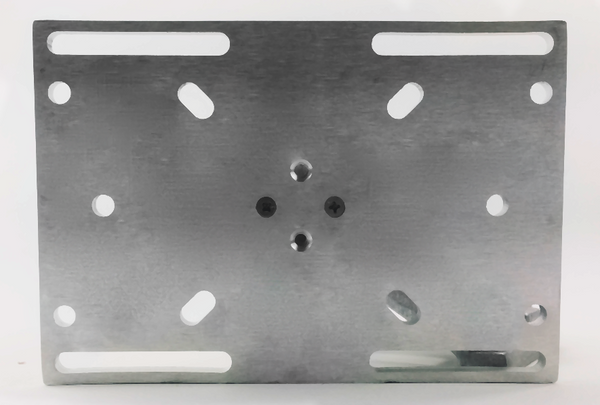

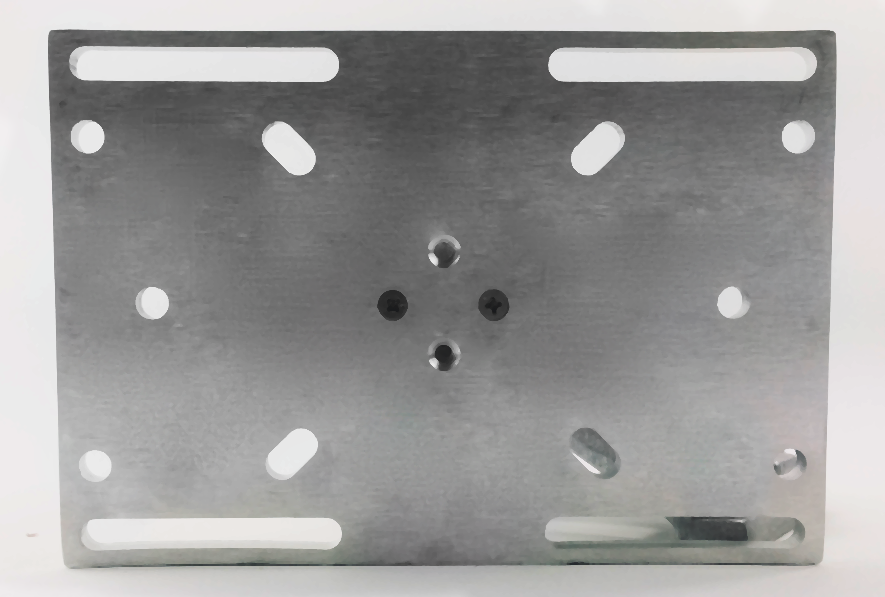

includes wall mount, pole mount, 150mm vesa plate
ip rating IP67
material Aluminum
mount style Mast or Wall
weight 2.4 lbs
weight (lbs) 1.9 lbs
