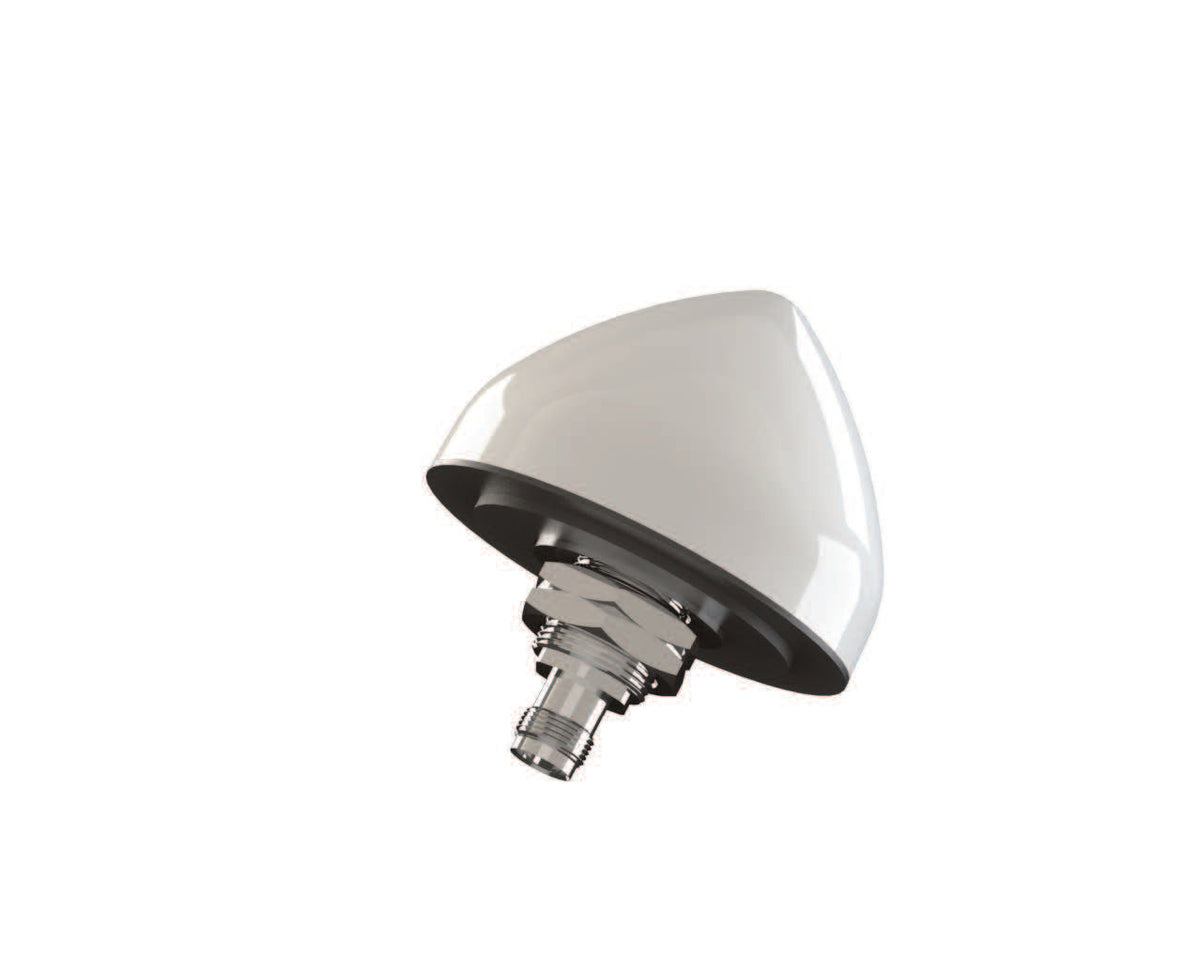

RCOD-GNSS-TM-STF
GPS Timing Reference Antenna, RFMAX, 40dB, 1575.42 MHz, 1561-1602 MHz, TNC Female Covers L1/Glonass L1 Beidou, Galileo & QZSS Wide Voltage Range 2.5-10 VDC, High Gain - 40 dB Rugged, IP67 Housing >50 dB out of band rejection
The RCOD-GNSS-TM-STF, a robust GPS timing outdoor antenna solution developed to meet the demands of professional precision timing applications. Covering 1575.42 MHz GPS L1/GLONASS L1, Beidou B1, Galileo E1, and QZSS L1 frequency bands.
- Covers L1/Glonass L1
- Beidou, Galileo & QZSS
- Wide Voltage Range 2.5-10 VDC
- High Gain - 40 dB
- Rugged, IP67 Housing
- >50 dB out of band rejection
- Mount must be purchased separately, please view LBT3400 mounting solution here
This antenna is equivalent to PCTEL part#GPS-TMG-40NMS. This antenna does not come with Lightning protection, view our Lightning Arrestor Here
Technical Specifications
| SKU | RCOD-GNSS-TM-STF |
|---|---|
| Manufacturer | RFMAX |
| Color | White |
| Connector 3 | TNC-Female Bulkhead |
| Connector Type | Direct TNC Female |
| Directional or Omni | Omnidirectional |
| Working Frequency | 1559-1606 |
| Antenna Category | GPS/GNSS (1545.72, 1561-1602 MHz) |
| Gain | 40 dBi (with LNA) |
| Height/Length (inches) | 3 |
| Height/Length (mm) | 76.3 |
|---|---|
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | UV Resistant ABS |
| Max Input Power (W) | 2.5-10 VDC |
| Operating Temp (celsius) | -40 to +85 |
| VSWR: < X: 1 | <1.5:1 |
| Weight (lbs) | 1 |
| Width (inches) | Ø2.61 |
| Width (mm) | Ø66.5 |
