R2G5A10SQM

GPS & 5G/4G 2-in-1 Antenna for Motorola APX8500, Dashboard or Windshield Mount.10 ft Cables & QMA. Adhesive Mount | R2G5A-10SQM

  • Units Available: 149
List Price: Regular price $90.00
GPS & 5G/4G 2-in-1 Antenna for Motorola APX8500, Dashboard or Windshield Mount.10 ft Cables & QMA. Adhesive Mount | R2G5A-10SQM
GPS & 5G/4G 2-in-1 Antenna for Motorola APX8500, Dashboard or Windshield Mount.10 ft Cables & QMA. Adhesive Mount | R2G5A-10SQM
Grey_arrow@2x Created with Sketch.
Created with Sketch.
R2G5A10SQM

GPS & 5G/4G 2-in-1 Antenna for Motorola APX8500, Dashboard or Windshield Mount.10 ft Cables & QMA. Adhesive Mount | R2G5A-10SQM

  • Units Available: 149
List Price: Regular price $90.00
Ships in 4-6 Weeks

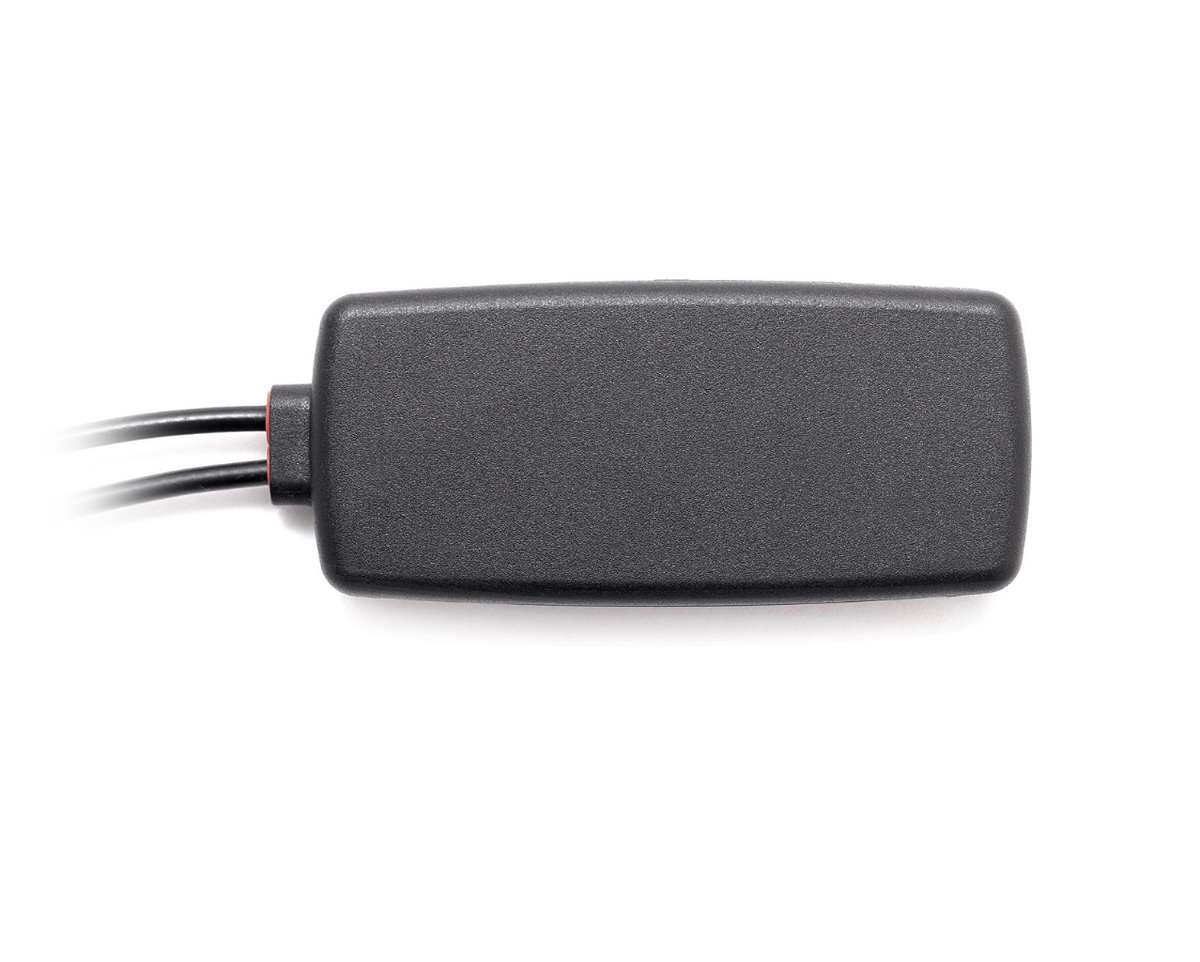

The R2G5A-10SQM is a 2-in-1 combination antenna for GPS (active 3.3 or 5 volt) & 3G/4G/LTE/5G. This unit is meant to be used when the typical roof mount antennas are not practical due to mounting considerations, or when there is a desire for the antenna to be "covert." Unit mounts using adhesive tape (included) with 10 foot LMR100 cables & QMA male connectors. Operates at 4G & 5G Cellular : 617-960/1700-2700/3000-6000 MHz & 1575.42 MHz GPS w/26 dB LNA. The antenna has a 10 foot LMR100 cables & QMA male connector.

Description BlueArrow Created with Sketch.

  • No Drilling!  Excellent Choice for Leased Vehicles.
  • 5G & 3G/4G/LTE Cellular Frequencies: 617-960, 1700-2700, 3000-6000 MHz
  • Cellular Antenna Gain: 3.3 dBi (2:1 VSWR)
  • GPS Frequency: 1575.42 MHz
  • GPS Antenna: LNA Gain: 26 db
  • Small, Covert Size: L=3.3 x W=1.4 Inches
  • Max Power: 25 Watts
  • Operating Temp: -40 to +85 C

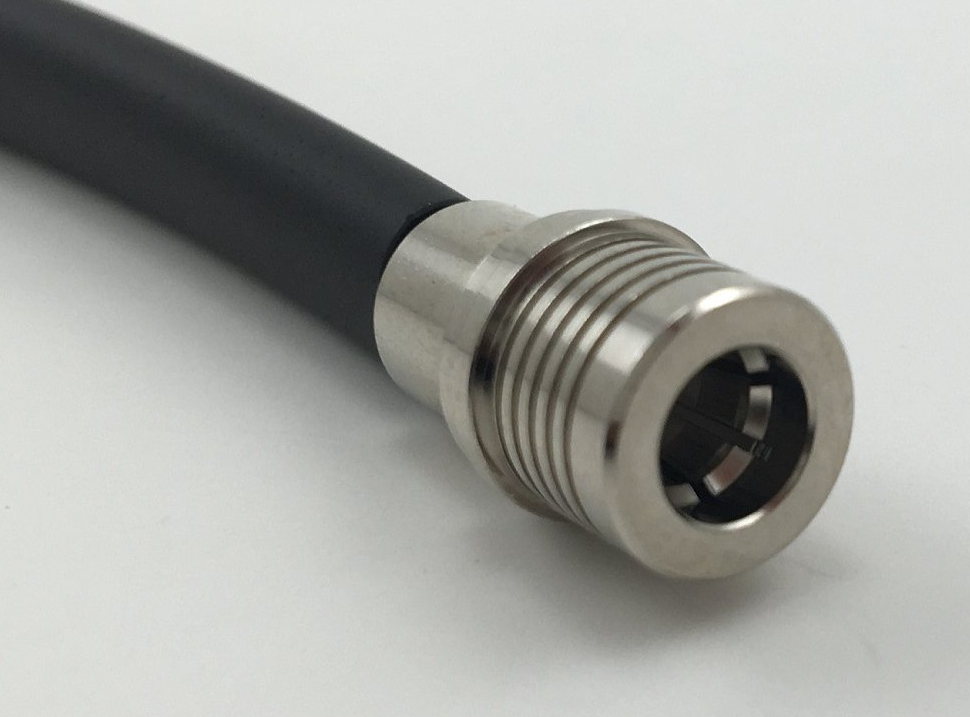

  • Cables/Connectors: (2x) 10 foot LMR-100 with QMA Male

Specifications BlueArrow Created with Sketch.

color Black
connector 1 QMA-Male
frequency range Multi-Band (Cellular, WiFi, and/or GPS)
ip rating IP67, IP69
material ABS UV Stable
mfg part# R2G5A-10SQM
operating temp (celsius) -40 to +85 C
technology CELLULAR or WIFI + GPS
type "Wedge" Multi-Element Antenna
weight (lbs) .5
