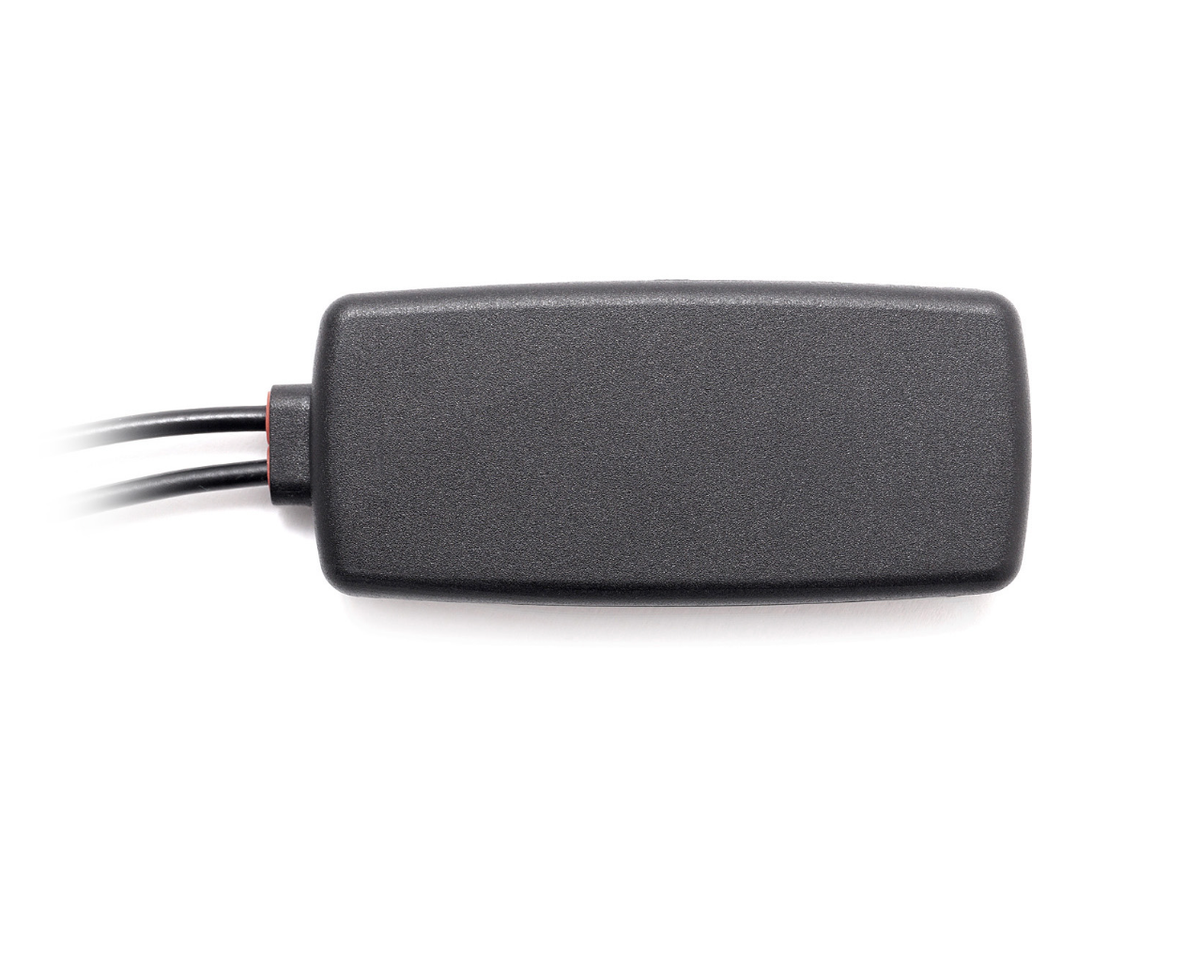

R2G5A-10STM
GPS & 5G/4G 2-in-1 Antenna for Dual-Pass RF Panasonic or Dell (Gamber or Havis) Dashboard or Windshield Mount.10 ft Cables & TNC. Dual-Pass RF. Adhesive Mount
- Perfect for vehicles with Dual-Pass RF is a combination of GPS plus 5G/4G/LTE Cellular for Gamber Johnson or Havis docking stations with Panasonic or Dell computers.
- 2-in-1 combination antenna for GPS (active 3.3 or 5 volt) & 3G/4G/LTE/5G/WiF
- This unit is meant to be used when the typical roof mount antennas are not practical due to mounting considerations, or when there is a desire for the antenna to be "covert."
- Unit mounts using adhesive tape (included) with 10 foot LMR100 cables & TNC male connectors
- The antenna has a 10 foot LMR100 cables & TNC male connector and an adhesive tape to mount
- This antenna can be mounted on a Velcro strip (Velcro not included)
Technical Specifications
| SKU | R2G5A-10STM |
|---|---|
| Manufacturer | RFMAX |
| Cable Length (inches) | 120 |
| Cable Type | LMR-100 |
| Color | Black |
| Connector 1 | TNC-Male |
| Connector 2 | TNC-Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-5925 MHz (5G/4G/WiFi) |
| Working Frequency 2 | 1575.42 (GPS) |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 3.3 dBi |
| Gain 2 | 26 dB (LNA Gain) |
| Ground Plane Required | No |
|---|---|
| Height/Length (mm) | 85 |
| Includes | Direct-Double Side Tape |
| IP Rating | IP67, IP69 |
| Material | ABS UV Stable |
| Max Input Power (W) | 25 |
| Mount Style | Wedge/Adhesive |
| Number of Cables | 2 |
| Operating Temp (celsius) | -40 to +85 C |
| Polarity | Linear |
| VSWR: < X: 1 | 0.084027778 |
| Weight (lbs) | 0.5 |
| Width (mm) | 35 |
