R2WAG55WW10SSSRR

GPS + 2 x 5G/4G/LTE + 2 x Dual WiFi No Drilling- Adhesive Mount Antenna for Dashboard/Windshield. 10 ft Cable | R2WA-G55WW-10-SSSRR

  • Units Available: 215
List Price: Regular price $190.00
GPS + 2 x 5G/4G/LTE + 2 x Dual WiFi No Drilling- Adhesive Mount Antenna for Dashboard/Windshield. 10 ft Cable | R2WA-G55WW-10-SSSRR
GPS + 2 x 5G/4G/LTE + 2 x Dual WiFi No Drilling- Adhesive Mount Antenna for Dashboard/Windshield. 10 ft Cable | R2WA-G55WW-10-SSSRR
GPS + 2 x 5G/4G/LTE + 2 x Dual WiFi No Drilling- Adhesive Mount Antenna for Dashboard/Windshield. 10 ft Cable | R2WA-G55WW-10-SSSRR
GPS + 2 x 5G/4G/LTE + 2 x Dual WiFi No Drilling- Adhesive Mount Antenna for Dashboard/Windshield. 10 ft Cable | R2WA-G55WW-10-SSSRR
Grey_arrow@2x Created with Sketch.
Created with Sketch.
R2WAG55WW10SSSRR

GPS + 2 x 5G/4G/LTE + 2 x Dual WiFi No Drilling- Adhesive Mount Antenna for Dashboard/Windshield. 10 ft Cable | R2WA-G55WW-10-SSSRR

  • Units Available: 215
List Price: Regular price $190.00
Ships in 8-10 Weeks

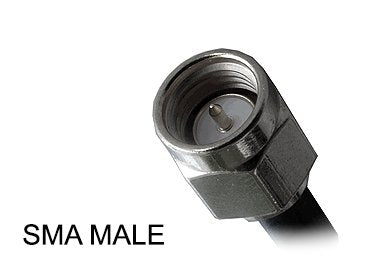

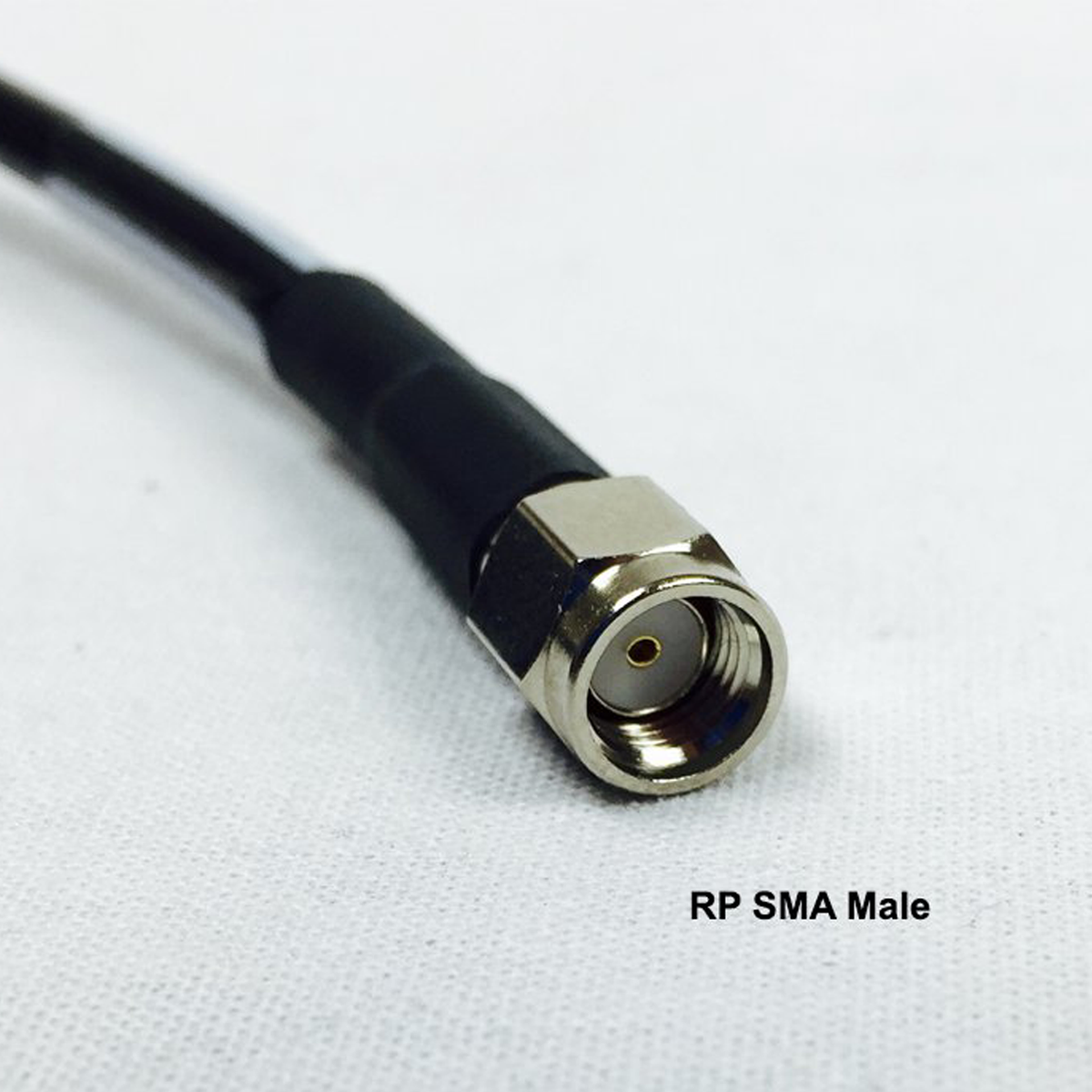

R2WA-G55WW-10-SSSRR: No Drilling! Unit mounts using adhesive tape (included) with 3 x 10 foot RG174 cable & SMA male connector for the GPS and 5G (4G Backward compatible) line and 2 x 10 foot RG174 cable & RP SMA male connectors for WiFi line. Perfect for leased vehicles. This unit offers very high-performance, customers love using it with their ruggedized tablets, cellular modems, etc. Black, 5 in 1 combination 5G/LTE/Cellular+GPS+WiFi covert strip style antenna for modems from the Sierra Wireless AirLink series (GX450, etc.) or Cradlepoint IBR series (IBR900, IBR1100, etc.) Operates at 5G/LTE/Cellular : 617-960/1700-2700 MHz, 1575.42 MHz GPS w/26 dB LNA and WiFi: 2.4 GHz and 5.0 GHz.

Blue heat Shrink = GPS Line, Red heat Shrink = 5G, Yellow heat Shrink = WiFi

Description BlueArrow Created with Sketch.

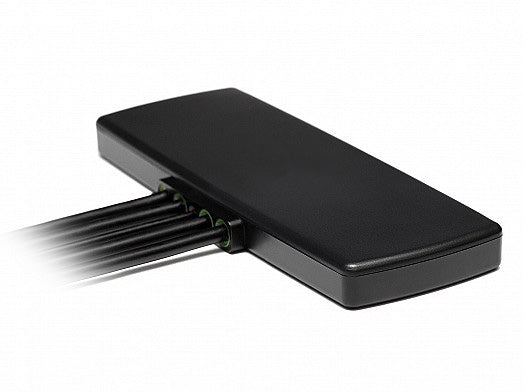

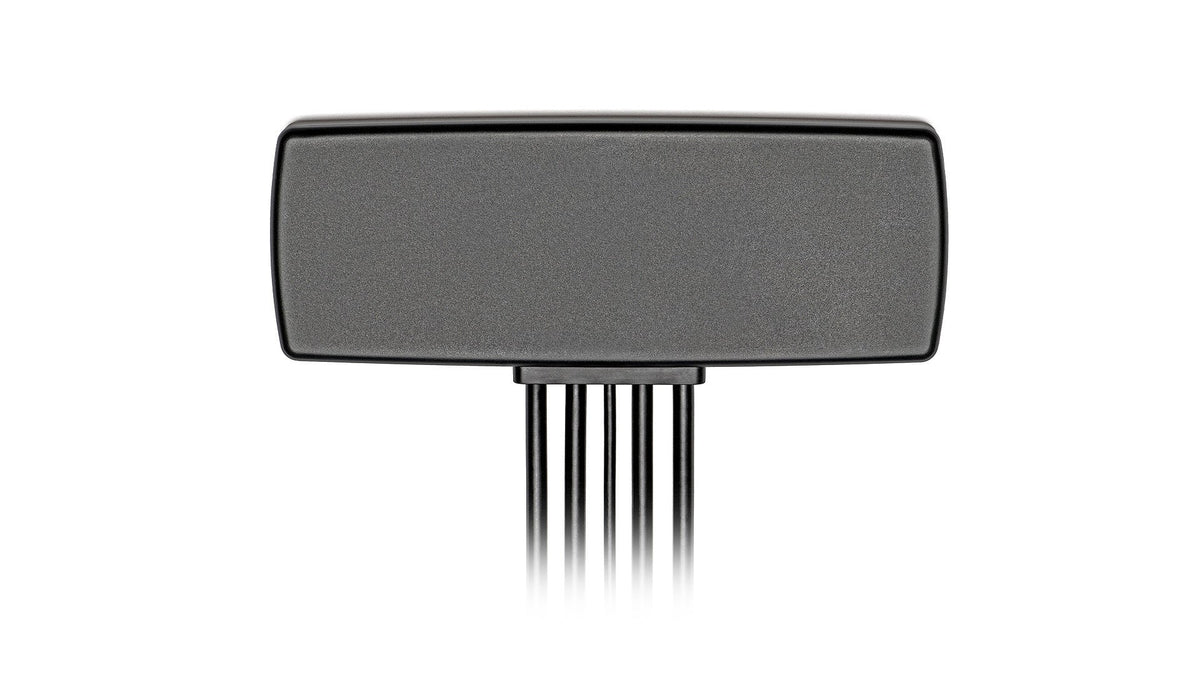

The RFMAX R2WA-G55WW-10-SSSRR is a 5-in-1 combination antenna for active 3.3 or 5 volt GPS, 2 x Mimo 5G/4G/LTE and 2 x Dual WiFi. This unit is meant to be used when the typical roof mount antennas are not practical due to mounting considerations, or when there is a desire for the antenna to be "covert." The unit has adhesive for mounting the antenna to a dashboard, or windshield.  This unit is field tested, and provides great connectivity with the Cradlepoint IBR900, IBR1100, IBR600 as well as NTC-140W and Sierra Wireless AirLink GX450 Cellular modems/gateways/routers.

  • No Drilling!  Excellent Choice for Leased Vehicles.
  • 5G/4G/LTE Cellular Frequencies: 617-960 & 1700-2700 Mhz
  • Cellular Antenna Gain: 2.5 dBi (2:1 VSWR)
  • GPS Frequency: 1575.42 MHz
  • GPS Antenna: LNA Gain: 26 db
  • WiFi Frequency: 2.4 GHz and 5.0 GHz
  • Small, Covert Size: L=7 x W=2 and T=2 Inches
  • Max Power: 10 Watts
  • Operating Temp: -40 to +85 C
  • Cables/Connectors: (3x) 10 foot RG174 wtih SMA Male, (2x) 10 foot RG174 wtih RP-SMA Male
  • The color code on each cable is based on the automotive standard for connectors: Bleu is GPS/GNSS, Red is cellular, Yellow is WiFi.

Documents BlueArrow Created with Sketch.

Specifications BlueArrow Created with Sketch.

color Black
frequency range Multi-Band (Cellular, WiFi, and/or GPS)
ip rating IPx7
material Black ASA Plastic
mfg part# R2WA-G55WW-10-SSSRR
operating temp (celsius) -40 to +85 C
technology CELLULAR + WIFI + GPS
type "Wedge" Multi-Element Antenna
