Black Five-in-One Vehicular Antenna for Cradlepoint IBR900 IBR1100 & Sierra Wireless. GPS + MiMo LTE + MiMo WiFi

  • Units Available: 20
List Price: Regular price $299.00
G44WW-17SSSRR: 5 in 1 Modem Antenna

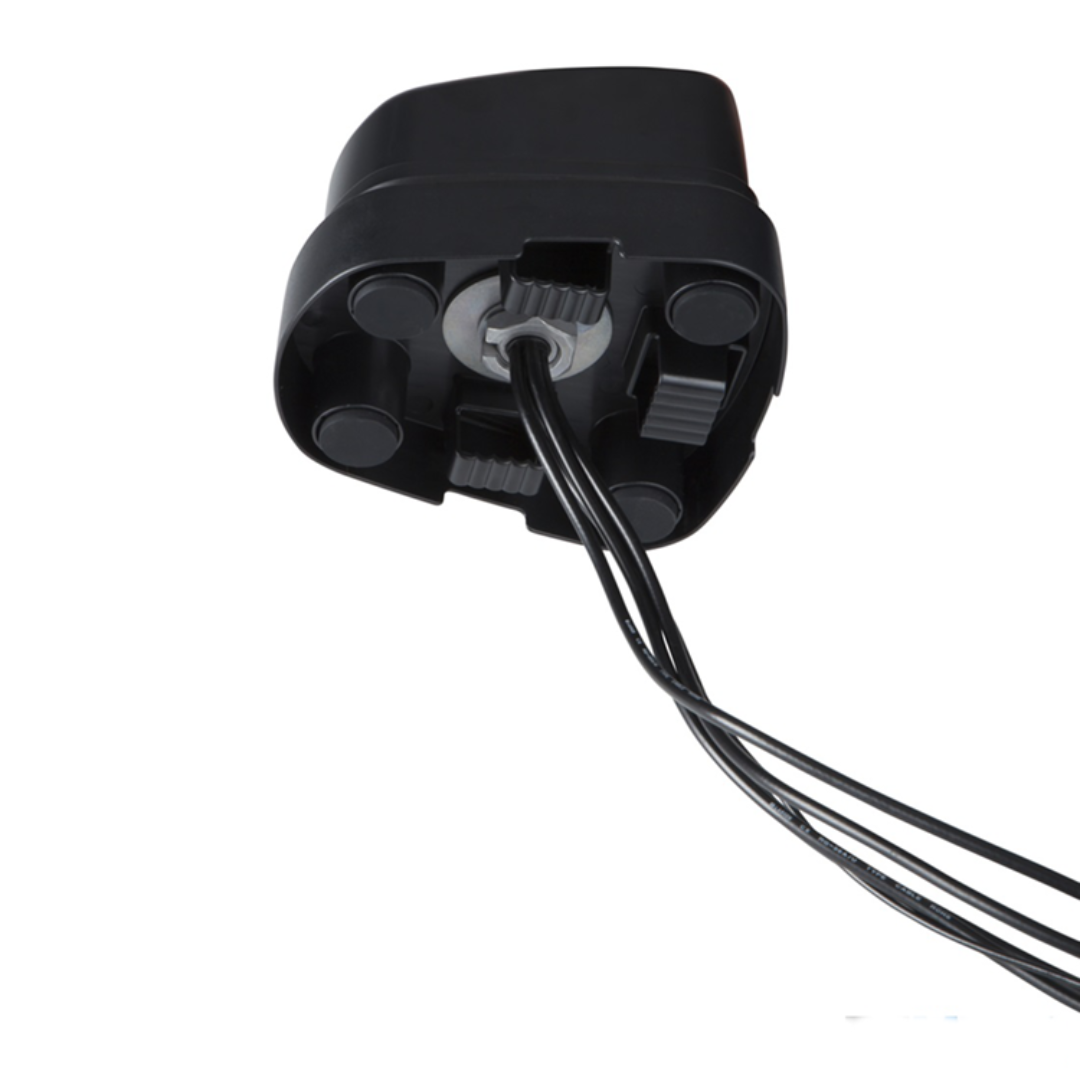

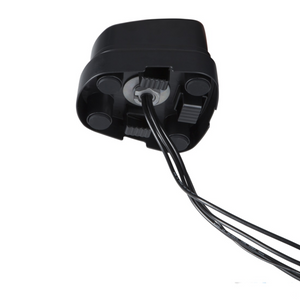

G44WW-17SSSRR with mag-mount (sold seperately)

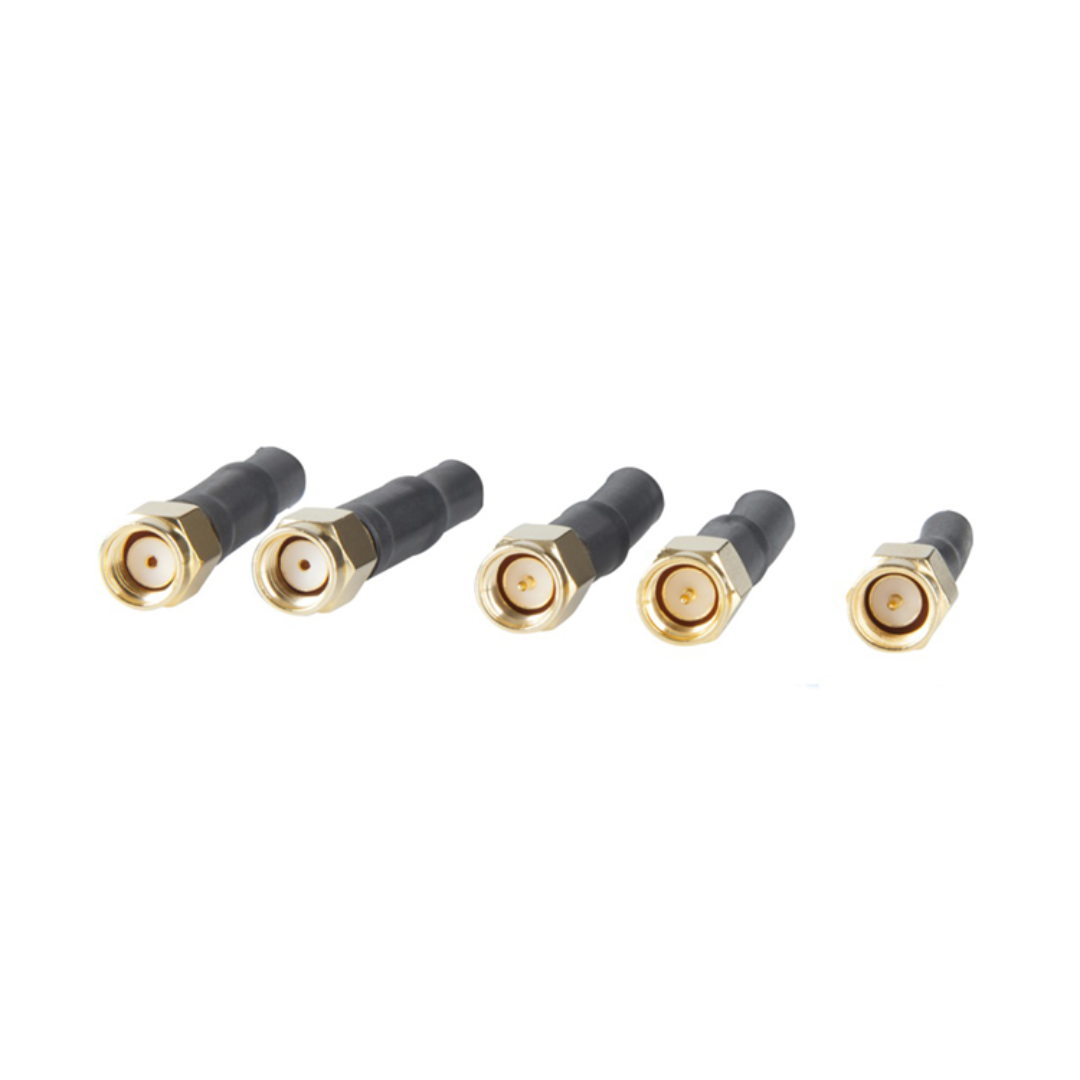

Connectors: 3-SMA (GPS & LTE) 2-RPSMA (WiFi)

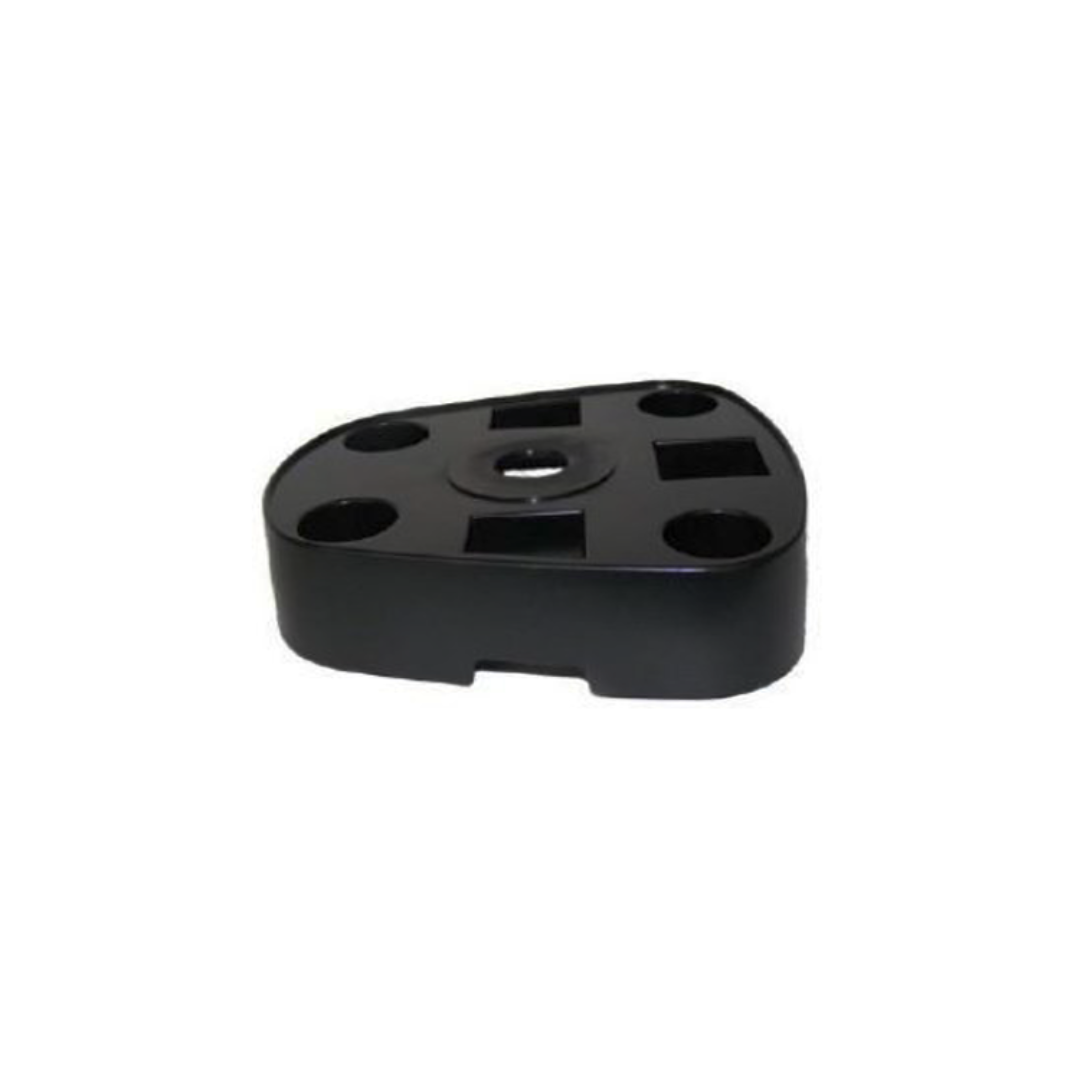

Mag-Mount (sold separately)

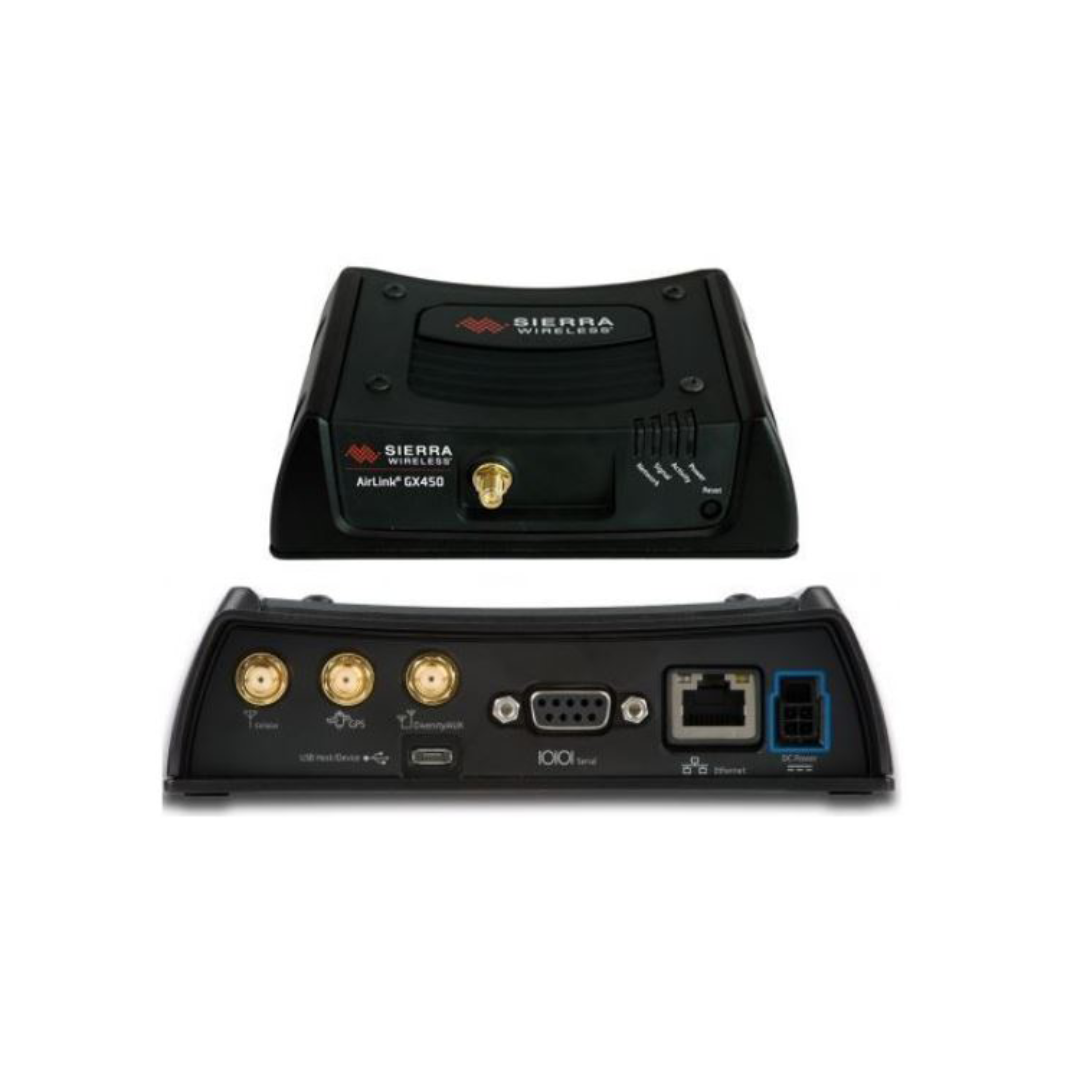

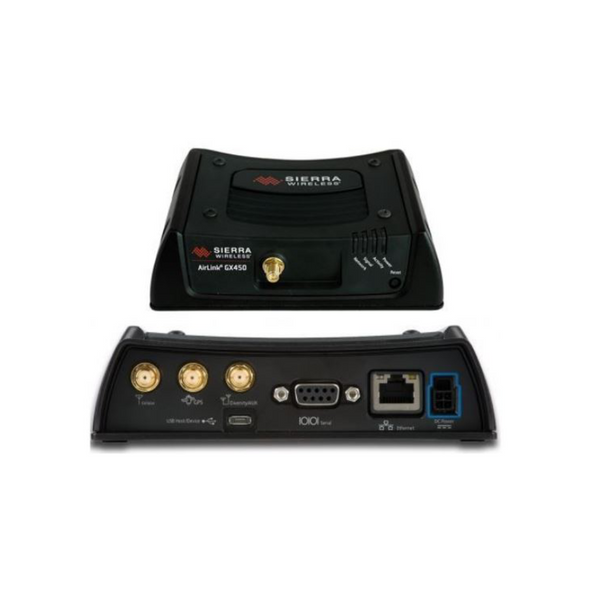

G44WW-17SSS for GX400, GX440 & GX450 with WiFi
Grey_arrow@2x Created with Sketch.
Created with Sketch.

Black Five-in-One Vehicular Antenna for Cradlepoint IBR900 IBR1100 & Sierra Wireless. GPS + MiMo LTE + MiMo WiFi

  • Units Available: 20
List Price: Regular price $299.00

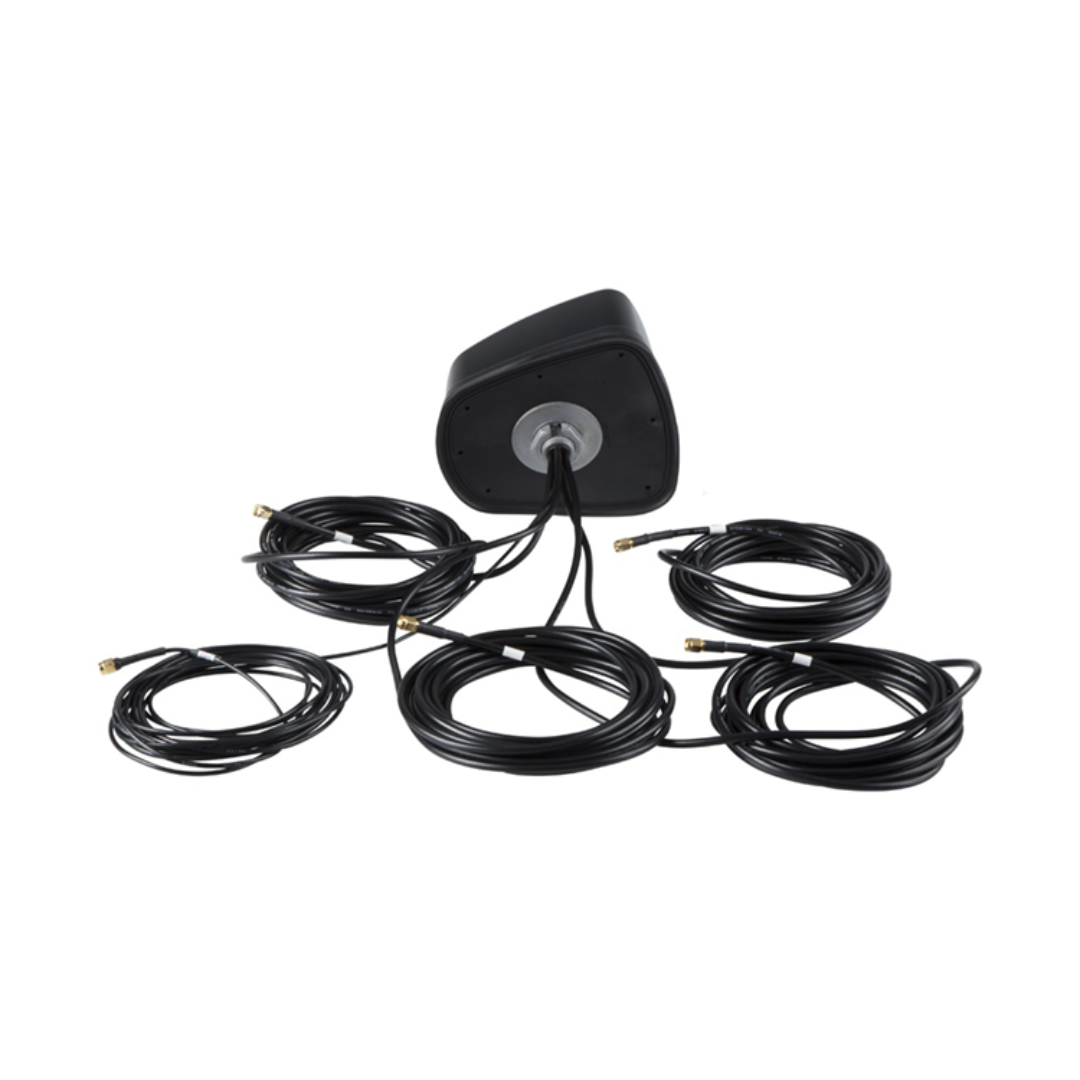

The RFMAX G44WW-17SSSRR is a versatile 5-in-1 roof mount vehicular antenna with (1) GPS element + (2) 3G/4G/LTE & (2) WiFi/WLAN elements for enhanced cellular & WiFi MiMo performance. This rugged, low profile antenna is optimized for use with today's high data-rate cellular modems, including Sierra Wireless Airlink GX450 and Cradlepoint IBR900 & IBR1100.

This vehicular modem antenna is ideal for utility trucks and vans (electric, gas, water, cable) or for Police, Ambulance, Fire and other public safety vehicles transmitting video and other mission critical information through the LTE channels while also accessing GPS enabled services. Includes stainless steel stud for through-roof or trunk mounting or use G44-HDMM for magnetic mounting (sold seperately)

Description BlueArrow Created with Sketch.

The RFMAX G44WW-17SSSRR is a five-in-one GPS+MiMo 3G/4G/LTE Celllular + MiMo 2.4/5GHz WiFi  antenna designed and built specifcally to work with Cradlepoint IBR900, Cradlepoint IBR1150, and Sierra Wireless AirLink GX450 modems/gateways/routers.  This antennas offers vehicular thru-roof or trunk mounting or optional magnetic mounting kit (part # G44-HDMM.) This is a high-performance unit at an economical price vs. it's competitors: Panorama, TaoGlas, Mobile Mark, PCTEL & Antenna Plus.

The G44WW-17SSSRR is an ultra-rugged, high-performance, aesthetically pleasing 5-in1 vehicular antenna solution that ombines ideal radiation performance for today’s demanding propagation environments with optimum isolation characteristics ensuring the highest cellular & WiFi data rates possible. The G44WW-17SSSRR is a versatile antenna for modern technology-equipped Public Safety vehicles: Police, Fire, EMS as well as Utility vehicles (cable company, phone company, power company) and is well-suited for transmitting GPS maps, work orders, camera video, or mission critical information through the LTE channels. Global positioning capability is supported via the integrated GNSS antenna which covers both the traditional GPS and the Russian Glonass satellite systems.

Note: This antennas INCLUDES two Wi-Fi connections.  You may simply leave the 2nd WiFi cable un-connected when used with the GX450.


  • Two ports of 3G/4G/LTE Cellular: 698-960/1695-2170/2300-2700/2900-3600 Mhz with SMA-Male Connectors and LMR-195 Cable
  • Two ports of 2.4 & 5 GHz High Speed WiFi with RP SMA-Male Connectors and LMR-195 Cable
  • One port of GPS / Glonass:1575.42-1609 MHz with SMA-Male Connector and RG-174 Cable
  • Direct Mount stainless steel stud, washer & M22 split nut
  • Optional magnetic mount (see part # G44-HDMM)
  • Humidity Rating: 95%RH @ +25c for 12h and 55c for 12h
  • Vibration Rating: MIL-STD 810G, section 514.6  5-500 Hz, 60min/axis
  • Thermal Shock Rating: MIL-STD 810G, section 503.5  -40 to +85c, 3 cycles
  • Drop Test: Minimum of one drop per axis – 4 drops from 1 meter
  • FIVE Year RFMAX Warranty


  • Energy / Utility Vehicles (phone company, water, electric, gas, cable TV)
  • Public Safety / First Responders (Ambulance, Fire, Police)
  • Fleet Management & Taxi Cabs
  • Location Based Services & Fixed Site Telematics
  • Pre-tested for use with IBR900, IBR1100 & the WiFi enabled Sierra Wireless Airlink GX450

Specifications BlueArrow Created with Sketch.

antenna style Vehicular 5-in-1
cable length(ft) 17 Ft
color Black
connector 1 SMA-Male (GPS)
connector 2 SMA-Male (LTE 1)
connector 3 SMA-Male (LTE 2)
connector 4 RP SMA-Male (Wi-Fi 1)
connector 5 RP SMA-Male (Wi-Fi 2)
height (in) 6.5 in. long
includes Rubber Gasket, Lock Washer & Split Hex Nut
ip rating IP67
material ABS Plastic / Polycarbonate
mount style Through hole / direct roof mount (use 7/8" hole)
number of cables 5
operating temp (Celcius) -40 to +85 C
thickness 3 in. thick
weight (lbs) 2.07 lbs
width (in) 6 in. wide
