G4417SSS

Black 3 in 1 Vehicular Antenna for Cradlepoint IBR950 IBR1150 & Sierra Wireless GX450 GPS+LTE (No WiFi)

  • Units Available: 28
List Price: Regular price $180.00

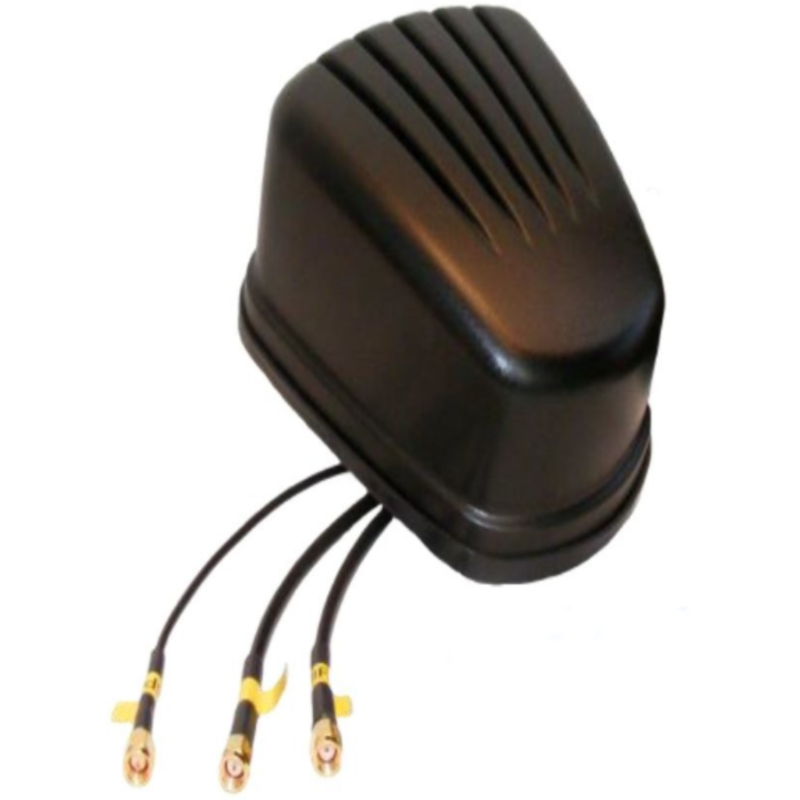

G44-17SSS: 3-in-1 vehiclular antenna for RV50 modem/gateway/router

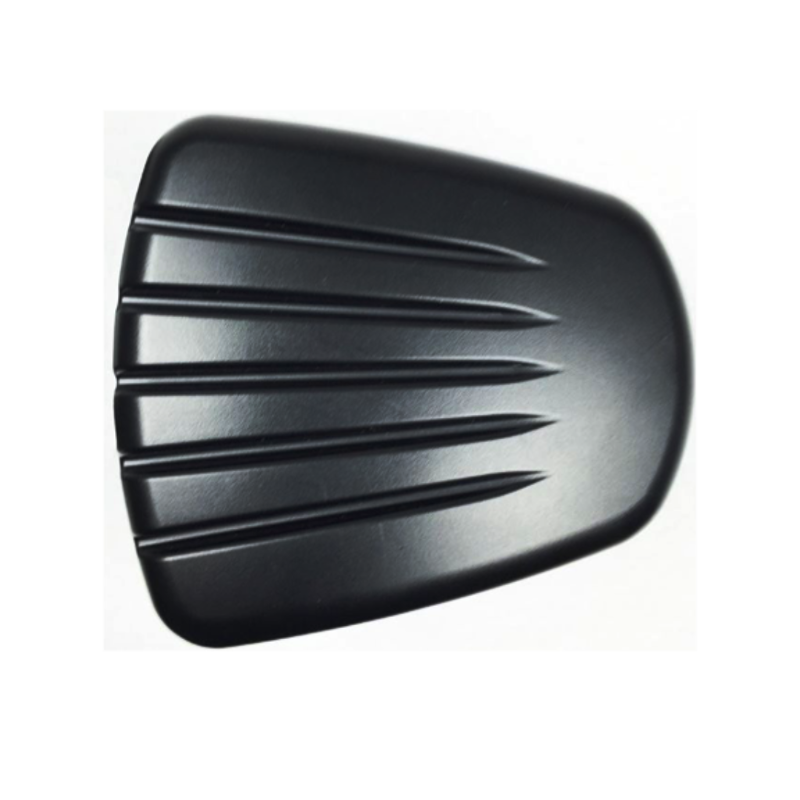

G44-17SSS - 3-in-1 antenna - Top view

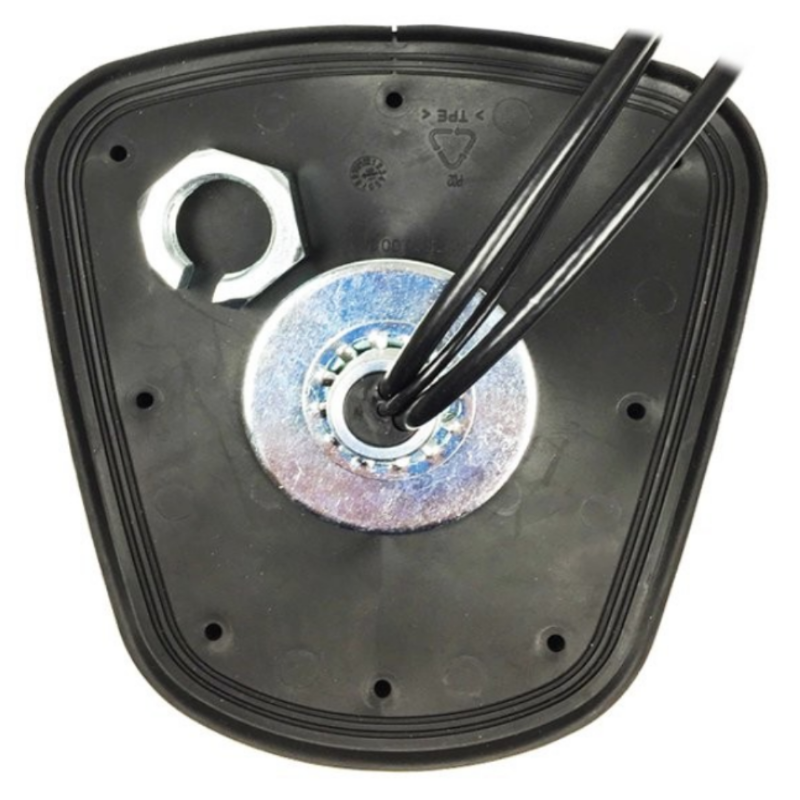

G44-17SSS: 3-in1 antenna - Bottom view - split nut off

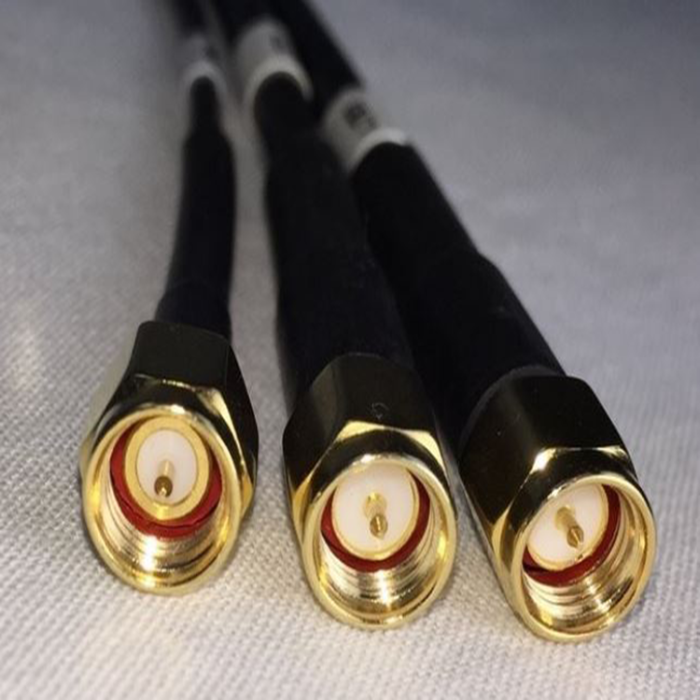

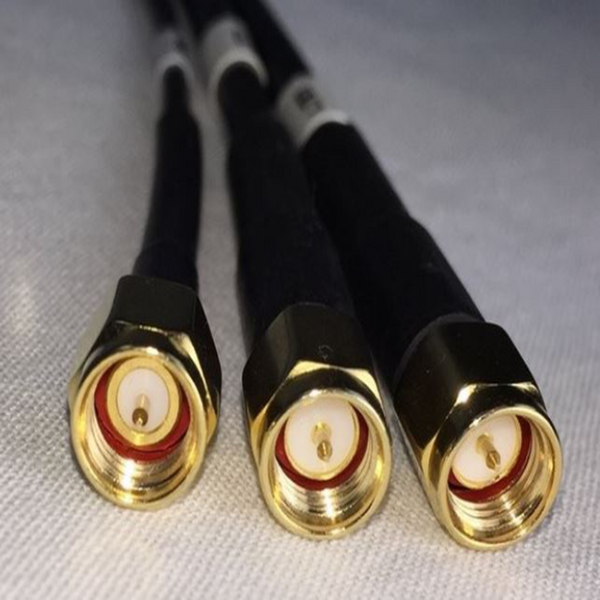

G44-17SSS (3) SMA Connectors

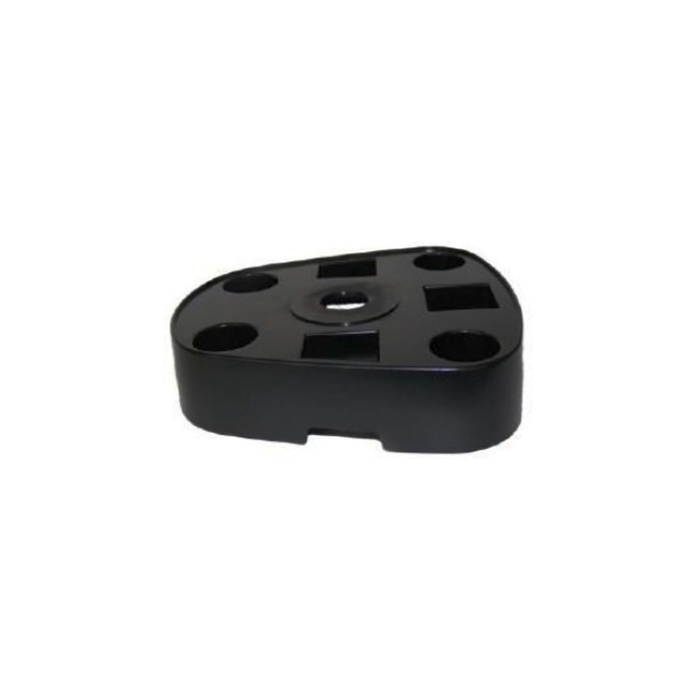

G44-MM Mag-Mount
G44-MM Mag-Mount for G44-17SSS (sold seperately)

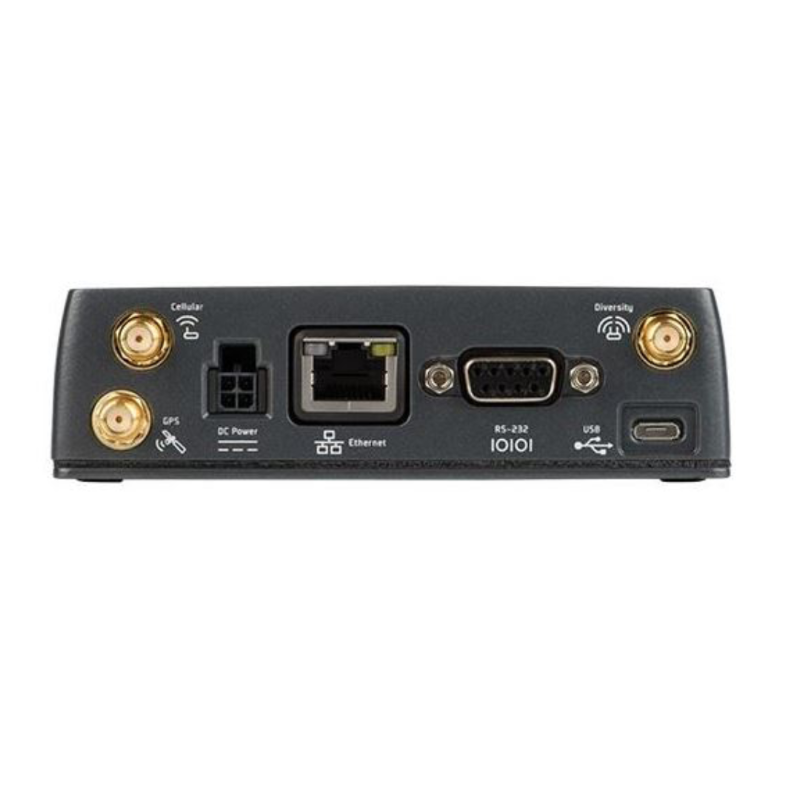

Antenna for Sierra Wireless AirLink RV50 & RV50x
Grey_arrow@2x Created with Sketch.
Created with Sketch.
G4417SSS

Black 3 in 1 Vehicular Antenna for Cradlepoint IBR950 IBR1150 & Sierra Wireless GX450 GPS+LTE (No WiFi)

  • Units Available: 28
List Price: Regular price $180.00

The RFMAX G44-17SSS is a versatile 3-in-1 roof mount vehicular antenna with (1) GPS element + (2) 3G/4G/LTE elements for enhanced cellular MiMo performance. This rugged, low profile antenna is optimized for use with today's high data-rate cellular modems, including Sierra Wireless GX400, GX440, GX450, RV50 and RV50x. This antenna is ideal for utility trucks and vans (electric, gas, water, cable) or for Police, Ambulance, Fire and other public safety vehicles transmitting video and other mission critical information through the LTE channels while also accessing GPS enabled services.  Mount using the included stainless steel stud, or the G44-HDMM mag-mount (sold seperately)

For Sierra Wireless AirLink GX400, GX440 & GX450 modems with WiFi, use antenna # G44WW-17SSSRR

    Description BlueArrow Created with Sketch.

    The RFMAX G44-17SSS is a three-in-one GPS+MiMo 3G/4G/LTE cellular antenna designed and built specifcally to work with the Sierra Wireless AirLink GX450 and Cradlepoint IBR950 & IBR1150 modems/gateways/routers.  This antenna offers vehicular thru-roof mounting or optional magnetic mounting kit (part # G44-HDMM.) This is a high-performance antenna & blows away it's competitors: Panorama, TaoGlas, Mobile Mark and Antenna Plus.

    This ultra-rugged, high-performance, aesthetically pleasing 3 in 1 vehicular antenna solution combines ideal radiation performance for today’s demanding propagation environments with optimum isolation characteristics ensuring the highest data rates possible. The G44-17SSS is a versatile antenna for modern technology-equipped vehicles and is well-suited for Police, Ambulance, Fire and Utility vehicles which may be transmitting work orders, camera video, or mission critical information through the LTE channels. Global positioning capability is supported via the integrated GPS / GNSS antenna.

    Note: This antennas does NOT include Wi-Fi connections.  For the WiFi enabled model, use part # G44WW-17SSSRR

    Features

    • Two ports of 3G/4G/LTE: 698-960/1695-2170/2300-2700/2900-3600 Mhz (on RG58 cables)
    • One port of GPS / Glonass:1575.42-1609 MHz (on RG174 cable)
    • Direct Mount using stainless steel stud, washer & M22 split nut
    • Optional magnetic mount (see part # G44-HDMM)
    • Humidity Rating: 95%RH @ +25c for 12h and 55c for 12h
    • Vibration Rating: MIL-STD 810G, section 514.6  5-500 Hz, 60min/axis
    • Thermal Shock Rating: MIL-STD 810G, section 503.5  -40 to +85c, 3 cycles
    • Drop Test: Minimum of one drop per axis – 4 drops from 1 meter
    • FIVE Year RFMAX Warranty

    Applications

    • Energy / Utility Vehicles (water, electric, gas, cable TV)
    • Public Safety / First Responders (Ambulance, Fire, Police)
    • Fleet Management & Taxi Cabs
    • Location Based Services & Fixed Site Telmatics
    • Pre-tested for use with Sierra Wireless GX400, GX440 & GX450 and Cradlepoint IBR950 & IBR1150, MC400, MC400lpe
    • **This unit is NOT for modems with WiFi.  For WiFi enabled modems, use G44WW-17SSSRR**

    Specifications BlueArrow Created with Sketch.

    antenna style Vehicular 3-in-1
    cable length ft 17
    color black
    compatible with Cradlepoint: IBR1150, IBR950, AER1650, AER2150, AER3150
    connector 1 SMA-Male (GPS)
    connector 2 SMA-Male (LTE 1)
    connector 3 SMA-Male (LTE 2)
    includes Rubber Gasket, Lock Washer & Split Hex Nut
    ip rating IP67
    lenght (in) 6.5
    material ABS Plastic / Polycarbonate
    mount style Through hole / direct roof mount (use 7/8" hole)
    operating temp (celsius) -40 to +85 C
    technology LTE + GPS
    thick (in) 3
    weight (lbs) 2.07
    width (in) 6
