RDANRA-24/71-SQM

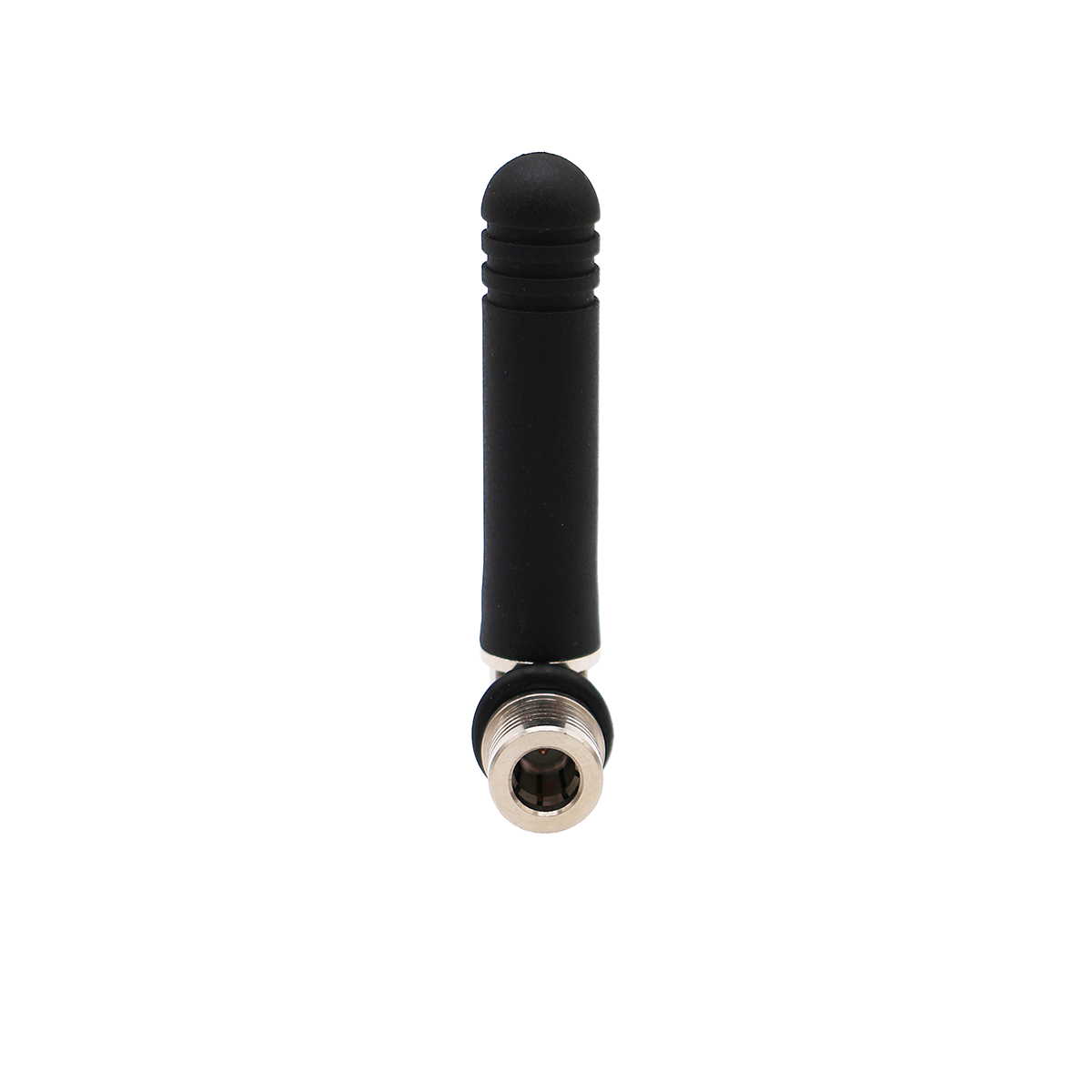

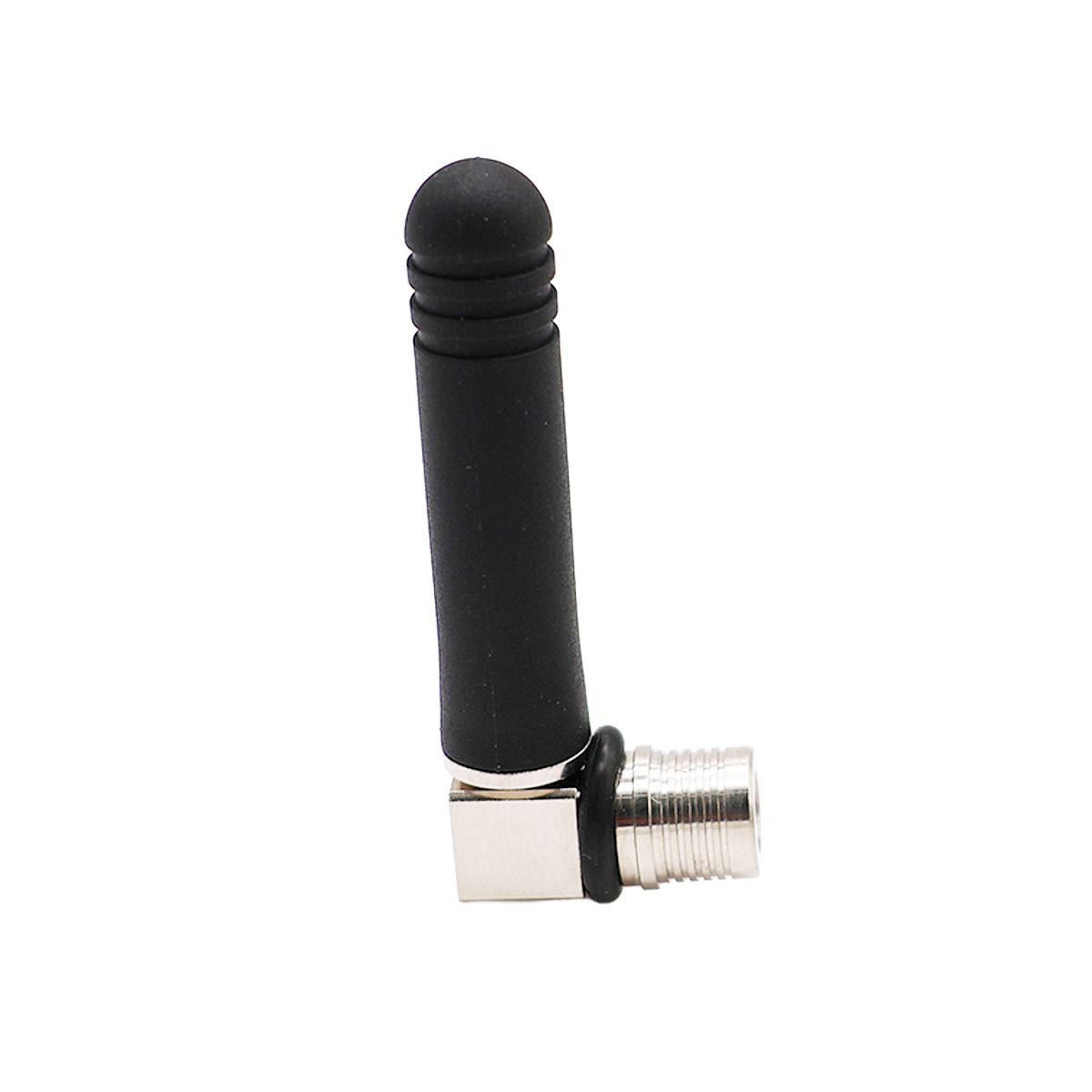

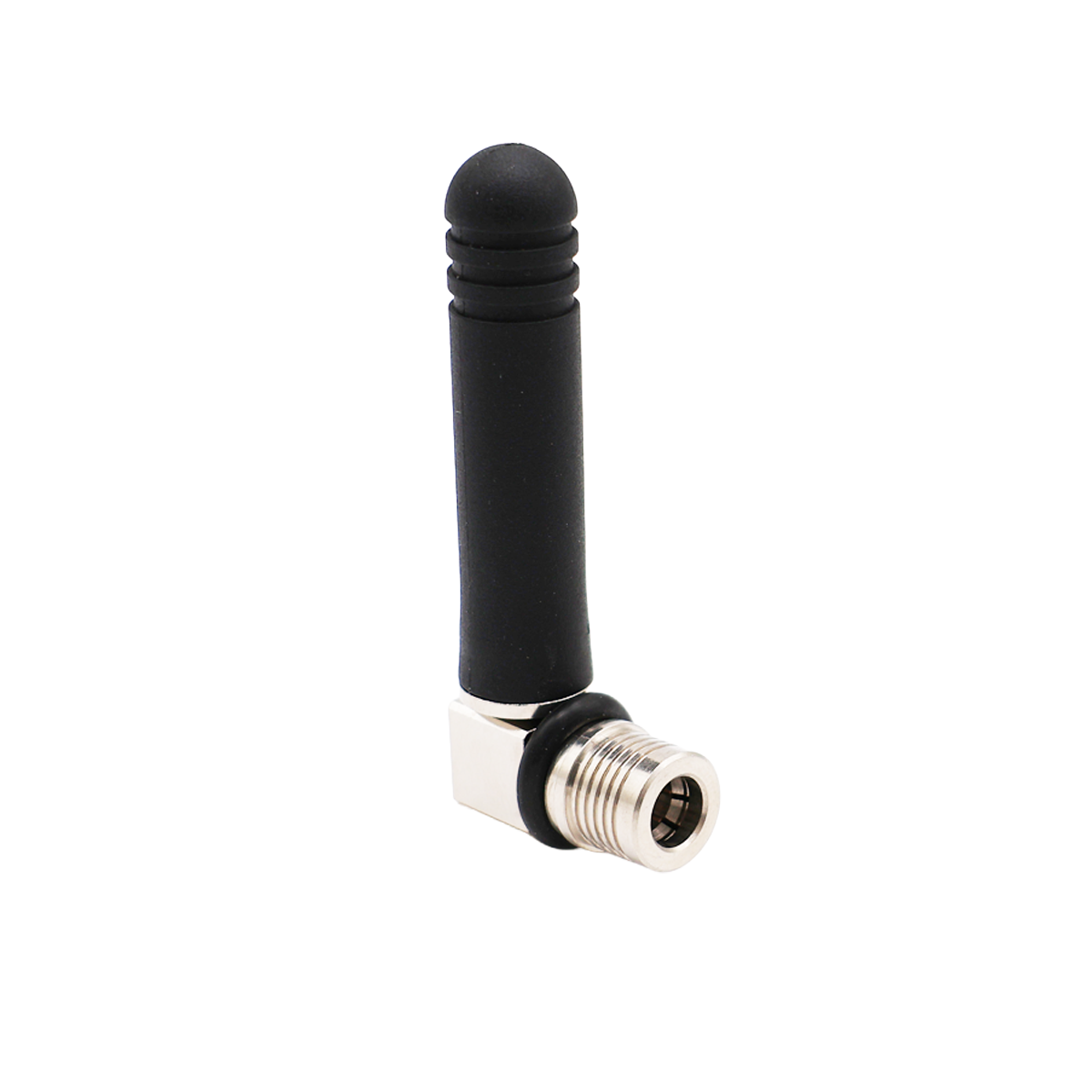

Fixed Right Angle WiFi Stubby Antenna for APX8500 Radio with QMA, 2.4-7.125 GHz
- This is a sleek, Fixed Right Angle high-performance dual-band WiFi-6E antenna with QMA Male connector
- This is Compatible with APX8500, APX7500, APX6500, APX4500
- this antenna offers faster speeds and reduced interference for over the air updates and configuration of the APX Radios
- Dual Band WiFi-6E Support; 2.4/5.0/7.125 GHz, 2-3 dBi Gain
Technical Specifications
| SKU | RDANRA-24/71-SQM |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | QMA Male |
| Directional or Omni | Omni Directional |
| Working Frequency | 2400-2500/4900-7125 MHz |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Gain | 3 dBi |
|---|---|
| Height/Length (inches) | 1.89 inches |
| Height/Length (mm) | 48mm |
| Operating Temp (celsius) | -40°C to + 75°C |
| VSWR: < X: 1 | <2.5:1 |
| Weight (grams) | 18g |
