RM1MWW10RRB

Fin Antenna for Zebra Forklift Vehicle Mounted Computer

  • Unit is out of stock
List Price: Regular price $125.00 $125.00
Fin Antenna for Zebra Forklift Vehicle Mounted Computer
Fin Antenna for Zebra Forklift Vehicle Mounted Computer
Fin Antenna for Zebra Forklift Vehicle Mounted Computer
Fin Antenna for Zebra Forklift Vehicle Mounted Computer
Grey_arrow@2x Created with Sketch.
Created with Sketch.
RM1MWW10RRB

Fin Antenna for Zebra Forklift Vehicle Mounted Computer

  • Unit is out of stock
List Price: Regular price $125.00 $125.00

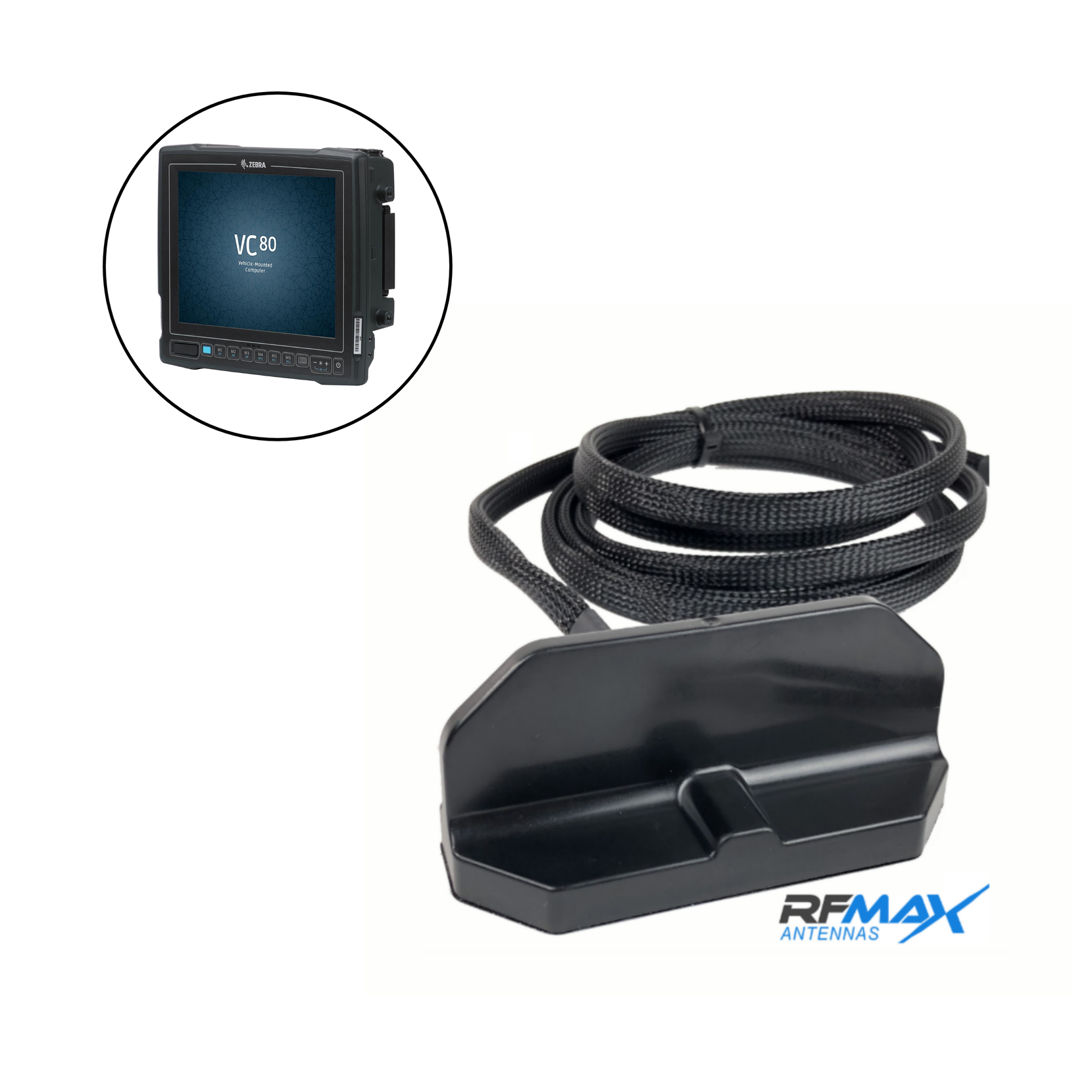

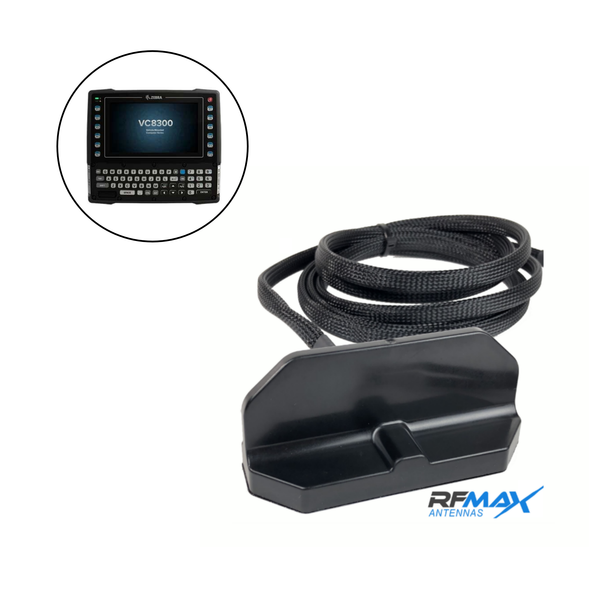

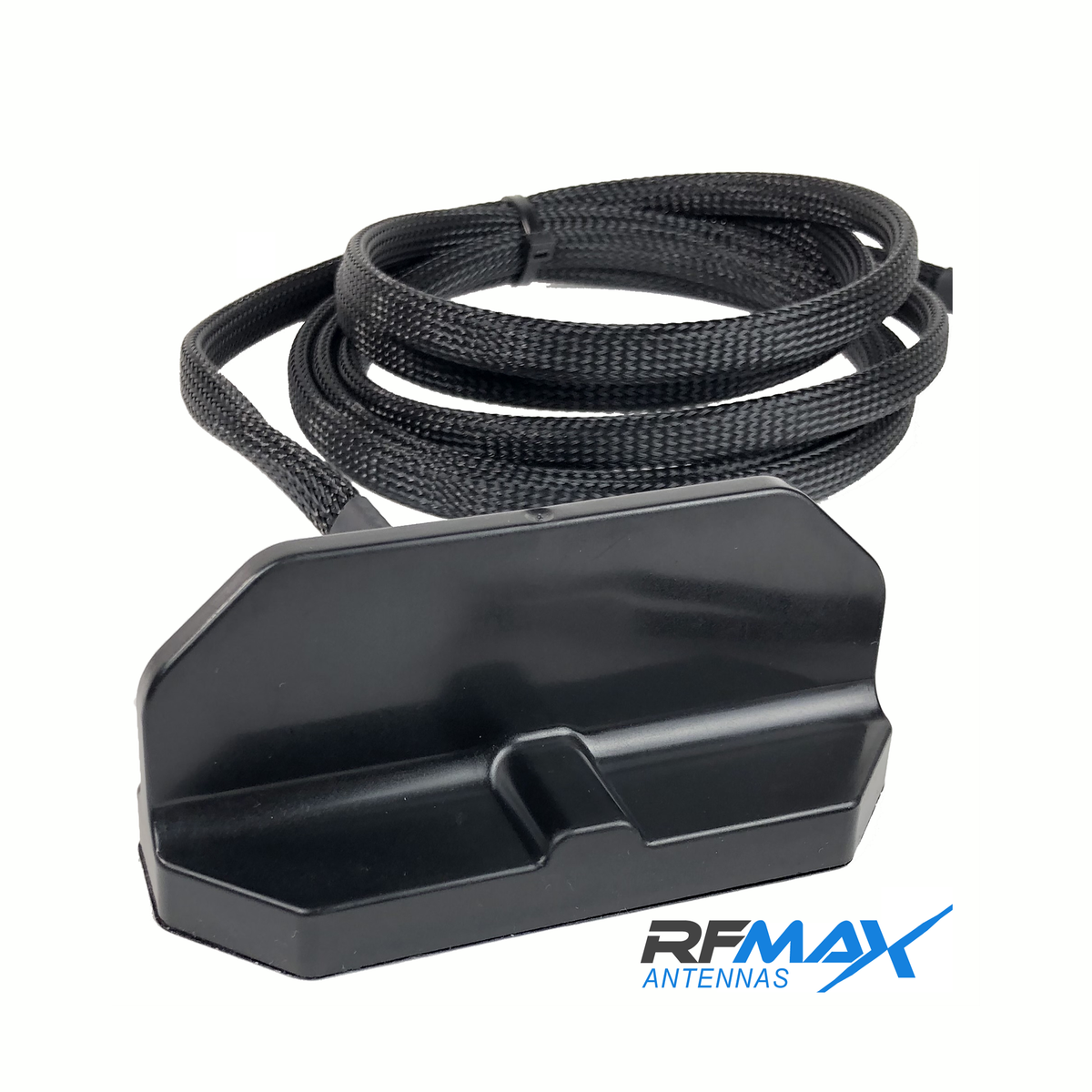

The RFMAX RM1M-WW-10-RR-B is a black, 2-in-1 MIMO WiFi, Magnetic Mount Antenna. This is optimized for use with Zebra Vehicle Mounted Computers. Includes 2 x 10 ft low-loss cables with RP SMA-Male connectors.

Optimized for Zebra's Rugged Vehicle Mounted Computers, this external antenna will magnetically mount to a forklift or other industrial vehicle. With an IP65 and MIL-STD-810F, the antenna can withstand indoor and outdoor conditions, including cold and freezer operations (-40 to +85C).

Applications:

  • Distribution and Logistics
  • Manufacturing and Warehouse Management
  • Cold and Freezer Storage (-40 to +85C)
  • Indoor/Outdoor
  • Automatic Identification and Data Capture (AIDC)

*Zebra Computers not included

Description BlueArrow Created with Sketch.

The RFMAX RM1M-WW-10-RR-B is a black, 2-in-1 MIMO WiFi, Magnetic Mount Antenna. This is optimized for use with Zebra Vehicle Mounted Computer. Includes 2 x 10 ft low-loss cables with RP SMA-Male connectors.

Features:

Frequency:  802.11 Dual Band WiFi (2.4 & 5 GHz) 802.11 A/B/G/N/AC.

Gain: 7 dBi @ 2.4 GHz & 5 dBi @ 5 GHz

Operating Temperature: Freezer Rated for -40 to +85C (-40 to +185F)

Environmental Rating: Indoor/Outdoor IP65 and MIL-STD-810F

Optimized for Zebra's Rugged Vehicle Mounted Computers, this external antenna will magnetically mount to a forklift or other industrial vehicle. With an IP65 and MIL-STD-810F, the antenna can withstand indoor and outdoor conditions, including cold and freezer operations. When fit to the Zebra rugged computer, warehousing, logistics, and distribution operations can be fully integrated into an Automatic Identification and Data Capture (AIDC) system.

Documents BlueArrow Created with Sketch.

Specifications BlueArrow Created with Sketch.

cable length 10 ft
connector 2 x RP SMA-Male
frequency 802.11 Dual Band WiFi (2.4 & 5 GHz) 802.11 A/B/G/N/AC
Gain 7 dBi @ 2.4 GHz & 5 dBi @ 5 GHz
material MIL-STD 810 ABS Plastic
mounting style Magnetic Mount
operating temperature Freezer Rated for -40 to +85C (-40 to +185F)
polarity Vertical
