R5WA-900-4-BCJ-B

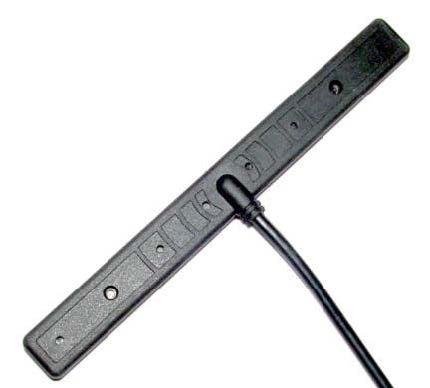

Covert Strip "Wedge" Antenna for ISM 900 MHz Remote Monitoring, Signal Blue FAKRA Jack (Code C)
- compact, adhesive-mount 800/900 MHz antenna engineered for high-performance wireless applications across the 824-960 MHz band
- 3 dBi peak gain, a rugged low-profile TPR housing, and a 4-foot RG-174 cable with Signal Blue FAKRA Jack (Code C)
- This IP67-rated antenna is ideal for 800 MHz trunking, 900 MHz ISM, remote monitoring, telematics, and covert installations
- Designed for reliable omni-directional coverage and easy 3M tape mounting, it delivers robust connectivity for industrial, IoT, fleet, and RF monitoring systems.
Technical Specifications
| SKU | R5WA-900-4-BCJ-B |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | Signal Blue Fakra Jack (Key Code C) |
| Directional or Omni | Omni Directional |
| Working Frequency | 824-960 MHz |
| Antenna Category | 900 MHz |
| Gain | 3 dBi |
| Height/Length (inches) | 4.09 |
| Height/Length (mm) | 104 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
|---|---|
| Material | TPR Overmold |
| Max Input Power (W) | 50W |
| Number of Cables | 1 |
| Operating Temp (celsius) | -20°C to +60°C |
| Thickness/Diameter (inches) | 0.2 |
| Thickness/Diameter (mm) | 5 (with mounting tape) |
| VSWR: < X: 1 | <1.5:1 Max |
| Width (inches) | 0.43 |
| Width (mm) | 11 |
